casa::ThreadController Class Reference

#include <ThreadController.h>

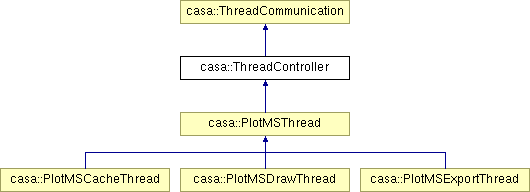

Inheritance diagram for casa::ThreadController:

List of all members.

Public Member Functions
	ThreadController (ProgressMonitor *progress, PMSPTMethod postThreadMethod=NULL, PMSPTObject postThreadObject=NULL)
	Constructor which takes the progress widget to use, and an optional post-thread method that should be called when the thread is finished.
virtual	~ThreadController ()
virtual void	setError (const String &errorMessage)
virtual void	setStatus (const String &status)
	Allows the cache to set the status.
virtual void	setProgress (unsigned int progress)
	Allows the cache to set the progress.
virtual void	finished ()
	Thread signals it is done.
virtual void	initializeProgress (const String &operationName)
	These signals are used to update the QtProgressWidget across different threads.
virtual void	setProgress (unsigned int progress, const String &status)
virtual void	finishProgress ()
virtual void	setAllowedOperations (bool background, bool pauseResume, bool cancel)
	Work classes can specify whether they support background operation, pause/resume, and cancelling.
virtual bool	wasCanceled () const
	Callback for classes doing the work to check whether they should cancel what they are doing or not.
void	setWorkThread (BackgroundThread *workThread)
virtual void	background ()
	For when the user requests "background" for the thread.
virtual void	pause ()
	For when the user requests "pause" for the thread.
virtual void	resume ()
	For when the user requests "resume" for the thread.
virtual void	cancel ()
	For when the user requests "cancel" for the thread.
virtual void	postThreadMethod ()
	Executes the post-thread method as needed.
bool	getResult () const
	Returns the result of the background operation.
String	getError () const
	Returns any error from the background operation.
bool	isErrorWarning () const
String	getErrorTitle () const
PlotMSPlot *	getPlot ()
Protected Member Functions
void	startThread ()
	Starts the thread.
Protected Attributes
volatile bool	wasCanceled_
	Flag for whether thread was canceled or not.
String	error
	Holds error messages.
String	errorTitle
bool	errorWarning
ProgressMonitor *	itsProgressWidget_
	Progress widget.
PMSPTMethod *	itsPostThreadMethod_
	Method/Object to run when thread is finished.
PMSPTObject	itsPostThreadObject_
Private Member Functions
	ThreadController (const ThreadController &controller)
ThreadController	operator= (const ThreadController &other)
Private Attributes
BackgroundThread *	bgThread

---

Detailed Description

Definition at line 44 of file ThreadController.h.

---

Constructor & Destructor Documentation

casa::ThreadController::ThreadController	(	ProgressMonitor *	progress,
		PMSPTMethod	postThreadMethod = NULL,
		PMSPTObject	postThreadObject = NULL
	)

Constructor which takes the progress widget to use, and an optional post-thread method that should be called when the thread is finished.

virtual casa::ThreadController::~ThreadController

(

)

[virtual]

casa::ThreadController::ThreadController

(

const ThreadController &

controller

)

[private]

---

Member Function Documentation

virtual void casa::ThreadController::background

(

)

[virtual]

For when the user requests "background" for the thread.

virtual void casa::ThreadController::cancel

(

)

[virtual]

For when the user requests "cancel" for the thread.

Reimplemented in casa::PlotMSDrawThread, and casa::PlotMSExportThread.

virtual void casa::ThreadController::finished

(

)

[virtual]

Thread signals it is done.

Implements casa::ThreadCommunication.

Reimplemented in casa::PlotMSThread.

virtual void casa::ThreadController::finishProgress

(

)

[virtual]

Implements casa::ThreadCommunication.

Reimplemented in casa::PlotMSThread.

String casa::ThreadController::getError

(

)

const

Returns any error from the background operation.

String casa::ThreadController::getErrorTitle

(

)

const

PlotMSPlot* casa::ThreadController::getPlot

(

)

bool casa::ThreadController::getResult

(

)

const

Returns the result of the background operation.

virtual void casa::ThreadController::initializeProgress

(

const String &

operationName

)

[virtual]

These signals are used to update the QtProgressWidget across different threads.

They shouldn't need to be used by other classes, even children.

Implements casa::ThreadCommunication.

Reimplemented in casa::PlotMSThread.

bool casa::ThreadController::isErrorWarning

(

)

const

ThreadController casa::ThreadController::operator=

(

const ThreadController &

other

)

[private]

Reimplemented in casa::PlotMSCacheThread, casa::PlotMSDrawThread, and casa::PlotMSExportThread.

virtual void casa::ThreadController::pause

(

)

[virtual]

For when the user requests "pause" for the thread.

virtual void casa::ThreadController::postThreadMethod

(

)

[virtual]

Executes the post-thread method as needed.

Does nothing if a post-thread method was not set in the constructor.

virtual void casa::ThreadController::resume

(

)

[virtual]

For when the user requests "resume" for the thread.

virtual void casa::ThreadController::setAllowedOperations	(	bool	background,
		bool	pauseResume,
		bool	cancel
	)			[virtual]

Work classes can specify whether they support background operation, pause/resume, and cancelling.

Implements casa::ThreadCommunication.

virtual void casa::ThreadController::setError

(

const String &

errorMessage

)

[virtual]

Implements casa::ThreadCommunication.

virtual void casa::ThreadController::setProgress	(	unsigned int	progress,
		const String &	status
	)			[virtual]

Implements casa::ThreadCommunication.

Reimplemented in casa::PlotMSThread.

virtual void casa::ThreadController::setProgress

(

unsigned int

progress

)

[virtual]

Allows the cache to set the progress.

Implements casa::ThreadCommunication.

Reimplemented in casa::PlotMSCacheThread.

virtual void casa::ThreadController::setStatus

(

const String &

status

)

[virtual]

Allows the cache to set the status.

Implements casa::ThreadCommunication.

Reimplemented in casa::PlotMSCacheThread.

void casa::ThreadController::setWorkThread

(

BackgroundThread *

workThread

)

void casa::ThreadController::startThread

(

)

[protected]

Starts the thread.

virtual bool casa::ThreadController::wasCanceled

(

)

const [virtual]

Callback for classes doing the work to check whether they should cancel what they are doing or not.

Implements casa::ThreadCommunication.

---

Member Data Documentation

BackgroundThread* casa::ThreadController::bgThread [private]

Definition at line 142 of file ThreadController.h.

String casa::ThreadController::error [protected]

Holds error messages.

Definition at line 122 of file ThreadController.h.

String casa::ThreadController::errorTitle [protected]

Definition at line 123 of file ThreadController.h.

bool casa::ThreadController::errorWarning [protected]

Definition at line 124 of file ThreadController.h.

PMSPTMethod* casa::ThreadController::itsPostThreadMethod_ [protected]

Method/Object to run when thread is finished.

Definition at line 133 of file ThreadController.h.

PMSPTObject casa::ThreadController::itsPostThreadObject_ [protected]

Definition at line 134 of file ThreadController.h.

ProgressMonitor* casa::ThreadController::itsProgressWidget_ [protected]

Progress widget.

Definition at line 129 of file ThreadController.h.

volatile bool casa::ThreadController::wasCanceled_ [protected]

Flag for whether thread was canceled or not.

Definition at line 119 of file ThreadController.h.

---

The documentation for this class was generated from the following file:

• code/plotms/Threads/ThreadController.h
