casa::ThreadCommunication Class Reference

Defines communication mechanisms that the model and data can use to communicate with the UI concerning progress and status. More...

#include <ThreadCommunication.h>

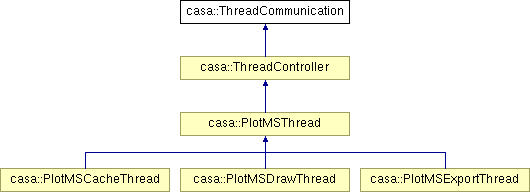

Inheritance diagram for casa::ThreadCommunication:
casa::ThreadController casa::PlotMSThread casa::PlotMSCacheThread casa::PlotMSDrawThread casa::PlotMSExportThread

List of all members.

Public Member Functions

virtual void initializeProgress (const String &operationName)=0
 These signals are used to update the QtProgressWidget across different threads.
virtual void setProgress (unsigned int progress, const String &status)=0
virtual void finishProgress ()=0
virtual void setProgress (unsigned int progress)=0
 Allows the cache to set the progress.
virtual void setStatus (const String &status)=0
 Allows the cache to set the status.
virtual void setError (const String &errorMessage)=0
virtual void setAllowedOperations (bool background, bool pauseResume, bool cancel)=0
virtual void finished ()=0
 Thread signals it is done.
virtual bool wasCanceled () const =0
 Enquire whether the thread was cancelled by the user.

Protected Member Functions

 ThreadCommunication ()
virtual ~ThreadCommunication ()

Detailed Description

Defines communication mechanisms that the model and data can use to communicate with the UI concerning progress and status.

Definition at line 38 of file ThreadCommunication.h.


Constructor & Destructor Documentation

casa::ThreadCommunication::ThreadCommunication (  )  [inline, protected]

Definition at line 67 of file ThreadCommunication.h.

virtual casa::ThreadCommunication::~ThreadCommunication (  )  [inline, protected, virtual]

Definition at line 68 of file ThreadCommunication.h.


Member Function Documentation

virtual void casa::ThreadCommunication::finished (  )  [pure virtual]

Thread signals it is done.

Implemented in casa::PlotMSThread, and casa::ThreadController.

virtual void casa::ThreadCommunication::finishProgress (  )  [pure virtual]
virtual void casa::ThreadCommunication::initializeProgress ( const String &  operationName  )  [pure virtual]

These signals are used to update the QtProgressWidget across different threads.

They shouldn't need to be used by other classes, even children.

Implemented in casa::PlotMSThread, and casa::ThreadController.

virtual void casa::ThreadCommunication::setAllowedOperations ( bool  background,
bool  pauseResume,
bool  cancel
) [pure virtual]

Implemented in casa::ThreadController.

virtual void casa::ThreadCommunication::setError ( const String &  errorMessage  )  [pure virtual]

Implemented in casa::ThreadController.

virtual void casa::ThreadCommunication::setProgress ( unsigned int  progress  )  [pure virtual]

Allows the cache to set the progress.

Implemented in casa::PlotMSCacheThread, and casa::ThreadController.

virtual void casa::ThreadCommunication::setProgress ( unsigned int  progress,
const String &  status
) [pure virtual]
virtual void casa::ThreadCommunication::setStatus ( const String &  status  )  [pure virtual]

Allows the cache to set the status.

Implemented in casa::PlotMSCacheThread, and casa::ThreadController.

virtual bool casa::ThreadCommunication::wasCanceled (  )  const [pure virtual]

Enquire whether the thread was cancelled by the user.

Implemented in casa::ThreadController.


The documentation for this class was generated from the following file:
