casa::SolvableVisJonesMCol Class Reference

SolvableVisJonesMCol: RW SolvableVisJones cal_main column access. More...

#include <SolvableVJMCol.h>

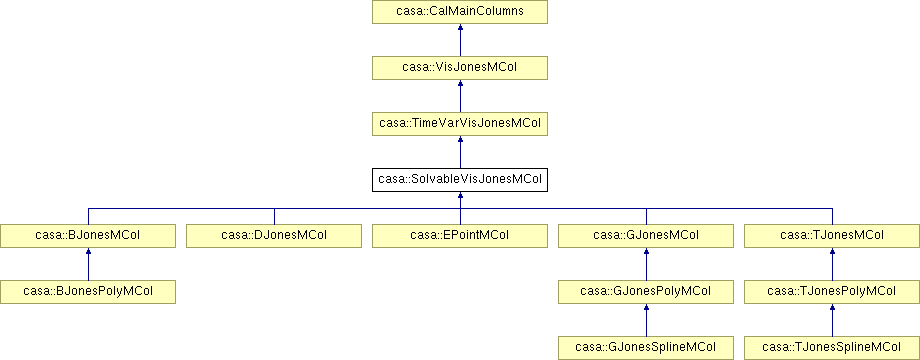

Inheritance diagram for casa::SolvableVisJonesMCol:

List of all members.

Public Member Functions
	SolvableVisJonesMCol (SolvableVisJonesTable &svjTable)
	Construct from a calibration table.
virtual	~SolvableVisJonesMCol ()
	Default destructor.
ScalarColumn< Bool > &	totalSolnOk ()
	Read-write column accessors.
ScalarColumn< Float > &	totalFit ()
ScalarColumn< Float > &	totalFitWgt ()
ArrayColumn< Bool > &	solnOk ()
ArrayColumn< Float > &	fit ()
ArrayColumn< Float > &	fitWgt ()
ArrayColumn< Bool > &	flag ()
ArrayColumn< Float > &	snr ()
Protected Member Functions
	SolvableVisJonesMCol ()
	Prohibit public use of the null constructor, which does not produce a usable object.
Private Member Functions
	SolvableVisJonesMCol (const SolvableVisJonesMCol &)
	Prohibit copy constructor and assignment operator.
SolvableVisJonesMCol &	operator= (const SolvableVisJonesMCol &)
Private Attributes
ScalarColumn< Bool >	totalSolnOk_p
	Private column accessors.
ScalarColumn< Float >	totalFit_p
ScalarColumn< Float >	totalFitWgt_p
ArrayColumn< Bool >	solnOk_p
ArrayColumn< Float >	fit_p
ArrayColumn< Float >	fitWgt_p
ArrayColumn< Bool >	flag_p
ArrayColumn< Float >	snr_p

---

Detailed Description

SolvableVisJonesMCol: RW SolvableVisJones cal_main column access.

Intended use:

Public interface

Prerequisite

• CalMainColumns module

Etymology

From "solvable visibility Jones","cal main table" and "columns".

Synopsis

The SolvableVisJonesMCol class allows read-write access to columns in the SolvableVisJones main calibration table. Specializations for individual solvable Jones matrix types (e.g. GJones) are provided through inheritance.

Example

Motivation

Encapsulate read-write access to SVJ calibration table columns.

Definition at line 147 of file SolvableVJMCol.h.

---

Constructor & Destructor Documentation

casa::SolvableVisJonesMCol::SolvableVisJonesMCol

(

SolvableVisJonesTable &

svjTable

)

Construct from a calibration table.

virtual casa::SolvableVisJonesMCol::~SolvableVisJonesMCol

(

)

[inline, virtual]

Default destructor.

Definition at line 154 of file SolvableVJMCol.h.

casa::SolvableVisJonesMCol::SolvableVisJonesMCol

(

)

[inline, protected]

Prohibit public use of the null constructor, which does not produce a usable object.

Definition at line 169 of file SolvableVJMCol.h.

casa::SolvableVisJonesMCol::SolvableVisJonesMCol

(

const SolvableVisJonesMCol &

)

[private]

Prohibit copy constructor and assignment operator.

---

Member Function Documentation

ArrayColumn<Float>& casa::SolvableVisJonesMCol::fit

(

)

[inline]

Definition at line 161 of file SolvableVJMCol.h.

References fit_p.

ArrayColumn<Float>& casa::SolvableVisJonesMCol::fitWgt

(

)

[inline]

Definition at line 162 of file SolvableVJMCol.h.

References fitWgt_p.

ArrayColumn<Bool>& casa::SolvableVisJonesMCol::flag

(

void

)

[inline]

Definition at line 163 of file SolvableVJMCol.h.

References flag_p.

SolvableVisJonesMCol& casa::SolvableVisJonesMCol::operator=

(

const SolvableVisJonesMCol &

)

[private]

Reimplemented from casa::TimeVarVisJonesMCol.

Reimplemented in casa::BJonesMCol, casa::BJonesPolyMCol, casa::EPointMCol, casa::GJonesPolyMCol, casa::GJonesSplineMCol, casa::GJonesMCol, casa::DJonesMCol, casa::TJonesMCol, casa::TJonesPolyMCol, and casa::TJonesSplineMCol.

ArrayColumn<Float>& casa::SolvableVisJonesMCol::snr

(

)

[inline]

Definition at line 164 of file SolvableVJMCol.h.

References snr_p.

ArrayColumn<Bool>& casa::SolvableVisJonesMCol::solnOk

(

)

[inline]

Definition at line 160 of file SolvableVJMCol.h.

References solnOk_p.

ScalarColumn<Float>& casa::SolvableVisJonesMCol::totalFit

(

)

[inline]

Definition at line 158 of file SolvableVJMCol.h.

References totalFit_p.

ScalarColumn<Float>& casa::SolvableVisJonesMCol::totalFitWgt

(

)

[inline]

Definition at line 159 of file SolvableVJMCol.h.

References totalFitWgt_p.

ScalarColumn<Bool>& casa::SolvableVisJonesMCol::totalSolnOk

(

)

[inline]

Read-write column accessors.

Definition at line 157 of file SolvableVJMCol.h.

References totalSolnOk_p.

---

Member Data Documentation

ArrayColumn<Float> casa::SolvableVisJonesMCol::fit_p [private]

Definition at line 181 of file SolvableVJMCol.h.

Referenced by fit().

ArrayColumn<Float> casa::SolvableVisJonesMCol::fitWgt_p [private]

Definition at line 182 of file SolvableVJMCol.h.

Referenced by fitWgt().

ArrayColumn<Bool> casa::SolvableVisJonesMCol::flag_p [private]

Definition at line 183 of file SolvableVJMCol.h.

Referenced by flag().

ArrayColumn<Float> casa::SolvableVisJonesMCol::snr_p [private]

Definition at line 184 of file SolvableVJMCol.h.

Referenced by snr().

ArrayColumn<Bool> casa::SolvableVisJonesMCol::solnOk_p [private]

Definition at line 180 of file SolvableVJMCol.h.

Referenced by solnOk().

ScalarColumn<Float> casa::SolvableVisJonesMCol::totalFit_p [private]

Definition at line 178 of file SolvableVJMCol.h.

Referenced by totalFit().

ScalarColumn<Float> casa::SolvableVisJonesMCol::totalFitWgt_p [private]

Definition at line 179 of file SolvableVJMCol.h.

Referenced by totalFitWgt().

ScalarColumn<Bool> casa::SolvableVisJonesMCol::totalSolnOk_p [private]

Private column accessors.

Definition at line 177 of file SolvableVJMCol.h.

Referenced by totalSolnOk().

---

The documentation for this class was generated from the following file:

• code/synthesis/CalTables/SolvableVJMCol.h
