casa::RegionTool Class Reference

#include <RegionTool.h>

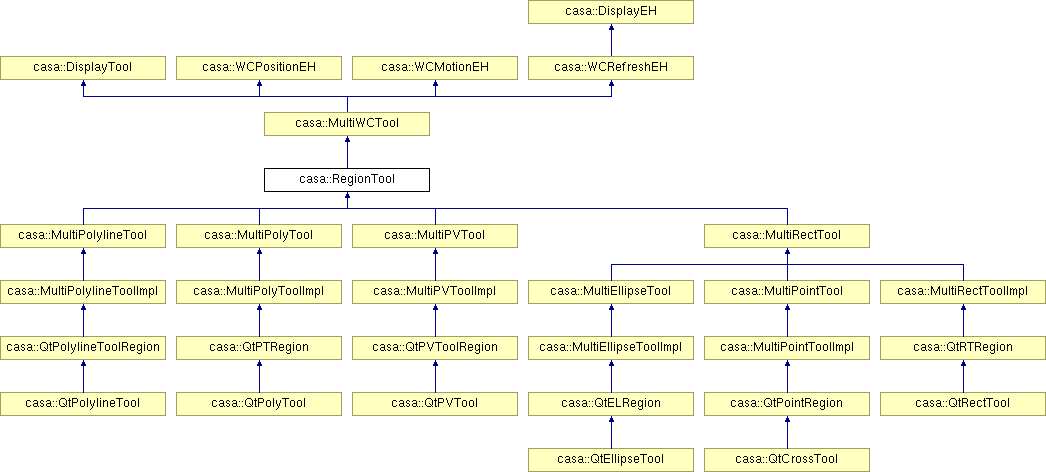

Inheritance diagram for casa::RegionTool:

Classes
class	State
Public Types
enum	RegionToolTypes { POLYTOOL, RECTTOOL, POINTTOOL, ELLIPSETOOL, POLYLINETOOL, PVLINETOOL }
typedef std::map < viewer::Region *, viewer::region::PointInfo >	region_map_type
Public Member Functions
	RegionTool (Display::KeySym keysym=Display::K_Pointer_Button1)
	Constructor taking the primary key to which this tool will respond.
	~RegionTool ()
void	keyPressed (const WCPositionEvent &ev)
	Functions called by the local event handling operators - by default they do nothing, so a derived class needs only implement the events it cares about.
void	keyReleased (const WCPositionEvent &)
void	otherKeyPressed (const WCPositionEvent &)
void	otherKeyReleased (const WCPositionEvent &)
void	moved (const WCMotionEvent &ev, const viewer::region::region_list_type &)
void	draw (const WCRefreshEvent &, const viewer::region::region_list_type &)
	Draw whatever should be drawn (if anything) on current WC.
virtual void	checkPoint (WorldCanvas *wc, State &state)=0
	this is a non-const function because a non-const RegionTool ptr is returned in 'state' which can then be used for setting the state of the regions managed by the various tools.
virtual bool	create (viewer::region::RegionTypes, WorldCanvas , const std::vector< std::pair< double, double > > &, const std::string &, viewer::region::TextPosition, const std::vector< int > &, const std::string &, int, int, const std::string &, const std::string &, viewer::region::LineStyle, unsigned int, bool, VOID )=0
	create regions of various types (e.g.
void	enable ()
	DISPLAY_PURE_VIRTUAL(RegionTool::create,true);.
void	disable ()
virtual RegionToolTypes	type () const =0
virtual void	revokeRegion (viewer::Region *)=0
	called when the user (read GUI user) indicates that a region should be deleted.

Detailed Description

Definition at line 39 of file RegionTool.h.

Member Typedef Documentation

typedef std::map<viewer::Region*,viewer::region::PointInfo> casa::RegionTool::region_map_type

Definition at line 41 of file RegionTool.h.

Member Enumeration Documentation

enum casa::RegionTool::RegionToolTypes

Enumerator:

POLYTOOL
RECTTOOL
POINTTOOL
ELLIPSETOOL
POLYLINETOOL
PVLINETOOL

Definition at line 43 of file RegionTool.h.

Constructor & Destructor Documentation

casa::RegionTool::RegionTool ( Display::KeySym keysym = Display::K_Pointer_Button1 ) [inline]

Constructor taking the primary key to which this tool will respond.

Definition at line 101 of file RegionTool.h.

casa::RegionTool::~RegionTool ( ) [inline]

Definition at line 102 of file RegionTool.h.

Member Function Documentation

virtual void casa::RegionTool::checkPoint	(	WorldCanvas *	wc,
		State &	state
	)			`[pure virtual]`

this is a non-const function because a non-const RegionTool ptr is returned in 'state' which can then be used for setting the state of the regions managed by the various tools.

..\.

Implemented in casa::MultiPolylineTool, casa::MultiPolyTool, casa::MultiPVTool, and casa::MultiRectTool.

virtual bool casa::RegionTool::create	(	viewer::region::RegionTypes	,
		WorldCanvas *	,
		const std::vector< std::pair< double, double > > &	,
		const std::string &	,
		viewer::region::TextPosition	,
		const std::vector< int > &	,
		const std::string &	,
		int	,
		int	,
		const std::string &	,
		const std::string &	,
		viewer::region::LineStyle	,
		unsigned	int,
		bool	,
		VOID *
	)			`[pure virtual]`

create regions of various types (e.g.

point, rect, poly, etc.). For use when loading casa region files..\.

Implemented in casa::MultiPolylineTool, casa::MultiPolyTool, casa::MultiPVTool, and casa::MultiRectTool.

void casa::RegionTool::disable ( ) [inline, virtual]

Reimplemented from casa::MultiWCTool.

Reimplemented in casa::MultiPolylineTool, casa::MultiPolyTool, casa::MultiPVTool, and casa::MultiRectTool.

Definition at line 128 of file RegionTool.h.

void casa::RegionTool::draw	(	const WCRefreshEvent &	,
		const viewer::region::region_list_type &
	)			`[virtual]`

Draw whatever should be drawn (if anything) on current WC.

Should only be called by refresh event handler.

Reimplemented from casa::MultiWCTool.

Reimplemented in casa::MultiPolylineTool, casa::MultiPolyTool, casa::MultiPVTool, and casa::MultiRectTool.

void casa::RegionTool::enable ( ) [inline, virtual]

DISPLAY_PURE_VIRTUAL(RegionTool::create,true);.

defeat the registering/unregistering done by MultiWCTool (because polygon regions stop working because they see a double-click from both the RegionToolManager and MultiWCTool)..\.

Reimplemented from casa::MultiWCTool.

Definition at line 127 of file RegionTool.h.

void casa::RegionTool::keyPressed ( const WCPositionEvent & ) [virtual]

Functions called by the local event handling operators - by default they do nothing, so a derived class needs only implement the events it cares about.

Reimplemented from casa::MultiWCTool.

Reimplemented in casa::MultiPolylineTool, casa::MultiPolyTool, casa::MultiPVTool, and casa::MultiRectTool.

void casa::RegionTool::keyReleased ( const WCPositionEvent & ) [virtual]

Reimplemented from casa::MultiWCTool.

Reimplemented in casa::MultiPolylineTool, casa::MultiPolyTool, casa::MultiPVTool, and casa::MultiRectTool.
