casa::MultiPolylineTool Class Reference

Base class for WorldCanvas event-based polyline tools. More...

#include <MultiPolylineTool.h>

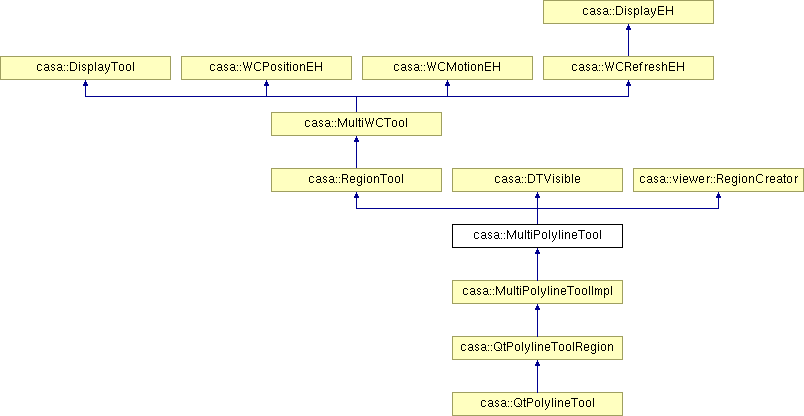

Inheritance diagram for casa::MultiPolylineTool:
casa::RegionTool casa::DTVisible casa::viewer::RegionCreator casa::MultiWCTool casa::DisplayTool casa::WCPositionEH casa::WCMotionEH casa::WCRefreshEH casa::DisplayEH casa::MultiPolylineToolImpl casa::QtPolylineToolRegion casa::QtPolylineTool

List of all members.

Public Member Functions

 MultiPolylineTool (viewer::RegionSourceFactory *rsf, PanelDisplay *pd, Display::KeySym keysym=Display::K_Pointer_Button1, const Bool persistent=False)
 Constructor.
virtual ~MultiPolylineTool ()
 Destructor.
virtual void disable ()
 Switch the tool off - this calls the base class disable, and then erases the polyline if it's around.
virtual void reset (Bool skipRefresh=False)
 reset to non-existent, non-active polyline.
virtual Bool polylineDefined ()
 Is a polyline currently defined?
viewer::RegionSourcegetRegionSource ()
void checkPoint (WorldCanvas *wc, State &state)
 this is a non-const function because a non-const RegionTool ptr is returned in 'state' which can then be used for setting the state of the regions managed by the various tools.
void revokeRegion (viewer::Region *)
 called when the user (read GUI user) indicates that a region should be deleted.
const std::set
< viewer::region::RegionTypes > &
regionsCreated () const
 returns a set which indicates regions this creator creates.
bool create (viewer::region::RegionTypes, WorldCanvas *, const std::vector< std::pair< double, double > > &, const std::string &, viewer::region::TextPosition, const std::vector< int > &, const std::string &, int, int, const std::string &, const std::string &, viewer::region::LineStyle, unsigned int, bool, VOID *)
 create regions of various types (e.g.
RegionToolTypes type () const

Protected Member Functions

virtual void keyPressed (const WCPositionEvent &)
 Functions called by the base class event handling operators--and normally only those.
virtual void moved (const WCMotionEvent &, const viewer::region::region_list_type &)
virtual void keyReleased (const WCPositionEvent &)
virtual void otherKeyPressed (const WCPositionEvent &)
virtual void draw (const WCRefreshEvent &, const viewer::region::region_list_type &)
 draw the polyline (if any) on the object's currently active WC.
virtual void doubleInside ()
 Output callback functions--to be overridden in derived class as needed.
virtual void doubleOutside ()
virtual void polylineReady ()
 Function called when a polyline is ready and not being edited.
virtual void get (Vector< Int > &x, Vector< Int > &y) const
 Retrieve polyline vertices, or a single vertex, in screen pixels.
virtual void get (Int &x, Int &y, const Int pt) const
virtual bool checkType (viewer::region::RegionTypes t)

Private Types

enum  AdjustMode {
  Off,
  Def,
  Ready,
  Move,
  Resize
}


state of the polyline tool

More...
typedef std::list< SHARED_PTR
< viewer::Polyline > >
polylinelist

Private Member Functions

void start_new_polyline (WorldCanvas *, int x, int y)
virtual void set (const Vector< Int > &x, const Vector< Int > &y)
 Set the polyline vertices.
virtual void set (const Int x, const Int y, const Int pt)
 replace a single vertex.
void pushPoint (Int x1, Int y1)
 push/pop last vertex
void popPoint ()
Bool inPolyline (const Int &x, const Int &y) const
 are we inside the polyline?
Bool inHandle (const Int &pt, const Int &x, const Int &y) const
 are we within the specified handle?

Private Attributes

SHARED_PTR< viewer::Polylineresizing_region
SHARED_PTR< viewer::Polylinecreating_region
Bool itsPolylinePersistent
 should the polyline remain on screen after double clicks?
MultiPolylineTool::AdjustMode itsMode
Bool itsEmitted
 set True on double-click, if the polyline is persistent.
Int itsNPoints
 Number of points.
Vector< Double > itsX
 Polyline points (linear).
Vector< Double > itsY
Int itsX1
 pixel coordinates of the pan vector.
Int itsY1
Int itsX2
Int itsY2
Int itsX3
Int itsY3
Int itsHandleSize
 size in pixels of the handles
Int itsSelectedHandle
 vertex being moved
Int itsBaseMoveX
 position that move started from
Int itsBaseMoveY
int resizing_region_handle
 may not be needed.
polylinelist moving_regions
double moving_linx_
double moving_liny_
SHARED_PTR< viewer::Polylinebuilding_polyline
viewer::RegionSourcerfactory
polylinelist polylines
PanelDisplaypd_

Detailed Description

Base class for WorldCanvas event-based polyline tools.

Intended use:

Public interface

Review Status

Date Reviewed:
yyyy/mm/dd

<prerequisites> (see ())WCTool </prerequisites>

Etymology

MultiPolylineTool stands for Multi-WorldCanvas Polyline Tool

Synopsis

This class adds to its base MWCTool to provide a tool for drawing, reshaping and moving polylines on a WorldCanvas. While MultiPolylineTool is not abstract, it performs no useful function. The programmer should derive from this class and override the functions doubleInside and doubleOutside at the very least. These are called when the user double-clicks a particular key or mouse button inside or outside an existing polyline respectively. It is up to the programmer to decide what these events mean, but it is recommended that an internal double- click correspond to the main action of the tool, eg. emitting the polyline vertices to the application, and that an external double-click correspond to a secondary action of the tool, if indeed there are additional actions suitable to the tool.

The polyline is drawn by clicking at each of the vertices, and clicking again on the last or first vertex to complete the polyline. Once drawn, the vertices can be moved by dragging their handles, and the entire polyline relocated by dragging inside the polyline. The polyline is removed from the display when the Esc key is pressed.

Example

Definition at line 82 of file MultiPolylineTool.h.


Member Typedef Documentation

typedef std::list<SHARED_PTR<viewer::Polyline> > casa::MultiPolylineTool::polylinelist [private]

Definition at line 172 of file MultiPolylineTool.h.


Member Enumeration Documentation

state of the polyline tool

Enumerator:
Off
Def
Ready
Move
Resize

Definition at line 202 of file MultiPolylineTool.h.


Constructor & Destructor Documentation

casa::MultiPolylineTool::MultiPolylineTool ( viewer::RegionSourceFactory rsf,
PanelDisplay pd,
Display::KeySym  keysym = Display::K_Pointer_Button1,
const Bool  persistent = False
)

Constructor.

virtual casa::MultiPolylineTool::~MultiPolylineTool (  )  [virtual]

Destructor.


Member Function Documentation

void casa::MultiPolylineTool::checkPoint ( WorldCanvas wc,
State state
) [virtual]

this is a non-const function because a non-const RegionTool ptr is returned in 'state' which can then be used for setting the state of the regions managed by the various tools.

..\.

Implements casa::RegionTool.

virtual bool casa::MultiPolylineTool::checkType ( viewer::region::RegionTypes  t  )  [inline, protected, virtual]

Definition at line 167 of file MultiPolylineTool.h.

References casa::viewer::region::PolylineRegion.

bool casa::MultiPolylineTool::create ( viewer::region::RegionTypes  ,
WorldCanvas ,
const std::vector< std::pair< double, double > > &  ,
const std::string &  ,
viewer::region::TextPosition  ,
const std::vector< int > &  ,
const std::string &  ,
int  ,
int  ,
const std::string &  ,
const std::string &  ,
viewer::region::LineStyle  ,
unsigned  int,
bool  ,
VOID
) [virtual]

create regions of various types (e.g.

point, rect, poly, etc.). For use when loading casa region files..\.

Implements casa::RegionTool.

virtual void casa::MultiPolylineTool::disable (  )  [virtual]

Switch the tool off - this calls the base class disable, and then erases the polyline if it's around.

Reimplemented from casa::RegionTool.

virtual void casa::MultiPolylineTool::doubleInside (  )  [inline, protected, virtual]

Output callback functions--to be overridden in derived class as needed.

Called when there is a double click inside/outside the polyline

Reimplemented in casa::MultiPolylineToolImpl.

Definition at line 151 of file MultiPolylineTool.h.

virtual void casa::MultiPolylineTool::doubleOutside (  )  [inline, protected, virtual]

Definition at line 152 of file MultiPolylineTool.h.

virtual void casa::MultiPolylineTool::draw ( const WCRefreshEvent ,
const viewer::region::region_list_type
) [protected, virtual]

draw the polyline (if any) on the object's currently active WC.

Only to be called by the base class refresh event handler. Derived objects should use refresh() if they need to redraw, but even that is normally handled automatically by this class.

Reimplemented from casa::RegionTool.

virtual void casa::MultiPolylineTool::get ( Int &  x,
Int &  y,
const Int  pt
) const [protected, virtual]
virtual void casa::MultiPolylineTool::get ( Vector< Int > &  x,
Vector< Int > &  y
) const [protected, virtual]

Retrieve polyline vertices, or a single vertex, in screen pixels.

Valid results during the callback functions; to be used by them, as well as internally.

viewer::RegionSource* casa::MultiPolylineTool::getRegionSource (  )  [inline]

Definition at line 107 of file MultiPolylineTool.h.

References rfactory.

Bool casa::MultiPolylineTool::inHandle ( const Int &  pt,
const Int &  x,
const Int &  y
) const [private]

are we within the specified handle?

Bool casa::MultiPolylineTool::inPolyline ( const Int &  x,
const Int &  y
) const [private]

are we inside the polyline?

virtual void casa::MultiPolylineTool::keyPressed ( const WCPositionEvent  )  [protected, virtual]

Functions called by the base class event handling operators--and normally only those.

This is the input that controls the polyline's appearance and action. When the polyline is ready and double-click is received, the doubleInside/Outside routine is invoked.

Reimplemented from casa::RegionTool.

virtual void casa::MultiPolylineTool::keyReleased ( const WCPositionEvent  )  [protected, virtual]

Reimplemented from casa::RegionTool.

virtual void casa::MultiPolylineTool::moved ( const WCMotionEvent ,
const viewer::region::region_list_type
) [protected, virtual]

Reimplemented from casa::RegionTool.

virtual void casa::MultiPolylineTool::otherKeyPressed ( const WCPositionEvent  )  [protected, virtual]

Reimplemented from casa::RegionTool.

virtual Bool casa::MultiPolylineTool::polylineDefined (  )  [inline, virtual]

Is a polyline currently defined?

Definition at line 103 of file MultiPolylineTool.h.

References itsMode, and Ready.

virtual void casa::MultiPolylineTool::polylineReady (  )  [inline, protected, virtual]

Function called when a polyline is ready and not being edited.

(Unused so far on the glish level (12/01)).

Reimplemented in casa::QtPolylineToolRegion.

Definition at line 157 of file MultiPolylineTool.h.

void casa::MultiPolylineTool::popPoint (  )  [private]
void casa::MultiPolylineTool::pushPoint ( Int  x1,
Int  y1
) [private]

push/pop last vertex

const std::set<viewer::region::RegionTypes>& casa::MultiPolylineTool::regionsCreated (  )  const [virtual]

returns a set which indicates regions this creator creates.

.\.

Implements casa::viewer::RegionCreator.

virtual void casa::MultiPolylineTool::reset ( Bool  skipRefresh = False  )  [virtual]

reset to non-existent, non-active polyline.

Refreshes if necessary to erase (unless skipRefresh==True). (Does not unregister from WCs or disable future event handling).

Reimplemented from casa::MultiWCTool.

void casa::MultiPolylineTool::revokeRegion ( viewer::Region  )  [virtual]

called when the user (read GUI user) indicates that a region should be deleted.

.\.

Implements casa::RegionTool.

virtual void casa::MultiPolylineTool::set ( const Int  x,
const Int  y,
const Int  pt
) [private, virtual]

replace a single vertex.

virtual void casa::MultiPolylineTool::set ( const Vector< Int > &  x,
const Vector< Int > &  y
) [private, virtual]

Set the polyline vertices.

itsNPoints should already be set, and x and y must contain (at least) this many points.

void casa::MultiPolylineTool::start_new_polyline ( WorldCanvas ,
int  x,
int  y
) [private]
RegionToolTypes casa::MultiPolylineTool::type (  )  const [inline, virtual]

Implements casa::RegionTool.

Definition at line 125 of file MultiPolylineTool.h.

References casa::RegionTool::POLYLINETOOL.


Member Data Documentation

Definition at line 244 of file MultiPolylineTool.h.

Definition at line 183 of file MultiPolylineTool.h.

position that move started from

Definition at line 235 of file MultiPolylineTool.h.

Definition at line 235 of file MultiPolylineTool.h.

set True on double-click, if the polyline is persistent.

set False when the polyline is moved, resized or reset. If True, a click outside the polyline will erase it and begin definition of a new one.

Definition at line 215 of file MultiPolylineTool.h.

size in pixels of the handles

Definition at line 229 of file MultiPolylineTool.h.

Definition at line 209 of file MultiPolylineTool.h.

Referenced by polylineDefined().

Number of points.

Definition at line 218 of file MultiPolylineTool.h.

should the polyline remain on screen after double clicks?

Definition at line 199 of file MultiPolylineTool.h.

vertex being moved

Definition at line 232 of file MultiPolylineTool.h.

Vector<Double> casa::MultiPolylineTool::itsX [private]

Polyline points (linear).

Not to be used directly. use get, set, push, pop instead, which take pixel coordinate arguments. It's done this way so that zooms work on the figures.

Definition at line 223 of file MultiPolylineTool.h.

pixel coordinates of the pan vector.

1 = anchor, 2 = new position.

Definition at line 225 of file MultiPolylineTool.h.

Definition at line 225 of file MultiPolylineTool.h.

Definition at line 225 of file MultiPolylineTool.h.

Vector<Double> casa::MultiPolylineTool::itsY [private]

Definition at line 223 of file MultiPolylineTool.h.

Definition at line 225 of file MultiPolylineTool.h.

Definition at line 225 of file MultiPolylineTool.h.

Definition at line 225 of file MultiPolylineTool.h.

Definition at line 241 of file MultiPolylineTool.h.

Definition at line 242 of file MultiPolylineTool.h.

Definition at line 240 of file MultiPolylineTool.h.

Reimplemented in casa::QtPolylineToolRegion.

Definition at line 247 of file MultiPolylineTool.h.

Definition at line 246 of file MultiPolylineTool.h.

Definition at line 182 of file MultiPolylineTool.h.

may not be needed.

.\.

Definition at line 238 of file MultiPolylineTool.h.

Definition at line 245 of file MultiPolylineTool.h.

Referenced by getRegionSource().


The documentation for this class was generated from the following file:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines

Generated on 31 Aug 2016 for casa by  doxygen 1.6.1
