casa::RSPolygon Class Reference

Subclass of RegionShape used for drawing polygons. More...

#include <RegionShapes.h>

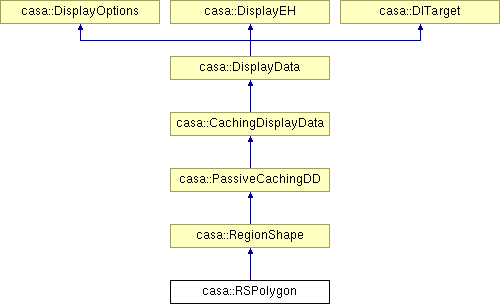

Inheritance diagram for casa::RSPolygon:

Public Member Functions
	RSPolygon (const Vector< double > &x, const Vector< double > &y, MDirection::Types worldSystem, String custName="")
	Non-Static Members //.
	RSPolygon (const Vector< double > &x, const Vector< double > &y, String custName="")
	Pixel Constructor.
	RSPolygon (const RecordInterface &properties)
	Record Constructor.
	~RSPolygon ()
	Destructor.
void	setPolygonCoordinates (const Vector< double > &x, const Vector< double > &y)
	Sets the polygon coordinates to the given.
bool	drawAndUpdateBoundingBox (WorldCanvasHolder &wch, String *err=NULL)
	Implements RegionShape::drawAndUpdateBoundingBox.
String	type () const
	Implements RegionShape::type.
String	oneWordType () const
	Overrides RegionShape::oneWordType.
void	getPolygonCoordinates (double &centerX, double &centerY, String toSystem="") const
	Gets polygon-specific coordinates, to avoid dependence on coordParameterValues() when the shape type is known.
void	getPolygonCoordinates (vector< double > &x, vector< double > &y, String toSystem="") const
	Gets actual polygon coordinates.
vector< double >	coordParameterValues () const
	Implements RegionShape::coordParameterValues.
vector< double >	coordParameterValues (String toSystem) const
	Implements RegionShape::coordParameterValues.
vector< String >	coordParameterNames () const
	Implements RegionShape::coordParameterNames.
vector< CoordinateParameterType >	coordParameterTypes () const
	Implements RegionShape::coordParameterPositions.
void	setCoordParameters (const vector< double > &vals)
	Implements RegionShape::setCoordParameters.
void	setCoordParameters (const vector< double > &vals, String valSystem)
	Implements RegionShape::setCoordParameters.
void	move (double dx, double dy, String system="")
	Implements RegionShape::move.
RSHandle	getHandle () const
	Implements RegionShape::getHandle.
vector< String >	optionNames () const
	Implements RegionShape::optionNames.
vector< OptionType >	optionTypes () const
	Implements RegionShape::optionTypes.
vector< RSOption >	optionValues () const
	Implements RegionShape::optionValues.
void	setOptionValues (const vector< RSOption > &options)
	Implements RegionShape::setOptions.
Static Public Attributes
static const String	PROPXCOORDINATES
	Static Members //.
static const String	PROPYCOORDINATES
Protected Member Functions
void	getShapeSpecificProperties (Record &properties) const
	Implements RegionShape::getShapeSpecificProperties.
void	setShapeSpecificProperties (const RecordInterface &properties)
	Implements RegionShape::setShapeSpecificProperties.
bool	updateScreenCoordinates (WorldCanvasHolder &wch, String *err)
	Updates screen coords using world/pixel coords and the given WorldCanvas.
void	updateMinMax ()
	Update m_xMin, m_xMax, m_yMin, and m_yMax.
Protected Attributes
Vector< Double >	m_x
Vector< Double >	m_y
double	m_centerX
double	m_centerY
Vector< Double >	m_screenX
Vector< Double >	m_screenY
unsigned int	m_n
String	m_custName

Detailed Description

Subclass of RegionShape used for drawing polygons.

A polygon has the following properties in addition to those listed for RegionShape:

list of x and y coordinates
optional custom name

The following properties are also available:

RSPolygon::PROPXCOORDINATES (Array<double>): vertices x values. NOT STRICTLY REQUIRED, BUT A VALID POLYGON HAS AT LEAST TWO VERTICES.
RSPolygon::PROPYCOORDINATES (Array<double>): vertices y values. NOT STRICTLY REQUIRED, BUT A VALID POLYGON HAS AT LEAST TWO VERTICES.

Definition at line 329 of file RegionShapes.h.

Constructor & Destructor Documentation

casa::RSPolygon::RSPolygon	(	const Vector< double > &	x,
		const Vector< double > &	y,
		MDirection::Types	worldSystem,
		String	custName = `""`
	)

Non-Static Members //.

World Constructor. x and y must both be 1) using the same world system as defined by worldSystem, and 2) in unit RegionShape::UNIT. A custom name can be provided to be returned with RSPolygon::type().

casa::RSPolygon::RSPolygon	(	const Vector< double > &	x,
		const Vector< double > &	y,
		String	custName = `""`
	)

Pixel Constructor.

casa::RSPolygon::RSPolygon ( const RecordInterface & properties )

Record Constructor.

casa::RSPolygon::~RSPolygon ( )

Destructor.

Member Function Documentation

vector<String> casa::RSPolygon::coordParameterNames ( ) const [virtual]

Implements RegionShape::coordParameterNames.

Implements casa::RegionShape.

vector<CoordinateParameterType> casa::RSPolygon::coordParameterTypes ( ) const [virtual]

Implements RegionShape::coordParameterPositions.

Implements casa::RegionShape.

vector<double> casa::RSPolygon::coordParameterValues ( String toSystem ) const [virtual]

Implements RegionShape::coordParameterValues.

Implements casa::RegionShape.

vector<double> casa::RSPolygon::coordParameterValues ( ) const [virtual]

Implements RegionShape::coordParameterValues.

Implements casa::RegionShape.

bool casa::RSPolygon::drawAndUpdateBoundingBox	(	WorldCanvasHolder &	wch,
		String *	err = `NULL`
	)			`[virtual]`

Implements RegionShape::drawAndUpdateBoundingBox.

Implements casa::RegionShape.

RSHandle casa::RSPolygon::getHandle ( ) const [virtual]

Implements RegionShape::getHandle.

Implements casa::RegionShape.

void casa::RSPolygon::getPolygonCoordinates	(	vector< double > &	x,
		vector< double > &	y,
		String	toSystem = `""`
	)			const

Gets actual polygon coordinates.

If toSystem is empty, no conversion is done; otherwise see the constraints listed in RegionShape::coordParameterValues(String).

void casa::RSPolygon::getPolygonCoordinates	(	double &	centerX,
		double &	centerY,
		String	toSystem = `""`
	)			const

Gets polygon-specific coordinates, to avoid dependence on coordParameterValues() when the shape type is known.

If toSystem is empty, no conversion is done; otherwise see the constraints listed in RegionShape::coordParameterValues(String).

void casa::RSPolygon::getShapeSpecificProperties ( Record & properties ) const [protected, virtual]

Implements RegionShape::getShapeSpecificProperties.

Implements casa::RegionShape.

void casa::RSPolygon::move	(	double	dx,
		double	dy,
		String	system = `""`
	)			`[virtual]`

Implements RegionShape::move.

Implements casa::RegionShape.

String casa::RSPolygon::oneWordType ( ) const [inline, virtual]

Overrides RegionShape::oneWordType.

Reimplemented from casa::RegionShape.

Definition at line 372 of file RegionShapes.h.

vector<String> casa::RSPolygon::optionNames ( ) const [virtual]

Implements RegionShape::optionNames.

Implements casa::RegionShape.

vector<OptionType> casa::RSPolygon::optionTypes ( ) const [virtual]

Implements RegionShape::optionTypes.

Implements casa::RegionShape.

vector<RSOption> casa::RSPolygon::optionValues ( ) const [virtual]

Implements RegionShape::optionValues.

Implements casa::RegionShape.

void casa::RSPolygon::setCoordParameters	(	const vector< double > &	vals,
		String	valSystem
	)			`[virtual]`

Implements RegionShape::setCoordParameters.

Implements casa::RegionShape.

void casa::RSPolygon::setCoordParameters ( const vector< double > & vals ) [virtual]

Implements RegionShape::setCoordParameters.

Implements casa::RegionShape.

void casa::RSPolygon::setOptionValues ( const vector< RSOption > & options ) [virtual]

Implements RegionShape::setOptions.

Implements casa::RegionShape.

void casa::RSPolygon::setPolygonCoordinates	(	const Vector< double > &	x,
		const Vector< double > &	y
	)

Sets the polygon coordinates to the given.

void casa::RSPolygon::setShapeSpecificProperties ( const RecordInterface & properties ) [protected, virtual]

Implements RegionShape::setShapeSpecificProperties.

Implements casa::RegionShape.

String casa::RSPolygon::type ( ) const [inline, virtual]

Implements RegionShape::type.

Implements casa::RegionShape.

Definition at line 366 of file RegionShapes.h.

References m_custName.

void casa::RSPolygon::updateMinMax ( ) [protected]

Update m_xMin, m_xMax, m_yMin, and m_yMax.

bool casa::RSPolygon::updateScreenCoordinates	(	WorldCanvasHolder &	wch,
		String *	err
	)			`[protected]`

Updates screen coords using world/pixel coords and the given WorldCanvas.

Member Data Documentation

double casa::RSPolygon::m_centerX [protected]

Definition at line 427 of file RegionShapes.h.

double casa::RSPolygon::m_centerY [protected]

Definition at line 427 of file RegionShapes.h.

String casa::RSPolygon::m_custName [protected]

Definition at line 430 of file RegionShapes.h.

Referenced by type().

unsigned int casa::RSPolygon::m_n [protected]

Definition at line 429 of file RegionShapes.h.

Vector<Double> casa::RSPolygon::m_screenX [protected]

Definition at line 428 of file RegionShapes.h.

Vector<Double> casa::RSPolygon::m_screenY [protected]

Definition at line 428 of file RegionShapes.h.

Vector<Double> casa::RSPolygon::m_x [protected]

Definition at line 426 of file RegionShapes.h.

Vector<Double> casa::RSPolygon::m_y [protected]

Definition at line 426 of file RegionShapes.h.

const String casa::RSPolygon::PROPXCOORDINATES [static]

Static Members //.

Properties. (See class descriptions of RegionShape and RSPolygon.)

Definition at line 335 of file RegionShapes.h.

const String casa::RSPolygon::PROPYCOORDINATES [static]

Definition at line 336 of file RegionShapes.h.

The documentation for this class was generated from the following file:

code/display/RegionShapes/RegionShapes.h
