casa::CleanImageSkyModel Class Reference

#include <CleanImageSkyModel.h>

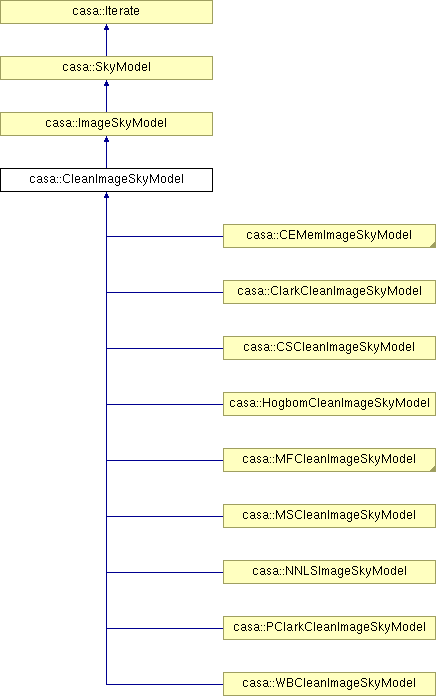

Inheritance diagram for casa::CleanImageSkyModel:

List of all members.

Public Member Functions
	CleanImageSkyModel ()
	Empty constructor.
	CleanImageSkyModel (const CleanImageSkyModel &sm)
	Copy constructor.
Bool	hasMask (Int model=0)
	Has a mask for model?
virtual Bool	add (ComponentList &compList)
	Add a componentlist.
virtual Int	add (ImageInterface< Float > &image, const Int maxNumXfr=100)
	Add an image.
virtual Bool	addMask (Int image, ImageInterface< Float > &mask)
	Add an mask.
Bool	hasFluxMask (Int model=0)
	Has a flux mask?
virtual Bool	addFluxMask (Int image, ImageInterface< Float > &fluxMask)
ImageInterface< Float > &	fluxMask (Int model=0)
virtual	~CleanImageSkyModel ()
	Destructor.
CleanImageSkyModel &	operator= (const CleanImageSkyModel &other)
	Assignment operator.
ImageInterface< Float > &	mask (Int model=0)
	Return masks.
virtual void	setJointStokesClean (Bool joint=True)
	set to search for peak in I^2+Q^2+U^2+V^2 domain or each stokes plane seperately Ignored for hogbom and msclean for now
virtual Float	maxField (Vector< Float > &imagemax, Vector< Float > &imagemin)
	Return the maximum absolute value from residual images per field.
Protected Attributes
PtrBlock< ImageInterface < Float > * >	mask_p
PtrBlock< ImageInterface < Float > * >	fluxmask_p
Bool	doPolJoint_p

---

Detailed Description

Definition at line 87 of file CleanImageSkyModel.h.

---

Constructor & Destructor Documentation

casa::CleanImageSkyModel::CleanImageSkyModel

(

)

Empty constructor.

casa::CleanImageSkyModel::CleanImageSkyModel

(

const CleanImageSkyModel &

sm

)

Copy constructor.

virtual casa::CleanImageSkyModel::~CleanImageSkyModel

(

)

[virtual]

Destructor.

---

Member Function Documentation

virtual Int casa::CleanImageSkyModel::add	(	ImageInterface< Float > &	image,
		const Int	maxNumXfr = 100
	)			[virtual]

Add an image.

maxNumXfr is the maximum Number of transfer functions that we might want to associate with this image.

Reimplemented from casa::ImageSkyModel.

Reimplemented in casa::CSCleanImageSkyModel, casa::MFCleanImageSkyModel, and casa::WFCleanImageSkyModel.

virtual Bool casa::CleanImageSkyModel::add

(

ComponentList &

compList

)

[virtual]

Add a componentlist.

Reimplemented from casa::ImageSkyModel.

virtual Bool casa::CleanImageSkyModel::addFluxMask	(	Int	image,
		ImageInterface< Float > &	fluxMask
	)			[virtual]

virtual Bool casa::CleanImageSkyModel::addMask	(	Int	image,
		ImageInterface< Float > &	mask
	)			[virtual]

Add an mask.

Reimplemented in casa::CSCleanImageSkyModel, casa::MFCleanImageSkyModel, and casa::WFCleanImageSkyModel.

ImageInterface<Float>& casa::CleanImageSkyModel::fluxMask

(

Int

model = 0

)

Bool casa::CleanImageSkyModel::hasFluxMask

(

Int

model = 0

)

Has a flux mask?

Bool casa::CleanImageSkyModel::hasMask

(

Int

model = 0

)

Has a mask for model?

ImageInterface<Float>& casa::CleanImageSkyModel::mask

(

Int

model = 0

)

Return masks.

virtual Float casa::CleanImageSkyModel::maxField	(	Vector< Float > &	imagemax,
		Vector< Float > &	imagemin
	)			[virtual]

Return the maximum absolute value from residual images per field.

Reimplemented in casa::MFCEMemImageSkyModel.

CleanImageSkyModel& casa::CleanImageSkyModel::operator=

(

const CleanImageSkyModel &

other

)

Assignment operator.

Reimplemented from casa::ImageSkyModel.

virtual void casa::CleanImageSkyModel::setJointStokesClean

(

Bool

joint = True

)

[virtual]

set to search for peak in I^2+Q^2+U^2+V^2 domain or each stokes plane seperately Ignored for hogbom and msclean for now

---

Member Data Documentation

Bool casa::CleanImageSkyModel::doPolJoint_p [protected]

Definition at line 139 of file CleanImageSkyModel.h.

PtrBlock<ImageInterface<Float> * > casa::CleanImageSkyModel::fluxmask_p [protected]

Definition at line 138 of file CleanImageSkyModel.h.

PtrBlock<ImageInterface<Float> * > casa::CleanImageSkyModel::mask_p [protected]

Definition at line 137 of file CleanImageSkyModel.h.

---

The documentation for this class was generated from the following file:

• code/synthesis/MeasurementComponents/CleanImageSkyModel.h
