casa::WFCleanImageSkyModel Class Reference

WF Image Sky Model: Image Sky Model implementing the WF Clean algorithm. More...

#include <WFCleanImageSkyModel.h>

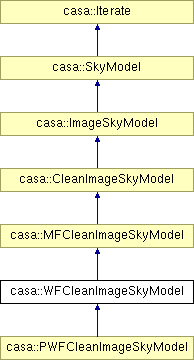

Inheritance diagram for casa::WFCleanImageSkyModel:
casa::MFCleanImageSkyModel casa::CleanImageSkyModel casa::ImageSkyModel casa::SkyModel casa::Iterate casa::PWFCleanImageSkyModel

List of all members.

Public Member Functions

 WFCleanImageSkyModel ()
virtual ~WFCleanImageSkyModel ()
 WFCleanImageSkyModel (const Int nfacets, Bool largeMemory=False)
virtual Int add (ImageInterface< Float > &image, const Int maxNumXfr=100)
 Add an image.
virtual Bool addResidual (Int image, ImageInterface< Float > &residual)
 Add a residual image.
virtual Bool addMask (Int image, ImageInterface< Float > &mask)
 Add an mask.
virtual Bool solve (SkyEquation &me)
 Solve for this SkyModel.
virtual ImageInterface< Float > & getResidual (Int physImageID)
 This will return for model 0 the main residual image i.e nxn facets.

Protected Member Functions

SubImage< Float > * makeFacet (Int facet, ImageInterface< Float > &image)
 void makeApproxPSFs(SkyEquation& se);
Bool makeSlicers (const Int facet, const IPosition &imageShape, IPosition &facetShape, Slicer &imageSlicer)
 Make the slicers.

Protected Attributes

Int nfacets_p
 Number of facets.

Private Attributes

CountedPtr< ImageInterface
< Float > >
imageImage_p
CountedPtr< ImageInterface
< Float > >
residualImage_p
CountedPtr< ImageInterface
< Float > >
maskImage_p
Int facets_p
Bool largeMem_p
Block< CountedPtr< SubImage
< Float > > >
facetImages_p
 Here we store the facets for the various images: Model, Mask and Residual.
Block< CountedPtr< SubImage
< Float > > >
facetMaskImages_p
Block< CountedPtr< SubImage
< Float > > >
facetResidualImages_p

Detailed Description

WF Image Sky Model: Image Sky Model implementing the WF Clean algorithm.

Intended use:

Public interface

Prerequisite

Etymology

WFCleanImageSkyModel implements the WF Clean algorithm. It is derived from MFCleanImageSkyModel .

Synopsis

The WF Clean is an FFT-based clean algorithm. Cleaning is split into major and minor cycles. In a minor cycle, the brightest pixels are cleaned using only the strongest sidelobes (and main lobe) of the PSF. In the major cycle, a fully correct subtraction of the PSF is done for all points accumulated in the minor cycle using an FFT-based convolution for speed.

The WF Clean is implemented using the MFCleanImageSkyModel class.

Masking is optionally performed using a mask image: only points where the mask is non-zero are cleaned. If no mask is specified all points in the inner quarter of the image are cleaned.

Example

See the example for SkyModel .

Motivation

Definition at line 85 of file WFCleanImageSkyModel.h.


Constructor & Destructor Documentation

casa::WFCleanImageSkyModel::WFCleanImageSkyModel (  )
virtual casa::WFCleanImageSkyModel::~WFCleanImageSkyModel (  )  [virtual]
casa::WFCleanImageSkyModel::WFCleanImageSkyModel ( const Int  nfacets,
Bool  largeMemory = False
)

Member Function Documentation

virtual Int casa::WFCleanImageSkyModel::add ( ImageInterface< Float > &  image,
const Int  maxNumXfr = 100
) [virtual]

Add an image.

maxNumXfr is the maximum Number of transfer functions that we might want to associate with this image.

Reimplemented from casa::MFCleanImageSkyModel.

virtual Bool casa::WFCleanImageSkyModel::addMask ( Int  image,
ImageInterface< Float > &  mask
) [virtual]

Add an mask.

Reimplemented from casa::MFCleanImageSkyModel.

virtual Bool casa::WFCleanImageSkyModel::addResidual ( Int  image,
ImageInterface< Float > &  residual
) [virtual]

Add a residual image.

Reimplemented from casa::MFCleanImageSkyModel.

virtual ImageInterface<Float>& casa::WFCleanImageSkyModel::getResidual ( Int  physImageID  )  [virtual]

This will return for model 0 the main residual image i.e nxn facets.

Reimplemented from casa::ImageSkyModel.

SubImage<Float>* casa::WFCleanImageSkyModel::makeFacet ( Int  facet,
ImageInterface< Float > &  image
) [protected]

void makeApproxPSFs(SkyEquation& se);

Make a facet

Bool casa::WFCleanImageSkyModel::makeSlicers ( const Int  facet,
const IPosition &  imageShape,
IPosition &  facetShape,
Slicer &  imageSlicer
) [protected]

Make the slicers.

virtual Bool casa::WFCleanImageSkyModel::solve ( SkyEquation me  )  [virtual]

Solve for this SkyModel.

Reimplemented from casa::MFCleanImageSkyModel.

Reimplemented in casa::PWFCleanImageSkyModel.


Member Data Documentation

Block<CountedPtr<SubImage<Float> > > casa::WFCleanImageSkyModel::facetImages_p [private]

Here we store the facets for the various images: Model, Mask and Residual.

Definition at line 136 of file WFCleanImageSkyModel.h.

Block<CountedPtr<SubImage<Float> > > casa::WFCleanImageSkyModel::facetMaskImages_p [private]

Definition at line 137 of file WFCleanImageSkyModel.h.

Block<CountedPtr<SubImage<Float> > > casa::WFCleanImageSkyModel::facetResidualImages_p [private]

Definition at line 138 of file WFCleanImageSkyModel.h.

Definition at line 131 of file WFCleanImageSkyModel.h.

CountedPtr<ImageInterface<Float> > casa::WFCleanImageSkyModel::imageImage_p [private]

Definition at line 127 of file WFCleanImageSkyModel.h.

Definition at line 132 of file WFCleanImageSkyModel.h.

CountedPtr<ImageInterface<Float> > casa::WFCleanImageSkyModel::maskImage_p [private]

Definition at line 129 of file WFCleanImageSkyModel.h.

Number of facets.

Definition at line 122 of file WFCleanImageSkyModel.h.

CountedPtr<ImageInterface<Float> > casa::WFCleanImageSkyModel::residualImage_p [private]

Reimplemented from casa::ImageSkyModel.

Definition at line 128 of file WFCleanImageSkyModel.h.


The documentation for this class was generated from the following file:
