casa::ANoise Class Reference

Additive noise In practice, this is not really solvable, but it is a SVM because we need access to general simulation methods. More...

#include <AMueller.h>

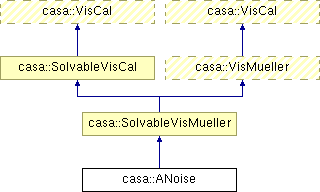

Inheritance diagram for casa::ANoise:

List of all members.

Public Member Functions
	ANoise (VisSet &vs)
	Constructor.
	ANoise (String msname, Int MSnAnt, Int MSnSpw)
	ANoise (const MSMetaInfoForCal &msmc)
	ANoise (const Int &nAnt)
virtual	~ANoise ()
virtual Type	type ()
	Return the type enum.
virtual String	typeName ()
	Return type name as string.
virtual String	longTypeName ()
virtual Mueller::MuellerType	muellerType ()
	Algebraic type of Mueller matrix (this is the key distinguishing characteristic).
virtual Bool	isSolvable ()
	Overide solvability.
virtual Bool	freqDepPar ()
	this is inherently freqdep:
virtual void	createCorruptor (const VisIter &vi, const Record &simpar, const Int nSim)
Protected Member Functions
virtual Int	nPar ()
	umm.
virtual Bool	trivialMuellerElem ()
	Jones matrix elements are trivial.
virtual Bool	timeDepMat ()
	override VC default of timeDepMat=F for OTF simulatio:
virtual void	calcAllMueller ()
	Calculate an ensemble of Mueller matrices (all baselines, channels) overrriding VisCal::calcAllMueller.
virtual void	calcOneMueller (Vector< Complex > &mat, Vector< Bool > &mOk, const Vector< Complex > &par, const Vector< Bool > &pOk)
	Calculate a single Mueller matrix by some means override SolvableVisMueller::calcOneMueller.
Private Attributes
ANoiseCorruptor *	acorruptor_p

---

Detailed Description

Additive noise In practice, this is not really solvable, but it is a SVM because we need access to general simulation methods.

Definition at line 157 of file AMueller.h.

---

Constructor & Destructor Documentation

casa::ANoise::ANoise

(

VisSet &

vs

)

Constructor.

casa::ANoise::ANoise	(	String	msname,
		Int	MSnAnt,
		Int	MSnSpw
	)

casa::ANoise::ANoise

(

const MSMetaInfoForCal &

msmc

)

casa::ANoise::ANoise

(

const Int &

nAnt

)

virtual casa::ANoise::~ANoise

(

)

[virtual]

---

Member Function Documentation

virtual void casa::ANoise::calcAllMueller

(

)

[protected, virtual]

Calculate an ensemble of Mueller matrices (all baselines, channels) overrriding VisCal::calcAllMueller.

Reimplemented from casa::VisMueller.

virtual void casa::ANoise::calcOneMueller	(	Vector< Complex > &	mat,
		Vector< Bool > &	mOk,
		const Vector< Complex > &	par,
		const Vector< Bool > &	pOk
	)			[protected, virtual]

Calculate a single Mueller matrix by some means override SolvableVisMueller::calcOneMueller.

Reimplemented from casa::VisMueller.

virtual void casa::ANoise::createCorruptor	(	const VisIter &	vi,
		const Record &	simpar,
		const Int	nSim
	)			[virtual]

virtual Bool casa::ANoise::freqDepPar

(

)

[inline, virtual]

this is inherently freqdep:

Reimplemented from casa::VisCal.

Definition at line 183 of file AMueller.h.

References casacore::True.

virtual Bool casa::ANoise::isSolvable

(

)

[inline, virtual]

Overide solvability.

Reimplemented from casa::SolvableVisCal.

Definition at line 180 of file AMueller.h.

References casacore::False.

virtual String casa::ANoise::longTypeName

(

)

[inline, virtual]

Reimplemented from casa::VisCal.

Definition at line 173 of file AMueller.h.

virtual Mueller::MuellerType casa::ANoise::muellerType

(

)

[inline, virtual]

Algebraic type of Mueller matrix (this is the key distinguishing characteristic).

Implements casa::VisMueller.

Definition at line 177 of file AMueller.h.

References casa::Mueller::AddDiag2.

virtual Int casa::ANoise::nPar

(

)

[inline, protected, virtual]

umm.

.. 2 for each of parallel hands?

Implements casa::VisCal.

Definition at line 189 of file AMueller.h.

virtual Bool casa::ANoise::timeDepMat

(

)

[inline, protected, virtual]

override VC default of timeDepMat=F for OTF simulatio:

Reimplemented from casa::VisCal.

Definition at line 195 of file AMueller.h.

References casa::SolvableVisCal::simOnTheFly().

virtual Bool casa::ANoise::trivialMuellerElem

(

)

[inline, protected, virtual]

Jones matrix elements are trivial.

Implements casa::VisMueller.

Definition at line 192 of file AMueller.h.

References casa::SolvableVisCal::simOnTheFly().

virtual Type casa::ANoise::type

(

)

[inline, virtual]

Return the type enum.

Implements casa::VisCal.

Definition at line 169 of file AMueller.h.

References casa::VisCal::ANoise.

virtual String casa::ANoise::typeName

(

)

[inline, virtual]

Return type name as string.

Reimplemented from casa::VisCal.

Definition at line 172 of file AMueller.h.

---

Member Data Documentation

ANoiseCorruptor* casa::ANoise::acorruptor_p [private]

Definition at line 207 of file AMueller.h.

---

The documentation for this class was generated from the following file:

• code/synthesis/MeasurementComponents/AMueller.h
