base/sched/sched.c File Reference

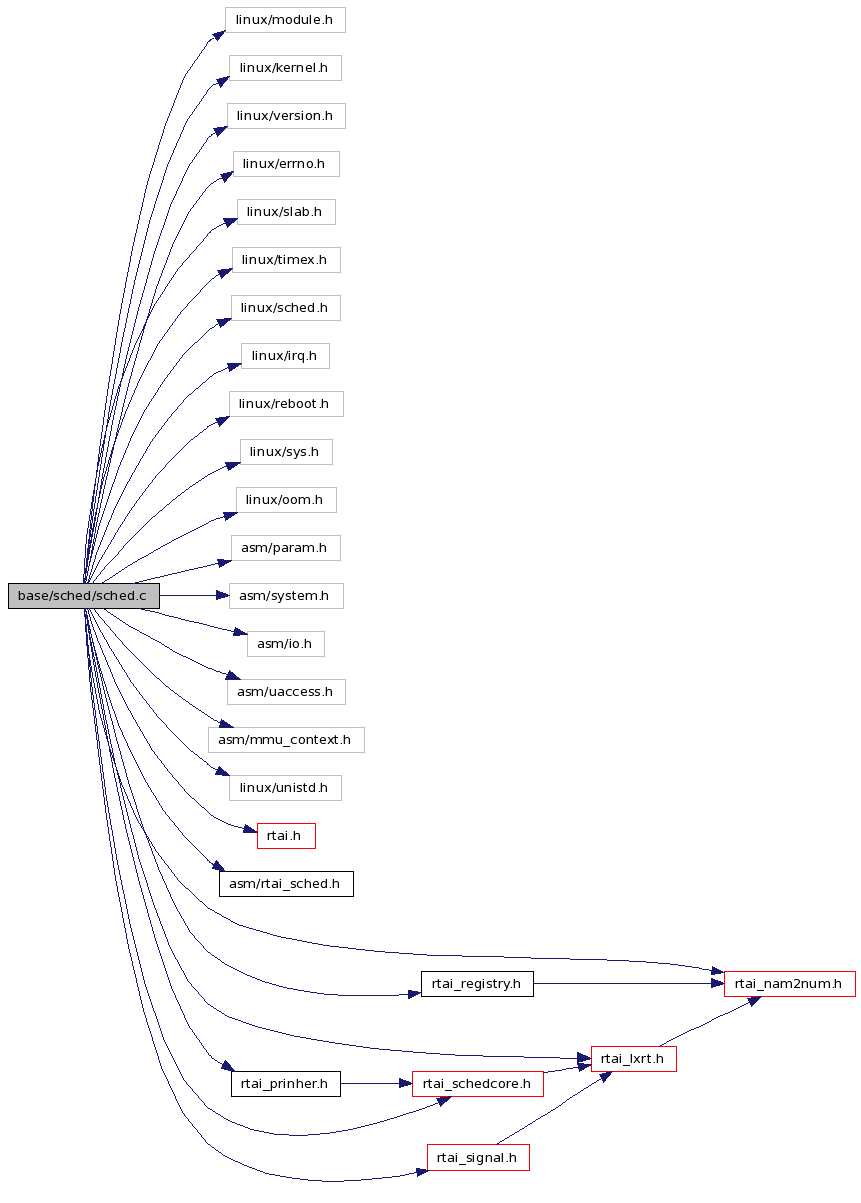

Include dependency graph for sched.c:

Go to the source code of this file.

Data Structures

struct  sig_wakeup_t

Defines

#define __KERNEL_SYSCALLS__
#define fpu_task   (rt_smp_fpu_task[cpuid])
#define rt_half_tick   (rt_smp_half_tick[cpuid])
#define oneshot_running   (rt_smp_oneshot_running[cpuid])
#define oneshot_timer_cpuid   (rt_smp_oneshot_timer[rtai_cpuid()])
#define timer_shot_fired   (rt_smp_timer_shot_fired[cpuid])
#define rt_times   (rt_smp_times[cpuid])
#define linux_cr0   (rt_smp_linux_cr0[cpuid])
#define MAX_FRESTK_SRQ   (2 << 6)
#define KTHREAD_M_PRIO   MAX_LINUX_RTPRIO
#define KTHREAD_F_PRIO   MAX_LINUX_RTPRIO
#define rt_request_sched_ipi()   0
#define rt_free_sched_ipi()
#define sched_get_global_lock(cpuid)
#define sched_release_global_lock(cpuid)
#define rt_kstack_alloc(sz)   rtheap_alloc(&rtai_kstack_heap, sz, 0)
#define rt_kstack_free(p)   rtheap_free(&rtai_kstack_heap, p)
#define RR_YIELD()
#define TASK_TO_SCHEDULE()
#define RR_INTR_TIME(fire_shot)
#define LOCK_LINUX(cpuid)   do { rt_switch_to_real_time(cpuid); } while (0)
#define UNLOCK_LINUX(cpuid)   do { rt_switch_to_linux(cpuid); } while (0)
#define SAVE_LOCK_LINUX(cpuid)   do { sflags = rt_save_switch_to_real_time(cpuid); } while (0)
#define RESTORE_UNLOCK_LINUX(cpuid)   do { rt_restore_switch_to_linux(sflags, cpuid); } while (0)
#define SAVE_LOCK_LINUX_IN_IRQ(cpuid)
#define RESTORE_UNLOCK_LINUX_IN_IRQ(cpuid)
#define RTAI_TASK_SWITCH_SIGNAL()
#define SET_EXEC_TIME()
#define RST_EXEC_TIME()
#define SAVE_PREV_TASK()   do { } while (0)
#define enq_soft_ready_task(ready_task)
#define pend_wake_up_hts(lnxtsk, cpuid)
#define lxrt_context_switch(prev, next, cpuid)
#define CHECK_LINUX_TIME()
#define SET_PEND_LINUX_TIMER_SHOT()
#define SET_NEXT_TIMER_SHOT(fire_shot)
#define IF_GOING_TO_LINUX_CHECK_TIMER_SHOT(fire_shot)
#define ONESHOT_DELAY(SHOT_FIRED)
#define FIRE_NEXT_TIMER_SHOT(SHOT_FIRED)
#define CALL_TIMER_HANDLER()   do { if (timer_shot_fired < 0) rt_timer_handler(); } while (0)
#define REDO_TIMER_HANDLER()   do { if (timer_shot_fired < 0) goto redo_timer_handler; } while (0)
#define FIRE_IMMEDIATE_LINUX_TIMER_SHOT()
#define SCHED_UNLOCK_SCHEDULE(cpuid)
#define REQUEST_RECOVER_JIFFIES()   rt_request_linux_irq(TIMER_8254_IRQ, recover_jiffies, "rtai_jif_chk", recover_jiffies)
#define RELEASE_RECOVER_JIFFIES(timer)   rt_free_linux_irq(TIMER_8254_IRQ, recover_jiffies)
#define cpuid   0
#define rt_times   (rt_smp_times[cpuid])
#define SYSW_DIAG_MSG(x)
#define RESERVOIR   11
#define HARD_KTHREAD_IN_USE   ((char)220)
#define WAKE_UP_TASKs(klist)
#define WAKE_UP_THREADM(thread)
#define INTERCEPT_SCHEDULE_HEAD()   do { } while (0)
#define DROP_MM2DROP(cpuid)   do { } while (0)
#define RELEASE_SCHEDULE_HEAD()   do { } while (0)
#define DROP_ALL_PENDING_MM2DROP()   do { } while (0)

Functions

 MODULE_LICENSE ("GPL")
static int lxrt_notify_reboot (struct notifier_block *nb, unsigned long event, void *ptr)
 RTAI_MODULE_PARM (rtai_kstack_heap_size, int)
int get_min_tasks_cpuid (void)
void put_current_on_cpu (int cpuid)
int set_rtext (RT_TASK *task, int priority, int uses_fpu, void(*signal)(void), unsigned int cpuid, struct task_struct *relink)

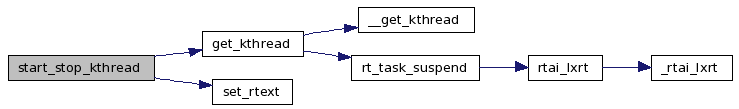

static void start_stop_kthread (RT_TASK *, void(*)(long), long, int, int, void(*)(void), int)

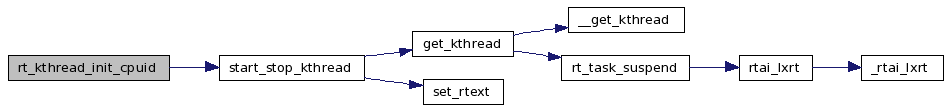

int rt_kthread_init_cpuid (RT_TASK *task, void(*rt_thread)(long), long data, int stack_size, int priority, int uses_fpu, void(*signal)(void), unsigned int cpuid)

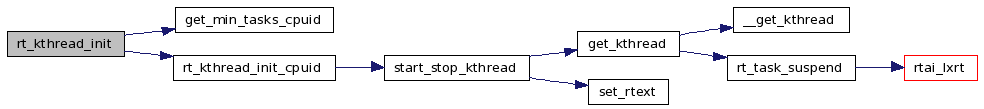

int rt_kthread_init (RT_TASK *task, void(*rt_thread)(long), long data, int stack_size, int priority, int uses_fpu, void(*signal)(void))

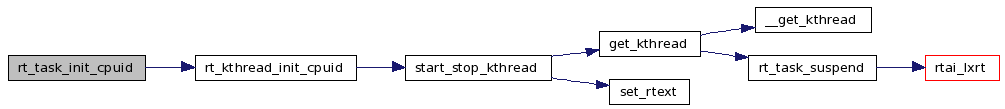

int rt_task_init_cpuid (RT_TASK *task, void(*rt_thread)(long), long data, int stack_size, int priority, int uses_fpu, void(*signal)(void), unsigned int cpuid)

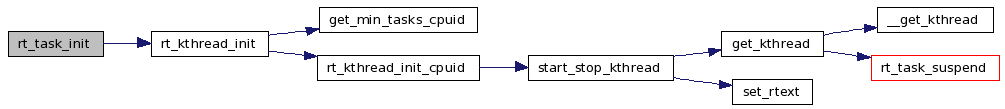

int rt_task_init (RT_TASK *task, void(*rt_thread)(long), long data, int stack_size, int priority, int uses_fpu, void(*signal)(void))

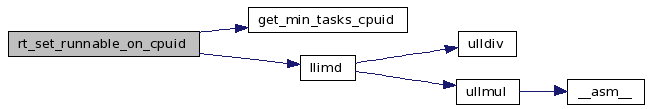

RTAI_SYSCALL_MODE void rt_set_runnable_on_cpuid (RT_TASK *task, unsigned int cpuid)

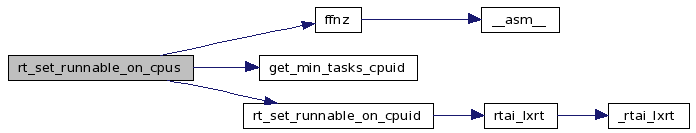

RTAI_SYSCALL_MODE void rt_set_runnable_on_cpus (RT_TASK *task, unsigned long run_on_cpus)
int rt_check_current_stack (void)
void rt_do_force_soft (RT_TASK *rt_task)
static void force_current_soft (RT_TASK *rt_current, int cpuid)
static RT_TASK * switch_rtai_tasks (RT_TASK *rt_current, RT_TASK *new_task, int cpuid)
static void rt_timer_handler (void)

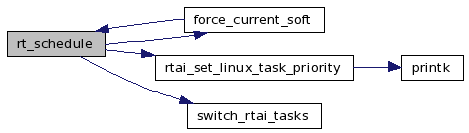

void rt_schedule (void)
RTAI_SYSCALL_MODE void rt_spv_RMS (int cpuid)
void rt_sched_lock (void)
void rt_sched_unlock (void)
void rtai_handle_isched_lock (int cpuid)
void * rt_get_lxrt_fun_entry (int index)
static void sched_sem_signal (SEM *sem)
int clr_rtext (RT_TASK *task)

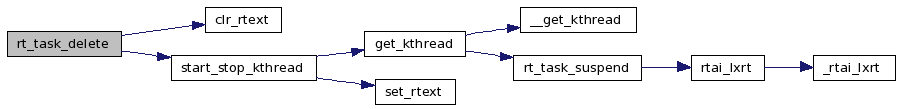

int rt_task_delete (RT_TASK *task)
int rt_get_timer_cpu (void)
static irqreturn_t recover_jiffies (int irq, void *dev_id, struct pt_regs *regs)
int rt_is_hard_timer_running (void)
void rt_set_periodic_mode (void)
void rt_set_oneshot_mode (void)

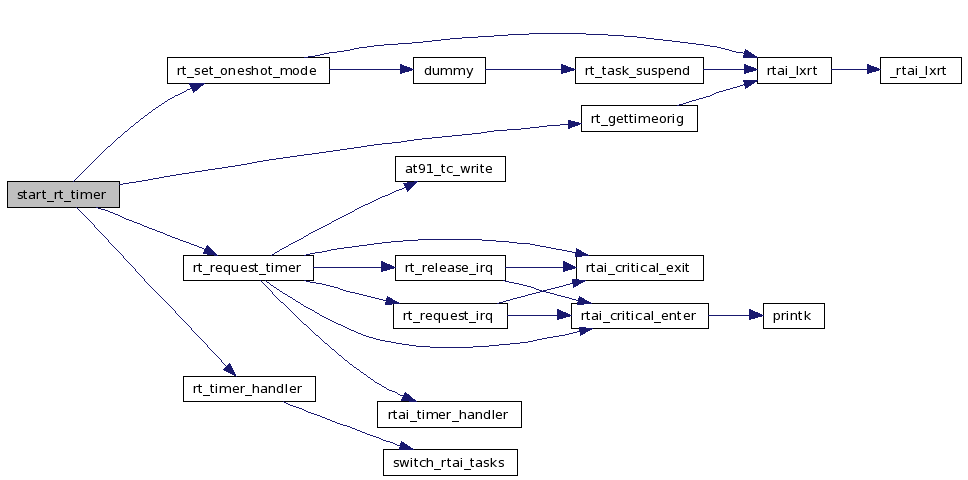

RTAI_SYSCALL_MODE RTIME start_rt_timer (int period)

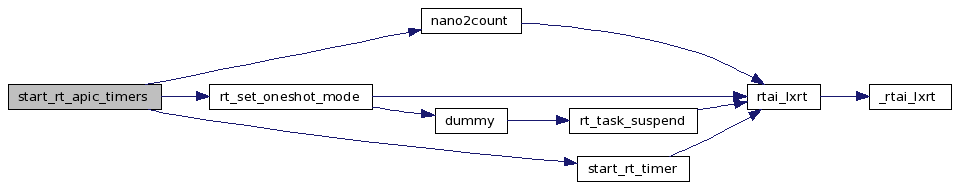

RTAI_SYSCALL_MODE void start_rt_apic_timers (struct apic_timer_setup_data *setup_mode, unsigned int rcvr_jiffies_cpuid)

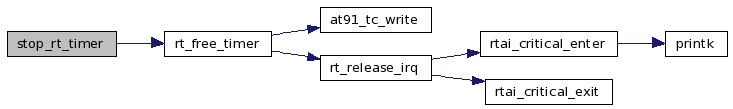

void stop_rt_timer (void)
int rt_sched_type (void)
RTAI_SYSCALL_MODE int rt_hard_timer_tick_count (void)
RTAI_SYSCALL_MODE int rt_hard_timer_tick_count_cpuid (int cpuid)
RT_TRAP_HANDLER rt_set_task_trap_handler (RT_TASK *task, unsigned int vec, RT_TRAP_HANDLER handler)
 RTAI_MODULE_PARM (OneShot, int)
 RTAI_MODULE_PARM (Latency, int)
 RTAI_MODULE_PARM (SetupTimeTIMER, int)

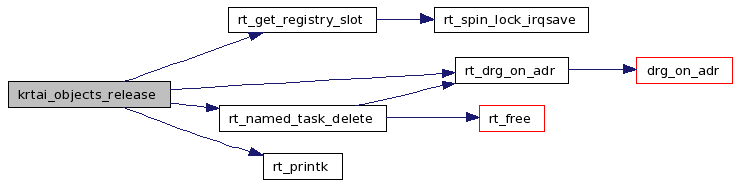

void krtai_objects_release (void)
static void frstk_srq_handler (void)
static void nihil (void)
void reset_rt_fun_entries (struct rt_native_fun_entry *entry)
int set_rt_fun_entries (struct rt_native_fun_entry *entry)
static void lxrt_killall (void)
RTAI_SYSCALL_MODE RTIME count2nano (RTIME counts)
RTAI_SYSCALL_MODE RTIME nano2count (RTIME ns)
RTAI_SYSCALL_MODE RTIME count2nano_cpuid (RTIME counts, unsigned int cpuid)
RTAI_SYSCALL_MODE RTIME nano2count_cpuid (RTIME ns, unsigned int cpuid)
RTIME rt_get_time (void)
RTAI_SYSCALL_MODE RTIME rt_get_time_cpuid (unsigned int cpuid)
RTIME rt_get_time_ns (void)
RTAI_SYSCALL_MODE RTIME rt_get_time_ns_cpuid (unsigned int cpuid)
RTIME rt_get_cpu_time_ns (void)
RTIME rt_get_real_time (void)
RTIME rt_get_real_time_ns (void)
RT_TASK * rt_get_base_linux_task (RT_TASK **base_linux_tasks)
RT_TASK * rt_alloc_dynamic_task (void)
RT_TASK ** rt_register_watchdog (RT_TASK *wd, int cpuid)
void rt_deregister_watchdog (RT_TASK *wd, int cpuid)

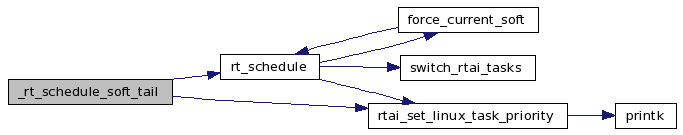

static void _rt_schedule_soft_tail (RT_TASK *rt_task, int cpuid)

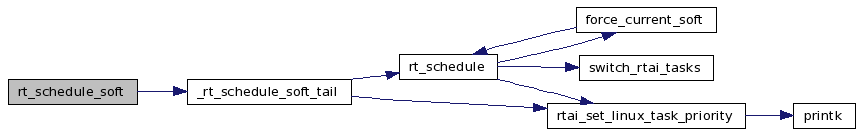

void rt_schedule_soft (RT_TASK *rt_task)

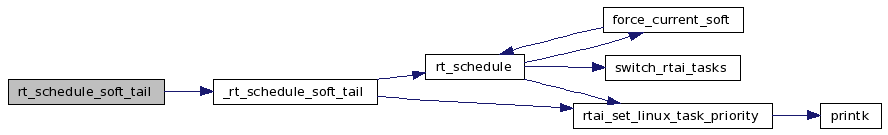

void rt_schedule_soft_tail (RT_TASK *rt_task, int cpuid)
static void fast_schedule (RT_TASK *new_task, struct task_struct *lnxtsk, int cpuid)
 RTAI_MODULE_PARM (Reservoir, int)
 RTAI_MODULE_PARM (SpareKthreads, int)
static struct task_struct * __get_kthread (int cpuid)
void rt_daemonize (void)

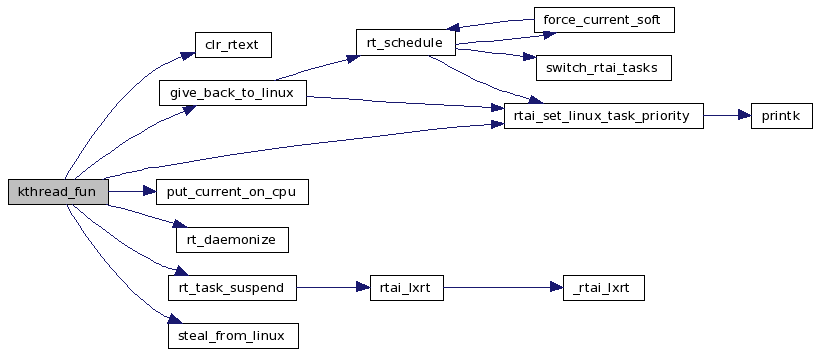

static void kthread_fun (int cpuid)

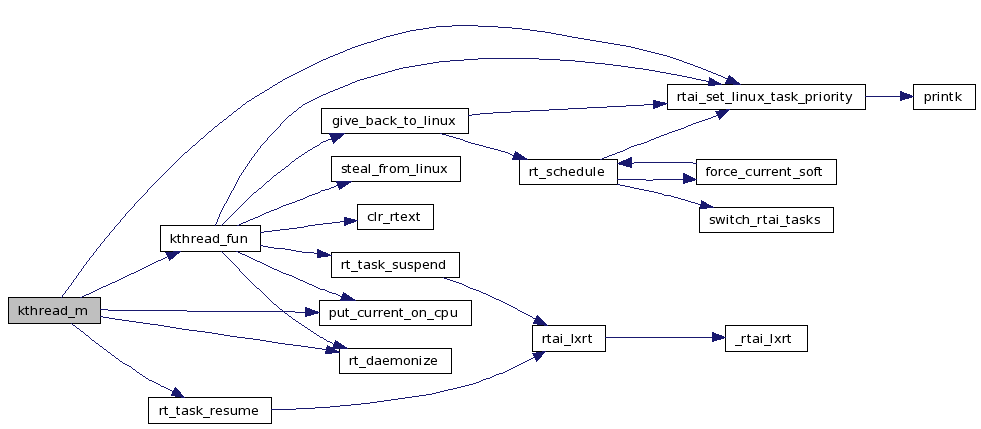

static void kthread_m (int cpuid)
void steal_from_linux (RT_TASK *rt_task)

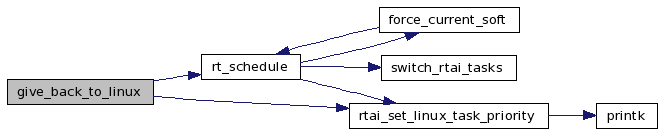

void give_back_to_linux (RT_TASK *rt_task, int keeprio)
static struct task_struct * get_kthread (int get, int cpuid, void *lnxtsk)
static void wake_up_srq_handler (unsigned srq)

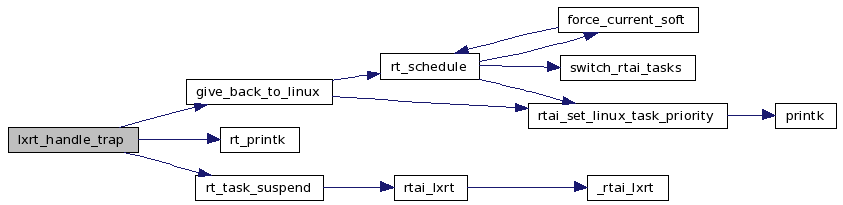

static int lxrt_handle_trap (int vec, int signo, struct pt_regs *regs, void *dummy_data)
static void rt_signal_wake_up (RT_TASK *task)
static int lxrt_intercept_schedule_tail (unsigned event, void *nothing)
static int lxrt_intercept_sig_wakeup (long event, void *data)

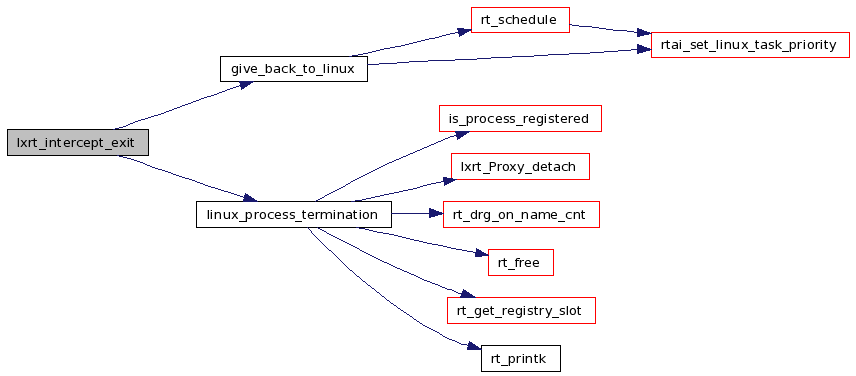

static int lxrt_intercept_exit (unsigned long event, struct task_struct *lnx_task)
long long rtai_lxrt_invoke (unsigned long, void *, void *)

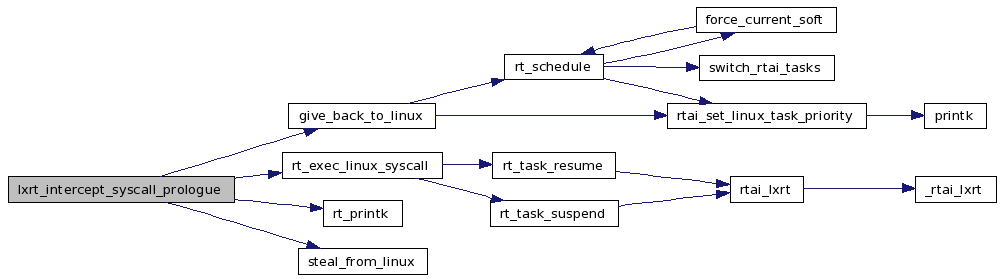

static int lxrt_intercept_syscall_prologue (struct pt_regs *regs)
static int lxrt_intercept_syscall_epilogue (unsigned long event, void *nothing)
void usp_request_rtc (int, void *)
void rt_release_rtc (void)
static int rt_gettid (void)

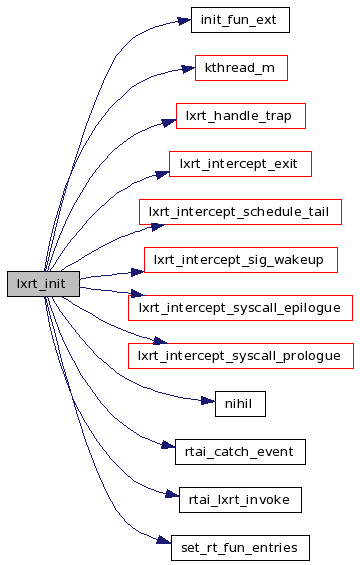

static int lxrt_init (void)

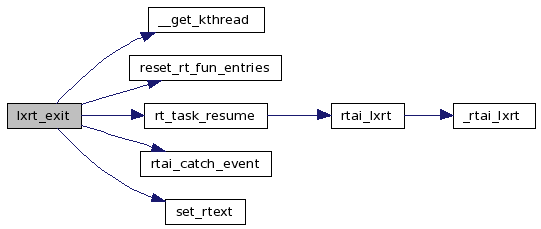

static void lxrt_exit (void)
static void timer_fun (unsigned long none)
int rt_registry_alloc (void)
void rt_registry_free (void)

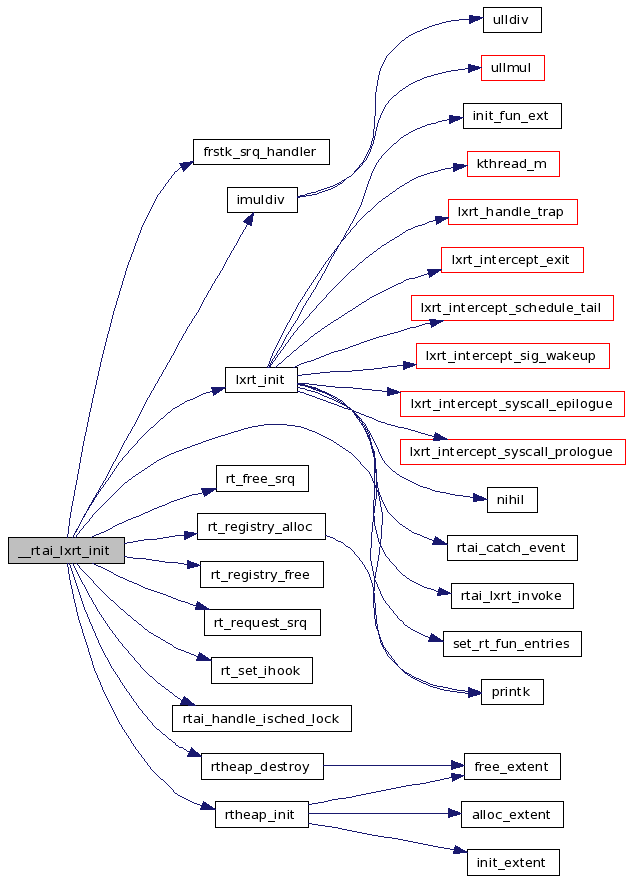

static int __rtai_lxrt_init (void)

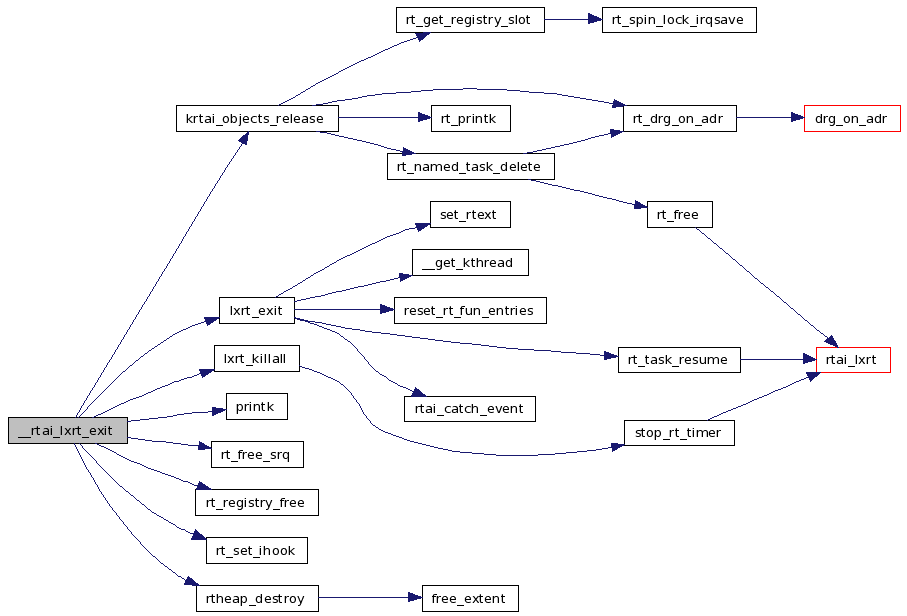

static void __rtai_lxrt_exit (void)
 module_init (__rtai_lxrt_init)
 module_exit (__rtai_lxrt_exit)
 EXPORT_SYMBOL (rt_fun_lxrt)
 EXPORT_SYMBOL (clr_rtext)
 EXPORT_SYMBOL (set_rtext)
 EXPORT_SYMBOL (get_min_tasks_cpuid)
 EXPORT_SYMBOL (put_current_on_cpu)
 EXPORT_SYMBOL (rt_schedule_soft)
 EXPORT_SYMBOL (rt_do_force_soft)
 EXPORT_SYMBOL (rt_schedule_soft_tail)
 EXPORT_SYMBOL (rt_sched_timed)
 EXPORT_SYMBOL (rtai_handle_isched_lock)
 EXPORT_SYMBOL (lxrt_prev_task)

Variables

RT_TASK rt_smp_linux_task [NR_RT_CPUS]
RT_TASK * rt_smp_current [NR_RT_CPUS]
RTIME rt_smp_time_h [NR_RT_CPUS]
int rt_smp_oneshot_timer [NR_RT_CPUS]
volatile int rt_sched_timed
static struct klist_t wake_up_sth [NR_RT_CPUS]
klist_t wake_up_hts [NR_RT_CPUS]
klist_t wake_up_srq [NR_RT_CPUS]
struct {
   volatile int   locked
   volatile int   rqsted
} rt_scheduling []
static unsigned long rt_smp_linux_cr0 [NR_RT_CPUS]
static RT_TASK * rt_smp_fpu_task [NR_RT_CPUS]
static int rt_smp_half_tick [NR_RT_CPUS]
static int rt_smp_oneshot_running [NR_RT_CPUS]
static volatile int rt_smp_timer_shot_fired [NR_RT_CPUS]
static struct rt_times * linux_times
static RT_TASK * lxrt_wdog_task [NR_RT_CPUS]
RT_TASK * lxrt_prev_task [NR_RT_CPUS]
static struct notifier_block lxrt_reboot_notifier
static struct klist_t klistm [NR_RT_CPUS]
static struct task_struct * kthreadm [NR_RT_CPUS]
static struct semaphore resem [NR_RT_CPUS]
static int endkthread
struct {
   int   srq
   volatile unsigned long   in
   volatile unsigned long   out
   void *   mp [MAX_FRESTK_SRQ]
} frstk_srq
int rtai_kstack_heap_size = (CONFIG_RTAI_KSTACK_HEAPSZ*1024)
static rtheap_t rtai_kstack_heap
static int tasks_per_cpu [NR_RT_CPUS] = { 0, }
static int oneshot_span
static int satdlay
static int OneShot = CONFIG_RTAI_ONE_SHOT
static int Latency = TIMER_LATENCY
static int SetupTimeTIMER = TIMER_SETUP_TIME
rt_fun_entry rt_fun_lxrt [MAX_LXRT_FUN]
epoch_struct boot_epoch
static RT_TRAP_HANDLER lxrt_old_trap_handler
static RT_TASK thread_task [NR_RT_CPUS]
static int rsvr_cnt [NR_RT_CPUS]
static int Reservoir = RESERVOIR
static int SpareKthreads = 100
static int taskidx [NR_RT_CPUS]
static struct task_struct ** taskav [NR_RT_CPUS]
static unsigned long traptrans
static unsigned long systrans
int(*[]) sys_call_table (struct pt_regs)
static struct rt_native_fun_entry rt_sched_entries []
void * rtai_lxrt_dispatcher
 DECLARE_FUSION_WAKE_UP_STUFF
 DECLR_8254_TSC_EMULATION

Define Documentation

#define __KERNEL_SYSCALLS__

Definition at line 49 of file sched.c.


#define CALL_TIMER_HANDLER (  )     do { if (timer_shot_fired < 0) rt_timer_handler(); } while (0)

Definition at line 864 of file sched.c.

Referenced by fast_schedule(), and rt_schedule().


#define CHECK_LINUX_TIME (  )

Value:

if (rt_times.linux_time < rt_times.intr_time) { \
        rt_times.intr_time = rt_times.linux_time; \
        fire_shot = 1; \
        break; \
    }

Definition at line 769 of file sched.c.

#define cpuid   0

Referenced by __rtai_tasklets_exit(), __rtai_tasklets_init(), rt_disable_irq(), rt_insert_timer(), rt_linux_use_fpu(), rt_Name_locate(), rt_receive(), rt_receive_if(), rt_receive_until(), rt_return(), rt_rpc(), rt_rpc_if(), rt_rpc_until(), rt_sem_signal(), rt_send(), rt_send_if(), rt_send_until(), rt_task_suspend_until(), rt_task_wait_period(), rtai_decr_timer_handler(), rtai_hirq_dispatcher(), rtai_syscall_dispatcher(), rtai_timer_handler(), smpproof_task_delete(), and smpproof_task_suspend().


#define DROP_ALL_PENDING_MM2DROP (  )     do { } while (0)

Definition at line 2467 of file sched.c.

Referenced by lxrt_exit().

#define DROP_MM2DROP ( cpuid   )     do { } while (0)

Definition at line 2463 of file sched.c.

Referenced by lxrt_intercept_schedule_tail().

#define enq_soft_ready_task ( ready_task   )

Value:

do { \
    RT_TASK *task = rt_smp_linux_task[cpuid].rnext; \
    if (ready_task == task) break; \
    task->rprev = (ready_task->rprev = task->rprev)->rnext = ready_task; \
    ready_task->rnext = task; \
} while (0)

Definition at line 661 of file sched.c.

Referenced by fast_schedule(), force_current_soft(), rt_schedule(), and rt_schedule_soft().


#define FIRE_IMMEDIATE_LINUX_TIMER_SHOT (  )

Value:

do { \
    LOCK_LINUX(cpuid); \
    rt_timer_handler(); \
    UNLOCK_LINUX(cpuid); \
} while (0)

Definition at line 870 of file sched.c.

#define FIRE_NEXT_TIMER_SHOT ( SHOT_FIRED   )

Value:

do { \
if (fire_shot) { \
    int delay; \
    ONESHOT_DELAY(SHOT_FIRED); \
    if (delay > tuned.setup_time_TIMER_CPUNIT) { \
        rt_set_timer_delay(imuldiv(delay, TIMER_FREQ, tuned.cpu_freq));\
        timer_shot_fired = 1; \
    } else { \
        rt_times.intr_time = rt_time_h + tuned.setup_time_TIMER_CPUNIT;\
        timer_shot_fired = -1;\
    } \
} \
} while (0)

Definition at line 849 of file sched.c.

Referenced by rt_schedule(), and rt_timer_handler().

#define fpu_task   (rt_smp_fpu_task[cpuid])

Definition at line 127 of file sched.c.

Referenced by switch_rtai_tasks().

#define HARD_KTHREAD_IN_USE   ((char)220)

Definition at line 2078 of file sched.c.

Referenced by kthread_fun(), and lxrt_handle_trap().

#define IF_GOING_TO_LINUX_CHECK_TIMER_SHOT ( fire_shot   )

Value:

do { \
    if (prio == RT_SCHED_LINUX_PRIORITY) { \
        CHECK_LINUX_TIME(); \
        if (!timer_shot_fired) {\
            fire_shot = 1; \
        } \
    } \
} while (0)

Definition at line 817 of file sched.c.

Referenced by rt_schedule(), and rt_timer_handler().


#define INTERCEPT_SCHEDULE_HEAD (  )     do { } while (0)

Definition at line 2461 of file sched.c.

Referenced by lxrt_init().

#define KTHREAD_F_PRIO   MAX_LINUX_RTPRIO

Definition at line 145 of file sched.c.

Referenced by kthread_fun().

#define KTHREAD_M_PRIO   MAX_LINUX_RTPRIO

Definition at line 144 of file sched.c.

Referenced by kthread_m().

#define linux_cr0   (rt_smp_linux_cr0[cpuid])

Definition at line 139 of file sched.c.

Referenced by __rtai_lxrt_init(), rt_timers_manager(), and switch_rtai_tasks().

#define LOCK_LINUX ( cpuid   )     do { rt_switch_to_real_time(cpuid); } while (0)

Definition at line 585 of file sched.c.

Referenced by fast_schedule(), force_current_soft(), rt_schedule(), and rt_schedule_soft().

#define lxrt_context_switch ( prev,
next,
cpuid   )

Value:

do { \
        SAVE_PREV_TASK(); \
        _lxrt_context_switch(prev, next, cpuid); barrier(); \
        RTAI_TASK_SWITCH_SIGNAL(); \
    } while (0)

Definition at line 759 of file sched.c.

Referenced by fast_schedule(), rt_schedule(), and rt_timer_handler().

#define MAX_FRESTK_SRQ   (2 << 6)

Definition at line 141 of file sched.c.

Referenced by clr_rtext(), and frstk_srq_handler().

#define ONESHOT_DELAY ( SHOT_FIRED   )

Value:

do { \
    if (!(SHOT_FIRED)) { \
        RTIME span; \
        if (unlikely((span = rt_times.intr_time - rt_time_h) > oneshot_span)) { \
            rt_times.intr_time = rt_time_h + oneshot_span; \
            delay = satdlay; \
        } else { \
            delay = (int)span - tuned.latency; \
        } \
    } else { \
        delay = (int)(rt_times.intr_time - rt_time_h) - tuned.latency; \
    } \
} while (0)

Definition at line 830 of file sched.c.

#define oneshot_running   (rt_smp_oneshot_running[cpuid])

Definition at line 131 of file sched.c.

Referenced by __rtai_lxrt_init(), rt_schedule(), rt_set_periodic_mode(), and start_rt_timer().

#define oneshot_timer_cpuid   (rt_smp_oneshot_timer[rtai_cpuid()])

Definition at line 133 of file sched.c.

Referenced by count2nano(), and nano2count().

#define pend_wake_up_hts ( lnxtsk,
cpuid   )

Value:

do { \
    wake_up_hts[cpuid].task[wake_up_hts[cpuid].in++ & (MAX_WAKEUP_SRQ - 1)] = lnxtsk; \
    hal_pend_uncond(wake_up_srq[cpuid].srq, cpuid); \
} while (0)

Definition at line 670 of file sched.c.

Referenced by force_current_soft(), and give_back_to_linux().


#define REDO_TIMER_HANDLER (  )     do { if (timer_shot_fired < 0) goto redo_timer_handler; } while (0)

Definition at line 867 of file sched.c.

Referenced by rt_timer_handler().

#define RELEASE_RECOVER_JIFFIES ( timer   )     rt_free_linux_irq(TIMER_8254_IRQ, recover_jiffies)

Definition at line 1337 of file sched.c.

Referenced by stop_rt_timer().


#define RELEASE_SCHEDULE_HEAD (  )     do { } while (0)

Definition at line 2465 of file sched.c.

Referenced by lxrt_exit().


#define REQUEST_RECOVER_JIFFIES (  )     rt_request_linux_irq(TIMER_8254_IRQ, recover_jiffies, "rtai_jif_chk", recover_jiffies)

Definition at line 1335 of file sched.c.

Referenced by start_rt_timer().

#define RESERVOIR   11

Definition at line 2007 of file sched.c.

#define RESTORE_UNLOCK_LINUX ( cpuid   )     do { rt_restore_switch_to_linux(sflags, cpuid); } while (0)

Definition at line 592 of file sched.c.

Referenced by rt_schedule(), and switch_rtai_tasks().

#define RESTORE_UNLOCK_LINUX_IN_IRQ ( cpuid   )

Definition at line 597 of file sched.c.

Referenced by rt_timer_handler().

#define RR_INTR_TIME ( fire_shot   )

Value:

do { \
    fire_shot = 0; \
    prio = new_task->priority; \
    if (CONFIG_RTAI_ALLOW_RR && new_task->policy > 0) { \
        if (new_task->yield_time < rt_times.intr_time) { \
            rt_times.intr_time = new_task->yield_time; \
            fire_shot = 1; \
        } \
        } \
} while (0)

Definition at line 573 of file sched.c.


#define RR_YIELD (  )

Value:

if (CONFIG_RTAI_ALLOW_RR && rt_current->policy > 0) { \
    if (rt_current->yield_time <= rt_times.tick_time) { \
        rt_current->rr_remaining = rt_current->rr_quantum; \
        if (rt_current->state == RT_SCHED_READY) { \
            RT_TASK *task; \
            task = rt_current->rnext; \
            while (rt_current->priority == task->priority) { \
                task = task->rnext; \
            } \
            if (task != rt_current->rnext) { \
                (rt_current->rprev)->rnext = rt_current->rnext; \
                (rt_current->rnext)->rprev = rt_current->rprev; \
                task->rprev = (rt_current->rprev = task->rprev)->rnext = rt_current; \
                rt_current->rnext = task; \
            } \
        } \
    } else { \
        rt_current->rr_remaining = rt_current->yield_time - rt_times.tick_time; \
    } \
}

Definition at line 543 of file sched.c.

Referenced by rt_schedule(), and rt_timer_handler().


#define RST_EXEC_TIME (  )

Definition at line 639 of file sched.c.

Referenced by rt_schedule(), rt_timer_handler(), and switch_rtai_tasks().


#define rt_free_sched_ipi (  )

Definition at line 189 of file sched.c.

Referenced by __rtai_lxrt_exit(), and __rtai_lxrt_init().

#define rt_half_tick   (rt_smp_half_tick[cpuid])

Definition at line 129 of file sched.c.

Referenced by rt_schedule(), rt_timer_handler(), and start_rt_timer().

#define rt_kstack_alloc ( sz   )     rtheap_alloc(&rtai_kstack_heap, sz, 0)

Definition at line 205 of file sched.c.

#define rt_kstack_free ( p   )     rtheap_free(&rtai_kstack_heap, p)

Definition at line 206 of file sched.c.

Referenced by frstk_srq_handler().


#define rt_request_sched_ipi (  )     0

Definition at line 187 of file sched.c.

Referenced by __rtai_lxrt_init().

#define rt_times   (rt_smp_times[cpuid])

Definition at line 137 of file sched.c.

#define rt_times   (rt_smp_times[cpuid])

Definition at line 137 of file sched.c.

Referenced by rt_request_timer().


#define RTAI_TASK_SWITCH_SIGNAL (  )

Definition at line 618 of file sched.c.

Referenced by switch_rtai_tasks().

#define SAVE_LOCK_LINUX ( cpuid   )     do { sflags = rt_save_switch_to_real_time(cpuid); } while (0)

Definition at line 590 of file sched.c.

Referenced by rt_schedule(), and switch_rtai_tasks().

#define SAVE_LOCK_LINUX_IN_IRQ ( cpuid   )

Definition at line 596 of file sched.c.

Referenced by rt_timer_handler().


#define SAVE_PREV_TASK (  )     do { } while (0)

Definition at line 647 of file sched.c.

Referenced by switch_rtai_tasks().

#define sched_get_global_lock ( cpuid   )

Definition at line 191 of file sched.c.

Referenced by rt_schedule(), and rt_timer_handler().

#define sched_release_global_lock ( cpuid   )

Definition at line 193 of file sched.c.

Referenced by fast_schedule(), rt_schedule(), and rt_timer_handler().

#define SCHED_UNLOCK_SCHEDULE ( cpuid   )

Value:

do { \
        rt_scheduling[cpuid].rqsted = 0; \
        sched_get_global_lock(cpuid); \
        rt_schedule(); \
        sched_release_global_lock(cpuid); \
    } while (0)

Definition at line 1120 of file sched.c.

Referenced by rt_sched_unlock(), and rtai_handle_isched_lock().


#define SET_EXEC_TIME (  )

Definition at line 638 of file sched.c.

Referenced by fast_schedule(), rt_schedule(), rt_timer_handler(), and switch_rtai_tasks().

#define SET_NEXT_TIMER_SHOT ( fire_shot   )

Value:

do { \
    fire_shot = 0; \
    prio = new_task->priority; \
    if (CONFIG_RTAI_ALLOW_RR && new_task->policy > 0) { \
        if (new_task->yield_time < rt_times.intr_time) { \
            rt_times.intr_time = new_task->yield_time; \
            fire_shot = 1; \
        } \
        } \
    task = &rt_linux_task; \
    while ((task = task->tnext) != &rt_linux_task && task->resume_time < rt_times.intr_time) { \
        if (task->priority <= prio) { \
            rt_times.intr_time = task->resume_time; \
            fire_shot = 1; \
            break; \
        } \
    } \
} while (0)

Definition at line 797 of file sched.c.

Referenced by rt_schedule(), and rt_timer_handler().


#define SET_PEND_LINUX_TIMER_SHOT (  )

Value:

do { \
    if (rt_times.tick_time >= rt_times.linux_time) { \
        if (rt_times.linux_tick > 0) { \
            rt_times.linux_time += rt_times.linux_tick; \
        } else { \
            rt_times.linux_time = RT_TIME_END; \
        } \
        update_linux_timer(cpuid); \
    } \
} while (0)

Definition at line 776 of file sched.c.

Referenced by rt_timer_handler().

#define SYSW_DIAG_MSG ( x   )

Definition at line 1919 of file sched.c.

Referenced by check_to_soften_harden(), lxrt_handle_trap(), lxrt_intercept_syscall_epilogue(), and lxrt_intercept_syscall_prologue().


#define TASK_TO_SCHEDULE (  )

Value:

do { \
    new_task = rt_linux_task.rnext; \
    if (CONFIG_RTAI_ALLOW_RR && new_task->policy > 0) { \
        new_task->yield_time = rt_times.tick_time + new_task->rr_remaining; \
    } \
} while (0)

Definition at line 565 of file sched.c.

Referenced by rt_schedule(), and rt_timer_handler().

#define timer_shot_fired   (rt_smp_timer_shot_fired[cpuid])

Definition at line 135 of file sched.c.

Referenced by rt_schedule(), rt_timer_handler(), and start_rt_timer().

#define UNLOCK_LINUX ( cpuid   )     do { rt_switch_to_linux(cpuid); } while (0)

Definition at line 587 of file sched.c.

Referenced by _rt_schedule_soft_tail(), fast_schedule(), and rt_schedule().

#define WAKE_UP_TASKs ( klist   )

Value:

do { \
    struct klist_t *p = &klist[cpuid]; \
    struct task_struct *task; \
    while (p->out != p->in) { \
        task = p->task[p->out++ & (MAX_WAKEUP_SRQ - 1)]; \
        set_task_state(task, TASK_UNINTERRUPTIBLE); \
        wake_up_process(task); \
    } \
} while (0)

Definition at line 2125 of file sched.c.

Referenced by kthread_m(), and wake_up_srq_handler().

#define WAKE_UP_THREADM ( thread   )

Value:

do { \
        set_task_state(thread, TASK_UNINTERRUPTIBLE); \
        wake_up_process(thread); \
    } while (0)

Definition at line 2136 of file sched.c.

Referenced by lxrt_exit(), lxrt_init(), and wake_up_srq_handler().

Function Documentation

static struct task_struct* __get_kthread ( int  cpuid  )  [static]

Definition at line 2017 of file sched.c.

Referenced by get_kthread(), and lxrt_exit().

static void __rtai_lxrt_exit ( void   )  [static]

Definition at line 3104 of file sched.c.

References CLEAR_8254_TSC_EMULATION, current, frstk_srq, krtai_objects_release(), lxrt_exit(), lxrt_killall(), lxrt_reboot_notifier, printk(), rt_free_sched_ipi, rt_free_srq(), rt_registry_free(), rt_set_ihook(), rtai_domain, and rtheap_destroy().

Here is the call graph for this function:

static int __rtai_lxrt_init ( void   )  [static]

Definition at line 2965 of file sched.c.

References current, frstk_srq, frstk_srq_handler(), imuldiv(), Latency, linux_cr0, lxrt_init(), lxrt_reboot_notifier, OneShot, oneshot_running, ONESHOT_SPAN, printk(), rt_free_sched_ipi, rt_free_srq(), rt_registry_alloc(), rt_registry_free(), rt_request_sched_ipi, rt_request_srq(), RT_SCHED_LINUX_PRIORITY, RT_SCHED_READY, rt_set_ihook(), rt_smp_current, rt_smp_fpu_task, RT_TIME_END, rtai_handle_isched_lock(), rtheap_destroy(), rtheap_init(), SETUP_8254_TSC_EMULATION, SetupTimeTIMER, TIMER_FREQ, TIMER_NAME, and tuned.

Here is the call graph for this function:

static void _rt_schedule_soft_tail ( RT_TASK *  rt_task,
int  cpuid
) [inline, static]

Definition at line 1924 of file sched.c.

References RT_SCHED_READY, RT_SCHED_SFTRDY, rt_schedule(), rt_smp_current, rtai_set_linux_task_priority(), and UNLOCK_LINUX.

Referenced by rt_schedule_soft(), and rt_schedule_soft_tail().

Here is the call graph for this function:

int clr_rtext ( RT_TASK *  task  )

Definition at line 1158 of file sched.c.

References frstk_srq, MAX_FRESTK_SRQ, rt_pend_linux_srq(), RT_SCHED_DELAYED, RT_SCHED_LINUX_PRIORITY, RT_SCHED_MBXSUSP, RT_SCHED_READY, RT_SCHED_RETURN, RT_SCHED_RPC, RT_SCHED_SEMAPHORE, RT_SCHED_SEND, rt_schedule(), rt_smp_fpu_task, rt_smp_linux_task, RTP_OBJREM, sched_sem_signal(), and task.

Here is the call graph for this function:

RTAI_SYSCALL_MODE RTIME count2nano ( RTIME  counts  )

Definition at line 1761 of file sched.c.

References llimd(), oneshot_timer_cpuid, TIMER_FREQ, and tuned.

Here is the call graph for this function:

RTAI_SYSCALL_MODE RTIME count2nano_cpuid ( RTIME  counts,
unsigned int  cpuid
)

Definition at line 1794 of file sched.c.

References llimd(), TIMER_FREQ, and tuned.

Here is the call graph for this function:

EXPORT_SYMBOL ( lxrt_prev_task   )

EXPORT_SYMBOL ( rtai_handle_isched_lock   )

EXPORT_SYMBOL ( rt_sched_timed   )

EXPORT_SYMBOL ( rt_schedule_soft_tail   )

EXPORT_SYMBOL ( rt_do_force_soft   )

EXPORT_SYMBOL ( rt_schedule_soft   )

EXPORT_SYMBOL ( put_current_on_cpu   )

EXPORT_SYMBOL ( get_min_tasks_cpuid   )

EXPORT_SYMBOL ( set_rtext   )

EXPORT_SYMBOL ( clr_rtext   )

EXPORT_SYMBOL ( rt_fun_lxrt   )

static void fast_schedule ( RT_TASK *  new_task,
struct task_struct *  lnxtsk,
int  cpuid
) [inline, static]

Definition at line 1983 of file sched.c.

References CALL_TIMER_HANDLER, enq_soft_ready_task, LOCK_LINUX, lxrt_context_switch, RT_SCHED_READY, rt_smp_current, rtai_sti, sched_release_global_lock, SET_EXEC_TIME, and UNLOCK_LINUX.

Referenced by lxrt_intercept_schedule_tail().

static void force_current_soft ( RT_TASK *  rt_current,
int  cpuid
) [inline, static]

Definition at line 677 of file sched.c.

References enq_soft_ready_task, hal_schedule_back_root, LOCK_LINUX, pend_wake_up_hts, RT_SCHED_READY, rt_schedule(), and rt_smp_current.

Referenced by rt_schedule().

Here is the call graph for this function:

static void frstk_srq_handler ( void   )  [static]

Definition at line 1686 of file sched.c.

References frstk_srq, MAX_FRESTK_SRQ, and rt_kstack_free.

Referenced by __rtai_lxrt_init().

static struct task_struct* get_kthread ( int  get,
int  cpuid,
void *  lnxtsk
) [static]

Definition at line 2298 of file sched.c.

References __get_kthread(), klistm, kthreadm, resem, rt_smp_current, and rt_task_suspend().

Referenced by start_stop_kthread().

Here is the call graph for this function:

int get_min_tasks_cpuid ( void   )

Definition at line 214 of file sched.c.

void give_back_to_linux ( RT_TASK *  rt_task,
int  keeprio
)

Definition at line 2246 of file sched.c.

References hal_schedule_back_root, pend_wake_up_hts, rt_schedule(), and rtai_set_linux_task_priority().

Referenced by __task_delete(), check_to_soften_harden(), handle_lxrt_request(), kthread_fun(), lxrt_handle_trap(), lxrt_intercept_exit(), lxrt_intercept_syscall_prologue(), and rt_make_soft_real_time().

Here is the call graph for this function:

void krtai_objects_release ( void   )

Definition at line 1866 of file api.c.

References rt_registry_entry::adr, IS_MBX, IS_PRX, IS_RWL, IS_SEM, IS_SPL, IS_TASK, rt_registry_entry::name, NAMED_MBX_DELETE, NAMED_RWL_DELETE, NAMED_SEM_DELETE, NAMED_SPL_DELETE, PROXY_DETACH, rt_drg_on_adr(), rt_get_registry_slot(), rt_named_task_delete(), rt_printk(), and rt_registry_entry::type.

Referenced by __rtai_lxrt_exit().

Here is the call graph for this function:

static void kthread_fun ( int  cpuid  )  [static]

Definition at line 2080 of file sched.c.

References clr_rtext(), current, menu::flags, give_back_to_linux(), HARD_KTHREAD_IN_USE, init_hard_fpu, KTHREAD_F_PRIO, put_current_on_cpu(), rdtsc, rt_daemonize(), rt_task_suspend(), rtai_cli, rtai_set_linux_task_priority(), rtai_sti, steal_from_linux(), task, thread_task, TSKEXT0, and TSKEXT1.

Referenced by kthread_m().

Here is the call graph for this function:

static void kthread_m ( int  cpuid  )  [static]

Definition at line 2142 of file sched.c.

References current, endkthread, klistm, kthread_fun(), KTHREAD_M_PRIO, kthreadm, put_current_on_cpu(), resem, rt_daemonize(), RT_SCHED_READY, RT_SCHED_SUSPENDED, rt_task_resume(), rtai_set_linux_task_priority(), task, thread_task, TSKEXT1, TSKEXT2, wake_up_hts, and WAKE_UP_TASKs.

Referenced by lxrt_init().

Here is the call graph for this function:

static void lxrt_exit ( void   )  [static]

Definition at line 2896 of file sched.c.

References __get_kthread(), current, DROP_ALL_PENDING_MM2DROP, endkthread, HAL_EXIT_PROCESS, HAL_KICK_PROCESS, hal_root_domain, HAL_SCHEDULE_TAIL, HAL_SYSCALL_EPILOGUE, HAL_SYSCALL_PROLOGUE, kthreadm, RELEASE_SCHEDULE_HEAD, reset_rt_fun_entries(), rt_task_resume(), rtai_catch_event(), set_rtext(), TSKEXT2, and WAKE_UP_THREADM.

Referenced by __rtai_lxrt_exit().

Here is the call graph for this function:

static int lxrt_handle_trap ( int  vec,
int  signo,
struct pt_regs *  regs,
void *  dummy_data
) [static]

Definition at line 2365 of file sched.c.

References give_back_to_linux(), HARD_KTHREAD_IN_USE, rt_printk(), rt_smp_current, rt_task_suspend(), and SYSW_DIAG_MSG.

Referenced by lxrt_init().

Here is the call graph for this function:

static int lxrt_init ( void   )  [static]

Definition at line 2844 of file sched.c.

References HAL_EXIT_PROCESS, HAL_KICK_PROCESS, hal_root_domain, HAL_SCHEDULE_TAIL, HAL_SYSCALL_EPILOGUE, HAL_SYSCALL_PROLOGUE, init_fun_ext(), INTERCEPT_SCHEDULE_HEAD, klistm, kthread_m(), kthreadm, lxrt_handle_trap(), lxrt_intercept_exit(), lxrt_intercept_schedule_tail(), lxrt_intercept_sig_wakeup(), lxrt_intercept_syscall_epilogue(), lxrt_intercept_syscall_prologue(), MAX_LXRT_FUN, nihil(), resem, rt_fun_lxrt, rtai_catch_event(), rtai_lxrt_invoke(), set_rt_fun_entries(), and WAKE_UP_THREADM.

Referenced by __rtai_lxrt_init().

Here is the call graph for this function:

static int lxrt_intercept_exit ( unsigned long  event,
struct task_struct *  lnx_task
) [static]

Definition at line 2503 of file sched.c.

References give_back_to_linux(), linux_process_termination(), task, and TSKEXT0.

Referenced by lxrt_init().

Here is the call graph for this function:

static int lxrt_intercept_schedule_tail ( unsigned  event,
void *  nothing
) [static]

Definition at line 2471 of file sched.c.

References current, DROP_MM2DROP, fast_schedule(), and wake_up_sth.

Referenced by lxrt_init().

Here is the call graph for this function:

static int lxrt_intercept_sig_wakeup ( long  event,
void *  data
) [static]

Definition at line 2493 of file sched.c.

References INTERCEPT_WAKE_UP_TASK, rt_signal_wake_up(), task, and TSKEXT0.

Referenced by lxrt_init().

Here is the call graph for this function:

static int lxrt_intercept_syscall_epilogue ( unsigned long  event,
void *  nothing
) [static]

Definition at line 2613 of file sched.c.

References current, rt_printk(), RTAI_SYSCALL_NR, steal_from_linux(), SYSW_DIAG_MSG, task, and TSKEXT0.

Referenced by lxrt_init().

Here is the call graph for this function:

static int lxrt_intercept_syscall_prologue ( struct pt_regs *  regs  )  [static]

Definition at line 2585 of file sched.c.

References current, give_back_to_linux(), LXRT_DO_IMMEDIATE_LINUX_SYSCALL, NR_syscalls, rt_exec_linux_syscall(), rt_printk(), steal_from_linux(), SYSW_DIAG_MSG, task, and TSKEXT0.

Referenced by lxrt_init().

Here is the call graph for this function:

static void lxrt_killall ( void   )  [static]

Definition at line 1734 of file sched.c.

References rt_task_delete, and stop_rt_timer().

Referenced by __rtai_lxrt_exit(), and lxrt_notify_reboot().

Here is the call graph for this function:

static int lxrt_notify_reboot ( struct notifier_block *  nb,
unsigned long  event,
void *  ptr
) [static]

Definition at line 1746 of file sched.c.

References lxrt_killall(), and printk().

Here is the call graph for this function:

module_exit ( __rtai_lxrt_exit   )

module_init ( __rtai_lxrt_init   )

MODULE_LICENSE ( "GPL"   )

RTAI_SYSCALL_MODE RTIME nano2count ( RTIME  ns  )

Definition at line 1778 of file sched.c.

References llimd(), oneshot_timer_cpuid, TIMER_FREQ, and tuned.

Here is the call graph for this function:

RTAI_SYSCALL_MODE RTIME nano2count_cpuid ( RTIME  ns,
unsigned int  cpuid
)

Definition at line 1811 of file sched.c.

References llimd(), TIMER_FREQ, and tuned.

Here is the call graph for this function:

static void nihil ( void   )  [static]

Definition at line 1693 of file sched.c.

Referenced by lxrt_init(), reset_rt_fun_entries(), and set_rt_fun_entries().

void put_current_on_cpu ( int  cpuid  )

Definition at line 226 of file sched.c.

References current, task, and TSKEXT0.

Referenced by __task_init(), kthread_fun(), kthread_m(), and set_rtext().

static irqreturn_t recover_jiffies ( int  irq,
void *  dev_id,
struct pt_regs *  regs
) [static]

Definition at line 1324 of file sched.c.

References rt_times::linux_tick, rt_times::linux_time, linux_times, rt_times::tick_time, and update_linux_timer.

RT_TASK* rt_alloc_dynamic_task ( void   )

Definition at line 1881 of file sched.c.

References rt_malloc().

Here is the call graph for this function:

int rt_check_current_stack ( void   )

Definition at line 528 of file sched.c.

References get_stack_pointer(), and RT_RESEM_SUSPDEL.

Here is the call graph for this function:

void rt_daemonize ( void   )

void rt_deregister_watchdog ( RT_TASK *  wd,
int  cpuid
)

Definition at line 1907 of file sched.c.

References lxrt_wdog_task.

Referenced by __rtai_wd_exit(), and __rtai_wd_init().

void rt_do_force_soft ( RT_TASK *  rt_task  )

Definition at line 650 of file sched.c.

References RT_SCHED_READY.

Referenced by handle_lxrt_request().

RT_TASK* rt_get_base_linux_task ( RT_TASK **  base_linux_tasks  )

Definition at line 1872 of file sched.c.

References rt_smp_linux_task.

Referenced by __rtai_wd_init().

RTIME rt_get_cpu_time_ns ( void   )

Definition at line 1853 of file sched.c.

References llimd(), rdtsc, and tuned.

Here is the call graph for this function:

void * rt_get_lxrt_fun_entry ( int  index  )

Definition at line 1730 of file sched.c.

Referenced by GENERIC_DELETE(), lxrt_Proxy_detach(), lxrt_spl_init(), lxrt_typed_mbx_init(), lxrt_typed_rwl_init(), lxrt_typed_sem_init(), and sched_sem_signal().

RTIME rt_get_real_time ( void   )

Definition at line 1860 of file sched.c.

References rtai_rdtsc.

RTIME rt_get_real_time_ns ( void   )

Definition at line 1865 of file sched.c.

References llimd(), rtai_rdtsc, and tuned.

Here is the call graph for this function:

RTIME rt_get_time ( void   )

Definition at line 1829 of file sched.c.

References rdtsc, rt_smp_oneshot_timer, rt_smp_times, and rt_times::tick_time.

RTAI_SYSCALL_MODE RTIME rt_get_time_cpuid ( unsigned int  cpuid  )

Definition at line 1835 of file sched.c.

References rdtsc.

RTIME rt_get_time_ns ( void   )

Definition at line 1840 of file sched.c.

References llimd(), rdtsc, TIMER_FREQ, and tuned.

Here is the call graph for this function:

RTAI_SYSCALL_MODE RTIME rt_get_time_ns_cpuid ( unsigned int  cpuid  )

Definition at line 1847 of file sched.c.

References llimd(), rdtsc, TIMER_FREQ, and tuned.

Here is the call graph for this function:

int rt_get_timer_cpu ( void   )

Definition at line 1243 of file sched.c.

static int rt_gettid ( void   )  [static]

Definition at line 2759 of file sched.c.

References current.

RTAI_SYSCALL_MODE int rt_hard_timer_tick_count ( void   )

Definition at line 1644 of file sched.c.

References rt_times::periodic_tick, rt_sched_timed, and rt_smp_times.

RTAI_SYSCALL_MODE int rt_hard_timer_tick_count_cpuid ( int  cpuid  )

Definition at line 1654 of file sched.c.

References rt_times::periodic_tick, rt_sched_timed, and rt_smp_times.

int rt_is_hard_timer_running ( void   )

Definition at line 1348 of file sched.c.

References rt_sched_timed.

int rt_kthread_init ( RT_TASK *  task,
void(*)(long)  rt_thread,
long  data,
int  stack_size,
int  priority,
int  uses_fpu,
void(*)(void)  signal
)

Definition at line 331 of file sched.c.

References get_min_tasks_cpuid(), rt_kthread_init_cpuid(), and task.

Referenced by __rt_proxy_attach(), and rt_task_init().

Here is the call graph for this function:

int rt_kthread_init_cpuid ( RT_TASK *  task,
void(*)(long)  rt_thread,
long  data,
int  stack_size,
int  priority,
int  uses_fpu,
void(*)(void)  signal,
unsigned int  cpuid
)

Definition at line 322 of file sched.c.

References start_stop_kthread(), and task.

Referenced by rt_kthread_init(), rt_task_init_cpuid(), and user_srq().

Here is the call graph for this function:

RT_TASK** rt_register_watchdog ( RT_TASK *  wd,
int  cpuid
)

Definition at line 1892 of file sched.c.

References lxrt_wdog_task, RT_SCHED_HIGHEST_PRIORITY, and task.

Referenced by __rtai_wd_init().

int rt_registry_alloc ( void   )

Definition at line 1534 of file api.c.

References lxrt_list, MAX_SLOTS, PRIMES_TAB_GRANULARITY, and printk().

Referenced by __rtai_lxrt_init().

Here is the call graph for this function:

void rt_registry_free ( void   )

Definition at line 1549 of file api.c.

References lxrt_list.

Referenced by __rtai_lxrt_exit(), and __rtai_lxrt_init().

void rt_release_rtc ( void   )

Definition at line 248 of file hal.c.

References rt_printk().

Here is the call graph for this function:

void rt_sched_lock ( void   )

Definition at line 1108 of file sched.c.

References locked, rt_scheduling, rtai_restore_flags, and rtai_save_flags_and_cli.

int rt_sched_type ( void   )

Definition at line 1638 of file sched.c.

References RT_SCHED_MUP.

void rt_sched_unlock ( void   )

Definition at line 1129 of file sched.c.

References locked, rqsted, rt_scheduling, rtai_restore_flags, rtai_save_flags_and_cli, and SCHED_UNLOCK_SCHEDULE.

void rt_schedule ( void   )

Definition at line 968 of file sched.c.

References CALL_TIMER_HANDLER, current, enq_soft_ready_task, FIRE_NEXT_TIMER_SHOT, force_current_soft(), IF_GOING_TO_LINUX_CHECK_TIMER_SHOT, lnxtsk_uses_fpu, LOCK_LINUX, locked, lxrt_context_switch, NON_RTAI_SCHEDULE, oneshot_running, rdtsc, restore_fpu, RESTORE_UNLOCK_LINUX, RR_YIELD, RST_EXEC_TIME, rt_half_tick, RT_SCHED_READY, RT_SCHED_SFTRDY, rt_scheduling, rt_smp_current, rtai_linux_context, rtai_set_linux_task_priority(), rtai_sti, SAVE_LOCK_LINUX, sched_get_global_lock, sched_release_global_lock, SET_EXEC_TIME, SET_NEXT_TIMER_SHOT, switch_rtai_tasks(), task, TASK_TO_SCHEDULE, timer_shot_fired, TSKEXT0, and UNLOCK_LINUX.

Referenced by _rt_bits_wait(), _rt_bits_wait_until(), _rt_schedule_soft_tail(), clr_rtext(), force_current_soft(), give_back_to_linux(), mbx_wait(), mbx_wait_until(), rt_change_prio(), rt_cndmtx_signal(), rt_insert_timer(), rt_receive(), rt_receive_until(), rt_return(), rt_sem_delete(), rt_sem_signal(), rt_send(), rt_send_until(), rt_set_timer_firing_time(), rt_sleep(), rt_sleep_until(), rt_task_set_resume_end_times(), rt_task_suspend(), rt_task_suspend_until(), rt_task_wait_period(), rt_task_yield(), and rt_wait_signal().

Here is the call graph for this function:

void rt_schedule_soft ( RT_TASK *  rt_task  )

Definition at line 1955 of file sched.c.

References _rt_schedule_soft_tail(), current, enq_soft_ready_task, LOCK_LINUX, RT_SCHED_READY, and rt_smp_current.

Here is the call graph for this function:

void rt_schedule_soft_tail ( RT_TASK *  rt_task,
int  cpuid
)

Definition at line 1978 of file sched.c.

References _rt_schedule_soft_tail().

Referenced by lxrt_fun_call().

Here is the call graph for this function:

void rt_set_oneshot_mode ( void   )

Definition at line 1364 of file sched.c.

References NR_RT_CPUS, and stop_rt_timer().

Here is the call graph for this function:

void rt_set_periodic_mode ( void   )

Definition at line 1354 of file sched.c.

References NR_RT_CPUS, oneshot_running, and stop_rt_timer().

Here is the call graph for this function:

RTAI_SYSCALL_MODE void rt_set_runnable_on_cpuid ( RT_TASK *  task,
unsigned int  cpuid
)

Definition at line 461 of file sched.c.

References get_min_tasks_cpuid(), llimd(), NR_RT_CPUS, RT_SCHED_DELAYED, rt_smp_linux_task, rt_smp_oneshot_timer, task, TIMER_FREQ, and tuned.

Here is the call graph for this function:

RTAI_SYSCALL_MODE void rt_set_runnable_on_cpus ( RT_TASK *  task,
unsigned long  run_on_cpus
)

Definition at line 507 of file sched.c.

References ffnz(), get_min_tasks_cpuid(), rt_set_runnable_on_cpuid(), and task.

Here is the call graph for this function:

RT_TRAP_HANDLER rt_set_task_trap_handler ( RT_TASK *  task,
unsigned int  vec,
RT_TRAP_HANDLER  handler
)

Definition at line 1663 of file sched.c.

References RTAI_NR_TRAPS, and task.

static void rt_signal_wake_up ( RT_TASK *  task  )  [inline, static]

Definition at line 2391 of file sched.c.

References RT_SCHED_READY, rt_task_masked_unblock(), and task.

Referenced by lxrt_intercept_sig_wakeup().

Here is the call graph for this function:

RTAI_SYSCALL_MODE void rt_spv_RMS ( int  cpuid  )

Definition at line 1071 of file sched.c.

References period, RT_TIME_END, and task.

int rt_task_delete ( RT_TASK *  task  )

Definition at line 1232 of file sched.c.

References clr_rtext(), start_stop_kthread(), and task.

Here is the call graph for this function:

int rt_task_init ( RT_TASK *  task,
void(*)(long)  rt_thread,
long  data,
int  stack_size,
int  priority,
int  uses_fpu,
void(*)(void)  signal
)

Definition at line 454 of file sched.c.

References rt_kthread_init(), and task.

Here is the call graph for this function:

int rt_task_init_cpuid ( RT_TASK *  task,
void(*)(long)  rt_thread,
long  data,
int  stack_size,
int  priority,
int  uses_fpu,
void(*)(void)  signal,
unsigned int  cpuid
)

Definition at line 449 of file sched.c.

References rt_kthread_init_cpuid(), and task.

Referenced by __rtai_tasklets_init(), __rtai_wd_init(), rt_named_task_init_cpuid(), rt_request_signal(), rt_request_signal_mq(), and user_srq().

Here is the call graph for this function:

static void rt_timer_handler ( void   )  [static]

Definition at line 1249 of file sched.c.

References current, DO_TIMER_PROPER_OP, FIRE_NEXT_TIMER_SHOT, IF_GOING_TO_LINUX_CHECK_TIMER_SHOT, lnxtsk_uses_fpu, locked, lxrt_context_switch, rdtsc, REDO_TIMER_HANDLER, restore_fpu, RESTORE_UNLOCK_LINUX_IN_IRQ, RR_YIELD, RST_EXEC_TIME, rt_half_tick, rt_scheduling, rt_set_timer_delay, rt_smp_current, RT_TIME_END, rtai_linux_context, SAVE_LOCK_LINUX_IN_IRQ, sched_get_global_lock, sched_release_global_lock, SET_EXEC_TIME, SET_NEXT_TIMER_SHOT, SET_PEND_LINUX_TIMER_SHOT, switch_rtai_tasks(), task, TASK_TO_SCHEDULE, and timer_shot_fired.

Referenced by start_rt_timer().

Here is the call graph for this function:

void rtai_handle_isched_lock ( int  cpuid  )

Definition at line 1146 of file sched.c.

References SCHED_UNLOCK_SCHEDULE.

Referenced by __rtai_lxrt_init().

long long rtai_lxrt_invoke ( unsigned  long,
void *  ,
void *
)

Referenced by lxrt_init().

RTAI_MODULE_PARM ( SpareKthreads  ,
int
)

RTAI_MODULE_PARM ( Reservoir  ,
int
)

RTAI_MODULE_PARM ( SetupTimeTIMER  ,
int
)

RTAI_MODULE_PARM ( Latency  ,
int
)

RTAI_MODULE_PARM ( OneShot  ,
int
)

RTAI_MODULE_PARM ( rtai_kstack_heap_size  ,
int
)

static void sched_sem_signal ( SEM *  sem  )  [inline, static]

Definition at line 1153 of file sched.c.

References rt_get_lxrt_fun_entry(), RTAI_SYSCALL_MODE, and SEM_SIGNAL.

Referenced by clr_rtext().

Here is the call graph for this function:

int set_rtext ( RT_TASK *  task,
int  priority,
int  uses_fpu,
void(*)(void)  signal,
unsigned int  cpuid,
struct task_struct *  relink
)

Definition at line 244 of file sched.c.

References atomic_inc, current, flags, lxrt_wdog_task, NR_RT_CPUS, put_current_on_cpu(), rt_printk(), RT_SCHED_HIGHEST_PRIORITY, RT_SCHED_READY, RT_SCHED_SUSPENDED, RT_TIME_END, RTAI_NR_TRAPS, task, TSKEXT0, and TSKEXT1.

Here is the call graph for this function:

RTAI_SYSCALL_MODE void start_rt_apic_timers ( struct apic_timer_setup_data *  setup_mode,
unsigned int  rcvr_jiffies_cpuid
)

Definition at line 1600 of file sched.c.

References count, nano2count(), rt_set_oneshot_mode(), and start_rt_timer().

Here is the call graph for this function:

RTAI_SYSCALL_MODE RTIME start_rt_timer ( int  period  )

Definition at line 1563 of file sched.c.

References rt_times::intr_time, rt_times::linux_tick, rt_times::linux_time, linux_times, oneshot_running, rt_times::periodic_tick, REQUEST_RECOVER_JIFFIES, rt_gettimeorig(), rt_half_tick, rt_request_timer(), rt_sched_timed, rt_set_oneshot_mode(), rt_smp_times, rt_timer_handler(), rt_times::tick_time, timer_shot_fired, TIMER_TYPE, and tuned.

Here is the call graph for this function:

static void start_stop_kthread ( RT_TASK *  ,
void(*)(long)  ,
long  ,
int  ,
int  ,
void(*)(void)  ,
int
) [static]

Definition at line 2333 of file sched.c.

References get_kthread(), set_rtext(), and task.

Referenced by rt_kthread_init_cpuid(), and rt_task_delete().

Here is the call graph for this function:

void steal_from_linux ( RT_TASK *  rt_task  )

Definition at line 2205 of file sched.c.

References lnxtsk_uses_fpu, rdtsc, restore_fpu, RT_SCHED_READY, rtai_cli, rtai_sti, and wake_up_sth.

Referenced by check_to_soften_harden(), handle_lxrt_request(), kthread_fun(), lxrt_intercept_syscall_epilogue(), lxrt_intercept_syscall_prologue(), and rt_make_hard_real_time().

void stop_rt_timer ( void   )

Definition at line 1623 of file sched.c.

References RELEASE_RECOVER_JIFFIES, rt_free_timer(), rt_sched_timed, rt_smp_oneshot_timer, and RT_TIME_END.

Here is the call graph for this function:

static RT_TASK* switch_rtai_tasks ( RT_TASK *  rt_current,
RT_TASK *  new_task,
int  cpuid
) [static]

Definition at line 711 of file sched.c.

References fpu_task, linux_cr0, restore_fpcr, restore_fpenv, RESTORE_UNLOCK_LINUX, RST_EXEC_TIME, rt_exchange_tasks, rt_smp_current, rtai_domain, RTAI_TASK_SWITCH_SIGNAL, save_fpcr_and_enable_fpu, save_fpenv, SAVE_LOCK_LINUX, SAVE_PREV_TASK, and SET_EXEC_TIME.

Referenced by rt_schedule(), and rt_timer_handler().

static void timer_fun ( unsigned long  none  )  [static]

Definition at line 2954 of file sched.c.

References TICK_8254_TSC_EMULATION, and timer.

void usp_request_rtc ( int  ,
void *
)

static void wake_up_srq_handler ( unsigned  srq  )  [static]

Definition at line 2347 of file sched.c.

References kthreadm, wake_up_hts, wake_up_srq, WAKE_UP_TASKs, and WAKE_UP_THREADM.

Variable Documentation

DECLARE_FUSION_WAKE_UP_STUFF

Definition at line 2842 of file sched.c.

DECLR_8254_TSC_EMULATION

Definition at line 2952 of file sched.c.

int endkthread [static]

Definition at line 125 of file sched.c.

Referenced by kthread_m(), and lxrt_exit().

struct { ... } frstk_srq [static]

Referenced by __rtai_lxrt_exit(), __rtai_lxrt_init(), clr_rtext(), and frstk_srq_handler().

volatile unsigned long in

Definition at line 142 of file sched.c.

struct klist_t klistm[NR_RT_CPUS] [static]

Definition at line 119 of file sched.c.

Referenced by get_kthread(), kthread_m(), and lxrt_init().

struct task_struct* kthreadm[NR_RT_CPUS] [static]

Definition at line 121 of file sched.c.

Referenced by get_kthread(), kthread_m(), lxrt_exit(), lxrt_init(), and wake_up_srq_handler().

int Latency = TIMER_LATENCY [static]

Definition at line 1678 of file sched.c.

Referenced by __rtai_lxrt_init().

struct rt_times* linux_times [static]

Definition at line 103 of file sched.c.

Referenced by recover_jiffies(), and start_rt_timer().

volatile int locked

Definition at line 91 of file sched.c.

RT_TRAP_HANDLER lxrt_old_trap_handler [static]

Definition at line 1922 of file sched.c.

RT_TASK* lxrt_prev_task[NR_RT_CPUS]

Definition at line 107 of file sched.c.

Referenced by watch_looper().

struct notifier_block lxrt_reboot_notifier [static]

Initial value:

 {
    .notifier_call  = &lxrt_notify_reboot,
    .next       = NULL,
    .priority   = 0
}

Definition at line 113 of file sched.c.

Referenced by __rtai_lxrt_exit(), and __rtai_lxrt_init().

RT_TASK* lxrt_wdog_task[NR_RT_CPUS] [static]

Definition at line 105 of file sched.c.

Referenced by rt_deregister_watchdog(), rt_register_watchdog(), and set_rtext().

void* mp[MAX_FRESTK_SRQ]

Definition at line 142 of file sched.c.

int OneShot = CONFIG_RTAI_ONE_SHOT [static]

Definition at line 1675 of file sched.c.

Referenced by __rtai_lxrt_init().

int oneshot_span [static]

Definition at line 827 of file sched.c.

volatile unsigned long out

Definition at line 142 of file sched.c.

struct semaphore resem[NR_RT_CPUS] [static]

Definition at line 123 of file sched.c.

Referenced by get_kthread(), kthread_m(), and lxrt_init().

int Reservoir = RESERVOIR [static]

Definition at line 2009 of file sched.c.

volatile int rqsted

Definition at line 91 of file sched.c.

int rsvr_cnt[NR_RT_CPUS] [static]

Definition at line 2002 of file sched.c.

struct rt_fun_entry rt_fun_lxrt[MAX_LXRT_FUN]

Definition at line 1694 of file sched.c.

Referenced by __rtai_netrpc_init(), init_fun_ext(), and lxrt_init().

struct rt_native_fun_entry rt_sched_entries[] [static]

Definition at line 2764 of file sched.c.

volatile int rt_sched_timed

Definition at line 83 of file sched.c.

Referenced by rt_hard_timer_tick_count(), rt_hard_timer_tick_count_cpuid(), rt_is_hard_timer_running(), start_rt_timer(), and stop_rt_timer().

struct { ... } rt_scheduling[]

RT_TASK* rt_smp_current[NR_RT_CPUS]

Definition at line 77 of file sched.c.

Referenced by __rtai_lxrt_init(), _rt_schedule_soft_tail(), fast_schedule(), force_current_soft(), get_kthread(), lxrt_handle_trap(), rt_schedule(), rt_schedule_soft(), rt_timer_handler(), and switch_rtai_tasks().

RT_TASK* rt_smp_fpu_task[NR_RT_CPUS] [static]

Definition at line 95 of file sched.c.

Referenced by __rtai_lxrt_init(), and clr_rtext().

int rt_smp_half_tick[NR_RT_CPUS] [static]

Definition at line 97 of file sched.c.

unsigned long rt_smp_linux_cr0[NR_RT_CPUS] [static]

Definition at line 93 of file sched.c.

RT_TASK rt_smp_linux_task[NR_RT_CPUS]

Definition at line 75 of file sched.c.

Referenced by __rtai_shm_init(), clr_rtext(), rt_change_prio(), rt_get_base_linux_task(), rt_Name_locate(), rt_set_runnable_on_cpuid(), rt_task_yield(), and watch_looper().

int rt_smp_oneshot_running[NR_RT_CPUS] [static]

Definition at line 99 of file sched.c.

int rt_smp_oneshot_timer[NR_RT_CPUS]

Definition at line 81 of file sched.c.

Referenced by rt_get_time(), rt_set_runnable_on_cpuid(), and stop_rt_timer().

RTIME rt_smp_time_h[NR_RT_CPUS]

Definition at line 79 of file sched.c.

Referenced by mbx_wait_until(), and rt_task_suspend_until().

volatile int rt_smp_timer_shot_fired[NR_RT_CPUS] [static]

Definition at line 101 of file sched.c.

rtheap_t rtai_kstack_heap [static]

Definition at line 203 of file sched.c.

int rtai_kstack_heap_size = (CONFIG_RTAI_KSTACK_HEAPSZ*1024)

Definition at line 200 of file sched.c.

int satdlay [static]

Definition at line 828 of file sched.c.

int SetupTimeTIMER = TIMER_SETUP_TIME [static]

Definition at line 1681 of file sched.c.

Referenced by __rtai_lxrt_init().

int SpareKthreads = 100 [static]

Definition at line 2011 of file sched.c.

int srq

Definition at line 142 of file sched.c.

int(*[]) sys_call_table(struct pt_regs)

unsigned long systrans [static]

Definition at line 2363 of file sched.c.

struct task_struct** taskav[NR_RT_CPUS] [static]

Definition at line 2015 of file sched.c.

int taskidx[NR_RT_CPUS] [static]

Definition at line 2014 of file sched.c.

int tasks_per_cpu[NR_RT_CPUS] = { 0, } [static]

Definition at line 212 of file sched.c.

RT_TASK thread_task[NR_RT_CPUS] [static]

Definition at line 2001 of file sched.c.

Referenced by kthread_fun(), and kthread_m().

unsigned long traptrans [static]

Definition at line 2363 of file sched.c.

struct klist_t wake_up_hts[NR_RT_CPUS]

Definition at line 86 of file sched.c.

Referenced by kthread_m(), and wake_up_srq_handler().

struct klist_t wake_up_srq[NR_RT_CPUS]

Definition at line 87 of file sched.c.

Referenced by wake_up_srq_handler().

struct klist_t wake_up_sth[NR_RT_CPUS] [static]

Definition at line 85 of file sched.c.

Referenced by lxrt_intercept_schedule_tail(), and steal_from_linux().

Generated on Tue Feb 2 17:48:11 2010 for RTAI API by  doxygen 1.4.7
