Public Member Functions | Private Attributes

TAO_Thread_Pool Class Reference

Class representing the thread pool inside a thread pool manager. More...

#include <Thread_Pool.h>

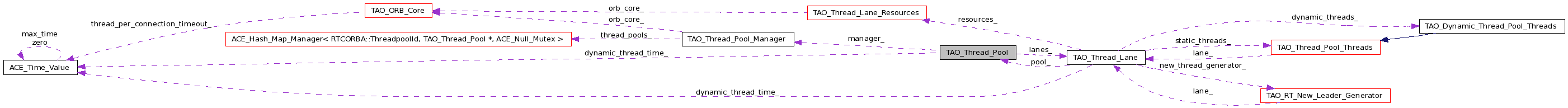

Collaboration diagram for TAO_Thread_Pool:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_Thread_Pool (TAO_Thread_Pool_Manager &manager, CORBA::ULong id, CORBA::ULong stack_size, CORBA::ULong static_threads, CORBA::ULong dynamic_threads, CORBA::Short default_priority, CORBA::Boolean allow_request_buffering, CORBA::ULong max_buffered_requests, CORBA::ULong max_request_buffer_size, TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan lifespan, ACE_Time_Value const &dynamic_thread_time)
 Constructor (for pools without lanes).
 TAO_Thread_Pool (TAO_Thread_Pool_Manager &manager, CORBA::ULong id, CORBA::ULong stack_size, const RTCORBA::ThreadpoolLanes &lanes, CORBA::Boolean allow_borrowing, CORBA::Boolean allow_request_buffering, CORBA::ULong max_buffered_requests, CORBA::ULong max_request_buffer_size, TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan lifespan, ACE_Time_Value const &dynamic_thread_time)
 Constructor (for pools with lanes).
 ~TAO_Thread_Pool (void)
 Destructor.
void open (void)
 Open the pool.
void finalize (void)
 Finalize the resources.
void shutdown_reactor (void)
 Shutdown the reactor.
void wait (void)
 Wait for threads to exit.
void shutting_down (void)
 Mark this thread pool that we are shutting down.
int is_collocated (const TAO_MProfile &mprofile)
 Does mprofile belong to us?
int create_static_threads (void)
 Create the static threads - only called once.
bool with_lanes (void) const
 Check if this thread pool has (explicit) lanes.

Private Attributes

TAO_Thread_Pool_Manager & manager_
CORBA::ULong id_
CORBA::ULong stack_size_
CORBA::Boolean allow_borrowing_
CORBA::Boolean allow_request_buffering_
CORBA::ULong max_buffered_requests_
CORBA::ULong max_request_buffer_size_
TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan
const 		lifespan_
ACE_Time_Value const dynamic_thread_time_
TAO_Thread_Lane ** lanes_
CORBA::ULong number_of_lanes_
bool with_lanes_

Accessors



TAO_Thread_Pool_Manager & manager (void) const
CORBA::ULong id (void) const
CORBA::ULong stack_size (void) const
CORBA::Boolean allow_borrowing (void) const
CORBA::Boolean allow_request_buffering (void) const
CORBA::ULong max_buffered_requests (void) const
CORBA::ULong max_request_buffer_size (void) const
TAO_Thread_Lane ** lanes (void)
CORBA::ULong number_of_lanes (void) const

Detailed Description

Class representing the thread pool inside a thread pool manager.

Definition at line 258 of file Thread_Pool.h.

Constructor & Destructor Documentation

TAO_Thread_Pool::TAO_Thread_Pool ( TAO_Thread_Pool_Manager &  manager,
CORBA::ULong  id,
CORBA::ULong  stack_size,
CORBA::ULong  static_threads,
CORBA::ULong  dynamic_threads,
CORBA::Short  default_priority,
CORBA::Boolean  allow_request_buffering,
CORBA::ULong  max_buffered_requests,
CORBA::ULong  max_request_buffer_size,
TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan  lifespan,
ACE_Time_Value const &  dynamic_thread_time
)

Constructor (for pools without lanes).

Definition at line 485 of file Thread_Pool.cpp.

  : manager_ (manager),
    id_ (id),
    stack_size_ (stack_size),
    allow_borrowing_ (0),
    allow_request_buffering_ (allow_request_buffering),
    max_buffered_requests_ (max_buffered_requests),
    max_request_buffer_size_ (max_request_buffer_size),
    lifespan_ (lifespan),
    dynamic_thread_time_ (dynamic_thread_time),
    lanes_ (0),
    number_of_lanes_ (1),
    with_lanes_ (false)
{
  // No support for buffering.
  if (allow_request_buffering)
    throw ::CORBA::NO_IMPLEMENT ();

  // Create one lane.
  ACE_NEW (this->lanes_,
           TAO_Thread_Lane *[this->number_of_lanes_]);
  ACE_NEW (this->lanes_[0],
           TAO_Thread_Lane (*this,
                            0,
                            default_priority,
                            static_threads,
                            dynamic_threads,
                            lifespan,
                            dynamic_thread_time
                           ));
}

TAO_Thread_Pool::TAO_Thread_Pool ( TAO_Thread_Pool_Manager &  manager,
CORBA::ULong  id,
CORBA::ULong  stack_size,
const RTCORBA::ThreadpoolLanes &  lanes,
CORBA::Boolean  allow_borrowing,
CORBA::Boolean  allow_request_buffering,
CORBA::ULong  max_buffered_requests,
CORBA::ULong  max_request_buffer_size,
TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan  lifespan,
ACE_Time_Value const &  dynamic_thread_time
)

Constructor (for pools with lanes).

Definition at line 527 of file Thread_Pool.cpp.

  : manager_ (manager),
    id_ (id),
    stack_size_ (stack_size),
    allow_borrowing_ (allow_borrowing),
    allow_request_buffering_ (allow_request_buffering),
    max_buffered_requests_ (max_buffered_requests),
    max_request_buffer_size_ (max_request_buffer_size),
    lifespan_ (lifespan),
    dynamic_thread_time_ (dynamic_thread_time),
    lanes_ (0),
    number_of_lanes_ (lanes.length ()),
    with_lanes_ (true)
{
  // No support for buffering or borrowing.
  if (allow_borrowing ||
      allow_request_buffering)
    throw ::CORBA::NO_IMPLEMENT ();

  // Create multiple lane.
  ACE_NEW (this->lanes_,
           TAO_Thread_Lane *[this->number_of_lanes_]);
  for (CORBA::ULong i = 0;
       i != this->number_of_lanes_;
       ++i)
    ACE_NEW (this->lanes_[i],
             TAO_Thread_Lane (*this,
                              i,
                              lanes[i].lane_priority,
                              lanes[i].static_threads,
                              lanes[i].dynamic_threads,
                              lifespan,
                              dynamic_thread_time
                             ));
}

TAO_Thread_Pool::~TAO_Thread_Pool ( void   )

Destructor.

Definition at line 584 of file Thread_Pool.cpp.

{
  // Delete all the lanes.
  for (CORBA::ULong i = 0;
       i != this->number_of_lanes_;
       ++i)
    delete this->lanes_[i];

  delete[] this->lanes_;
}

Member Function Documentation

CORBA::Boolean TAO_Thread_Pool::allow_borrowing ( void   )  const

Definition at line 107 of file Thread_Pool.inl.

{
  return this->allow_borrowing_;
}

CORBA::Boolean TAO_Thread_Pool::allow_request_buffering ( void   )  const

Definition at line 114 of file Thread_Pool.inl.

{
  return this->allow_request_buffering_;
}

int TAO_Thread_Pool::create_static_threads ( void   )

Create the static threads - only called once.

Definition at line 655 of file Thread_Pool.cpp.

{
  for (CORBA::ULong i = 0;
       i != this->number_of_lanes_;
       ++i)
    {
      // Ask each lane to create its set of static threads.
      int const result = this->lanes_[i]->create_static_threads ();

      // Return on failure.
      if (result != 0)
        return result;
    }

  // Success.
  return 0;
}

void TAO_Thread_Pool::finalize ( void   )

Finalize the resources.

Definition at line 596 of file Thread_Pool.cpp.

{
  // Finalize all the lanes.
  for (CORBA::ULong i = 0;
       i != this->number_of_lanes_;
       ++i)
    this->lanes_[i]->finalize ();
}

CORBA::ULong TAO_Thread_Pool::id ( void   )  const

Definition at line 93 of file Thread_Pool.inl.

{
  return this->id_;
}

int TAO_Thread_Pool::is_collocated ( const TAO_MProfile &  mprofile  )

Does mprofile belong to us?

Definition at line 637 of file Thread_Pool.cpp.

{
  // Finalize all the lanes.
  for (CORBA::ULong i = 0;
       i != this->number_of_lanes_;
       ++i)
    {
      int result =
        this->lanes_[i]->is_collocated (mprofile);

      if (result)
        return result;
    }

  return 0;
}

TAO_Thread_Lane ** TAO_Thread_Pool::lanes ( void   )

Definition at line 135 of file Thread_Pool.inl.

{
  return this->lanes_;
}

TAO_Thread_Pool_Manager & TAO_Thread_Pool::manager ( void   )  const

Definition at line 86 of file Thread_Pool.inl.

{
  return this->manager_;
}

CORBA::ULong TAO_Thread_Pool::max_buffered_requests ( void   )  const

Definition at line 121 of file Thread_Pool.inl.

{
  return this->max_buffered_requests_;
}

CORBA::ULong TAO_Thread_Pool::max_request_buffer_size ( void   )  const

Definition at line 128 of file Thread_Pool.inl.

{
  return this->max_request_buffer_size_;
}

CORBA::ULong TAO_Thread_Pool::number_of_lanes ( void   )  const

Definition at line 142 of file Thread_Pool.inl.

{
  return this->number_of_lanes_;
}

void TAO_Thread_Pool::open ( void   )

Open the pool.

Definition at line 573 of file Thread_Pool.cpp.

{
  // Open all the lanes.
  for (CORBA::ULong i = 0;
       i != this->number_of_lanes_;
       ++i)
    {
      this->lanes_[i]->open ();
    }
}

void TAO_Thread_Pool::shutdown_reactor ( void   )

Shutdown the reactor.

Definition at line 606 of file Thread_Pool.cpp.

{
  // Finalize all the lanes.
  for (CORBA::ULong i = 0;
       i != this->number_of_lanes_;
       ++i)
    this->lanes_[i]->shutdown_reactor ();
}

void TAO_Thread_Pool::shutting_down ( void   )

Mark this thread pool that we are shutting down.

Definition at line 616 of file Thread_Pool.cpp.

{
  // Finalize all the lanes.
  for (CORBA::ULong i = 0;
       i != this->number_of_lanes_;
       ++i)
    this->lanes_[i]->shutting_down ();
}

CORBA::ULong TAO_Thread_Pool::stack_size ( void   )  const

Definition at line 100 of file Thread_Pool.inl.

{
  return this->stack_size_;
}

void TAO_Thread_Pool::wait ( void   )

Wait for threads to exit.

Definition at line 627 of file Thread_Pool.cpp.

{
  // Finalize all the lanes.
  for (CORBA::ULong i = 0;
       i != this->number_of_lanes_;
       ++i)
    this->lanes_[i]->wait ();
}

bool TAO_Thread_Pool::with_lanes ( void   )  const

Check if this thread pool has (explicit) lanes.

Definition at line 79 of file Thread_Pool.inl.

{
  return this->with_lanes_;
}

Member Data Documentation

CORBA::Boolean TAO_Thread_Pool::allow_borrowing_ [private]

Definition at line 336 of file Thread_Pool.h.

CORBA::Boolean TAO_Thread_Pool::allow_request_buffering_ [private]

Definition at line 337 of file Thread_Pool.h.

ACE_Time_Value const TAO_Thread_Pool::dynamic_thread_time_ [private]

Definition at line 341 of file Thread_Pool.h.

CORBA::ULong TAO_Thread_Pool::id_ [private]

Definition at line 333 of file Thread_Pool.h.

TAO_Thread_Lane** TAO_Thread_Pool::lanes_ [private]

Definition at line 343 of file Thread_Pool.h.

TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan const TAO_Thread_Pool::lifespan_ [private]

Definition at line 340 of file Thread_Pool.h.

TAO_Thread_Pool_Manager& TAO_Thread_Pool::manager_ [private]

Definition at line 332 of file Thread_Pool.h.

CORBA::ULong TAO_Thread_Pool::max_buffered_requests_ [private]

Definition at line 338 of file Thread_Pool.h.

CORBA::ULong TAO_Thread_Pool::max_request_buffer_size_ [private]

Definition at line 339 of file Thread_Pool.h.

CORBA::ULong TAO_Thread_Pool::number_of_lanes_ [private]

Definition at line 344 of file Thread_Pool.h.

CORBA::ULong TAO_Thread_Pool::stack_size_ [private]

Definition at line 335 of file Thread_Pool.h.

bool TAO_Thread_Pool::with_lanes_ [private]

Definition at line 345 of file Thread_Pool.h.

The documentation for this class was generated from the following files:
