Class representing a ServerRequest object. More...

#include <TAO_Server_Request.h>

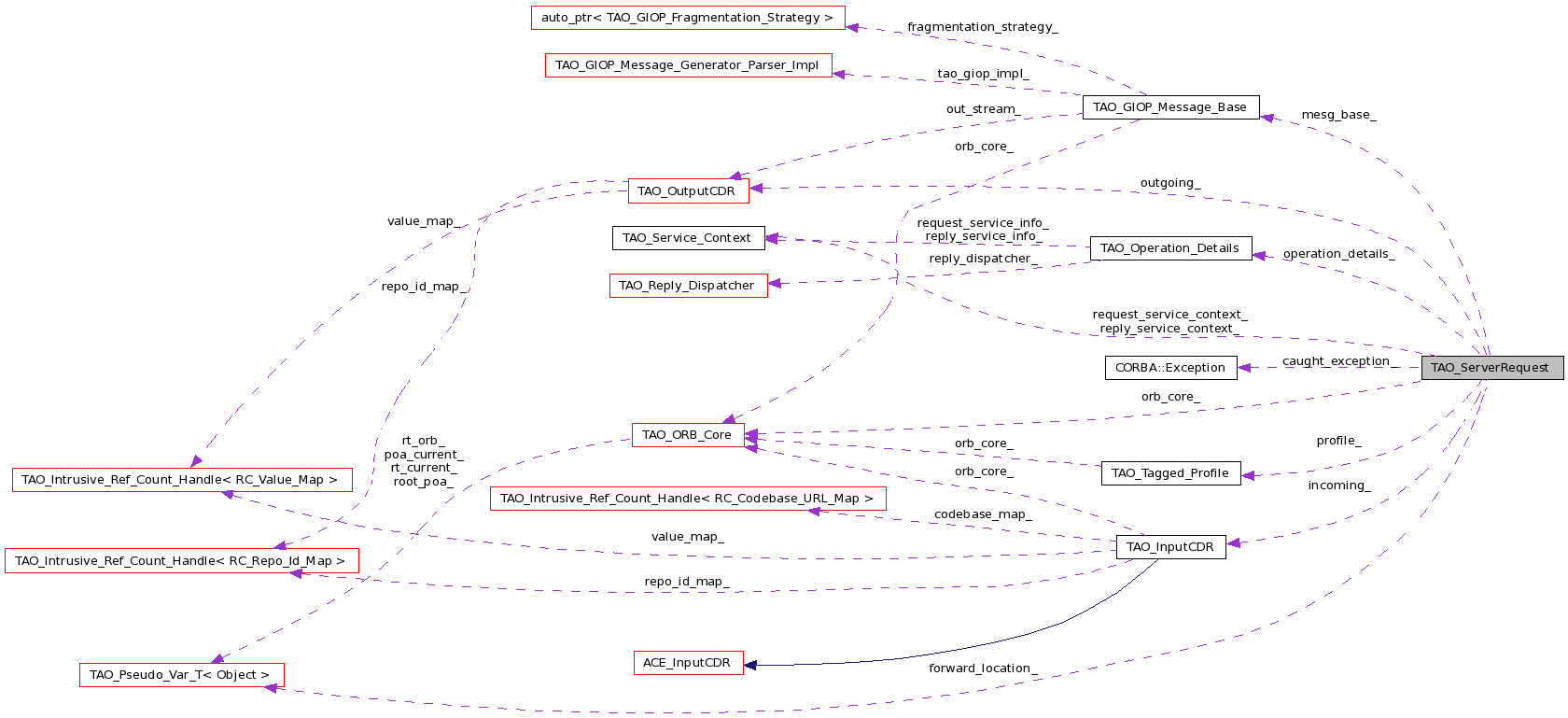

Collaboration diagram for TAO_ServerRequest:

Public Member Functions
	TAO_ServerRequest (TAO_GIOP_Message_Base mesg_base, TAO_InputCDR &input, TAO_OutputCDR &output, TAO_Transport transport, TAO_ORB_Core *orb_core)
	TAO_ServerRequest (TAO_GIOP_Message_Base mesg_base, CORBA::ULong request_id, CORBA::Boolean response_expected, CORBA::Boolean deferred_flag, TAO::ObjectKey &object_key, const char operation, TAO_OutputCDR &output, TAO_Transport transport, TAO_ORB_Core orb_core, int &parse_error)
	TAO_ServerRequest (TAO_ORB_Core *orb_core, TAO_Operation_Details const &details, CORBA::Object_ptr target)
	Constructor used by thru-POA collocated invocation path.
	~TAO_ServerRequest (void)
	Destructor.
CORBA::ORB_ptr	orb (void)
	Return the underlying ORB.
TAO_ORB_Core *	orb_core (void) const
	Return the ORB core pointer member.
void	init_reply (void)
	Start a Reply message.
TAO_InputCDR *	incoming (void) const
	Retrieve the incoming stream.
TAO_OutputCDR *	outgoing (void) const
	Retrieve the outgoing stream.
CORBA::Boolean	response_expected (void) const
	Is the response expected?
CORBA::Boolean	deferred_reply (void) const
	Should the reply be deferred?
void	response_expected (CORBA::Boolean response)
	Set the response expected flag.
CORBA::Boolean	sync_with_server (void) const
	Should we return before dispatching the servant?
void	sync_with_server (CORBA::Boolean sync_flag)
	Set the sync_with_server flag.
void	send_no_exception_reply (void)
	Used with reliable oneway requests.
TAO::ObjectKey &	object_key (void)
TAO_Service_Context &	request_service_context (void)
	Return the request TAO_Service_Context.
TAO_Service_Context &	reply_service_context (void)
	Return the reply TAO_Service_Context.
IOP::ServiceContextList &	reply_service_info (void)
IOP::ServiceContextList &	request_service_info (void)
TAO_Transport *	transport ()
	Return the underlying transport.
void	forward_location (CORBA::Object_ptr forward_reference)
CORBA::Object_ptr	forward_location (void)
	Get the forward_location.
bool	is_forwarded (void) const
GIOP::ReplyStatusType	reply_status (void)
	Get the reply status.
void	reply_status (GIOP::ReplyStatusType except_type)
	Set the reply status.
void	requesting_principal (const CORBA::OctetSeq &principal)
	Set the requesting principal.
TAO_Tagged_Profile &	profile (void)
	Return the reference to the tagged profile.
void	tao_send_reply (void)
void	tao_send_reply_exception (const CORBA::Exception &ex)
void	is_dsi (void)
	Set the boolean member to true.
void	dsi_nvlist_align (ptrdiff_t alignment)
	Set the member.
TAO_Operation_Details const *	operation_details (void) const
	Get the operation details for the current request.
void	argument_flag (CORBA::Boolean flag)
	Set the argument_flag.
CORBA::Boolean	argument_flag (void)
	Get the argument_flag.
bool	collocated (void) const
	Returns `true` if the current request is collocated.
void	send_cached_reply (CORBA::OctetSeq &ocs)
size_t &	interceptor_count (void)
TAO::PICurrent_Impl *	rs_pi_current (void)
	Return a reference to the "request scope" PICurrent object.
CORBA::Exception *	caught_exception (void)
void	caught_exception (CORBA::Exception *exception)
void	pi_reply_status (PortableInterceptor::ReplyStatus s)
	Set the status of the received reply.
PortableInterceptor::ReplyStatus	pi_reply_status (void)
	Get the status of the received reply.
Request attributes.

const char *	operation (void) const
	Return the operation name.
void	operation (const char *operation, size_t length, int release)
	Set the operation name.
size_t	operation_length (void) const
	Return the length of the operation.


CORBA::ULong	request_id (void)
void	request_id (CORBA::ULong req)
Private Member Functions
	TAO_ServerRequest (void)
Private Attributes
TAO_GIOP_Message_Base *	mesg_base_
const char *	operation_
	Operation name.
size_t	operation_len_
	Operation length.
bool	release_operation_
	Do we own the memory associated with operation_?
CORBA::Object_var	forward_location_
bool	is_forwarded_
TAO_InputCDR *	incoming_
	Incoming stream.
TAO_OutputCDR *	outgoing_
	Outgoing stream.
CORBA::Boolean	response_expected_
CORBA::Boolean	deferred_reply_
CORBA::Boolean	sync_with_server_
CORBA::Boolean	is_dsi_
	Did we get passed to a CORBA::ServerRequest?
GIOP::ReplyStatusType	reply_status_
	Reply status (will be NO_EXCEPTION in the majority of the cases).
TAO_ORB_Core *	orb_core_
TAO_Service_Context	request_service_context_
	Service Context info.
TAO_Service_Context	reply_service_context_
CORBA::ULong	request_id_
	Unique identifier for a request.
TAO_Tagged_Profile	profile_
	The tagged profile that has the addressing information.
CORBA::OctetSeq_var	requesting_principal_
	Identifies the requester.
ptrdiff_t	dsi_nvlist_align_
	Used to pad CDR stream if we have used DSI.
TAO_Operation_Details const *	operation_details_
CORBA::Boolean	argument_flag_
size_t	interceptor_count_
TAO::PICurrent_Impl *	rs_pi_current_
CORBA::Exception *	caught_exception_
	Pointer to the caught exception.
PortableInterceptor::ReplyStatus	pi_reply_status_
	Reply status for the current request.
TAO::Transport_Selection_Guard	transport_
Friends
class	TAO::CSD::FW_Server_Request_Wrapper
class	TAO_AMH_Response_Handler
	Declare TAO_AMH_Response_Handler a friend.

Detailed Description

Class representing a ServerRequest object.

Encapsulates CDR, transport and pluggable messaging components on the server side.

Definition at line 82 of file TAO_Server_Request.h.

Constructor & Destructor Documentation

TAO_ServerRequest::TAO_ServerRequest	(	TAO_GIOP_Message_Base *	mesg_base,
		TAO_InputCDR &	input,
		TAO_OutputCDR &	output,
		TAO_Transport *	transport,
		TAO_ORB_Core *	orb_core
	)

Definition at line 51 of file TAO_Server_Request.cpp.

  : mesg_base_ (mesg_base),
    operation_ (0),
    operation_len_ (0),
    release_operation_ (false),
    is_forwarded_ (false),
    incoming_ (&input),
    outgoing_ (&output),
    response_expected_ (false),
    deferred_reply_ (false),
    sync_with_server_ (false),
    is_dsi_ (false),
    // @@ We shouldn't be using GIOP specific types here. Need to be revisited.
    reply_status_ (GIOP::NO_EXCEPTION),
    orb_core_ (orb_core),
    request_id_ (0),
    profile_ (orb_core),
    requesting_principal_ (0),
    dsi_nvlist_align_ (0),
    operation_details_ (0),
    argument_flag_ (true)
#if TAO_HAS_INTERCEPTORS == 1
    , interceptor_count_ (0)
    , rs_pi_current_ (0)
    , caught_exception_ (0)
    , pi_reply_status_ (-1)
#endif  /* TAO_HAS_INTERCEPTORS == 1 */
    , transport_(transport) //already duplicated in TAO_Transport::process_parsed_messages ()
{
  ACE_FUNCTION_TIMEPROBE (TAO_SERVER_REQUEST_START);
  // No-op.
}

TAO_ServerRequest::TAO_ServerRequest	(	TAO_GIOP_Message_Base *	mesg_base,
		CORBA::ULong	request_id,
		CORBA::Boolean	response_expected,
		CORBA::Boolean	deferred_flag,
		TAO::ObjectKey &	object_key,
		const char *	operation,
		TAO_OutputCDR &	output,
		TAO_Transport *	transport,
		TAO_ORB_Core *	orb_core,
		int &	parse_error
	)

Definition at line 89 of file TAO_Server_Request.cpp.

  : mesg_base_ (mesg_base),
    operation_ (CORBA::string_dup (operation)),
    operation_len_ (operation == 0 ? 0 : ACE_OS::strlen (operation)),
    release_operation_ (true),
    is_forwarded_ (false),
    incoming_ (0),
    outgoing_ (&output),
    response_expected_ (response_expected),
    deferred_reply_ (deferred_reply),
    sync_with_server_ (false),
    is_dsi_ (false),
    reply_status_ (GIOP::NO_EXCEPTION),
    orb_core_ (orb_core),
    request_id_ (request_id),
    profile_ (orb_core),
    requesting_principal_ (0),
    dsi_nvlist_align_ (0),
    operation_details_ (0),
    argument_flag_ (true)
#if TAO_HAS_INTERCEPTORS == 1
  , interceptor_count_ (0)
  , rs_pi_current_ (0)
  , caught_exception_ (0)
  , pi_reply_status_ (-1)
#endif  /* TAO_HAS_INTERCEPTORS == 1 */
  , transport_(transport) //already duplicated in TAO_Transport::process_parsed_messages ()
{
  this->profile_.object_key (object_key);
  parse_error = 0;
}

TAO_ServerRequest::TAO_ServerRequest	(	TAO_ORB_Core *	orb_core,
		TAO_Operation_Details const &	details,
		CORBA::Object_ptr	target
	)

Constructor used by thru-POA collocated invocation path.

Definition at line 131 of file TAO_Server_Request.cpp.

  : mesg_base_ (0),
    operation_ (details.opname ()),
    operation_len_ (details.opname_len ()),
    release_operation_ (false),
    is_forwarded_ (false),
    incoming_ (0),
    outgoing_ (0),
    response_expected_ (details.response_flags () == TAO_TWOWAY_RESPONSE_FLAG
                        || details.response_flags () == static_cast<CORBA::Octet> (Messaging::SYNC_WITH_SERVER)
                        || details.response_flags () == static_cast<CORBA::Octet> (Messaging::SYNC_WITH_TARGET)),
    deferred_reply_ (false),
    sync_with_server_ (details.response_flags () == static_cast<CORBA::Octet> (Messaging::SYNC_WITH_SERVER)),
    is_dsi_ (false),
    reply_status_ (GIOP::NO_EXCEPTION),
    orb_core_ (orb_core),
    request_id_ (0),
    profile_ (orb_core),
    requesting_principal_ (0),
    dsi_nvlist_align_ (0),
    operation_details_ (&details),
    argument_flag_ (false)
#if TAO_HAS_INTERCEPTORS == 1
  , interceptor_count_ (0)
  , rs_pi_current_ (0)
  , caught_exception_ (0)
  , pi_reply_status_ (-1)
#endif  /* TAO_HAS_INTERCEPTORS == 1 */
  , transport_ (0)
{
  // Have to use a const_cast<>.  *sigh*
  this->profile_.object_key (
    const_cast<TAO::ObjectKey &> (target->_stubobj ()->object_key ()));

  // Shallow copy the request service context list. This way the operation
  // details and server request share the request context.
  IOP::ServiceContextList & dest_request_contexts =
    this->request_service_context_.service_info ();

  IOP::ServiceContextList & src_request_contexts =
    (const_cast <TAO_Operation_Details&> (details)).request_service_info ();

  dest_request_contexts.replace (src_request_contexts.maximum (),
                                 src_request_contexts.length (),
                                 src_request_contexts.get_buffer (),
                                 false /* Do not release. */);

  // Don't shallow copy the reply service context. It is probably empty,
  // when then during the request it is used, the buffer gets allocated and
  // then the operation details don't get the reply service context
}

TAO_ServerRequest::~TAO_ServerRequest ( void )

Destructor.

Definition at line 185 of file TAO_Server_Request.cpp.

{
#if TAO_HAS_INTERCEPTORS == 1
  if (this->rs_pi_current_)
    {
      TAO::ServerRequestInterceptor_Adapter *interceptor_adapter =
        this->orb_core_->serverrequestinterceptor_adapter ();

      if (interceptor_adapter)
        {
          interceptor_adapter->deallocate_pi_current (
            this->rs_pi_current_);
        }
    }
#endif  /* TAO_HAS_INTERCEPTORS == 1 */
  if (this->release_operation_)
    CORBA::string_free (const_cast<char*> (this->operation_));
}

TAO_ServerRequest::TAO_ServerRequest ( void ) [private]

Default ctor only used to create a TAO_ServerRequest that is about to be the target of a clone operation.

Definition at line 11 of file TAO_Server_Request.inl.

  : mesg_base_ (0),
    operation_ (0),
    operation_len_ (0),
    release_operation_ (false),
    incoming_ (0),
    outgoing_ (0),
    response_expected_ (false),
    deferred_reply_ (false),
    sync_with_server_ (false),
    is_dsi_ (false),
    reply_status_ (GIOP::NO_EXCEPTION),
    orb_core_ (0),
    request_id_ (0),
    profile_ (0),
    requesting_principal_ (0),
    dsi_nvlist_align_ (0),
    operation_details_ (0),
    argument_flag_ (true)
#if TAO_HAS_INTERCEPTORS == 1
  , interceptor_count_ (0)
  , rs_pi_current_ ()
  , caught_exception_ (0)
  , pi_reply_status_ (-1)
#endif  /* TAO_HAS_INTERCEPTORS == 1 */
  ,  transport_(0)
{
}

Member Function Documentation

void TAO_ServerRequest::argument_flag ( CORBA::Boolean flag )

Set the argument_flag.

Definition at line 224 of file TAO_Server_Request.inl.

{
  this->argument_flag_ = flag;
}

CORBA::Boolean TAO_ServerRequest::argument_flag ( void )

Get the argument_flag.

Definition at line 218 of file TAO_Server_Request.inl.

{
  return this->argument_flag_;
}

CORBA::Exception * TAO_ServerRequest::caught_exception ( void )

Definition at line 244 of file TAO_Server_Request.inl.

{
  return this->caught_exception_;
}

void TAO_ServerRequest::caught_exception ( CORBA::Exception * exception )

Definition at line 565 of file TAO_Server_Request.cpp.

{
  if (CORBA::SystemException::_downcast (exception) != 0)
    this->pi_reply_status_ = PortableInterceptor::SYSTEM_EXCEPTION;
  else if (CORBA::UserException::_downcast (exception) != 0)
    this->pi_reply_status_ = PortableInterceptor::USER_EXCEPTION;

  this->caught_exception_ = exception;
}

bool TAO_ServerRequest::collocated ( void ) const

Returns true if the current request is collocated.

Definition at line 230 of file TAO_Server_Request.inl.

{
  return this->transport_.get () == 0;
}

CORBA::Boolean TAO_ServerRequest::deferred_reply ( void ) const

Should the reply be deferred?

Definition at line 90 of file TAO_Server_Request.inl.

{
  return this->deferred_reply_;
}

void TAO_ServerRequest::dsi_nvlist_align ( ptrdiff_t alignment )

Set the member.

Definition at line 212 of file TAO_Server_Request.inl.

{
  this->dsi_nvlist_align_ = alignment;
}

void TAO_ServerRequest::forward_location ( CORBA::Object_ptr forward_reference )

Set the reference to the object the request should be forwarded to. This reference will only be used if set prior to calling init_reply().

Definition at line 168 of file TAO_Server_Request.inl.

{
  this->forward_location_ =
    CORBA::Object::_duplicate (forward_reference);
  this->is_forwarded_ = true;
}

CORBA::Object_ptr TAO_ServerRequest::forward_location ( void )

Get the forward_location.

Definition at line 176 of file TAO_Server_Request.inl.

{
  return CORBA::Object::_duplicate (this->forward_location_.in ());
}

TAO_InputCDR * TAO_ServerRequest::incoming ( void ) const

Retrieve the incoming stream.

Definition at line 47 of file TAO_Server_Request.inl.

{
  return this->incoming_;
}

void TAO_ServerRequest::init_reply ( void )

Start a Reply message.

Definition at line 226 of file TAO_Server_Request.cpp.

{
  if (!this->outgoing_)
    return;  // Collocated

  // Construct our reply generator.
  TAO_Pluggable_Reply_Params_Base reply_params;

  // We put all the info that we have in to this <reply_params> and
  // call the <write_reply_header> in the
  // pluggable_messaging_interface. One point to be noted however is
  // that, it was the pluggable_messaging classes who created us and
  // delegated us to do work on its behalf. But we would be calling
  // back. As we don't have a LOCK or any such things we can call
  // pluggable_messaging guys again. We would be on the same thread of
  // invocation. So *theoretically* there should not be a problem.
  reply_params.request_id_ = this->request_id_;
  reply_params.is_dsi_ = this->is_dsi_;
  reply_params.dsi_nvlist_align_ = this->dsi_nvlist_align_;

  // Send back the reply service context.
  reply_params.service_context_notowned (&this->reply_service_info ());

  // Are we going to marshall any data with the reply?
  reply_params.argument_flag_ = this->argument_flag_;

  // Forward exception only.
  if (this->is_forwarded_)
    {
      CORBA::Boolean const permanent_forward_condition =
        this->orb_core_->is_permanent_forward_condition (this->forward_location_.in (),
                                                         this->request_service_context ());

      reply_params.reply_status (
        permanent_forward_condition
        ? GIOP::LOCATION_FORWARD_PERM
        : GIOP::LOCATION_FORWARD);
    }
  // Any exception at all.
  else
    {
      reply_params.reply_status (this->reply_status_);
    }

  this->outgoing_->message_attributes (this->request_id_,
                                       0,
                                       TAO_REPLY,
                                       0);

  // Construct a REPLY header.
  this->mesg_base_->generate_reply_header (*this->outgoing_, reply_params);

  // Finish the GIOP Reply header, then marshal the exception.
  if (reply_params.reply_status () == GIOP::LOCATION_FORWARD ||
      reply_params.reply_status () == GIOP::LOCATION_FORWARD_PERM)
    {
      // Marshal the forward location pointer.
      CORBA::Object_ptr object_ptr = this->forward_location_.in ();

      if ((*this->outgoing_ << object_ptr) == 0)
        {
          ACE_DEBUG ((LM_DEBUG,
                      ACE_TEXT ("TAO (%P|%t) - ServerRequest::init_reply, ")
                      ACE_TEXT ("TAO_GIOP_ServerRequest::marshal - ")
                      ACE_TEXT ("marshal encoding forwarded objref failed\n")));
        }
    }
  this->transport_->assign_translators (0, this->outgoing_);
}

size_t & TAO_ServerRequest::interceptor_count ( void )

Return a reference to the number of interceptors pushed on to the current interceptor flow stack.

Note:: It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

Definition at line 238 of file TAO_Server_Request.inl.

{
  return this->interceptor_count_;
}

void TAO_ServerRequest::is_dsi ( void )

Set the boolean member to true.

Definition at line 200 of file TAO_Server_Request.inl.

{
  this->is_dsi_ = true;
}

bool TAO_ServerRequest::is_forwarded ( void ) const

Since forward location is allowed to be nil then this is a proper method to check if the request is being forwarded.

Definition at line 182 of file TAO_Server_Request.inl.

{
  return this->is_forwarded_;
}

TAO::ObjectKey & TAO_ServerRequest::object_key ( void )

Definition at line 114 of file TAO_Server_Request.inl.

{
  return this->profile_.object_key ();
}

void TAO_ServerRequest::operation	(	const char *	operation,
		size_t	length,
		int	release
	)

Set the operation name.

Definition at line 65 of file TAO_Server_Request.inl.

{
  if (this->release_operation_)
    CORBA::string_free (const_cast <char*> (this->operation_));

  this->operation_len_ = (length == 0 ? ACE_OS::strlen (operation) : length);
  this->release_operation_ = release;
  this->operation_ = operation;
}

const char * TAO_ServerRequest::operation ( void ) const

Return the operation name.

Definition at line 59 of file TAO_Server_Request.inl.

{
  return (this->operation_ == 0 ? "" : this->operation_);
}

TAO_Operation_Details const * TAO_ServerRequest::operation_details ( void ) const

Get the operation details for the current request.

Definition at line 206 of file TAO_Server_Request.inl.

{
  return this->operation_details_;
}

size_t TAO_ServerRequest::operation_length ( void ) const

Return the length of the operation.

Definition at line 78 of file TAO_Server_Request.inl.

{
  return this->operation_len_;
}

CORBA::ORB_ptr TAO_ServerRequest::orb ( void )

Return the underlying ORB.

Definition at line 205 of file TAO_Server_Request.cpp.

{
  return this->orb_core_->orb ();
}

TAO_ORB_Core * TAO_ServerRequest::orb_core ( void ) const

Return the ORB core pointer member.

Definition at line 41 of file TAO_Server_Request.inl.

{
  return this->orb_core_;
}

TAO_OutputCDR * TAO_ServerRequest::outgoing ( void ) const

Retrieve the outgoing stream.

Definition at line 53 of file TAO_Server_Request.inl.

{
  return this->outgoing_;
}

void TAO_ServerRequest::pi_reply_status ( PortableInterceptor::ReplyStatus s )

Set the status of the received reply.

Definition at line 250 of file TAO_Server_Request.inl.

{
  this->pi_reply_status_ = s;
}

PortableInterceptor::ReplyStatus TAO_ServerRequest::pi_reply_status ( void )

Get the status of the received reply.

Definition at line 256 of file TAO_Server_Request.inl.

{
  return this->pi_reply_status_;
}

TAO_Tagged_Profile & TAO_ServerRequest::profile ( void )

Return the reference to the tagged profile.

Definition at line 162 of file TAO_Server_Request.inl.

{
  return this->profile_;
}

TAO_Service_Context & TAO_ServerRequest::reply_service_context ( void )

Return the reply TAO_Service_Context.

Definition at line 211 of file TAO_Server_Request.cpp.

{
  if (!operation_details_)
    {
      return this->reply_service_context_;
    }
  else
    {
      return const_cast <TAO_Operation_Details*> (
        this->operation_details_)->reply_service_context ();
    }
}

IOP::ServiceContextList & TAO_ServerRequest::reply_service_info ( void )

Definition at line 126 of file TAO_Server_Request.inl.

{
  return this->reply_service_context ().service_info ();
}

GIOP::ReplyStatusType TAO_ServerRequest::reply_status ( void )

Get the reply status.

Definition at line 188 of file TAO_Server_Request.inl.

{
  return this->reply_status_;
}

void TAO_ServerRequest::reply_status ( GIOP::ReplyStatusType except_type )

Set the reply status.

Definition at line 194 of file TAO_Server_Request.inl.

{
  this->reply_status_ = reply_status;
}

CORBA::ULong TAO_ServerRequest::request_id ( void )

To handle System Exceptions at the lowest level, a method returning the request_id_ is needed.

Definition at line 144 of file TAO_Server_Request.inl.

{
  return this->request_id_;
}

void TAO_ServerRequest::request_id ( CORBA::ULong req )

To handle System Exceptions at the lowest level, a method returning the request_id_ is needed.

Definition at line 150 of file TAO_Server_Request.inl.

{
  this->request_id_ = req;
}

TAO_Service_Context & TAO_ServerRequest::request_service_context ( void )

Return the request TAO_Service_Context.

Definition at line 120 of file TAO_Server_Request.inl.

{
  return this->request_service_context_;
}

IOP::ServiceContextList & TAO_ServerRequest::request_service_info ( void )

Definition at line 132 of file TAO_Server_Request.inl.

{
  return this->request_service_context ().service_info ();
}

void TAO_ServerRequest::requesting_principal ( const CORBA::OctetSeq & principal )

Set the requesting principal.

Definition at line 156 of file TAO_Server_Request.inl.

{
  this->requesting_principal_ = principal;
}

void TAO_ServerRequest::response_expected ( CORBA::Boolean response )

Set the response expected flag.

Definition at line 96 of file TAO_Server_Request.inl.

{
  this->response_expected_ = response;
}

CORBA::Boolean TAO_ServerRequest::response_expected ( void ) const

Is the response expected?

Definition at line 84 of file TAO_Server_Request.inl.

{
  return this->response_expected_;
}

TAO::PICurrent_Impl * TAO_ServerRequest::rs_pi_current ( void )

Return a reference to the "request scope" PICurrent object.

Definition at line 576 of file TAO_Server_Request.cpp.

{
  if (!this->rs_pi_current_)
    {
      TAO::ServerRequestInterceptor_Adapter *interceptor_adapter =
        this->orb_core_->serverrequestinterceptor_adapter ();

      if (interceptor_adapter)
        {
          this->rs_pi_current_ = interceptor_adapter->allocate_pi_current ();
        }
    }

  return this->rs_pi_current_;
}

void TAO_ServerRequest::send_cached_reply ( CORBA::OctetSeq & ocs )

Send cached reply. Used in scenarios where the FTORB thinks that this request is a duplicate

Append reply here....

Definition at line 479 of file TAO_Server_Request.cpp.

{
#if defined(ACE_INITIALIZE_MEMORY_BEFORE_USE)
  // Only inititialize the buffer if we're compiling with Purify.
  // Otherwise, there is no real need to do so, especially since
  // we can avoid the initialization overhead at runtime if we
  // are not compiling with Purify support.
  char repbuf[ACE_CDR::DEFAULT_BUFSIZE] = { 0 };
#else
  char repbuf[ACE_CDR::DEFAULT_BUFSIZE];
#endif /* ACE_HAS_PURIFY */
  TAO_GIOP_Message_Version gv;
  if (this->outgoing_)
    {
      this->outgoing_->get_version (gv);
    }
  TAO_OutputCDR output (repbuf,
                        sizeof repbuf,
                        TAO_ENCAP_BYTE_ORDER,
                        this->orb_core_->output_cdr_buffer_allocator (),
                        this->orb_core_->output_cdr_dblock_allocator (),
                        this->orb_core_->output_cdr_msgblock_allocator (),
                        this->orb_core_->orb_params ()->cdr_memcpy_tradeoff (),
                        this->mesg_base_->fragmentation_strategy (),
                        gv.major,
                        gv.minor);

  this->transport_->assign_translators (0, &output);

  // A copy of the reply parameters
  TAO_Pluggable_Reply_Params_Base reply_params;

  reply_params.request_id_ = this->request_id_;

  reply_params.svc_ctx_.length (0);

  // Send back the empty reply service context.
  reply_params.service_context_notowned (&this->reply_service_info ());

  // We are going to send some data
  reply_params.argument_flag_ = true;

  // Make a default reply status
  reply_params.reply_status (GIOP::NO_EXCEPTION);

  this->outgoing_->message_attributes (this->request_id_,
                                       0,
                                       TAO_REPLY,
                                       0);

  // Make the reply message
  if (this->mesg_base_->generate_reply_header (*this->outgoing_,
                                               reply_params) == -1)
    {
      ACE_ERROR ((LM_ERROR,
                  ACE_TEXT ("TAO (%P|%t) - ServerRequest::send_cached_reply, ")
                  ACE_TEXT ("could not make cached reply\n")));

    }

  /// Append reply here....
  this->outgoing_->write_octet_array (
    s.get_buffer (),
    s.length ());

  if (!this->outgoing_->good_bit ())
    {
      ACE_ERROR ((LM_ERROR,
                  ACE_TEXT ("TAO (%P|%t) - ServerRequest::send_cached_reply, ")
                  ACE_TEXT ("could not marshal reply\n")));
    }

  this->outgoing_->more_fragments (false);

  // Send the message
  if (this->transport_->send_message (*this->outgoing_,
                                      0,
                                      TAO_REPLY) == -1)
    {
      ACE_ERROR ((LM_ERROR,
                  ACE_TEXT ("TAO (%P|%t) - ServerRequest::send_cached_reply, ")
                  ACE_TEXT ("could not send cached reply\n")));
    }
}

void TAO_ServerRequest::send_no_exception_reply ( void )

Used with reliable oneway requests.

Definition at line 297 of file TAO_Server_Request.cpp.

{
  // Construct our reply generator.
  TAO_Pluggable_Reply_Params_Base reply_params;
  reply_params.request_id_ = this->request_id_;
  reply_params.is_dsi_ = this->is_dsi_;
  reply_params.dsi_nvlist_align_ = this->dsi_nvlist_align_;

  // Change this to pass back the same thing we received, as well as
  // leave a comment why this is important!
  reply_params.svc_ctx_.length (0);

  // Send back the reply service context.
  reply_params.service_context_notowned (&this->reply_service_info ());

  reply_params.reply_status (GIOP::NO_EXCEPTION);

  // No data anyway.
  reply_params.argument_flag_ = false;

  this->outgoing_->message_attributes (this->request_id_,
                                       0,
                                       TAO_REPLY,
                                       0);

  // Construct a REPLY header.
  this->mesg_base_->generate_reply_header (*this->outgoing_, reply_params);

  this->outgoing_->more_fragments (false);

  // Send the message.
  int result = this->transport_->send_message (*this->outgoing_,
                                               0,
                                               TAO_REPLY);

  if (result == -1)
    {
      if (TAO_debug_level > 0)
        {
          // No exception but some kind of error, yet a response
          // is required.
          ACE_ERROR ((
                      LM_ERROR,
                      ACE_TEXT ("TAO (%P|%t) - ServerRequest::send_no_exception_reply, ")
                      ACE_TEXT ("cannot send NO_EXCEPTION reply\n")
                      ));
        }
    }
}

CORBA::Boolean TAO_ServerRequest::sync_with_server ( void ) const

Should we return before dispatching the servant?

Definition at line 102 of file TAO_Server_Request.inl.

{
  return this->sync_with_server_;
}

void TAO_ServerRequest::sync_with_server ( CORBA::Boolean sync_flag )

Set the sync_with_server flag.

Definition at line 108 of file TAO_Server_Request.inl.

{
  this->sync_with_server_ = sync_flag;
}

void TAO_ServerRequest::tao_send_reply ( void )

Definition at line 348 of file TAO_Server_Request.cpp.

{
  if (this->collocated ())
    return;  // No transport in the collocated case.

  this->outgoing_->more_fragments (false);

  int const result = this->transport_->send_message (*this->outgoing_,
                                                     0,
                                                     TAO_REPLY);
  if (result == -1)
    {
      if (TAO_debug_level > 0)
        {
          // No exception but some kind of error, yet a response
          // is required.
          ACE_ERROR ((LM_ERROR,
                      ACE_TEXT ("TAO (%P|%t) - ServerRequest::tao_send_reply, ")
                      ACE_TEXT ("cannot send reply\n")));
        }
    }
}

void TAO_ServerRequest::tao_send_reply_exception ( const CORBA::Exception & ex )

Definition at line 372 of file TAO_Server_Request.cpp.

{
  if (this->response_expected_ && !this->collocated ())
    {
      // A copy of the reply parameters
      TAO_Pluggable_Reply_Params_Base reply_params;

      reply_params.request_id_ = this->request_id_;
      reply_params.svc_ctx_.length (0);

      // Send back the reply service context.
      reply_params.service_context_notowned (&this->reply_service_info ());

      // We are going to send some data
      reply_params.argument_flag_ = true;

      // Make a default reply status

      // Check whether we are able to downcast the exception
      if (CORBA::SystemException::_downcast (&ex) != 0)
        {
          reply_params.reply_status (GIOP::SYSTEM_EXCEPTION);
        }
      else
        {
          reply_params.reply_status (GIOP::USER_EXCEPTION);
        }

      // Create a new output CDR stream
#if defined(ACE_INITIALIZE_MEMORY_BEFORE_USE)
      // Only inititialize the buffer if we're compiling with a profiler.
      // Otherwise, there is no real need to do so, especially since
      // we can avoid the initialization overhead at runtime if we
      // are not compiling with memory profiler support.
      char repbuf[ACE_CDR::DEFAULT_BUFSIZE] = { 0 };
#else
      char repbuf[ACE_CDR::DEFAULT_BUFSIZE];
#endif /* ACE_INITIALIZE_MEMORY_BEFORE_USE */
      TAO_GIOP_Message_Version gv;
      if (this->outgoing_)
        this->outgoing_->get_version (gv);

      TAO_OutputCDR output (repbuf,
                            sizeof repbuf,
                            TAO_ENCAP_BYTE_ORDER,
                            this->orb_core_->output_cdr_buffer_allocator (),
                            this->orb_core_->output_cdr_dblock_allocator (),
                            this->orb_core_->output_cdr_msgblock_allocator (),
                            this->orb_core_->orb_params ()->cdr_memcpy_tradeoff (),
                            this->mesg_base_->fragmentation_strategy (),
                            gv.major,
                            gv.minor);

      this->transport_->assign_translators (0, &output);

      try
        {
          // Make the reply message
          if (this->mesg_base_->generate_exception_reply (*this->outgoing_,
                                                          reply_params,
                                                          ex) == -1)
            {
              ACE_ERROR ((LM_ERROR,
                          ACE_TEXT ("TAO (%P|%t) - ServerRequest::")
                          ACE_TEXT ("tao_send_reply_exception, ")
                          ACE_TEXT ("could not make exception reply\n")));
            }

          this->outgoing_->more_fragments (false);

          // Send the message
          if (this->transport_->send_message (*this->outgoing_,
                                              0,
                                              TAO_REPLY) == -1)
            {
              ACE_ERROR ((LM_ERROR,
                          ACE_TEXT ("TAO (%P|%t) - ServerRequest::")
                          ACE_TEXT ("tao_send_reply_exception, ")
                          ACE_TEXT ("could not send exception reply\n")));
            }
        }
      catch (const ::CORBA::BAD_PARAM &bp_ex)
        {
          ACE_ERROR ((LM_ERROR,
                      ACE_TEXT ("TAO (%P|%t) - ServerRequest::")
                      ACE_TEXT ("tao_send_reply_exception, ")
                      ACE_TEXT ("could not marshal exception reply\n")));
          this->tao_send_reply_exception (bp_ex);
        }
    }
  else if (TAO_debug_level > 0)
    {
      // It is unfortunate that an exception (probably a system
      // exception) was thrown by the upcall code (even by the
      // user) when the client was not expecting a response.
      // However, in this case, we cannot close the connection
      // down, since it really isn't the client's fault.

      ACE_ERROR ((LM_ERROR,
                  ACE_TEXT ("TAO (%P|%t) - ServerRequest::tao_send_reply_exception, ")
                  ACE_TEXT ("exception thrown ")
                  ACE_TEXT ("but client is not waiting a response\n")));
    }
}

TAO_Transport * TAO_ServerRequest::transport ( void )

Return the underlying transport.

Definition at line 138 of file TAO_Server_Request.inl.

{
  return this->transport_.get ();
}

Friends And Related Function Documentation

friend class TAO::CSD::FW_Server_Request_Wrapper [friend]

Declare FW_Server_Request_Wrapper a friend This friendship makes the FW_Server_Request_Wrapper be able to clone the TAO_ServerRequest.

Definition at line 89 of file TAO_Server_Request.h.

friend class TAO_AMH_Response_Handler [friend]

Declare TAO_AMH_Response_Handler a friend.

The TAO_AMH_Response_Handler class needs to copy part of the state in a TAO_ServerRequest, however, we do not want to expose that state as public members of this class, neither do we want to add modifiers to the TAO_AMH_Response_Handler class that would allow us (the TAO_ServerRequest class) to set the state.

Lucky for us, C++ is a language for adult developers, and allow us to use the evil "friend" declaration.

Definition at line 103 of file TAO_Server_Request.h.

Member Data Documentation

CORBA::Boolean TAO_ServerRequest::argument_flag_ [private]

An argument flag to indicate whether there is any data that is going to get marshaled along as a reply. The default will be true which indicates that we have some data that needs to be sent back to the client.

Definition at line 355 of file TAO_Server_Request.h.

CORBA::Exception* TAO_ServerRequest::caught_exception_ [private]

Pointer to the caught exception.

Definition at line 367 of file TAO_Server_Request.h.

CORBA::Boolean TAO_ServerRequest::deferred_reply_ [private]

false: Reply would be sent by the object of this class which is the default. true: Reply would not be prepared by this class and it would be deferred for somebody.

Definition at line 315 of file TAO_Server_Request.h.

ptrdiff_t TAO_ServerRequest::dsi_nvlist_align_ [private]

Used to pad CDR stream if we have used DSI.

Definition at line 345 of file TAO_Server_Request.h.

CORBA::Object_var TAO_ServerRequest::forward_location_ [private]

Definition at line 295 of file TAO_Server_Request.h.

TAO_InputCDR* TAO_ServerRequest::incoming_ [private]

Incoming stream.

Definition at line 300 of file TAO_Server_Request.h.

size_t TAO_ServerRequest::interceptor_count_ [private]

The number of interceptors pushed on to the current interceptor flow stack.

Definition at line 360 of file TAO_Server_Request.h.
