TAO_RT_ORB Class Reference

RTCORBA::RTORB implementation. More...

#include <RT_ORB.h>

Inheritance diagram for TAO_RT_ORB:
Inheritance graph
[legend]

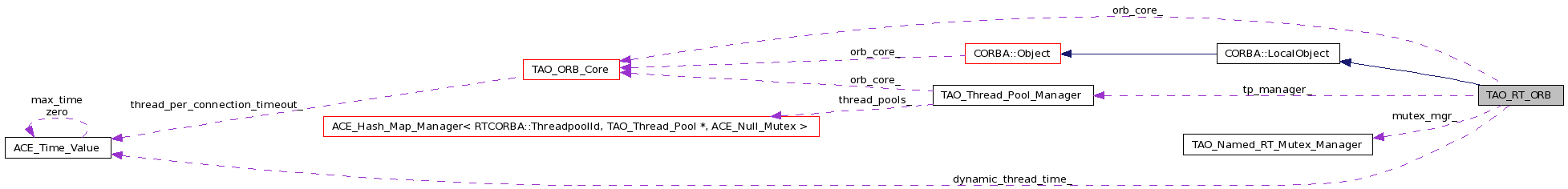

Collaboration diagram for TAO_RT_ORB:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_RT_ORB (TAO_ORB_Core *orb_core, TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan lifespan, ACE_Time_Value const &dynamic_thread_time)
 Constructor.
virtual RTCORBA::Mutex_ptr create_mutex (void)
virtual void destroy_mutex (RTCORBA::Mutex_ptr the_mutex)
virtual RTCORBA::Mutex_ptr create_named_mutex (const char *name, CORBA::Boolean_out created_flag)
virtual RTCORBA::Mutex_ptr open_named_mutex (const char *name)
 Retrieve a previously created mutex.
RTCORBA::TCPProtocolProperties_ptr create_tcp_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean keep_alive, CORBA::Boolean dont_route, CORBA::Boolean no_delay, CORBA::Boolean enable_network_priority)
RTCORBA::UnixDomainProtocolProperties_ptr create_unix_domain_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size)
RTCORBA::SharedMemoryProtocolProperties_ptr create_shared_memory_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean keep_alive, CORBA::Boolean dont_route, CORBA::Boolean no_delay, CORBA::Long preallocate_buffer_size, const char *mmap_filename, const char *mmap_lockname)
RTCORBA::UserDatagramProtocolProperties_ptr create_user_datagram_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean enable_network_priority)
RTCORBA::StreamControlProtocolProperties_ptr create_stream_control_protocol_properties (CORBA::Long send_buffer_size, CORBA::Long recv_buffer_size, CORBA::Boolean keep_alive, CORBA::Boolean dont_route, CORBA::Boolean no_delay, CORBA::Boolean enable_network_priority)
virtual RTCORBA::ThreadpoolId create_threadpool (CORBA::ULong stacksize, CORBA::ULong static_threads, CORBA::ULong dynamic_threads, RTCORBA::Priority default_priority, CORBA::Boolean allow_request_buffering, CORBA::ULong max_buffered_requests, CORBA::ULong max_request_buffer_size)
 Create a RTCORBA threadpool to manage a set of threads without lanes.
virtual RTCORBA::ThreadpoolId create_threadpool_with_lanes (CORBA::ULong stacksize, const RTCORBA::ThreadpoolLanes &lanes, CORBA::Boolean allow_borrowing, CORBA::Boolean allow_request_buffering, CORBA::ULong max_buffered_requests, CORBA::ULong max_request_buffer_size)
virtual void destroy_threadpool (RTCORBA::ThreadpoolId threadpool)
 Free the resources associated with the specified threadpool.
virtual
RTCORBA::PriorityModelPolicy_ptr 		create_priority_model_policy (RTCORBA::PriorityModel priority_model, RTCORBA::Priority server_priority)
 Create a priority model policy for use when configuring a POA.
virtual
RTCORBA::ThreadpoolPolicy_ptr 		create_threadpool_policy (RTCORBA::ThreadpoolId threadpool)
 Create a ThreadpoolPolicy instance for POA creation.
virtual
RTCORBA::PriorityBandedConnectionPolicy_ptr 		create_priority_banded_connection_policy (const RTCORBA::PriorityBands &priority_bands)
virtual
RTCORBA::PrivateConnectionPolicy_ptr 		create_private_connection_policy (void)
virtual
RTCORBA::ServerProtocolPolicy_ptr 		create_server_protocol_policy (const RTCORBA::ProtocolList &protocols)
virtual
RTCORBA::ClientProtocolPolicy_ptr 		create_client_protocol_policy (const RTCORBA::ProtocolList &protocols)
TAO_ORB_Core * orb_core (void) const
 Reference to our creating ORB Core.
TAO_Thread_Pool_Manager & tp_manager (void) const
 Get the Thread Pool Manager.

Static Public Member Functions

static int modify_thread_scheduling_policy (CORBA::ORB_ptr orb)

Protected Member Functions

virtual ~TAO_RT_ORB (void)

Protected Attributes

TAO_ORB_Core *const orb_core_
 Reference to our creating ORB Core.
TAO_Named_RT_Mutex_Manager mutex_mgr_
 mutex_mgr_ manages the names associated with named mutexes.
TAO_Thread_Pool_Manager * tp_manager_
 Thread Pool Manager.
TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan lifespan_
 Dynamic thread lifespan policy.
ACE_Time_Value const dynamic_thread_time_
 Dynamic thread run time.

Detailed Description

RTCORBA::RTORB implementation.

Creates and destroys RT CORBA objects, i.e., policies, threadpools, mutexes.

Definition at line 93 of file RT_ORB.h.

Constructor & Destructor Documentation

TAO_RT_ORB::TAO_RT_ORB ( TAO_ORB_Core *  orb_core,
TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan  lifespan,
ACE_Time_Value const &  dynamic_thread_time
)

Constructor.

Definition at line 23 of file RT_ORB.cpp.

  : orb_core_ (orb_core),
    mutex_mgr_ (),
    tp_manager_ (0),
    lifespan_ (lifespan),
    dynamic_thread_time_ (dynamic_thread_time)
{
  TAO_Thread_Lane_Resources_Manager *thread_lane_resources_manager =
    &this->orb_core_->thread_lane_resources_manager ();

  TAO_RT_Thread_Lane_Resources_Manager *rt_thread_lane_resources_manager =
    dynamic_cast <TAO_RT_Thread_Lane_Resources_Manager *> (thread_lane_resources_manager);

  if (!rt_thread_lane_resources_manager)
    throw CORBA::INTERNAL ();

  this->tp_manager_ =
    &rt_thread_lane_resources_manager->tp_manager ();
}

TAO_RT_ORB::~TAO_RT_ORB ( void   )  [protected, virtual]

Protected destructor to enforce proper memory management of this reference counted object.

Definition at line 45 of file RT_ORB.cpp.

{
}

Member Function Documentation

RTCORBA::ClientProtocolPolicy_ptr TAO_RT_ORB::create_client_protocol_policy ( const RTCORBA::ProtocolList &  protocols  )  [virtual]

Create a ClientProtocolPolicy instance to select and configure communication protocols on the client side.

Definition at line 426 of file RT_ORB.cpp.

{
  TAO_ClientProtocolPolicy *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_ClientProtocolPolicy (protocols),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::Mutex_ptr TAO_RT_ORB::create_mutex ( void   )  [virtual]

Create a new mutex. Mutexes returned by this method are the same as those used internally by the ORB, so that consistant priority inheritance/piority ceiling semantics can be guaranteed.

Definition at line 50 of file RT_ORB.cpp.

{
  return this->mutex_mgr_.create_mutex ();
}

RTCORBA::Mutex_ptr TAO_RT_ORB::create_named_mutex ( const char *  name,
CORBA::Boolean_out  created_flag
) [virtual]

Create a mutex and assign a name to it. If the mutex already exists, it is returned and the created_flag is set to 0.

Definition at line 63 of file RT_ORB.cpp.

{
  return this->mutex_mgr_.create_named_mutex (name, created_flag);
}

RTCORBA::PriorityBandedConnectionPolicy_ptr TAO_RT_ORB::create_priority_banded_connection_policy ( const RTCORBA::PriorityBands &  priority_bands  )  [virtual]

Create a PriorityBandedConnectionPolicy instance for use on either the client or server side

Definition at line 389 of file RT_ORB.cpp.

{
  TAO_PriorityBandedConnectionPolicy *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_PriorityBandedConnectionPolicy (priority_bands),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::PriorityModelPolicy_ptr TAO_RT_ORB::create_priority_model_policy ( RTCORBA::PriorityModel  priority_model,
RTCORBA::Priority  server_priority
) [virtual]

Create a priority model policy for use when configuring a POA.

Definition at line 364 of file RT_ORB.cpp.

{
  TAO_PriorityModelPolicy *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_PriorityModelPolicy (priority_model, server_priority),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::PrivateConnectionPolicy_ptr TAO_RT_ORB::create_private_connection_policy ( void   )  [virtual]

Create a PrivateConnectionPolicy instance to use on client to request a private (non-multiplexed) transport connection to the server.

Definition at line 402 of file RT_ORB.cpp.

{
  TAO_PrivateConnectionPolicy *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_PrivateConnectionPolicy (),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::ServerProtocolPolicy_ptr TAO_RT_ORB::create_server_protocol_policy ( const RTCORBA::ProtocolList &  protocols  )  [virtual]

Create a ServerProtocolPolicy instance to select and configure communication protocols on the server side.

Definition at line 414 of file RT_ORB.cpp.

{
  TAO_ServerProtocolPolicy *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_ServerProtocolPolicy (protocols),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::SharedMemoryProtocolProperties_ptr TAO_RT_ORB::create_shared_memory_protocol_properties ( CORBA::Long  send_buffer_size,
CORBA::Long  recv_buffer_size,
CORBA::Boolean  keep_alive,
CORBA::Boolean  dont_route,
CORBA::Boolean  no_delay,
CORBA::Long  preallocate_buffer_size,
const char *  mmap_filename,
const char *  mmap_lockname
)

Definition at line 249 of file RT_ORB.cpp.

{
  TAO_SharedMemory_Protocol_Properties *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_SharedMemory_Protocol_Properties (send_buffer_size,
                                                          recv_buffer_size,
                                                          keep_alive,
                                                          dont_route,
                                                          no_delay,
                                                          preallocate_buffer_size,
                                                          mmap_filename,
                                                          mmap_lockname),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::StreamControlProtocolProperties_ptr TAO_RT_ORB::create_stream_control_protocol_properties ( CORBA::Long  send_buffer_size,
CORBA::Long  recv_buffer_size,
CORBA::Boolean  keep_alive,
CORBA::Boolean  dont_route,
CORBA::Boolean  no_delay,
CORBA::Boolean  enable_network_priority
)

Definition at line 294 of file RT_ORB.cpp.

{
  TAO_StreamControl_Protocol_Properties *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_StreamControl_Protocol_Properties (
                                                  send_buffer_size,
                                                  recv_buffer_size,
                                                  keep_alive,
                                                  dont_route,
                                                  no_delay,
                                                  enable_network_priority),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::TCPProtocolProperties_ptr TAO_RT_ORB::create_tcp_protocol_properties ( CORBA::Long  send_buffer_size,
CORBA::Long  recv_buffer_size,
CORBA::Boolean  keep_alive,
CORBA::Boolean  dont_route,
CORBA::Boolean  no_delay,
CORBA::Boolean  enable_network_priority
)

Create and return a TCPProtocolProperties instance with the specified parameters.

Definition at line 210 of file RT_ORB.cpp.

{
  TAO_TCP_Protocol_Properties *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_TCP_Protocol_Properties (send_buffer_size,
                                        recv_buffer_size,
                                        keep_alive,
                                        dont_route,
                                        no_delay,
                                        enable_network_priority),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::ThreadpoolId TAO_RT_ORB::create_threadpool ( CORBA::ULong  stacksize,
CORBA::ULong  static_threads,
CORBA::ULong  dynamic_threads,
RTCORBA::Priority  default_priority,
CORBA::Boolean  allow_request_buffering,
CORBA::ULong  max_buffered_requests,
CORBA::ULong  max_request_buffer_size
) [virtual]

Create a RTCORBA threadpool to manage a set of threads without lanes.

Definition at line 319 of file RT_ORB.cpp.

{
  return this->tp_manager_->create_threadpool (stacksize,
                                               static_threads,
                                               dynamic_threads,
                                               default_priority,
                                               allow_request_buffering,
                                               max_buffered_requests,
                                               max_request_buffer_size,
                                               this->lifespan_,
                                               this->dynamic_thread_time_);
}

RTCORBA::ThreadpoolPolicy_ptr TAO_RT_ORB::create_threadpool_policy ( RTCORBA::ThreadpoolId  threadpool  )  [virtual]

Create a ThreadpoolPolicy instance for POA creation.

Definition at line 377 of file RT_ORB.cpp.

{
  TAO_ThreadpoolPolicy *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_ThreadpoolPolicy (threadpool),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::ThreadpoolId TAO_RT_ORB::create_threadpool_with_lanes ( CORBA::ULong  stacksize,
const RTCORBA::ThreadpoolLanes &  lanes,
CORBA::Boolean  allow_borrowing,
CORBA::Boolean  allow_request_buffering,
CORBA::ULong  max_buffered_requests,
CORBA::ULong  max_request_buffer_size
) [virtual]

Create a threadpool and separate it into subsets based on priorities.

Definition at line 340 of file RT_ORB.cpp.

{
  return this->tp_manager_->create_threadpool_with_lanes (stacksize,
                                                          lanes,
                                                          allow_borrowing,
                                                          allow_request_buffering,
                                                          max_buffered_requests,
                                                          max_request_buffer_size,
                                                          this->lifespan_,
                                                          this->dynamic_thread_time_);
}

RTCORBA::UnixDomainProtocolProperties_ptr TAO_RT_ORB::create_unix_domain_protocol_properties ( CORBA::Long  send_buffer_size,
CORBA::Long  recv_buffer_size
)

Definition at line 233 of file RT_ORB.cpp.

{
  TAO_UnixDomain_Protocol_Properties *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_UnixDomain_Protocol_Properties (
                                               send_buffer_size,
                                               recv_buffer_size),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

RTCORBA::UserDatagramProtocolProperties_ptr TAO_RT_ORB::create_user_datagram_protocol_properties ( CORBA::Long  send_buffer_size,
CORBA::Long  recv_buffer_size,
CORBA::Boolean  enable_network_priority
)

Definition at line 276 of file RT_ORB.cpp.

{
  TAO_UserDatagram_Protocol_Properties *tmp = 0;
  ACE_NEW_THROW_EX (tmp,
                    TAO_UserDatagram_Protocol_Properties (
                                                 send_buffer_size,
                                                 recv_buffer_size,
                                                 enable_network_priority),
                    CORBA::NO_MEMORY (TAO::VMCID,
                                      CORBA::COMPLETED_NO));

  return tmp;
}

void TAO_RT_ORB::destroy_mutex ( RTCORBA::Mutex_ptr  the_mutex  )  [virtual]

Destroy a mutex. Currently this is a no-op since RTCORBA::Mutex instances are destroyed as soon as their reference counts go to 0.

Definition at line 56 of file RT_ORB.cpp.

{
  this->mutex_mgr_.destroy_mutex (mutex);
}

void TAO_RT_ORB::destroy_threadpool ( RTCORBA::ThreadpoolId  threadpool  )  [virtual]

Free the resources associated with the specified threadpool.

Definition at line 358 of file RT_ORB.cpp.

{
  this->tp_manager_->destroy_threadpool (threadpool);
}

int TAO_RT_ORB::modify_thread_scheduling_policy ( CORBA::ORB_ptr  orb  )  [static]

This method changes the scheduling policy of the calling thread to match the scheduling policy specified in the svc.conf file. The priority of the calling thread will be set to the minimum priority supported by that scheduling policy.

This method make sense on those platform (e.g., Linux) where PTHREAD_SCOPE_SYSTEM is the only scheduling scope supported. On other platforms, this method is a no-op since the only way to get the real-time threading behavior is to setup the PTHREAD_SCOPE_SYSTEM scheduling scope when a thread is being created. On such platforms, one can set the correct scheduling scope and policy when creating the thread, thus not needing to use this method.

Definition at line 451 of file RT_ORB.cpp.

{
  //
  // This method changes the scheduling policy of the calling thread
  // to match the scheduling policy specified in the svc.conf file.
  // The priority of the calling thread will be set to the minimum
  // priority supported by that scheduling policy.
  //
  // This method make sense on those platform (e.g., Linux) where
  // PTHREAD_SCOPE_SYSTEM is the only scheduling scope supported.  On
  // other platforms, this method is a no-op since the only way to get
  // the real-time threading behavior is to setup the
  // PTHREAD_SCOPE_SYSTEM scheduling scope when a thread is being
  // created.  On such platforms, one can set the correct scheduling
  // scope and policy when creating the thread, thus not needing to
  // use this method.
  //

#if defined (linux)

  int const sched_policy = orb->orb_core ()->orb_params ()->ace_sched_policy ();

  int const minimum_priority = ACE_Sched_Params::priority_min (sched_policy);

  ACE_hthread_t thread_id;
  ACE_Thread::self (thread_id);

  return ACE_Thread::setprio (thread_id, minimum_priority, sched_policy);

#else /* linux */

  ACE_UNUSED_ARG (orb);
  ACE_NOTSUP_RETURN (-1);

#endif /* linux */

}

RTCORBA::Mutex_ptr TAO_RT_ORB::open_named_mutex ( const char *  name  )  [virtual]

Retrieve a previously created mutex.

Definition at line 70 of file RT_ORB.cpp.

{
  return this->mutex_mgr_.open_named_mutex (name);
}

TAO_ORB_Core * TAO_RT_ORB::orb_core ( void   )  const

Reference to our creating ORB Core.

Reimplemented from CORBA::Object.

Definition at line 444 of file RT_ORB.cpp.

{
  return this->orb_core_;
}

TAO_Thread_Pool_Manager & TAO_RT_ORB::tp_manager ( void   )  const

Get the Thread Pool Manager.

Definition at line 438 of file RT_ORB.cpp.

{
  return *this->tp_manager_;
}

Member Data Documentation

ACE_Time_Value const TAO_RT_ORB::dynamic_thread_time_ [protected]

Dynamic thread run time.

Definition at line 277 of file RT_ORB.h.

TAO_RT_ORBInitializer::TAO_RTCORBA_DT_LifeSpan TAO_RT_ORB::lifespan_ [protected]

Dynamic thread lifespan policy.

Definition at line 274 of file RT_ORB.h.

TAO_Named_RT_Mutex_Manager TAO_RT_ORB::mutex_mgr_ [protected]

mutex_mgr_ manages the names associated with named mutexes.

Definition at line 268 of file RT_ORB.h.

TAO_ORB_Core* const TAO_RT_ORB::orb_core_ [protected]

Reference to our creating ORB Core.

Reimplemented from CORBA::Object.

Definition at line 265 of file RT_ORB.h.

TAO_Thread_Pool_Manager* TAO_RT_ORB::tp_manager_ [protected]

Thread Pool Manager.

Definition at line 271 of file RT_ORB.h.

The documentation for this class was generated from the following files:
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Defines
Generated on Thu Dec 9 2010 11:42:40 for TAO by  doxygen 1.7.0
