Implementation for GIOP v1.0. More...
#include <GIOP_Message_Generator_Parser_10.h>
Public Member Functions | |
| virtual bool | write_request_header (const TAO_Operation_Details &opdetails, TAO_Target_Specification &spec, TAO_OutputCDR &msg) |
| Write the request header in to msg. | |
| virtual bool | write_locate_request_header (CORBA::ULong request_id, TAO_Target_Specification &spec, TAO_OutputCDR &msg) |
| Write the LocateRequest header. | |
| virtual bool | write_reply_header (TAO_OutputCDR &output, TAO_Pluggable_Reply_Params_Base &reply) |
| Write the reply header in to output. | |
| virtual bool | write_locate_reply_mesg (TAO_OutputCDR &output, CORBA::ULong request_id, TAO_GIOP_Locate_Status_Msg &status) |
| Writes the locate _reply message in to the output. | |
| virtual bool | write_fragment_header (TAO_OutputCDR &cdr, CORBA::ULong request_id) |
| virtual int | parse_request_header (TAO_ServerRequest &) |
| virtual int | parse_locate_header (TAO_GIOP_Locate_Request_Header &) |
| virtual int | parse_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params ¶ms) |
| Parse the reply message from the server. | |
| virtual int | parse_locate_reply (TAO_InputCDR &input, TAO_Pluggable_Reply_Params ¶ms) |
| Parse the reply message from the server. | |
| virtual CORBA::Octet | major_version (void) const |
| Our versions. | |
| virtual CORBA::Octet | minor_version (void) const |
| virtual size_t | fragment_header_length (void) const |
| The header length of a fragment. | |
Implementation for GIOP v1.0.
Definition at line 33 of file GIOP_Message_Generator_Parser_10.h.
| size_t TAO_GIOP_Message_Generator_Parser_10::fragment_header_length | ( | void | ) | const [virtual] |
The header length of a fragment.

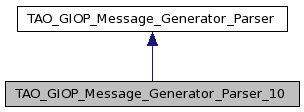

Implements TAO_GIOP_Message_Generator_Parser.
Definition at line 478 of file GIOP_Message_Generator_Parser_10.cpp.
{
return 0;
}
| CORBA::Octet TAO_GIOP_Message_Generator_Parser_10::major_version | ( | void | ) | const [virtual] |
Our versions.
Implements TAO_GIOP_Message_Generator_Parser.
Definition at line 464 of file GIOP_Message_Generator_Parser_10.cpp.
{
// Any harm in hardcoding??
return static_cast<CORBA::Octet> (1);
}
| CORBA::Octet TAO_GIOP_Message_Generator_Parser_10::minor_version | ( | void | ) | const [virtual] |
Implements TAO_GIOP_Message_Generator_Parser.
Reimplemented in TAO_GIOP_Message_Generator_Parser_11.
Definition at line 471 of file GIOP_Message_Generator_Parser_10.cpp.
{
// Any harm in hardcoding??
return 0;
}
| int TAO_GIOP_Message_Generator_Parser_10::parse_locate_header | ( | TAO_GIOP_Locate_Request_Header & | request | ) | [virtual] |
Parse the LocateRequest Header from the incoming stream. This will do a version specific parsing of the incoming Request header
Implements TAO_GIOP_Message_Generator_Parser.
Definition at line 406 of file GIOP_Message_Generator_Parser_10.cpp.
{
// Get the stream
TAO_InputCDR &msg = request.incoming_stream ();
// Get the request id
CORBA::ULong req_id = 0;
CORBA::Boolean hdr_status = msg.read_ulong (req_id);
// Store it in the Locate request classes
request.request_id (req_id);
// Get the object key
hdr_status = hdr_status && request.profile ().unmarshall_object_key (msg);
return hdr_status ? 0 : -1;
}
| int TAO_GIOP_Message_Generator_Parser_10::parse_locate_reply | ( | TAO_InputCDR & | input, | |
| TAO_Pluggable_Reply_Params & | params | |||
| ) | [virtual] |
Parse the reply message from the server.
Reimplemented from TAO_GIOP_Message_Generator_Parser.
Definition at line 451 of file GIOP_Message_Generator_Parser_10.cpp.
{
if (TAO_GIOP_Message_Generator_Parser::parse_locate_reply (cdr,
params) == -1)
return -1;
return 0;
}
| int TAO_GIOP_Message_Generator_Parser_10::parse_reply | ( | TAO_InputCDR & | input, | |
| TAO_Pluggable_Reply_Params & | params | |||
| ) | [virtual] |
Parse the reply message from the server.
Reimplemented from TAO_GIOP_Message_Generator_Parser.
Definition at line 426 of file GIOP_Message_Generator_Parser_10.cpp.
{
// Read the service context list first
if (!(cdr >> params.svc_ctx_))
{
if (TAO_debug_level > 0)
{
ACE_ERROR ((LM_ERROR,
ACE_TEXT ("TAO (%P|%t) parse_reply, ")
ACE_TEXT ("extracting context\n")));
}
return -1;
}
// Call the base class for further processing
if (TAO_GIOP_Message_Generator_Parser::parse_reply (cdr, params) == -1)
return -1;
return 0;
}
| int TAO_GIOP_Message_Generator_Parser_10::parse_request_header | ( | TAO_ServerRequest & | request | ) | [virtual] |
Parse the Request Header from the incoming stream. This will do a version specific parsing of the incoming Request header
Implements TAO_GIOP_Message_Generator_Parser.
Definition at line 320 of file GIOP_Message_Generator_Parser_10.cpp.
{
// Tear out the service context ... we currently ignore it, but it
// should probably be passed to each ORB service as appropriate
// (e.g. transactions, security).
//
// NOTE: As security support kicks in, this is a good place to
// verify a digital signature, if that is required in this security
// environment. It may be required even when using IPSEC security
// infrastructure.
// Get the input CDR in the request class
TAO_InputCDR & input = *request.incoming ();
IOP::ServiceContextList &service_info = request.request_service_info ();
if (!(input >> service_info))
return -1;
CORBA::Boolean hdr_status = (CORBA::Boolean) input.good_bit ();
CORBA::ULong req_id = 0;
// Get the rest of the request header ...
hdr_status = hdr_status && input.read_ulong (req_id);
request.request_id (req_id);
CORBA::Octet response_flags = CORBA::Octet();
hdr_status = hdr_status && input.read_octet (response_flags);
request.response_expected ((response_flags != 0));
// This is not supported now in GIOP 1.1
request.sync_with_server (0);
// We use ad-hoc demarshalling here: there is no need to increase
// the reference count on the CDR message block, because this key
// will not outlive the request (or the message block).
hdr_status =
hdr_status && request.profile ().unmarshall_object_key (input);
// According to the CORBA 2.6.1 (and older) specification, the operation
// name is an IDL Identifier. Identifiers must be composed of ASCII letters,
// numbers, and underscores, starting with a letter. Based on this, and
// the fact that I could find no text explicitly requiring operation name
// translation, nor could others in the CORBA community, the operation name
// will not be translated regardless of the translation of other strings.
//
CORBA::ULong length = 0;
hdr_status = hdr_status && input.read_ulong (length);
if (hdr_status)
{
// Do not include NULL character at the end.
// @@ This is not getting demarshaled using the codeset
// translators!
// Notice that there are no memory allocations involved
// here!
request.operation (input.rd_ptr (),
length - 1,
0 /* TAO_ServerRequest does NOT own string */);
hdr_status = input.skip_bytes (length);
}
if (hdr_status)
{
/**** This has been deprecated in 2.4 ****/
/*CORBA::Principal_var principal;
input >> principal.out ();
request.requesting_principal (principal.in ()); */
CORBA::OctetSeq oct_seq;
input >> oct_seq;
request.requesting_principal (oct_seq);
hdr_status = (CORBA::Boolean) input.good_bit ();
}
return hdr_status ? 0 : -1;
}
| bool TAO_GIOP_Message_Generator_Parser_10::write_fragment_header | ( | TAO_OutputCDR & | cdr, | |
| CORBA::ULong | request_id | |||
| ) | [virtual] |
Write the GIOP fragment message header to the output CDR stream cdr.
Implements TAO_GIOP_Message_Generator_Parser.
Definition at line 310 of file GIOP_Message_Generator_Parser_10.cpp.
{
// GIOP fragments are not supported in GIOP 1.0.
return false;
}
| bool TAO_GIOP_Message_Generator_Parser_10::write_locate_reply_mesg | ( | TAO_OutputCDR & | output, | |
| CORBA::ULong | request_id, | |||
| TAO_GIOP_Locate_Status_Msg & | status | |||
| ) | [virtual] |
Writes the locate _reply message in to the output.
Implements TAO_GIOP_Message_Generator_Parser.
Definition at line 279 of file GIOP_Message_Generator_Parser_10.cpp.
{
// Make the header for the locate request
output.write_ulong (request_id);
output.write_ulong (status_info.status);
if (status_info.status == GIOP::OBJECT_FORWARD)
{
CORBA::Object_ptr object_ptr = status_info.forward_location_var.in ();
if (!(output << object_ptr))
{
if (TAO_debug_level > 0)
{
ACE_ERROR ((
LM_ERROR,
ACE_TEXT ("TAO (%P|%t|%N|%l) write_locate_reply_mesg-")
ACE_TEXT (" cannot marshal object reference\n")
));
}
return false;
}
}
return true;
}
| bool TAO_GIOP_Message_Generator_Parser_10::write_locate_request_header | ( | CORBA::ULong | request_id, | |
| TAO_Target_Specification & | spec, | |||
| TAO_OutputCDR & | msg | |||
| ) | [virtual] |
Write the LocateRequest header.
Implements TAO_GIOP_Message_Generator_Parser.
Definition at line 117 of file GIOP_Message_Generator_Parser_10.cpp.
{
msg << request_id;
// In this case we cannot recognise anything other than the Object
// key as the address disposition variable. But we do a sanity check
// anyway.
const TAO::ObjectKey *key = spec.object_key ();
if (key)
{
// Everything is fine
msg << *key;
}
else
{
if (TAO_debug_level)
{
ACE_ERROR ((LM_ERROR,
ACE_TEXT ("(%N | %l) Unable to handle this request\n")));
}
return false;
}
return true;
}
| bool TAO_GIOP_Message_Generator_Parser_10::write_reply_header | ( | TAO_OutputCDR & | output, | |
| TAO_Pluggable_Reply_Params_Base & | reply | |||
| ) | [virtual] |
Write the reply header in to output.
Implements TAO_GIOP_Message_Generator_Parser.
Definition at line 148 of file GIOP_Message_Generator_Parser_10.cpp.
{
// Write the service context list.
#if (TAO_HAS_MINIMUM_CORBA == 1)
if (!(output << reply.service_context_notowned ()))
return false;
#else
if (!reply.is_dsi_)
{
if (!(output << reply.service_context_notowned ()))
return false;
}
else
{
// If lazy evaluation is enabled then we are going to insert an
// extra node at the end of the service context list, just to
// force the appropriate padding.
// But first we take it out any of them..
CORBA::ULong count = 0;
IOP::ServiceContextList &svc_ctx = reply.service_context_notowned ();
CORBA::ULong const l = svc_ctx.length ();
CORBA::ULong i;
for (i = 0; i != l; ++i)
{
if (svc_ctx[i].context_id == TAO_SVC_CONTEXT_ALIGN)
{
continue;
}
++count;
}
// Now increment it to account for the last dummy one...
++count;
// Now marshal the rest of the service context objects
if (!(output << count))
return false;
for (i = 0; i != l; ++i)
{
if (svc_ctx[i].context_id == TAO_SVC_CONTEXT_ALIGN)
{
continue;
}
if (!(output << svc_ctx[i]))
return false;
}
}
if (reply.is_dsi_ == true)
{
// @@ Much of this code is GIOP 1.1 specific and should be
ptrdiff_t target = reply.dsi_nvlist_align_;
ptrdiff_t const current =
ptrdiff_t (output.current_alignment ()) % ACE_CDR::MAX_ALIGNMENT;
CORBA::ULong pad = 0;
if (target == 0)
{
// We want to generate adequate padding to start the request
// id on a 8 byte boundary, two cases:
// - If the dummy tag starts on a 4 byte boundary and the
// dummy sequence has 0 elements then we have:
// 4:tag 8:sequence_length 4:sequence_body 4:request_id
// 8:payload
// - If the dummy tag starts on an 8 byte boundary, with 4
// elements we get:
// 8:tag 4:sequence_length 8:sequence_body 4:request_id
// 8:payload
if (current != 0 && current <= ACE_CDR::LONG_ALIGN)
{
pad = 4;
}
}
else if (target != ACE_CDR::LONG_ALIGN)
{
// The situation reverses, we want to generate adequate
// padding to start the request id on a 4 byte boundary, two
// cases:
// - If the dummy tag starts on a 4 byte boundary and the
// dummy sequence has 4 elements then we have:
// 4:tag 8:sequence_length 4:sequence_body 8:request_id
// 4:payload
// - If the dummy tag starts on an 8 byte boundary, with 0
// elements we get:
// 8:tag 4:sequence_length 8:sequence_body 8:request_id
// 4:payload
if (current > ACE_CDR::LONG_ALIGN)
{
pad = 4;
}
}
else if (target == ACE_CDR::MAX_ALIGNMENT)
{
pad = 0;
}
else
{
// <target> can only have the values above
throw ::CORBA::MARSHAL ();
}
output << CORBA::ULong (TAO_SVC_CONTEXT_ALIGN);
output << pad;
for (CORBA::ULong j = 0; j != pad; ++j)
{
output << ACE_OutputCDR::from_octet(0);
}
}
#endif /* TAO_HAS_MINIMUM_CORBA */
// Write the request ID
output.write_ulong (reply.request_id_);
// Write the reply status
output.write_ulong (reply.reply_status ());
return true;
}
| bool TAO_GIOP_Message_Generator_Parser_10::write_request_header | ( | const TAO_Operation_Details & | opdetails, | |
| TAO_Target_Specification & | spec, | |||
| TAO_OutputCDR & | msg | |||
| ) | [virtual] |
Write the request header in to msg.
Implements TAO_GIOP_Message_Generator_Parser.
Definition at line 23 of file GIOP_Message_Generator_Parser_10.cpp.
{
// Write the service context list
if (!(msg << opdetails.request_service_info ()))
return false;
// The request ID
if (!(msg << opdetails.request_id ()))
return false;
CORBA::Octet const response_flags = opdetails.response_flags ();
// Write the response flags
if (response_flags == TAO_TWOWAY_RESPONSE_FLAG)
{
msg << ACE_OutputCDR::from_octet (1);
}
else
{
msg << ACE_OutputCDR::from_octet (0);
}
// In this case we cannot recognise anything other than the Object
// key as the address disposition variable. But we do a sanity check
// anyway.
const TAO::ObjectKey *key = spec.object_key ();
if (key)
{
// Put in the object key
msg << *key;
}
else
{
if (TAO_debug_level)
{
ACE_ERROR ((LM_ERROR,
ACE_TEXT ("(%N |%l) Unable to handle this request\n")));
}
return false;
}
msg.write_string (opdetails.opname_len (), opdetails.opname ());
// Last element of request header is the principal; no portable way
// to get it, we just pass empty principal (convention: indicates
// "anybody"). Steps upward in security include passing an
// unverified user ID, and then verifying the message (i.e. a dummy
// service context entry is set up to hold a digital signature for
// this message, then patched shortly before it's sent).
/***** This has been deprecated in the 2.4 spec ******/
#if defined (TAO_PEER_REQUIRES_PRINCIPAL)
char username[BUFSIZ];
char *result =
ACE_OS::cuserid (username,
BUFSIZ);
if (result != 0)
{
const CORBA::ULong username_size =
static_cast<CORBA::ULong> (ACE_OS::strlen (username));
CORBA::Octet *buffer =
CORBA::OctetSeq::allocbuf (username_size + 1);
ACE_OS::memcpy (buffer,
username,
username_size + 1);
req_principal.replace (username_size + 1,
username_size + 1,
buffer,
1);
}
#else
CORBA::OctetSeq req_principal (0);
req_principal.length (0);
#endif /* TAO_PEER_REQUIRES_PRINCIPAL */
msg << req_principal;
return true;
}
1.7.0
