Generic interface for the DII invocation object visible. More...

#include <DII_Invocation_Adapter.h>

Inheritance diagram for TAO::DII_Invocation_Adapter:

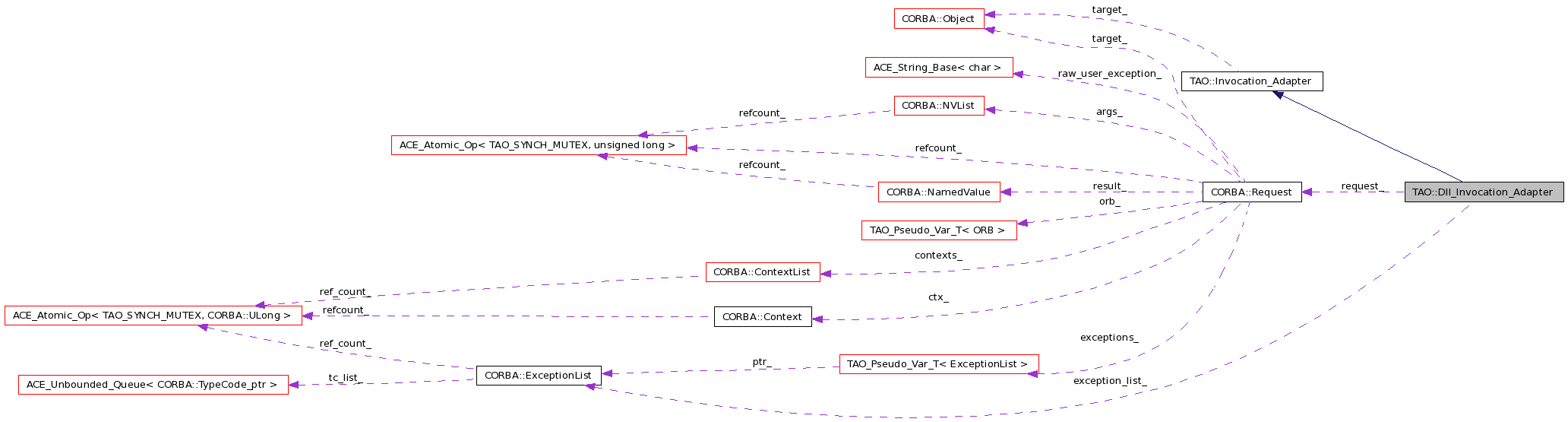

Collaboration diagram for TAO::DII_Invocation_Adapter:

Public Member Functions
	DII_Invocation_Adapter (CORBA::Object target, Argument args, int arg_number, const char operation, size_t op_len, CORBA::ExceptionList exception, CORBA::Request r, Invocation_Mode mode=TAO_DII_INVOCATION)
virtual	~DII_Invocation_Adapter (void)
virtual void	invoke (TAO::Exception_Data *ex, unsigned long ex_count)
	Invoke the target.
Protected Member Functions
virtual Invocation_Status	invoke_twoway (TAO_Operation_Details &op, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)
	Helper method to make a two way invocation.
virtual Invocation_Status	invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)
	Make a collocated call.
Private Member Functions
	DII_Invocation_Adapter (void)
	Dont allow default initializations.
	DII_Invocation_Adapter (const DII_Invocation_Adapter &)
DII_Invocation_Adapter &	operator= (const DII_Invocation_Adapter &)
Private Attributes
CORBA::ExceptionList *	exception_list_
CORBA::Request *	request_
TAO::Exception_Data *	ex_data_

Detailed Description

Generic interface for the DII invocation object visible.

Definition at line 58 of file DII_Invocation_Adapter.h.

Constructor & Destructor Documentation

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter	(	CORBA::Object *	target,
		Argument **	args,
		int	arg_number,
		const char *	operation,
		size_t	op_len,
		CORBA::ExceptionList *	exception,
		CORBA::Request *	r,
		Invocation_Mode	mode = `TAO_DII_INVOCATION`
	)

The only constructor used by the IDL compiler and only way to create this adapter.

Parameters:

	target	Points to the object on which this invocation is being invoked.
	args	Array of pointers to the argument list in the operation declaration. this includes the return, inout and out arguments.
	arg_number	Number of arguments in the above array. This is the number of elements in the above array.
	operation	The name of the operation being invoked.
	op_len	Number of characters in the operation name. This is an optimization which helps us to avoid calling strlen () while creating a message format.
	mode	Invocation mode. This information is also available in the IDL file and in the generated code.

Definition at line 13 of file DII_Invocation_Adapter.cpp.

               : DII_Invocation_Adapter.cpp 84739 2009-03-06 17:30:13Z mitza $")


TAO_BEGIN_VERSIONED_NAMESPACE_DECL

namespace TAO
{
  DII_Invocation_Adapter::DII_Invocation_Adapter (CORBA::Object *target,
                                                  Argument **args,
                                                  int arg_number,
                                                  const char *operation,
                                                  size_t op_len,

TAO::DII_Invocation_Adapter::~DII_Invocation_Adapter ( void ) [virtual]

Definition at line 36 of file DII_Invocation_Adapter.cpp.

    : Invocation_Adapter (target,

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter ( void ) [private]

Dont allow default initializations.

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter ( const DII_Invocation_Adapter & ) [private]

Member Function Documentation

void TAO::DII_Invocation_Adapter::invoke	(	TAO::Exception_Data *	ex,
		unsigned long	ex_count
	)			`[virtual]`

Invoke the target.

Reimplemented from TAO::Invocation_Adapter.

Definition at line 42 of file DII_Invocation_Adapter.cpp.

  {
  }

  DII_Invocation_Adapter::~DII_Invocation_Adapter (void)
  {
    delete[] ex_data_;
  }

  void
  DII_Invocation_Adapter::invoke (TAO::Exception_Data * /*ex_data*/,
                                  unsigned long ex_count)
  {
    // Convert DII exception list to a form the invocation can use

Invocation_Status TAO::DII_Invocation_Adapter::invoke_collocated_i	(	TAO_Stub *	stub,
		TAO_Operation_Details &	details,
		CORBA::Object_var &	effective_target,
		Collocation_Strategy	strat
	)			`[protected, virtual]`

Make a collocated call.

This method creates an object that takes care of making collocated invocations and calls invoke () on it. If the invoke () returns with a location forwarded reply we return a restart

Parameters:

	stub	The stub object on which the invocation is made.
	details	The operations details of the operation that is being invoked.

Reimplemented from TAO::Invocation_Adapter.

Definition at line 65 of file DII_Invocation_Adapter.cpp.

    {
      CORBA::TypeCode_var xtc = this->exception_list_->item (l);
      this->ex_data_[l].id = xtc->id ();
      this->ex_data_[l].alloc = 0;
#if TAO_HAS_INTERCEPTORS == 1
      this->ex_data_[l].tc_ptr = xtc.in ();
#endif
    }

    Invocation_Adapter::invoke (this->ex_data_, ex_count);
  }

Invocation_Status TAO::DII_Invocation_Adapter::invoke_twoway	(	TAO_Operation_Details &	details,
		CORBA::Object_var &	effective_target,
		Profile_Transport_Resolver &	r,
		ACE_Time_Value *&	max_wait_time
	)			`[protected, virtual]`

Helper method to make a two way invocation.

This method creates a synchronous twoway invocation object to which the actual task of request handling is delegated. Once the invocation returns this method checks whether the request is forwarded to a new location.

Reimplemented from TAO::Invocation_Adapter.

Reimplemented in TAO::DII_Asynch_Invocation_Adapter.

Definition at line 83 of file DII_Invocation_Adapter.cpp.

  {
    TAO_DII_Arguments_Converter_Impl* dii_arguments_converter
      = ACE_Dynamic_Service<TAO_DII_Arguments_Converter_Impl>::instance (
        "DII_Arguments_Converter");
    details.cac (dii_arguments_converter);

    return Invocation_Adapter::invoke_collocated_i (stub,
                                                    details,
                                                    effective_target,
                                                    strat);
  }

  Invocation_Status
  DII_Invocation_Adapter::invoke_twoway (
        TAO_Operation_Details &op,
        CORBA::Object_var &effective_target,
        Profile_Transport_Resolver &r,
        ACE_Time_Value *&max_wait_time)
  {
    // Simple sanity check
    if (this->mode_ != TAO_DII_INVOCATION ||
        this->type_ != TAO_TWOWAY_INVOCATION)
      {
        throw ::CORBA::INTERNAL (
          CORBA::SystemException::_tao_minor_code (
            TAO::VMCID,
            EINVAL),
          CORBA::COMPLETED_NO);
      }

    TAO_Transport* const transport = r.transport ();

    if (!transport)
      {
        // Way back, we failed to find a profile we could connect to.
        // We've come this far only so we reach the interception points
        // in case they can fix things. Time to bail....
        throw CORBA::TRANSIENT (CORBA::OMGVMCID | 2, CORBA::COMPLETED_NO);
      }

    ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, transport->output_cdr_lock (),
                      TAO_INVOKE_FAILURE);

    transport->messaging_object ()->out_stream ().reset_byte_order (
        request_->_tao_byte_order ());

    TAO::DII_Invocation synch (this->target_,
                               r,
                               op,
                               this->exception_list_,
                               this->request_);

    ace_mon.release();

DII_Invocation_Adapter& TAO::DII_Invocation_Adapter::operator= ( const DII_Invocation_Adapter & ) [private]

Member Data Documentation

TAO::Exception_Data* TAO::DII_Invocation_Adapter::ex_data_ [private]

Definition at line 119 of file DII_Invocation_Adapter.h.

CORBA::ExceptionList* TAO::DII_Invocation_Adapter::exception_list_ [private]

Definition at line 115 of file DII_Invocation_Adapter.h.

CORBA::Request* TAO::DII_Invocation_Adapter::request_ [private]

Definition at line 117 of file DII_Invocation_Adapter.h.

The documentation for this class was generated from the following files:
