This class is for deferred DII invocation. More...

#include <DII_Invocation_Adapter.h>

Inheritance diagram for TAO::DII_Deferred_Invocation_Adapter:

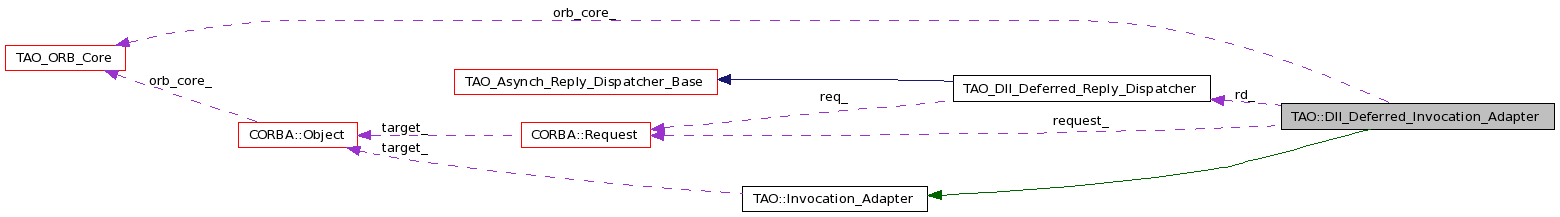

Collaboration diagram for TAO::DII_Deferred_Invocation_Adapter:

Public Member Functions
	DII_Deferred_Invocation_Adapter (CORBA::Object target, Argument args, int arg_number, const char operation, size_t op_len, Collocation_Proxy_Broker b, TAO_ORB_Core oc, CORBA::Request *req, TAO::Invocation_Mode mode=TAO_DII_DEFERRED_INVOCATION)
virtual void	invoke (TAO::Exception_Data *ex, unsigned long ex_count)
	Invoke the target.
Protected Member Functions
virtual Invocation_Status	invoke_twoway (TAO_Operation_Details &op, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)
	Helper method to make a two way invocation.
virtual Invocation_Status	invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)
	Make a collocated call.
Private Attributes
CORBA::Request *	request_
TAO_DII_Deferred_Reply_Dispatcher *	rd_
	Reply dispatcher for the current Invocation.
TAO_ORB_Core *const	orb_core_
	Cache the orb_core.

Detailed Description

This class is for deferred DII invocation.

Definition at line 134 of file DII_Invocation_Adapter.h.

Constructor & Destructor Documentation

TAO::DII_Deferred_Invocation_Adapter::DII_Deferred_Invocation_Adapter	(	CORBA::Object *	target,
		Argument **	args,
		int	arg_number,
		const char *	operation,
		size_t	op_len,
		Collocation_Proxy_Broker *	b,
		TAO_ORB_Core *	oc,
		CORBA::Request *	req,
		TAO::Invocation_Mode	mode = `TAO_DII_DEFERRED_INVOCATION`
	)

Member Function Documentation

void TAO::DII_Deferred_Invocation_Adapter::invoke	(	TAO::Exception_Data *	ex,
		unsigned long	ex_count
	)			`[virtual]`

Invoke the target.

Reimplemented from TAO::Invocation_Adapter.

Definition at line 168 of file DII_Invocation_Adapter.cpp.

    : Invocation_Adapter (target,
                          args,
                          arg_number,
                          operation,
                          op_len,
                          b,
                          TAO_TWOWAY_INVOCATION,
                          mode)
      , request_ (req)
      , rd_ (0)
      , orb_core_ (oc)
  {
  }

Invocation_Status TAO::DII_Deferred_Invocation_Adapter::invoke_collocated_i	(	TAO_Stub *	stub,
		TAO_Operation_Details &	details,
		CORBA::Object_var &	effective_target,
		Collocation_Strategy	strat
	)			`[protected, virtual]`

Make a collocated call.

This method creates an object that takes care of making collocated invocations and calls invoke () on it. If the invoke () returns with a location forwarded reply we return a restart

Parameters:

	stub	The stub object on which the invocation is made.
	details	The operations details of the operation that is being invoked.

Reimplemented from TAO::Invocation_Adapter.

Definition at line 185 of file DII_Invocation_Adapter.cpp.

  {
    // New reply dispatcher on the heap, because we will go out of
    // scope and hand over the reply dispatcher to the ORB.
    // So this->rd_ is 0, because we do not need to
    // hold a pointer to it.
    ACE_NEW_THROW_EX (this->rd_,
        TAO_DII_Deferred_Reply_Dispatcher (this->request_,
                                           this->orb_core_),
                      CORBA::NO_MEMORY ());

    Invocation_Adapter::invoke (ex, ex_count);
  }

Invocation_Status TAO::DII_Deferred_Invocation_Adapter::invoke_twoway	(	TAO_Operation_Details &	details,
		CORBA::Object_var &	effective_target,
		Profile_Transport_Resolver &	r,
		ACE_Time_Value *&	max_wait_time
	)			`[protected, virtual]`

Helper method to make a two way invocation.

This method creates a synchronous twoway invocation object to which the actual task of request handling is delegated. Once the invocation returns this method checks whether the request is forwarded to a new location.

Reimplemented from TAO::Invocation_Adapter.

Definition at line 203 of file DII_Invocation_Adapter.cpp.

  {
    TAO_DII_Arguments_Converter_Impl* dii_arguments_converter
      = ACE_Dynamic_Service<TAO_DII_Arguments_Converter_Impl>::instance (
        "DII_Arguments_Converter");
    details.cac (dii_arguments_converter);

    return Invocation_Adapter::invoke_collocated_i (stub,
                                                    details,
                                                    effective_target,
                                                    strat);
  }

  Invocation_Status
  DII_Deferred_Invocation_Adapter::invoke_twoway (
      TAO_Operation_Details &op,
      CORBA::Object_var &effective_target,
      Profile_Transport_Resolver &r,
      ACE_Time_Value *&max_wait_time)
  {
    // Simple sanity check
    if (this->mode_ != TAO_DII_DEFERRED_INVOCATION ||
        this->type_ != TAO_TWOWAY_INVOCATION)
      {
        throw ::CORBA::INTERNAL (
          CORBA::SystemException::_tao_minor_code (
            TAO::VMCID,
            EINVAL),
          CORBA::COMPLETED_NO);
      }

    TAO_Transport* const transport = r.transport ();

    if (!transport)
      {
        // Way back, we failed to find a profile we could connect to.
        // We've come this far only so we reach the interception points
        // in case they can fix things. Time to bail....
        throw CORBA::TRANSIENT (CORBA::OMGVMCID | 2, CORBA::COMPLETED_NO);
      }

    ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, transport->output_cdr_lock (),
                      TAO_INVOKE_FAILURE);

    transport->messaging_object ()->out_stream ().reset_byte_order (
      request_->_tao_byte_order ());

    TAO::DII_Deferred_Invocation synch (

Member Data Documentation

TAO_ORB_Core* const TAO::DII_Deferred_Invocation_Adapter::orb_core_ [private]

Cache the orb_core.

Definition at line 172 of file DII_Invocation_Adapter.h.

TAO_DII_Deferred_Reply_Dispatcher* TAO::DII_Deferred_Invocation_Adapter::rd_ [private]

Reply dispatcher for the current Invocation.

Definition at line 169 of file DII_Invocation_Adapter.h.

CORBA::Request* TAO::DII_Deferred_Invocation_Adapter::request_ [private]

Definition at line 166 of file DII_Invocation_Adapter.h.
