Provides simple statistical analysis. More...
#include <Stats.h>
Public Member Functions | |
| ACE_Stats (void) | |
| Default constructor. | |
| int | sample (const ACE_INT32 value) |
| ACE_UINT32 | samples (void) const |
| Access the number of samples provided so far. | |
| ACE_INT32 | min_value (void) const |
| Value of the minimum sample provided so far. | |
| ACE_INT32 | max_value (void) const |
| Value of the maximum sample provided so far. | |
| void | mean (ACE_Stats_Value &mean, const ACE_UINT32 scale_factor=1) |
| int | std_dev (ACE_Stats_Value &std_dev, const ACE_UINT32 scale_factor=1) |
| int | print_summary (const u_int precision, const ACE_UINT32 scale_factor=1, FILE *=stdout) const |
| void | reset (void) |
| Initialize internal state. | |
| void | dump (void) const |
| Print summary statistics to stdout. | |
Static Public Member Functions | |
| static void | quotient (const ACE_UINT64 dividend, const ACE_UINT32 divisor, ACE_Stats_Value "ient) |
| Utility division function, for ACE_UINT64 dividend. | |
| static void | quotient (const ACE_Stats_Value ÷nd, const ACE_UINT32 divisor, ACE_Stats_Value "ient) |
| Utility division function, for ACE_Stats_Value dividend. | |
| static void | square_root (const ACE_UINT64 n, ACE_Stats_Value &square_root) |
Protected Attributes | |
| u_int | overflow_ |
| ACE_UINT32 | number_of_samples_ |
| Number of samples. | |
| ACE_INT32 | min_ |
| Minimum sample value. | |
| ACE_INT32 | max_ |
| Maximum sample value. | |

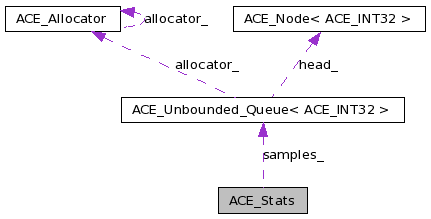

| ACE_Unbounded_Queue< ACE_INT32 > | samples_ |
| The samples. | |
Provides simple statistical analysis.
Simple statistical analysis package. Prominent features are:
Example usage:
* ACE_Stats stats;
* for (u_int i = 0; i < n; ++i)
* {
* const ACE_UINT32 sample = ...;
* stats.sample (sample);
* }
* stats.print_summary (3);
* Definition at line 129 of file Stats.h.
| ACE_Stats::ACE_Stats | ( | void | ) |
| void ACE_Stats::dump | ( | void | ) | const |
Print summary statistics to stdout.
Definition at line 97 of file Stats.inl.
{
#if defined (ACE_HAS_DUMP)
print_summary (3u);
#endif /* ACE_HAS_DUMP */
}
| ACE_INT32 ACE_Stats::max_value | ( | void | ) | const |
| void ACE_Stats::mean | ( | ACE_Stats_Value & | mean, | |
| const ACE_UINT32 | scale_factor = 1 | |||
| ) |
Access the mean of all samples provided so far. The fractional part is to the specified number of digits. E.g., 3 fractional digits specifies that the fractional part is in thousandths.
Definition at line 66 of file Stats.cpp.
{
if (number_of_samples_ > 0)
{
#if defined ACE_LACKS_LONGLONG_T
// If ACE_LACKS_LONGLONG_T, then ACE_UINT64 is a user-defined class.
// To prevent having to construct a static of that class, declare it
// on the stack, and construct it, in each function that needs it.
const ACE_U_LongLong ACE_STATS_INTERNAL_OFFSET (0, 8);
#else /* ! ACE_LACKS_LONGLONG_T */
const ACE_UINT64 ACE_STATS_INTERNAL_OFFSET =
ACE_UINT64_LITERAL (0x100000000);
#endif /* ! ACE_LACKS_LONGLONG_T */
ACE_UINT64 sum = ACE_STATS_INTERNAL_OFFSET;
ACE_Unbounded_Queue_Iterator<ACE_INT32> i (samples_);
while (! i.done ())
{
ACE_INT32 *sample;
if (i.next (sample))
{
sum += *sample;
i.advance ();
}
}
// sum_ was initialized with ACE_STATS_INTERNAL_OFFSET, so
// subtract that off here.
quotient (sum - ACE_STATS_INTERNAL_OFFSET,
number_of_samples_ * scale_factor,
m);
}
else
{
m.whole (0);
m.fractional (0);
}
}
| ACE_INT32 ACE_Stats::min_value | ( | void | ) | const |
| int ACE_Stats::print_summary | ( | const u_int | precision, | |
| const ACE_UINT32 | scale_factor = 1, |
|||
| FILE * | file = stdout | |||
| ) | const |
Print summary statistics. If scale_factor is not 1, then the results are divided by it, i.e., each of the samples is scaled down by it. If internal overflow is reached with the specified scale factor, it successively tries to reduce it. Returns -1 if there is overflow even with a 0 scale factor.
Definition at line 212 of file Stats.cpp.
{
ACE_TCHAR mean_string [128];
ACE_TCHAR std_dev_string [128];
ACE_TCHAR min_string [128];
ACE_TCHAR max_string [128];
int success = 0;
for (int tmp_precision = precision;
! overflow_ && ! success && tmp_precision >= 0;
--tmp_precision)
{
// Build a format string, in case the C library doesn't support %*u.
ACE_TCHAR format[32];
if (tmp_precision == 0)
ACE_OS::sprintf (format, ACE_TEXT ("%%%d"), tmp_precision);
else
ACE_OS::sprintf (format, ACE_TEXT ("%%d.%%0%du"), tmp_precision);
ACE_Stats_Value u (tmp_precision);
((ACE_Stats *) this)->mean (u, scale_factor);
ACE_OS::sprintf (mean_string, format, u.whole (), u.fractional ());
ACE_Stats_Value sd (tmp_precision);
if (((ACE_Stats *) this)->std_dev (sd, scale_factor))
{
success = 0;
continue;
}
else
{
success = 1;
}
ACE_OS::sprintf (std_dev_string, format, sd.whole (), sd.fractional ());
ACE_Stats_Value minimum (tmp_precision), maximum (tmp_precision);
if (min_ != 0)
{
const ACE_UINT64 m (min_);
quotient (m, scale_factor, minimum);
}
if (max_ != 0)
{
const ACE_UINT64 m (max_);
quotient (m, scale_factor, maximum);
}
ACE_OS::sprintf (min_string, format,
minimum.whole (), minimum.fractional ());
ACE_OS::sprintf (max_string, format,
maximum.whole (), maximum.fractional ());
}
if (success == 1)
{
ACE_OS::fprintf (file, ACE_TEXT ("samples: %u (%s - %s); mean: ")
ACE_TEXT ("%s; std dev: %s\n"),
samples (), min_string, max_string,
mean_string, std_dev_string);
return 0;
}
else
{
ACE_OS::fprintf (file,
ACE_TEXT ("ACE_Stats::print_summary: OVERFLOW: %s\n"),
ACE_OS::strerror (overflow_));
return -1;
}
}
| void ACE_Stats::quotient | ( | const ACE_UINT64 | dividend, | |
| const ACE_UINT32 | divisor, | |||
| ACE_Stats_Value & | quotient | |||
| ) | [static] |
Utility division function, for ACE_UINT64 dividend.
Definition at line 285 of file Stats.cpp.
{
// The whole part of the division comes from simple integer division.
quotient.whole (static_cast<ACE_UINT32> (divisor == 0
? 0 : dividend / divisor));
if (quotient.precision () > 0 || divisor == 0)
{
const ACE_UINT32 field = quotient.fractional_field ();
// Fractional = (dividend % divisor) * 10^precision / divisor
// It would be nice to add round-up term:
// Fractional = (dividend % divisor) * 10^precision / divisor +
// 10^precision/2 / 10^precision
// = ((dividend % divisor) * 10^precision + divisor) /
// divisor
quotient.fractional (static_cast<ACE_UINT32> (
dividend % divisor * field / divisor));
}
else
{
// No fractional portion is requested, so don't bother
// calculating it.
quotient.fractional (0);
}
}
| void ACE_Stats::quotient | ( | const ACE_Stats_Value & | dividend, | |
| const ACE_UINT32 | divisor, | |||
| ACE_Stats_Value & | quotient | |||
| ) | [static] |
Utility division function, for ACE_Stats_Value dividend.
Definition at line 316 of file Stats.cpp.
{
// The whole part of the division comes from simple integer division.
quotient.whole (divisor == 0 ? 0 : dividend.whole () / divisor);
if (quotient.precision () > 0 || divisor == 0)
{
const ACE_UINT32 field = quotient.fractional_field ();
// Fractional = (dividend % divisor) * 10^precision / divisor.
quotient.fractional (dividend.whole () % divisor * field / divisor +
dividend.fractional () / divisor);
}
else
{
// No fractional portion is requested, so don't bother
// calculating it.
quotient.fractional (0);
}
}
| void ACE_Stats::reset | ( | void | ) |
| int ACE_Stats::sample | ( | const ACE_INT32 | value | ) |
Provide a new sample. Returns 0 on success, -1 if it fails due to running out of memory, or to rolling over of the sample count.
Definition at line 36 of file Stats.cpp.
{
if (samples_.enqueue_tail (value) == 0)
{
++number_of_samples_;
if (number_of_samples_ == 0)
{
// That's a lot of samples :-)
overflow_ = EFAULT;
return -1;
}
if (value < min_)
min_ = value;
if (value > max_)
max_ = value;
return 0;
}
else
{
// Probably failed due to running out of memory when trying to
// enqueue the new value.
overflow_ = errno;
return -1;
}
}
| ACE_UINT32 ACE_Stats::samples | ( | void | ) | const |
Access the number of samples provided so far.
Definition at line 76 of file Stats.inl.
{
return number_of_samples_;
}
| void ACE_Stats::square_root | ( | const ACE_UINT64 | n, | |
| ACE_Stats_Value & | square_root | |||
| ) | [static] |
Sqrt function, which uses an oversimplified version of Newton's method. It's not fast, but it doesn't require floating point support.
Definition at line 340 of file Stats.cpp.
{
ACE_UINT32 floor = 0;
ACE_UINT32 ceiling = 0xFFFFFFFFu;
ACE_UINT32 mid = 0;
u_int i;
// The maximum number of iterations is log_2 (2^64) == 64.
for (i = 0; i < 64; ++i)
{
mid = (ceiling - floor) / 2 + floor;
if (floor == mid)
// Can't divide the interval any further.
break;
else
{
// Multiply carefully to avoid overflow.
ACE_UINT64 mid_squared = mid; mid_squared *= mid;
if (mid_squared == n)
break;
else if (mid_squared < n)
floor = mid;
else
ceiling = mid;
}
}
square_root.whole (mid);
ACE_UINT64 mid_squared = mid; mid_squared *= mid;
if (square_root.precision () && mid_squared < n)
{
// (mid * 10^precision + fractional)^2 ==
// n^2 * 10^(precision * 2)
const ACE_UINT32 field = square_root.fractional_field ();
floor = 0;
ceiling = field;
mid = 0;
// Do the 64-bit arithmetic carefully to avoid overflow.
ACE_UINT64 target = n;
target *= field;
target *= field;
ACE_UINT64 difference = 0;
for (i = 0; i < square_root.precision (); ++i)
{
mid = (ceiling - floor) / 2 + floor;
ACE_UINT64 current = square_root.whole () * field + mid;
current *= square_root.whole () * field + mid;
if (floor == mid)
{
difference = target - current;
break;
}
else if (current <= target)
floor = mid;
else
ceiling = mid;
}
// Check to see if the fractional part should be one greater.
ACE_UINT64 next = square_root.whole () * field + mid + 1;
next *= square_root.whole () * field + mid + 1;
square_root.fractional (next - target < difference ? mid + 1 : mid);
}
else
{
// No fractional portion is requested, so don't bother
// calculating it.
square_root.fractional (0);
}
}
| int ACE_Stats::std_dev | ( | ACE_Stats_Value & | std_dev, | |
| const ACE_UINT32 | scale_factor = 1 | |||
| ) |
Access the standard deviation, whole and fractional parts. See description of {mean} method for argument descriptions.
Definition at line 107 of file Stats.cpp.
{
if (number_of_samples_ <= 1)
{
std_dev.whole (0);
std_dev.fractional (0);
}
else
{
const ACE_UINT32 field = std_dev.fractional_field ();
// The sample standard deviation is:
//
// sqrt (sum (sample_i - mean)^2 / (number_of_samples_ - 1))
ACE_UINT64 mean_scaled;
// Calculate the mean, scaled, so that we don't lose its
// precision.
ACE_Stats_Value avg (std_dev.precision ());
mean (avg, 1u);
avg.scaled_value (mean_scaled);
// Calculate the summation term, of squared differences from the
// mean.
ACE_UINT64 sum_of_squares = 0;
ACE_Unbounded_Queue_Iterator<ACE_INT32> i (samples_);
while (! i.done ())
{
ACE_INT32 *sample;
if (i.next (sample))
{
const ACE_UINT64 original_sum_of_squares = sum_of_squares;
// Scale up by field width so that we don't lose the
// precision of the mean. Carefully . . .
const ACE_UINT64 product (*sample * field);
ACE_UINT64 difference;
// NOTE: please do not reformat this code! It //
// works with the Diab compiler the way it is! //
if (product >= mean_scaled) //
{ //
difference = product - mean_scaled; //
} //
else //
{ //
difference = mean_scaled - product; //
} //
// NOTE: please do not reformat this code! It //
// works with the Diab compiler the way it is! //
// Square using 64-bit arithmetic.
sum_of_squares += difference * ACE_U64_TO_U32 (difference);
i.advance ();
if (sum_of_squares < original_sum_of_squares)
{
overflow_ = ENOSPC;
return -1;
}
}
}
// Divide the summation by (number_of_samples_ - 1), to get the
// variance. In addition, scale the variance down to undo the
// mean scaling above. Otherwise, it can get too big.
ACE_Stats_Value variance (std_dev.precision ());
quotient (sum_of_squares,
(number_of_samples_ - 1) * field * field,
variance);
// Take the square root of the variance to get the standard
// deviation. First, scale up . . .
ACE_UINT64 scaled_variance;
variance.scaled_value (scaled_variance);
// And scale up, once more, because we'll be taking the square
// root.
scaled_variance *= field;
ACE_Stats_Value unscaled_standard_deviation (std_dev.precision ());
square_root (scaled_variance,
unscaled_standard_deviation);
// Unscale.
quotient (unscaled_standard_deviation,
scale_factor * field,
std_dev);
}
return 0;
}
ACE_INT32 ACE_Stats::max_ [protected] |
ACE_INT32 ACE_Stats::min_ [protected] |
ACE_UINT32 ACE_Stats::number_of_samples_ [protected] |
u_int ACE_Stats::overflow_ [protected] |
ACE_Unbounded_Queue<ACE_INT32> ACE_Stats::samples_ [protected] |
1.7.0
