ACE_DLL_Strategy< SVC_HANDLER > Class Template Reference

Defines the interface for specifying a creation strategy for a SVC_HANDLER based on dynamic linking of the SVC_HANDLER. More...

#include <Strategies_T.h>

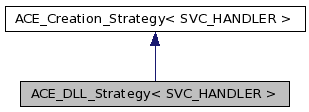

Inheritance diagram for ACE_DLL_Strategy< SVC_HANDLER >:

Collaboration diagram for ACE_DLL_Strategy< SVC_HANDLER >:

List of all members.

Public Types
typedef ACE_Creation_Strategy < SVC_HANDLER >	base_type
Public Member Functions
	ACE_DLL_Strategy (void)
	"Do-nothing" constructor.
	ACE_DLL_Strategy (const ACE_TCHAR dll_name[], const ACE_TCHAR factory_function[], const ACE_TCHAR svc_name[], ACE_Service_Repository *, ACE_Thread_Manager *=0)
int	open (const ACE_TCHAR dll_name[], const ACE_TCHAR factory_function[], const ACE_TCHAR svc_name[], ACE_Service_Repository *, ACE_Thread_Manager *=0)
virtual int	make_svc_handler (SVC_HANDLER *&)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Types
typedef ACE_Creation_Strategy < SVC_HANDLER >	inherited
Protected Attributes
ACE_TCHAR	dll_name_ [MAXPATHLEN+1]
	Name of the DLL to dynamically link.
ACE_TCHAR	factory_function_ [MAXPATHLEN+1]
ACE_TCHAR	svc_name_ [MAXNAMELEN+1]
	Name of the service.
ACE_Service_Repository *	svc_rep_
	Pointer to the <Service_Repository>.

---

Detailed Description

template<class SVC_HANDLER>
class ACE_DLL_Strategy< SVC_HANDLER >

Defines the interface for specifying a creation strategy for a SVC_HANDLER based on dynamic linking of the SVC_HANDLER.

Definition at line 181 of file Strategies_T.h.

---

Member Typedef Documentation

template<class SVC_HANDLER >

typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_DLL_Strategy< SVC_HANDLER >::base_type

Definition at line 186 of file Strategies_T.h.

template<class SVC_HANDLER >

typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_DLL_Strategy< SVC_HANDLER >::inherited [protected]

Definition at line 221 of file Strategies_T.h.

---

Constructor & Destructor Documentation

template<class SVC_HANDLER >

ACE_DLL_Strategy< SVC_HANDLER >::ACE_DLL_Strategy

(

void

)

"Do-nothing" constructor.

Definition at line 60 of file Strategies_T.inl.

{
  ACE_TRACE ("ACE_DLL_Strategy<SVC_HANDLER>::ACE_DLL_Strategy");
}

template<class SVC_HANDLER >

ACE_DLL_Strategy< SVC_HANDLER >::ACE_DLL_Strategy	(	const ACE_TCHAR	dll_name[],
		const ACE_TCHAR	factory_function[],
		const ACE_TCHAR	svc_name[],
		ACE_Service_Repository *	svc_rep,
		ACE_Thread_Manager *	thr_mgr = 0
	)

Initialize the DLL strategy based upon the service's DLL information contained in the <svc_dll_info> string.

Definition at line 42 of file Strategies_T.inl.

{
  ACE_TRACE ("ACE_DLL_Strategy<SVC_HANDLER>::ACE_DLL_Strategy");
  if (this->open (dll_name,
                  factory_function,
                  svc_name,
                  svc_rep,
                  thr_mgr) == -1)
    ACE_ERROR ((LM_ERROR,
                ACE_TEXT ("%p\n"),
                ACE_TEXT ("open")));
}

---

Member Function Documentation

template<class SVC_HANDLER >

void ACE_DLL_Strategy< SVC_HANDLER >::dump

(

void

)

const

Dump the state of an object.

Reimplemented from ACE_Creation_Strategy< SVC_HANDLER >.

Definition at line 1237 of file Strategies_T.cpp.

{
#if defined (ACE_HAS_DUMP)
  ACE_TRACE ("ACE_DLL_Strategy<SVC_HANDLER>::dump");
#endif /* ACE_HAS_DUMP */
}

template<class SVC_HANDLER >

int ACE_DLL_Strategy< SVC_HANDLER >::make_svc_handler

(

SVC_HANDLER *&

sh

)

[virtual]

Create a SVC_HANDLER by dynamically linking it from a DLL. Returns -1 on failure, else 0.

Reimplemented from ACE_Creation_Strategy< SVC_HANDLER >.

Definition at line 115 of file Strategies_T.cpp.

{
  ACE_TRACE ("ACE_DLL_Strategy<SVC_HANDLER>::make_svc_handler");

  // Open the shared library.
  ACE_SHLIB_HANDLE handle = ACE_OS::dlopen (this->dll_name_);

  // Extract the factory function.
#if defined (ACE_OPENVMS)
  SVC_HANDLER *(*factory)(void) =
    (SVC_HANDLER *(*)(void)) ACE::ldsymbol (handle,
                                            this->factory_function_);
#else
  SVC_HANDLER *(*factory)(void) =
    (SVC_HANDLER *(*)(void)) ACE_OS::dlsym (handle,
                                            this->factory_function_);
#endif

  // Call the factory function to obtain the new SVC_Handler (should
  // use RTTI here when it becomes available...)
  SVC_HANDLER *svc_handler = 0;

  ACE_ALLOCATOR_RETURN (svc_handler, (*factory)(), -1);

  if (svc_handler != 0)
    {
      // Create an ACE_Service_Type containing the SVC_Handler and
      // insert into this->svc_rep_;

      ACE_Service_Type_Impl *stp = 0;
      ACE_NEW_RETURN (stp,
                      ACE_Service_Object_Type (svc_handler,
                                               this->svc_name_),
                      -1);

      ACE_Service_Type *srp = 0;

      ACE_NEW_RETURN (srp,
                      ACE_Service_Type (this->svc_name_,
                                        stp,
                                        handle,
                                        1),
                      -1);
      if (srp == 0)
        {
          delete stp;
          errno = ENOMEM;
          return -1;
        }

      if (this->svc_rep_->insert (srp) == -1)
        return -1;
      // @@ Somehow, we need to deal with this->thr_mgr_...
    }

  sh = svc_handler;
  return 0;
}

template<class SVC_HANDLER >

int ACE_DLL_Strategy< SVC_HANDLER >::open	(	const ACE_TCHAR	dll_name[],
		const ACE_TCHAR	factory_function[],
		const ACE_TCHAR	svc_name[],
		ACE_Service_Repository *	svc_rep,
		ACE_Thread_Manager *	thr_mgr = 0
	)

Initialize the DLL strategy based upon the service's DLL information contained in the <svc_dll_info> string.

Definition at line 97 of file Strategies_T.cpp.

{
  ACE_TRACE ("ACE_DLL_Strategy<SVC_HANDLER>::open");
  this->inherited::open (thr_mgr);
  ACE_OS::strcpy (this->dll_name_, dll_name);
  ACE_OS::strcpy (this->factory_function_, factory_function);
  ACE_OS::strcpy (this->svc_name_, svc_name);
  this->svc_rep_ = svc_rep;
  return 0;
}

---

Member Data Documentation

template<class SVC_HANDLER >

ACE_DLL_Strategy< SVC_HANDLER >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_Creation_Strategy< SVC_HANDLER >.

Definition at line 218 of file Strategies_T.h.

template<class SVC_HANDLER >

ACE_TCHAR ACE_DLL_Strategy< SVC_HANDLER >::dll_name_[MAXPATHLEN+1] [protected]

Name of the DLL to dynamically link.

Definition at line 224 of file Strategies_T.h.

template<class SVC_HANDLER >

ACE_TCHAR ACE_DLL_Strategy< SVC_HANDLER >::factory_function_[MAXPATHLEN+1] [protected]

Name of the factory function in the shared library to use to obtain a pointer to the new SVC_HANDLER.

Definition at line 228 of file Strategies_T.h.

template<class SVC_HANDLER >

ACE_TCHAR ACE_DLL_Strategy< SVC_HANDLER >::svc_name_[MAXNAMELEN+1] [protected]

Name of the service.

Definition at line 231 of file Strategies_T.h.

template<class SVC_HANDLER >

ACE_Service_Repository* ACE_DLL_Strategy< SVC_HANDLER >::svc_rep_ [protected]

Pointer to the <Service_Repository>.

Definition at line 234 of file Strategies_T.h.

---

The documentation for this class was generated from the following files:

• Strategies_T.h
• Strategies_T.cpp
• Strategies_T.inl
