The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams. More...

#include <Service_Types.h>

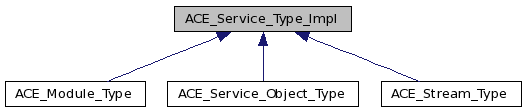

Inheritance diagram for ACE_Service_Type_Impl:

[legend]

List of all members.

Public Member Functions
	ACE_Service_Type_Impl (void object, const ACE_TCHAR s_name, u_int flags=0, ACE_Service_Object_Exterminator gobbler=0, int stype=ACE_Service_Type::INVALID_TYPE)
virtual	~ACE_Service_Type_Impl (void)
virtual int	suspend (void) const =0
virtual int	resume (void) const =0
virtual int	init (int argc, ACE_TCHAR *argv[]) const =0
virtual int	fini (void) const
virtual int	info (ACE_TCHAR **str, size_t len) const =0
void *	object (void) const
	The pointer to the service.
const ACE_TCHAR *	name (void) const
	Get the name of the service.
void	name (const ACE_TCHAR *)
	Set the name of the service.
void	dump (void) const
	Dump the state of an object.
int	service_type (void) const
	get the service_type of this service
void	service_type (int stype)
	set the service_type of this service
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Attributes
const ACE_TCHAR *	name_
	Name of the service.
void *	obj_
ACE_Service_Object_Exterminator	gobbler_
	Destroy function to deallocate obj_.
u_int	flags_
	Flags that control serivce behavior (particularly deletion).
int	service_type_

Detailed Description

The abstract base class of the hierarchy that defines the contents of the ACE_Service_Repository. The subclasses of this class allow the configuration of ACE_Service_Objects, ACE_Modules, and ACE_Streams.

This class provides the root of the implementation hierarchy of the "Bridge" pattern. It maintains a pointer to the appropriate type of service implementation, i.e., ACE_Service_Object, ACE_Module, or ACE_Stream.

Definition at line 39 of file Service_Types.h.

Constructor & Destructor Documentation

ACE_Service_Type_Impl::ACE_Service_Type_Impl	(	void *	object,
		const ACE_TCHAR *	s_name,
		u_int	flags = `0`,
		ACE_Service_Object_Exterminator	gobbler = `0`,
		int	stype = `ACE_Service_Type::INVALID_TYPE`
	)

Definition at line 35 of file Service_Types.cpp.

  : name_ (0),
    obj_ (so),
    gobbler_ (gobbler),
    flags_ (f),
  service_type_ (stype)
{
  ACE_TRACE ("ACE_Service_Type_Impl::ACE_Service_Type_Impl");
  this->name (s_name);
}

ACE_Service_Type_Impl::~ACE_Service_Type_Impl ( void ) [virtual]

Definition at line 50 of file Service_Types.cpp.

{
  ACE_TRACE ("ACE_Service_Type_Impl::~ACE_Service_Type_Impl");

  // It's ok to call this, even though we may have already deleted it
  // in the fini() method since it would then be NULL.
  delete [] const_cast <ACE_TCHAR *> (this->name_);
}

Member Function Documentation

void ACE_Service_Type_Impl::dump ( void ) const

Dump the state of an object.

Reimplemented in ACE_Module_Type, and ACE_Stream_Type.

Definition at line 28 of file Service_Types.cpp.

{
#if defined (ACE_HAS_DUMP)
  ACE_TRACE ("ACE_Service_Type_Impl::dump");
#endif /* ACE_HAS_DUMP */
}

int ACE_Service_Type_Impl::fini ( void ) const [virtual]

Reimplemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

Definition at line 60 of file Service_Types.cpp.

{
  ACE_TRACE ("ACE_Service_Type_Impl::fini");

  delete [] const_cast <ACE_TCHAR *> (this->name_);
  (const_cast <ACE_Service_Type_Impl *> (this))->name_ = 0;

  if (ACE_BIT_ENABLED (this->flags_,
                       ACE_Service_Type::DELETE_OBJ))
    {
      if (gobbler_ != 0)
        gobbler_ (this->object ());
      else
        // Cast to remove const-ness.
        operator delete ((void *) this->object ());
    }

  if (ACE_BIT_ENABLED (this->flags_,
                       ACE_Service_Type::DELETE_THIS))
    delete const_cast <ACE_Service_Type_Impl *> (this);

  return 0;
}

virtual int ACE_Service_Type_Impl::info	(	ACE_TCHAR **	str,
		size_t	len
	)			const `[pure virtual]`

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

virtual int ACE_Service_Type_Impl::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)			const `[pure virtual]`

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

void ACE_Service_Type_Impl::name ( const ACE_TCHAR * n )

Set the name of the service.

Definition at line 24 of file Service_Types.inl.

{
  ACE_TRACE ("ACE_Service_Type_Impl::name");

  ACE::strdelete (const_cast<ACE_TCHAR*> (this->name_));
  this->name_ = ACE::strnew (n);
}

const ACE_TCHAR * ACE_Service_Type_Impl::name ( void ) const

Get the name of the service.

Definition at line 17 of file Service_Types.inl.

{
  ACE_TRACE ("ACE_Service_Type_Impl::name");
  return this->name_;
}

void * ACE_Service_Type_Impl::object ( void ) const

The pointer to the service.

Definition at line 10 of file Service_Types.inl.

{
  ACE_TRACE ("ACE_Service_Type_Impl::object");
  return this->obj_;
}

virtual int ACE_Service_Type_Impl::resume ( void ) const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

void ACE_Service_Type_Impl::service_type ( int stype )

set the service_type of this service

Definition at line 39 of file Service_Types.inl.

{
  service_type_ = stype;
}

int ACE_Service_Type_Impl::service_type ( void ) const

get the service_type of this service

Definition at line 33 of file Service_Types.inl.

{
  return service_type_;
}

virtual int ACE_Service_Type_Impl::suspend ( void ) const [pure virtual]

Implemented in ACE_Service_Object_Type, ACE_Module_Type, and ACE_Stream_Type.

Member Data Documentation

ACE_Service_Type_Impl::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented in ACE_Module_Type, and ACE_Stream_Type.

Definition at line 76 of file Service_Types.h.

u_int ACE_Service_Type_Impl::flags_ [protected]

Flags that control serivce behavior (particularly deletion).

Definition at line 90 of file Service_Types.h.

ACE_Service_Object_Exterminator ACE_Service_Type_Impl::gobbler_ [protected]

Destroy function to deallocate obj_.

Definition at line 87 of file Service_Types.h.

const ACE_TCHAR* ACE_Service_Type_Impl::name_ [protected]

Name of the service.

Definition at line 80 of file Service_Types.h.

void* ACE_Service_Type_Impl::obj_ [protected]

Pointer to object that implements the service. This actually points to an ACE_Service_Object, ACE_Module, or ACE_Stream.

Definition at line 84 of file Service_Types.h.

int ACE_Service_Type_Impl::service_type_ [protected]

type of this service Used to properly manage the lifecycle of ACE_Modules and ACE_Streams during shutdown

Definition at line 95 of file Service_Types.h.

The documentation for this class was generated from the following files:
