TAO_Naming_Server Class Reference

Defines a wrapper class that holds the root Naming Context. More...

#include <Naming_Server.h>

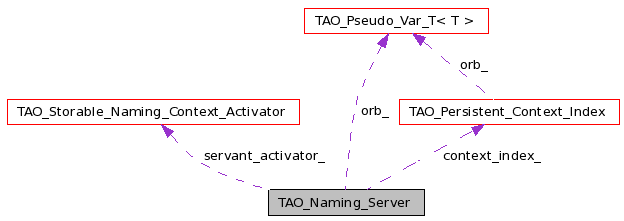

Collaboration diagram for TAO_Naming_Server:

[legend]List of all members.

Public Member Functions
	TAO_Naming_Server (void)
	Default constructor.
	TAO_Naming_Server (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, size_t context_size=ACE_DEFAULT_MAP_SIZE, ACE_Time_Value *timeout=0, int resolve_for_existing_naming_service=1, const ACE_TCHAR *persistence_location=0, void *base_addr=TAO_NAMING_BASE_ADDR, int enable_multicast=1, int use_storable_context=0, int round_trip_timeout=0, int use_round_trip_timeout=0)
int	init (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, size_t context_size=ACE_DEFAULT_MAP_SIZE, ACE_Time_Value *timeout=0, int resolve_for_existing_naming_service=1, const ACE_TCHAR *persistence_location=0, void *base_addr=TAO_NAMING_BASE_ADDR, int enable_multicast=1, int use_storable_context=0, int round_trip_timeout=0, int use_round_trip_timeout=0)
int	init_with_orb (int argc, ACE_TCHAR *argv[], CORBA::ORB_ptr orb)
int	fini (void)
	Destroy the child POA created in <init_with_orb>.
	~TAO_Naming_Server (void)
	Destructor.
char *	naming_service_ior (void)
	Returns the IOR of the naming service.
CosNaming::NamingContext_ptr	operator-> (void) const
	Returns a <NamingContext_ptr> for the root Naming Context.
Protected Member Functions
int	init_new_naming (CORBA::ORB_ptr orb, PortableServer::POA_ptr root_poa, const ACE_TCHAR *persistence_location, void *base_addr, size_t context_size, int enable_multicast, int use_storable_context, int round_trip_timeout=0, int use_round_trip_timeout=0)
int	parse_args (int argc, ACE_TCHAR *argv[])
	parses the arguments.
Protected Attributes
CosNaming::NamingContext_var	naming_context_
	Root NamingContext_ptr.
TAO_IOR_Multicast *	ior_multicast_
	The ior_multicast event handler.
CORBA::String_var	naming_service_ior_
	The IOR string of the root naming context.
CORBA::ORB_var	orb_
	The ORB.
PortableServer::POA_var	root_poa_
	The Root POA.
PortableServer::POA_var	ns_poa_
	The Naming Service POA.
const ACE_TCHAR *	ior_file_name_
	File to output the Naming Service IOR.
const ACE_TCHAR *	pid_file_name_
	File to output the process id.
size_t	context_size_
int	multicast_
	If not zero multicast is enabled.
TAO_Persistent_Context_Index *	context_index_
const ACE_TCHAR *	persistence_file_name_
void *	base_address_
int	use_storable_context_
	If not zero use flat file persistence.
int	use_servant_activator_
TAO_Storable_Naming_Context_Activator *	servant_activator_
int	use_redundancy_
int	round_trip_timeout_
int	use_round_trip_timeout_

---

Detailed Description

Defines a wrapper class that holds the root Naming Context.

This class either finds an existing Naming Service (if the <resolve_for_existing_naming_service> flag is set) or creates one (if <resolve_for_existing_naming_service> flag isn't set or Naming Service was not found). This class also defines the operator-> so that <NamingContext> functions like <bind>, <unbind> .. can be called directly on a <TAO_Naming_Server> object, and be forwareded to the root Naming Context. This class is intended to simplify programs that want to play the role of a Naming Service server. To simplify programs that want to play the role of Naming Service clients, use <TAO_Naming_Client>. If a Naming Service is created locally, a TAO_IOR_Multicast event handler is created and installed on the ORB's reactor. This event handler allows other clients on the network to discover and use this Naming Service. Event handler listens on a multicast port for messages from clients looking for a Naming Service, and sends back the ior of the root Naming Context. For more information on how this bootstraping through a multicast process works, check out orbsvcs/orbsvcs/TAO_IOR_Multicast.*, implementation of <resolve_initial_references>, and orbsvcs/Naming/README.

Definition at line 64 of file Naming_Server.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Naming_Server::TAO_Naming_Server

(

void

)

Default constructor.

Definition at line 38 of file Naming_Server.cpp.

  : naming_context_ (),
    ior_multicast_ (0),
    naming_service_ior_ (),
    ior_file_name_ (0),
    pid_file_name_ (0),
    context_size_ (ACE_DEFAULT_MAP_SIZE),
    multicast_ (0),
#if !defined (CORBA_E_MICRO)
    context_index_ (0),
    persistence_file_name_ (0),
    base_address_ (TAO_NAMING_BASE_ADDR),
    use_storable_context_ (0),
    use_servant_activator_ (false),
    servant_activator_ (0),
#endif /* CORBA_E_MICRO */
    use_redundancy_(0),
    round_trip_timeout_ (0),
    use_round_trip_timeout_ (0)
{
}

TAO_Naming_Server::TAO_Naming_Server	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa,
		size_t	context_size = ACE_DEFAULT_MAP_SIZE,
		ACE_Time_Value *	timeout = 0,
		int	resolve_for_existing_naming_service = 1,
		const ACE_TCHAR *	persistence_location = 0,
		void *	base_addr = TAO_NAMING_BASE_ADDR,
		int	enable_multicast = 1,
		int	use_storable_context = 0,
		int	round_trip_timeout = 0,
		int	use_round_trip_timeout = 0
	)

Constructor. Attempts to find an existing Naming Service if <resolve_for_existing_naming_service> is set to true. If it is false, or no Naming Service was found during a <timeout> period, create the Naming Service in this process. If creating the Naming Service locally, make the root context of size <context_size>, register it under the <poa>, and make the Naming Service persistent if <persistence_location> is not 0. (<persistence_location> specifies name of the file to use for persistent storage, <base_addr> specifies the address used for memory mapping <persistent_location> file). If <enable_multicast> is not zero then the service will respond to multicast location queries.

Definition at line 60 of file Naming_Server.cpp.

References ACE_ERROR, and LM_ERROR.

  : naming_context_ (),
    ior_multicast_ (0),
    naming_service_ior_ (),
    ior_file_name_ (0),
    pid_file_name_ (0),
    context_size_ (ACE_DEFAULT_MAP_SIZE),
    multicast_ (0),
#if !defined (CORBA_E_MICRO)
    context_index_ (0),
    persistence_file_name_ (0),
    base_address_ (TAO_NAMING_BASE_ADDR),
    use_storable_context_ (use_storable_context),
    use_servant_activator_ (false),
    servant_activator_ (0),
#endif /* CORBA_E_MICRO */
    use_redundancy_(0),
    round_trip_timeout_ (0),
    use_round_trip_timeout_ (0)
{
  if (this->init (orb,
                  poa,
                  context_size,
                  timeout,
                  resolve_for_existing_naming_service,
                  persistence_location,
                  base_addr,
                  enable_multicast,
                  use_storable_context,
                  round_trip_timeout,
                  use_round_trip_timeout) == -1)
    ACE_ERROR ((LM_ERROR,
                "(%P|%t) %p\n",
                "TAO_Naming_Server::init"));
}

TAO_Naming_Server::~TAO_Naming_Server

(

void

)

Destructor.

Definition at line 767 of file Naming_Server.cpp.

References servant_activator_.

{
#if (TAO_HAS_MINIMUM_POA == 0) && \
    !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO)
  if (this->use_servant_activator_)
    delete this->servant_activator_;
#endif /* TAO_HAS_MINIMUM_POA */
}

---

Member Function Documentation

int TAO_Naming_Server::fini

(

void

)

Destroy the child POA created in <init_with_orb>.

Definition at line 714 of file Naming_Server.cpp.

References ACE_ERROR, context_index_, ACE_Event_Handler::DONT_CALL, TAO_Pseudo_Var_T< T >::in(), CORBA::is_nil(), LM_ERROR, ns_poa_, orb_, and ACE_Event_Handler::READ_MASK.

Referenced by TAO_Naming_Loader::fini().

{
  // Destroy the child POA ns_poa that is created when initializing
  // the Naming Service
  try
    {
      this->ns_poa_->destroy (1, 1);

      CORBA::Object_var table_object =
        this->orb_->resolve_initial_references ("IORTable");

      IORTable::Table_var adapter =
        IORTable::Table::_narrow (table_object.in ());
      if (CORBA::is_nil (adapter.in ()))
        {
          ACE_ERROR ((LM_ERROR, "Nil IORTable\n"));
        }
      else
        {
          adapter->unbind ("NameService");
        }
    }
  catch (const CORBA::Exception&)
    {
      // Ignore
    }

  if (this->ior_multicast_ != 0)
    {
      orb_->orb_core()->reactor ()->remove_handler (this->ior_multicast_,
         ACE_Event_Handler::READ_MASK | ACE_Event_Handler::DONT_CALL);
      delete this->ior_multicast_;
    }

#if !defined (CORBA_E_MICRO)
  delete this->context_index_;
#endif /* CORBA_E_MICRO */

  return 0;
}

int TAO_Naming_Server::init	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa,
		size_t	context_size = ACE_DEFAULT_MAP_SIZE,
		ACE_Time_Value *	timeout = 0,
		int	resolve_for_existing_naming_service = 1,
		const ACE_TCHAR *	persistence_location = 0,
		void *	base_addr = TAO_NAMING_BASE_ADDR,
		int	enable_multicast = 1,
		int	use_storable_context = 0,
		int	round_trip_timeout = 0,
		int	use_round_trip_timeout = 0
	)

Initializer. Attempts to find an existing Naming Service if <resolve_for_existing_naming_service> is set to true. If it is false, or no Naming Service was found during a <timeout> period, create the Naming Service in this process. If creating the Naming Service locally, make the root context of size <context_size>, register it under the <poa>, and make the Naming Service persistent if <persistence_location> is not 0. (<persistence_location> specifies name of the file to use for persistent storage, <base_addr> specifies the address used for memory mapping <persistent_location> file). If <enable_multicast> is not zero then the service will respond to multicast location queries.

Definition at line 108 of file Naming_Server.cpp.

References CORBA::Exception::_tao_print_exception(), ACE_DEBUG, TAO_Pseudo_Var_T< T >::in(), init_new_naming(), CORBA::is_nil(), LM_DEBUG, CORBA::ORB::object_to_string(), CORBA::ORB::resolve_initial_references(), and TAO_debug_level.

Referenced by init_with_orb().

{
  if (resolve_for_existing_naming_service)
    {
      try
        {
          // Try to find an existing Naming Service.
          CORBA::Object_var naming_obj =
            orb->resolve_initial_references ("NameService", timeout);

          if (!CORBA::is_nil (naming_obj.in ()))
            {
              //
              // Success in finding a Naming Service.
              //
              if (TAO_debug_level > 0)
                ACE_DEBUG ((LM_DEBUG,
                            "\nNameService found!\n"));

              this->naming_context_ =
                CosNaming::NamingContext::_narrow (naming_obj.in ());

              this->naming_service_ior_ =
                orb->object_to_string (naming_obj.in ());

              return 0;
            }
        }
      catch (const CORBA::Exception& ex)
        {
          ex._tao_print_exception ("TAO_Naming_Server::init");
        }
    }

  if (TAO_debug_level > 0)
    ACE_DEBUG ((LM_DEBUG,
                "\nWe'll become a NameService\n"));

  // Become a Naming Service.
  return this->init_new_naming (orb,
                                poa,
                                persistence_location,
                                base_addr,
                                context_size,
                                enable_multicast,
                                use_storable_context,
                                round_trip_timeout,
                                use_round_trip_timeout);
}

int TAO_Naming_Server::init_new_naming	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	root_poa,
		const ACE_TCHAR *	persistence_location,
		void *	base_addr,
		size_t	context_size,
		int	enable_multicast,
		int	use_storable_context,
		int	round_trip_timeout = 0,
		int	use_round_trip_timeout = 0
	)			[protected]

Helper method: create Naming Service locally. Make the root context of size <context_size>, register it under the <root_poa>, and make the Naming Service persistent if <persistence_location> is not 0. (<persistence_location> specifies name of the file to use for persistent storage). If <enable_multicast> is not zero then the service will respond to multicast location queries.

Definition at line 461 of file Naming_Server.cpp.

References CORBA::Policy::_nil(), CORBA::Exception::_tao_print_exception(), ACE_OS::access(), ACE_DEBUG, ACE_DEFAULT_MULTICAST_ADDR, ACE_ERROR, ACE_NEW_RETURN, ACE_NEW_THROW_EX, ACE_TEXT, ACE_OS::atoi(), context_index_, CORBA::ORB::create_policy(), ACE_Auto_Basic_Ptr< X >::get(), ACE_OS::getenv(), TAO_Pseudo_Var_T< T >::in(), TAO_Persistent_Context_Index::init(), CORBA::is_nil(), LM_DEBUG, LM_ERROR, TAO_Transient_Naming_Context::make_new_context(), TAO_ORB_Parameters::mcast_discovery_endpoint(), TAO::MCAST_NAMESERVICE, ns_poa_, CORBA::ORB::object_to_string(), CORBA::ORB::orb_core(), TAO_ORB_Core::orb_params(), TAO_ORB_Core::reactor(), ACE_Event_Handler::READ_MASK, TAO_Storable_Naming_Context::recreate_all(), ACE_Reactor::register_handler(), CORBA::ORB::register_initial_reference(), ACE_Auto_Basic_Ptr< X >::release(), CORBA::ORB::resolve_initial_references(), TAO_Persistent_Context_Index::root_context(), TAO_ORB_Parameters::service_port(), TAO_debug_level, TAO_DEFAULT_NAME_SERVER_REQUEST_PORT, TAO_ROOT_NAMING_CONTEXT, TAO_SERVICEID_NAMESERVICE, use_redundancy_, W_OK, and X_OK.

Referenced by init().

{
  try
    {
#if defined (CORBA_E_MICRO)
      ACE_UNUSED_ARG (persistence_location);
      ACE_UNUSED_ARG (base_addr);
      ACE_UNUSED_ARG (use_storable_context);
#else
      if (use_storable_context)
        {
          // In lieu of a fully implemented service configurator version
          // of this Reader and Writer, let's just take something off the
          // command line for now.
          TAO_Naming_Service_Persistence_Factory* pf = 0;
          ACE_NEW_RETURN(pf, TAO_NS_FlatFileFactory, -1);
          auto_ptr<TAO_Naming_Service_Persistence_Factory> persFactory(pf);
          // This instance will either get deleted after recreate all or,
          // in the case of a servant activator's use, on destruction of the
          // activator.

          // Was a location specified?
          if (persistence_location == 0)
            {
              // No, assign the default location "NameService"
              persistence_location = ACE_TEXT("NameService");
            }

          // Now make sure this directory exists
          if (ACE_OS::access (persistence_location, W_OK|X_OK))
            {
              ACE_ERROR ((LM_ERROR, "Invalid persistence directory\n"));
              return -1;
            }

#if (TAO_HAS_MINIMUM_POA == 0) && !defined (CORBA_E_COMPACT)
          if (this->use_servant_activator_)
            {
              ACE_NEW_THROW_EX (this->servant_activator_,
                                TAO_Storable_Naming_Context_Activator (orb,
                                                                       persFactory.get(),
                                                                       persistence_location,
                                                                       context_size),
                                CORBA::NO_MEMORY ());
              this->ns_poa_->set_servant_manager(this->servant_activator_);
            }
#endif /* TAO_HAS_MINIMUM_POA */

          this->naming_context_ =
            TAO_Storable_Naming_Context::recreate_all (orb,
                                                       poa,
                                                       TAO_ROOT_NAMING_CONTEXT,
                                                       context_size,
                                                       0,
                                                       persFactory.get(),
                                                       persistence_location,
                                                       use_redundancy_);

          if (this->use_servant_activator_)
            persFactory.release();
        }
      else if (persistence_location != 0)
        //
        // Initialize Persistent Naming Service.
        //
        {
          // Allocate and initialize Persistent Context Index.
          ACE_NEW_RETURN (this->context_index_,
                          TAO_Persistent_Context_Index (orb, poa),
                          -1);

          if (this->context_index_->open (persistence_location,
                                          base_addr) == -1
              || this->context_index_->init (context_size) == -1)
            {
              if (TAO_debug_level >0)
                ACE_DEBUG ((LM_DEBUG,
                            "TAO_Naming_Server: context_index initialization failed\n"));
              return -1;
            }

          // Set the root Naming Context reference.
          this->naming_context_ =
            this->context_index_->root_context ();
        }
      else
#endif /* CORBA_E_MICRO */
        {
          //
          // Initialize Transient Naming Service.
          //
          this->naming_context_ =
            TAO_Transient_Naming_Context::make_new_context (poa,
                                                            TAO_ROOT_NAMING_CONTEXT,
                                                            context_size);

        }

#if !defined (CORBA_E_MICRO)
      // Register with the ORB's resolve_initial_references()
      // mechanism.  Primarily useful for dynamically loaded Name
      // Services.
      orb->register_initial_reference ("NameService",
                                       this->naming_context_.in ());
#endif /* CORBA_E_MICRO */

      // Set the ior of the root Naming Context.
      this->naming_service_ior_=
        orb->object_to_string (this->naming_context_.in ());

      CORBA::Object_var table_object =
        orb->resolve_initial_references ("IORTable");

      IORTable::Table_var adapter =
        IORTable::Table::_narrow (table_object.in ());
      if (CORBA::is_nil (adapter.in ()))
        {
          ACE_ERROR ((LM_ERROR, "Nil IORTable\n"));
        }
      else
        {
          CORBA::String_var ior =
            orb->object_to_string (this->naming_context_.in ());
          adapter->bind ("NameService", ior.in ());
        }

#if defined (ACE_HAS_IP_MULTICAST)
      if (enable_multicast)
        {
          // @@ Marina: is there anyway to implement this stuff
          // without using ORB_Core_instance()? For example can you
          // pass the ORB as an argument?

          //
          // Install ior multicast handler.
          //
          // Get reactor instance from TAO.
          ACE_Reactor *reactor = orb->orb_core()->reactor ();

          // See if the -ORBMulticastDiscoveryEndpoint option was specified.
          ACE_CString mde (orb->orb_core ()->orb_params ()->mcast_discovery_endpoint ());

          // First, see if the user has given us a multicast port number
          // on the command-line;
          u_short port =
            orb->orb_core ()->orb_params ()->service_port (TAO::MCAST_NAMESERVICE);

          if (port == 0)
            {
              // Check environment var. for multicast port.
              const char *port_number =
                ACE_OS::getenv ("NameServicePort");

              if (port_number != 0)
                port = static_cast<u_short> (ACE_OS::atoi (port_number));
            }

          // Port wasn't specified on the command-line or in environment -
          // use the default.
          if (port == 0)
            port = TAO_DEFAULT_NAME_SERVER_REQUEST_PORT;

          // Instantiate a handler which will handle client requests for
          // the root Naming Context ior, received on the multicast port.
          ACE_NEW_RETURN (this->ior_multicast_,
                          TAO_IOR_Multicast (),
                          -1);

          if (mde.length () != 0)
            {
              if (this->ior_multicast_->init (this->naming_service_ior_.in (),
                                              mde.c_str (),
                                              TAO_SERVICEID_NAMESERVICE) == -1)
                return -1;
            }
          else
            {
              if (this->ior_multicast_->init (this->naming_service_ior_.in (),
                                              port,
#if defined (ACE_HAS_IPV6)
                                              ACE_DEFAULT_MULTICASTV6_ADDR,
#else
                                              ACE_DEFAULT_MULTICAST_ADDR,
#endif /* ACE_HAS_IPV6 */
                                              TAO_SERVICEID_NAMESERVICE) == -1)
                return -1;
            }

          // Register event handler for the ior multicast.
          if (reactor->register_handler (this->ior_multicast_,
                                         ACE_Event_Handler::READ_MASK) == -1)
            {
              if (TAO_debug_level > 0)
                ACE_DEBUG ((LM_DEBUG,
                            "TAO_Naming_Server: cannot register Event handler\n"));
              return -1;
            }

          if (TAO_debug_level > 0)
            ACE_DEBUG ((LM_DEBUG,
                        "TAO_Naming_Server: The multicast server setup is done.\n"));
        }
#else
  ACE_UNUSED_ARG (enable_multicast);
#endif /* ACE_HAS_IP_MULTICAST */

#if defined (TAO_HAS_CORBA_MESSAGING) && TAO_HAS_CORBA_MESSAGING != 0
      if (use_round_trip_timeout == 1)
      {
        TimeBase::TimeT roundTripTimeoutVal = round_trip_timeout;
        CORBA::Any anyObjectVal;
        anyObjectVal <<= roundTripTimeoutVal;
        CORBA::PolicyList polList (1);
        polList.length (1);
        polList[0] = orb->create_policy (Messaging::RELATIVE_RT_TIMEOUT_POLICY_TYPE,
                                         anyObjectVal);

        // set a timeout on the orb
        //
        CORBA::Object_var orbPolicyManagerObj =
          orb->resolve_initial_references ("ORBPolicyManager");

        CORBA::PolicyManager_var orbPolicyManager =
          CORBA::PolicyManager::_narrow (orbPolicyManagerObj.in ());
        orbPolicyManager->set_policy_overrides (polList, CORBA::SET_OVERRIDE);

        polList[0]->destroy ();
        polList[0] = CORBA::Policy::_nil ();
      }
#else
  ACE_UNUSED_ARG (use_round_trip_timeout);
  ACE_UNUSED_ARG (round_trip_timeout);
#endif /* TAO_HAS_CORBA_MESSAGING */
    }
  catch (const CORBA::Exception& ex)
    {
      ex._tao_print_exception (
        "TAO_Naming_Server::init_new_naming");
      return -1;
    }

  return 0;
}

int TAO_Naming_Server::init_with_orb	(	int	argc,
		ACE_TCHAR *	argv[],
		CORBA::ORB_ptr	orb
	)

Initialize the Naming Service with the command line arguments and the ORB.

Definition at line 294 of file Naming_Server.cpp.

References CORBA::ORB::_duplicate(), CORBA::Exception::_tao_print_exception(), ACE_ERROR_RETURN, ACE_TEXT, base_address_, context_size_, ACE_OS::fclose(), ACE_OS::fopen(), ACE_OS::fprintf(), ACE_OS::getpid(), TAO_Pseudo_Var_T< T >::in(), init(), CORBA::is_nil(), LM_ERROR, naming_service_ior(), ns_poa_, orb_, parse_args(), persistence_file_name_, CORBA::ORB::resolve_initial_references(), root_poa_, round_trip_timeout_, use_round_trip_timeout_, use_servant_activator_, and use_storable_context_.

Referenced by TAO_Naming_Loader::create_object().

{
  int result;

  try
    {
      // Duplicate the ORB
      this->orb_ = CORBA::ORB::_duplicate (orb);

      // Get the POA from the ORB.
      CORBA::Object_var poa_object =
        orb->resolve_initial_references ("RootPOA");

      if (CORBA::is_nil (poa_object.in ()))
        {
          ACE_ERROR_RETURN ((LM_ERROR,
                             ACE_TEXT(" (%P|%t) Unable to initialize the POA.\n")),
                            -1);
        }

      // Check the non-ORB arguments.  this needs to come before we
      // initialize my_naming_server so that we can pass on some of
      // the command-line arguments.
      result = this->parse_args (argc, argv);

      if (result < 0)
        return result;

      // Get the POA object.
      this->root_poa_ = PortableServer::POA::_narrow (poa_object.in ());

      // Get the POA_Manager.
      PortableServer::POAManager_var poa_manager =
        this->root_poa_->the_POAManager ();

      poa_manager->activate ();

#if defined (CORBA_E_MICRO)
      this->ns_poa_ = PortableServer::POA::_duplicate (this->root_poa_);
#else
      int numPolicies = 2;
#if (TAO_HAS_MINIMUM_POA == 0)
      if (this->use_storable_context_)
        {
          this->use_servant_activator_ = true;
        }

      if (this->use_servant_activator_) {
        numPolicies += 2;
      }
#endif /* TAO_HAS_MINIMUM_POA */

      CORBA::PolicyList policies (numPolicies);
      policies.length (numPolicies);

      // Id Assignment policy
      policies[0] =
        this->root_poa_->create_id_assignment_policy (PortableServer::USER_ID);

      // Lifespan policy
      policies[1] =
        this->root_poa_->create_lifespan_policy (PortableServer::PERSISTENT);

#if (TAO_HAS_MINIMUM_POA == 0) && !defined (CORBA_E_COMPACT)
      if (this->use_servant_activator_)
        {
          // Request Processing Policy
          policies[2] =
            this->root_poa_->create_request_processing_policy (PortableServer::USE_SERVANT_MANAGER);

          // Servant Retention Policy
          policies[3] =
            this->root_poa_->create_servant_retention_policy (PortableServer::RETAIN);
        }
#endif /* TAO_HAS_MINIMUM_POA */

      // We use a different POA, otherwise the user would have to change
      // the object key each time it invokes the server.
      this->ns_poa_ = this->root_poa_->create_POA ("NameService",
                                                   poa_manager.in (),
                                                   policies);
      // Warning!  If create_POA fails, then the policies won't be
      // destroyed and there will be hell to pay in memory leaks!

      // Creation of the new POAs over, so destroy the Policy_ptr's.
      for (CORBA::ULong i = 0;
           i < policies.length ();
           ++i)
        {
          CORBA::Policy_ptr policy = policies[i];
          policy->destroy ();
        }
#endif /* CORBA_E_MICRO */

#if defined (CORBA_E_MICRO)
      result = this->init (orb,
                           this->ns_poa_.in (),
                           this->context_size_,
                           0,
                           0,
                           0,
                           0,
                           this->multicast_,
                           false,
                           this->round_trip_timeout_,
                           this->use_round_trip_timeout_);
#else
      result = this->init (orb,
                           this->ns_poa_.in (),
                           this->context_size_,
                           0,
                           0,
                           this->persistence_file_name_,
                           this->base_address_,
                           this->multicast_,
                           this->use_storable_context_,
                           this->round_trip_timeout_,
                           this->use_round_trip_timeout_);
#endif /* CORBA_E_MICRO */

      if (result == -1)
        return result;
    }
  catch (const CORBA::Exception& ex)
    {
      ex._tao_print_exception (
        "TAO_Naming_Server::init_with_orb");
      return -1;
    }

  if (this->ior_file_name_ != 0)
    {
      FILE *iorf = ACE_OS::fopen (this->ior_file_name_, ACE_TEXT("w"));
      if (iorf == 0)
        {
          ACE_ERROR_RETURN ((LM_ERROR,
                             ACE_TEXT("Unable to open %s for writing:(%u) %p\n"),
                             this->ior_file_name_,
                             errno,
                             ACE_TEXT("TAO_Naming_Server::init_with_orb")),
                            -1);
        }

      CORBA::String_var str = this->naming_service_ior ();

      ACE_OS::fprintf (iorf, "%s\n", str.in ());
      ACE_OS::fclose (iorf);
    }

  if (this->pid_file_name_ != 0)
    {
      FILE *pidf = ACE_OS::fopen (this->pid_file_name_, ACE_TEXT("w"));
      if (pidf != 0)
        {
          ACE_OS::fprintf (pidf,
                           "%ld\n",
                           static_cast<long> (ACE_OS::getpid ()));
          ACE_OS::fclose (pidf);
        }
    }

  return 0;
}

char * TAO_Naming_Server::naming_service_ior

(

void

)

Returns the IOR of the naming service.

Definition at line 756 of file Naming_Server.cpp.

References CORBA::string_dup().

Referenced by init_with_orb().

{
  return CORBA::string_dup (this->naming_service_ior_.in ());
}

CosNaming::NamingContext_ptr TAO_Naming_Server::operator->

(

void

)

const

Returns a <NamingContext_ptr> for the root Naming Context.

Definition at line 762 of file Naming_Server.cpp.

{
  return this->naming_context_.ptr ();
}

int TAO_Naming_Server::parse_args	(	int	argc,
		ACE_TCHAR *	argv[]
	)			[protected]

parses the arguments.

Definition at line 169 of file Naming_Server.cpp.

References ACE_ERROR_RETURN, ACE_INT64_FORMAT_SPECIFIER, ACE_SIZEOF_LONG_LONG, ACE_SIZEOF_VOID_P, ACE_TEXT, ACE_TEXT_ALWAYS_CHAR, ACE_OS::atoi(), base_address_, context_size_, LM_ERROR, ACE_Get_Opt::opt_arg(), persistence_file_name_, round_trip_timeout_, TAO_debug_level, use_redundancy_, use_round_trip_timeout_, and use_storable_context_.

Referenced by init_with_orb().

{
#if (TAO_HAS_MINIMUM_POA == 0) && !defined (CORBA_E_COMPACT)
  ACE_Get_Opt get_opts (argc, argv, ACE_TEXT("b:do:p:s:f:m:u:r:z:"));
#else
  ACE_Get_Opt get_opts (argc, argv, ACE_TEXT("b:do:p:s:f:m:z:"));
#endif /* TAO_HAS_MINIMUM_POA */

  int c;
  int size;
#if !defined (CORBA_E_MICRO)
  int result;

  // This is declared this way to avoid warnings from
  // some compilers that complain about mismatching types
  // in the sscanf.
#if ACE_SIZEOF_VOID_P == ACE_SIZEOF_LONG_LONG
  ptrdiff_t address;
#else
  long int address;
#endif /* ACE_SIZEOF_VOID_P */
#endif /* CORBA_E_MICRO */

  // Make sure only one persistence option is specified
  int f_opt_used = 0;
  int u_opt_used = 0;
  int r_opt_used = 0;

  while ((c = get_opts ()) != -1)
    switch (c)
      {
      case 'd':  // debug flag.
        ++TAO_debug_level;
        break;
      case 'o': // outputs the naming service ior to a file.
        this->ior_file_name_ = get_opts.opt_arg ();
        break;
      case 'p':
        this->pid_file_name_ = get_opts.opt_arg ();
        break;
      case 's':
        size = ACE_OS::atoi (get_opts.opt_arg ());
        if (size >= 0)
          this->context_size_ = size;
        break;
      case 'm':
        this->multicast_ = ACE_OS::atoi(get_opts.opt_arg ());
        break;
#if !defined (CORBA_E_MICRO)
      case 'b':
        result = ::sscanf (ACE_TEXT_ALWAYS_CHAR (get_opts.opt_arg ()),
#if ACE_SIZEOF_VOID_P == ACE_SIZEOF_LONG_LONG
                           ACE_INT64_FORMAT_SPECIFIER,
#else
                           "%ld",
#endif /* ACE_SIZEOF_VOID_P */
                           &address);
        if (result == 0 || result == EOF)
          ACE_ERROR_RETURN ((LM_ERROR,
                             "Unable to process <-b> option"),
                            -1);
        this->base_address_ = (void *) address;
        break;
      case 'f':
        this->persistence_file_name_ = get_opts.opt_arg ();
        f_opt_used = 1;
        break;
#if (TAO_HAS_MINIMUM_POA == 0) && !defined (CORBA_E_COMPACT)
      case 'r':
        this->use_redundancy_ = 1;
        this->use_storable_context_ = 1;
        this->persistence_file_name_ = get_opts.opt_arg ();
        r_opt_used = 1;
        break;
      case 'u':
        this->use_storable_context_ = 1;
        this->persistence_file_name_ = get_opts.opt_arg ();
        u_opt_used = 1;
        break;
#endif /* TAO_HAS_MINIMUM_POA == 0 */
#endif /* !CORBA_E_MICRO */
      case 'z':
        this->use_round_trip_timeout_ = 1;
        this->round_trip_timeout_ = (int)1.0e7 * ACE_OS::atoi (get_opts.opt_arg ());
        break;
      case '?':
      default:
#if !defined (ACE_NLOGGING)
        const ACE_TCHAR *reqNonMinCorba=
#if !defined (CORBA_E_MICRO)
          ACE_TEXT ("-f <persistence_file_name> ")
#endif /* CORBA_E_MICRO */
#if (TAO_HAS_MINIMUM_POA == 0) && !defined (CORBA_E_MICRO)
          ACE_TEXT ("-u <storable_persistence_directory (not used with -f)> ")
          ACE_TEXT ("-r <redundant_persistence_directory> ");
#else
          ACE_TEXT ("");
#endif /* TAO_HAS_MINIMUM_POA && !CORBA_E_MICRO */
#endif /* !ACE_NLOGGING */
        ACE_ERROR_RETURN ((LM_ERROR,
                           ACE_TEXT ("usage:  %s ")
                           ACE_TEXT ("-d ")
                           ACE_TEXT ("-o <ior_output_file> ")
                           ACE_TEXT ("-p <pid_file_name> ")
                           ACE_TEXT ("-s <context_size> ")
                           ACE_TEXT ("-b <base_address> ")
                           ACE_TEXT ("-m <1=enable multicast, 0=disable multicast(default) ")
                           ACE_TEXT ("%s")
                           ACE_TEXT ("-z <relative round trip timeout> ")
                           ACE_TEXT ("\n"),
                           argv [0], reqNonMinCorba),
                          -1);
      }

  if (f_opt_used + u_opt_used + r_opt_used > 1)
    ACE_ERROR_RETURN ((LM_ERROR,
                       ACE_TEXT ("Only one persistence option can be passed")
                       ACE_TEXT ("\n")),
                      -1);

  return 0;
}

---

Member Data Documentation

void* TAO_Naming_Server::base_address_ [protected]

Address to be used for memory mapping Naming Service state file, identified by the <persistence_file_name_>.

Definition at line 211 of file Naming_Server.h.

Referenced by init_with_orb(), and parse_args().

TAO_Persistent_Context_Index* TAO_Naming_Server::context_index_ [protected]

Pointer to the object used to create/initialize the Naming Service when local persistent Naming Service is desired.

Definition at line 203 of file Naming_Server.h.

Referenced by fini(), and init_new_naming().

size_t TAO_Naming_Server::context_size_ [protected]

Size of the hash_table allocated upon the creation of the Naming Service context (if one is created). Note: all the contexts created under the given context will use the same size for their initial hash table allocations.

Definition at line 192 of file Naming_Server.h.

Referenced by init_with_orb(), and parse_args().

const ACE_TCHAR* TAO_Naming_Server::ior_file_name_ [protected]

File to output the Naming Service IOR.

Definition at line 181 of file Naming_Server.h.

TAO_IOR_Multicast* TAO_Naming_Server::ior_multicast_ [protected]

The ior_multicast event handler.

Definition at line 166 of file Naming_Server.h.

int TAO_Naming_Server::multicast_ [protected]

If not zero multicast is enabled.

Definition at line 195 of file Naming_Server.h.

CosNaming::NamingContext_var TAO_Naming_Server::naming_context_ [protected]

Root NamingContext_ptr.

Definition at line 163 of file Naming_Server.h.

CORBA::String_var TAO_Naming_Server::naming_service_ior_ [protected]

The IOR string of the root naming context.

Definition at line 169 of file Naming_Server.h.

PortableServer::POA_var TAO_Naming_Server::ns_poa_ [protected]

The Naming Service POA.

Definition at line 178 of file Naming_Server.h.

Referenced by fini(), init_new_naming(), and init_with_orb().

CORBA::ORB_var TAO_Naming_Server::orb_ [protected]

The ORB.

Definition at line 172 of file Naming_Server.h.

Referenced by fini(), and init_with_orb().

const ACE_TCHAR* TAO_Naming_Server::persistence_file_name_ [protected]

Path to the file to be used to store/read in Naming Service persistent state.

Definition at line 207 of file Naming_Server.h.

Referenced by init_with_orb(), and parse_args().

const ACE_TCHAR* TAO_Naming_Server::pid_file_name_ [protected]

File to output the process id.

Definition at line 184 of file Naming_Server.h.

PortableServer::POA_var TAO_Naming_Server::root_poa_ [protected]

The Root POA.

Definition at line 175 of file Naming_Server.h.

Referenced by init_with_orb().

int TAO_Naming_Server::round_trip_timeout_ [protected]

Definition at line 234 of file Naming_Server.h.

Referenced by init_with_orb(), and parse_args().

TAO_Storable_Naming_Context_Activator* TAO_Naming_Server::servant_activator_ [protected]

Need to retain the servant activator between calls to init_with_orb() and init_new_naming().

Definition at line 225 of file Naming_Server.h.

Referenced by ~TAO_Naming_Server().

int TAO_Naming_Server::use_redundancy_ [protected]

If not zero support redundant naming servers.

Definition at line 231 of file Naming_Server.h.

Referenced by init_new_naming(), and parse_args().

int TAO_Naming_Server::use_round_trip_timeout_ [protected]

Definition at line 235 of file Naming_Server.h.

Referenced by init_with_orb(), and parse_args().

int TAO_Naming_Server::use_servant_activator_ [protected]

If not zero use servant activator that uses flat file persistence.

Definition at line 219 of file Naming_Server.h.

Referenced by init_with_orb().

int TAO_Naming_Server::use_storable_context_ [protected]

If not zero use flat file persistence.

Definition at line 214 of file Naming_Server.h.

Referenced by init_with_orb(), and parse_args().

---

The documentation for this class was generated from the following files:

• Naming_Server.h
• Naming_Server.cpp

---
