Basic_Types.h File Reference

#include "ace/config-lite.h"
#include "ace/os_include/os_limits.h"
#include "ace/os_include/os_float.h"
#include "ace/os_include/os_stdlib.h"
#include "ace/os_include/os_stddef.h"
#include "ace/os_include/sys/os_types.h"
#include "ace/ACE_export.h"
#include <stdint.h>
#include <inttypes.h>
#include "ace/Basic_Types.inl"

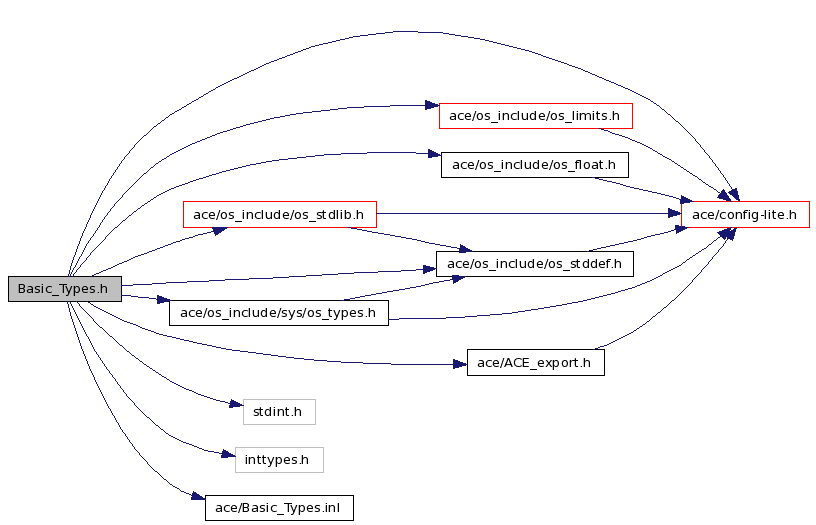

Include dependency graph for Basic_Types.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines

#define ACE_SIZEOF_CHAR   1
#define ACE_SIZEOF_LONG_LONG   8
#define ACE_WINT_T   ACE_UINT16
#define ACE_WCHAR_T   ACE_UINT16
#define ACE_SIZEOF_VOID_P   ACE_SIZEOF_LONG
#define ACE_BIG_ENDIAN   0x3210
#define ACE_BYTE_ORDER   ACE_BIG_ENDIAN
#define ACE_SWAP_LONG(L)
#define ACE_SWAP_WORD(L)   ((((L) & 0x00FF) << 8) | (((L) & 0xFF00) >> 8))
#define ACE_HTONL(X)   X
#define ACE_NTOHL(X)   X
#define ACE_IDL_NCTOHL(X)   (X << 24)
#define ACE_IDL_NSTOHL(X)   ((X) << 16)
#define ACE_HTONS(x)   x
#define ACE_NTOHS(x)   x
#define ACE_LONGLONG_TO_PTR(PTR_TYPE, L)   reinterpret_cast<PTR_TYPE> (static_cast<intptr_t> (L))
#define ACE_UINT64_LITERAL(n)   n ## ull
#define ACE_INT64_LITERAL(n)   n ## ll
#define ACE_INT8_FORMAT_SPECIFIER   ACE_TEXT ("%d")
#define ACE_UINT8_FORMAT_SPECIFIER   ACE_TEXT ("%u")
#define ACE_INT16_FORMAT_SPECIFIER   ACE_TEXT ("%d")
#define ACE_UINT16_FORMAT_SPECIFIER   ACE_TEXT ("%u")
#define ACE_INT32_FORMAT_SPECIFIER   ACE_TEXT ("%ld")
#define ACE_UINT32_FORMAT_SPECIFIER   ACE_TEXT ("%lu")
#define ACE_INT64_FORMAT_SPECIFIER   ACE_TEXT ("%lld")
#define ACE_UINT64_FORMAT_SPECIFIER   ACE_TEXT ("%llu")
#define ACE_SSIZE_T_FORMAT_SPECIFIER   ACE_TEXT ("%d")
#define ACE_SIZE_T_FORMAT_SPECIFIER   ACE_TEXT ("%u")
#define ACE_UINT64_DBLCAST_ADAPTER(n)   (n)
#define ACE_CHAR_MAX   0x7F
#define ACE_CHAR_MIN   -(ACE_CHAR_MAX)-1
#define ACE_OCTET_MAX   0xFF
#define ACE_INT16_MAX   0x7FFF
#define ACE_INT16_MIN   -(ACE_INT16_MAX)-1
#define ACE_UINT16_MAX   0xFFFF
#define ACE_WCHAR_MAX   ACE_UINT16_MAX
#define ACE_INT32_MAX   0x7FFFFFFF
#define ACE_INT32_MIN   -(ACE_INT32_MAX)-1
#define ACE_UINT32_MAX   0xFFFFFFFF
#define ACE_INT64_MAX   ACE_INT64_LITERAL(0x7FFFFFFFFFFFFFFF)
#define ACE_INT64_MIN   -(ACE_INT64_MAX)-1
#define ACE_UINT64_MAX   ACE_UINT64_LITERAL (0xFFFFFFFFFFFFFFFF)
#define ACE_FLT_MAX   3.402823466e+38F
#define ACE_FLT_MIN   1.175494351e-38F
#define ACE_DBL_MAX   1.7976931348623158e+308
#define ACE_DBL_MIN   2.2250738585072014e-308

Typedefs

typedef unsigned char ACE_UINT8
typedef long long ACE_INT64
typedef unsigned long long ACE_UINT64
typedef ACE_UINT16 ACE_USHORT16
typedef unsigned char ACE_Byte

Variables

ACE_BEGIN_VERSIONED_NAMESPACE_DECL
typedef signed char 		ACE_INT8

Detailed Description

Id
Basic_Types.h 80826 2008-03-04 14:51:23Z wotte

Author:
David L. Levine
defines the list of preprocessor macros below. The config.h file can pre-define any of these to short-cut the definitions. This is usually only necessary if the preprocessor does all of its math using integers.

Sizes of built-in types:

Wrappers for built-in types of specific sizes:

Definition in file Basic_Types.h.

Define Documentation

#define ACE_BIG_ENDIAN   0x3210

Definition at line 403 of file Basic_Types.h.

#define ACE_BYTE_ORDER   ACE_BIG_ENDIAN

Definition at line 404 of file Basic_Types.h.

#define ACE_CHAR_MAX   0x7F

#define ACE_CHAR_MIN   -(ACE_CHAR_MAX)-1

#define ACE_DBL_MAX   1.7976931348623158e+308

#define ACE_DBL_MIN   2.2250738585072014e-308

#define ACE_FLT_MAX   3.402823466e+38F

#define ACE_FLT_MIN   1.175494351e-38F

#define ACE_HTONL ( X   )     X

Definition at line 421 of file Basic_Types.h.

Referenced by ACE_Name_Reply::encode(), ACE_Name_Request::encode(), ACE_SOCK_Dgram::make_multicast_ifaddr(), and ACE_INET_Addr::set_address().

#define ACE_HTONS ( x   )     x

Definition at line 431 of file Basic_Types.h.

Referenced by ACE_Name_Request::encode(), get_port_number_from_name(), and ACE_INET_Addr::set_port_number().

#define ACE_IDL_NCTOHL ( X   )     (X << 24)

Definition at line 423 of file Basic_Types.h.

#define ACE_IDL_NSTOHL ( X   )     ((X) << 16)

Definition at line 424 of file Basic_Types.h.

#define ACE_INT16_FORMAT_SPECIFIER   ACE_TEXT ("%d")

#define ACE_INT16_MAX   0x7FFF

#define ACE_INT16_MIN   -(ACE_INT16_MAX)-1

#define ACE_INT32_FORMAT_SPECIFIER   ACE_TEXT ("%ld")

#define ACE_INT32_MAX   0x7FFFFFFF

#define ACE_INT32_MIN   -(ACE_INT32_MAX)-1

#define ACE_INT64_FORMAT_SPECIFIER   ACE_TEXT ("%lld")

Referenced by ACE_Log_Msg::log().

#define ACE_INT64_LITERAL ( n   )     n ## ll

Referenced by ACE_Utils::UUID_Generator::get_systemtime().

#define ACE_INT64_MAX   ACE_INT64_LITERAL(0x7FFFFFFFFFFFFFFF)

#define ACE_INT64_MIN   -(ACE_INT64_MAX)-1

#define ACE_INT8_FORMAT_SPECIFIER   ACE_TEXT ("%d")

#define ACE_LONGLONG_TO_PTR ( PTR_TYPE,
L   )     reinterpret_cast<PTR_TYPE> (static_cast<intptr_t> (L))

Definition at line 445 of file Basic_Types.h.

#define ACE_NTOHL ( X   )     X

Definition at line 422 of file Basic_Types.h.

Referenced by ACE_Name_Reply::decode(), ACE_Name_Request::decode(), ACE_SOCK_Dgram_Mcast::dump(), ACE_INET_Addr::get_ip_address(), ACE_Name_Proxy::recv_reply(), ACE_INET_Addr::set(), and ACE_SOCK_Acceptor::shared_open().

#define ACE_NTOHS ( x   )     x

Definition at line 432 of file Basic_Types.h.

Referenced by ACE_Name_Request::decode().

#define ACE_OCTET_MAX   0xFF

#define ACE_SIZE_T_FORMAT_SPECIFIER   ACE_TEXT ("%u")

Referenced by ACE_Sample_History::dump_samples(), ACE_Log_Msg::log(), and ACE_Log_Msg::log_hexdump().

#define ACE_SIZEOF_CHAR   1

Definition at line 136 of file Basic_Types.h.

#define ACE_SIZEOF_LONG_LONG   8

Definition at line 219 of file Basic_Types.h.

#define ACE_SIZEOF_VOID_P   ACE_SIZEOF_LONG

Definition at line 349 of file Basic_Types.h.

#define ACE_SSIZE_T_FORMAT_SPECIFIER   ACE_TEXT ("%d")

Referenced by ACE_Log_Msg::log().

#define ACE_SWAP_LONG ( L   )

Value:

((ACE_SWAP_WORD ((L) & 0xFFFF) << 16) \
            | ACE_SWAP_WORD(((L) >> 16) & 0xFFFF))

Definition at line 411 of file Basic_Types.h.

#define ACE_SWAP_WORD ( L   )     ((((L) & 0x00FF) << 8) | (((L) & 0xFF00) >> 8))

Definition at line 413 of file Basic_Types.h.

#define ACE_UINT16_FORMAT_SPECIFIER   ACE_TEXT ("%u")

#define ACE_UINT16_MAX   0xFFFF

#define ACE_UINT32_FORMAT_SPECIFIER   ACE_TEXT ("%lu")

#define ACE_UINT32_MAX   0xFFFFFFFF

Referenced by ACE_Map_Manager< EXT_ID, INT_ID, ACE_LOCK >::open().

#define ACE_UINT64_DBLCAST_ADAPTER ( n   )     (n)

Referenced by ACE_Throughput_Stats::dump_throughput().

#define ACE_UINT64_FORMAT_SPECIFIER   ACE_TEXT ("%llu")

Referenced by ACE_Log_Msg::log().

#define ACE_UINT64_LITERAL ( n   )     n ## ull

Referenced by ACE_Utils::UUID_Generator::get_systemtime(), and ACE_Stats::mean().

#define ACE_UINT64_MAX   ACE_UINT64_LITERAL (0xFFFFFFFFFFFFFFFF)

#define ACE_UINT8_FORMAT_SPECIFIER   ACE_TEXT ("%u")

#define ACE_WCHAR_MAX   ACE_UINT16_MAX

#define ACE_WCHAR_T   ACE_UINT16

Definition at line 344 of file Basic_Types.h.

Referenced by ACE_Name_Request::ACE_Name_Request(), ACE_Remote_Name_Space::bind(), ACE_NS_String::char_rep(), ACE_Name_Request::decode(), ACE_Name_Request::encode(), ACE_Remote_Name_Space::list_name_entries(), ACE_Remote_Name_Space::list_names(), ACE_Remote_Name_Space::list_type_entries(), ACE_Remote_Name_Space::list_types(), ACE_Remote_Name_Space::list_value_entries(), ACE_Remote_Name_Space::list_values(), ACE_NS_String::operator ACE_NS_WString(), ACE_Remote_Name_Space::rebind(), ACE_Remote_Name_Space::resolve(), ACE_Local_Name_Space<, ACE_LOCK >::shared_bind_i(), ACE_OS::strnstr(), ACE_OS::strsncpy(), ACE_NS_String::strstr(), ACE_Remote_Name_Space::unbind(), ACE_OS::wcslen_emulation(), ACE_OS::wcsncat_emulation(), and ACE_OS::wcsncpy_emulation().

#define ACE_WINT_T   ACE_UINT16

Definition at line 343 of file Basic_Types.h.

Typedef Documentation

typedef unsigned char ACE_Byte

Definition at line 334 of file Basic_Types.h.

typedef long long ACE_INT64

Definition at line 308 of file Basic_Types.h.

typedef unsigned long long ACE_UINT64

Definition at line 326 of file Basic_Types.h.

typedef unsigned char ACE_UINT8

Definition at line 245 of file Basic_Types.h.

typedef ACE_UINT16 ACE_USHORT16

Definition at line 331 of file Basic_Types.h.

Variable Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL typedef signed char ACE_INT8

Definition at line 235 of file Basic_Types.h.
