TAO_AV_UDP_Connector Class Reference

#include <UDP.h>

Inheritance diagram for TAO_AV_UDP_Connector:

Inheritance graph
[legend]

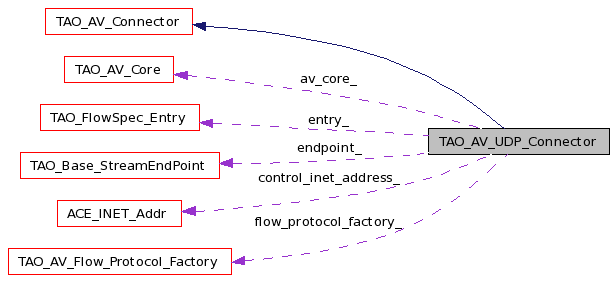

Collaboration diagram for TAO_AV_UDP_Connector:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_AV_UDP_Connector (void)
 ~TAO_AV_UDP_Connector (void)
virtual int open (TAO_Base_StreamEndPoint *endpoint, TAO_AV_Core *av_core, TAO_AV_Flow_Protocol_Factory *factory)
virtual int connect (TAO_FlowSpec_Entry *entry, TAO_AV_Transport *&transport, TAO_AV_Core::Flow_Component flow_comp=TAO_AV_Core::TAO_AV_DATA)
virtual int activate_svc_handler (TAO_AV_Flow_Handler *handler)
virtual int close (void)

Protected Attributes

ACE_INET_Addr * control_inet_address_
TAO_Base_StreamEndPoint * endpoint_
TAO_AV_Core * av_core_
TAO_FlowSpec_Entry * entry_
TAO_AV_Flow_Protocol_Factory * flow_protocol_factory_
TAO_AV_Core::Flow_Component flow_component_

Detailed Description

Definition at line 182 of file UDP.h.

Constructor & Destructor Documentation

TAO_AV_UDP_Connector::TAO_AV_UDP_Connector ( void   )

Definition at line 572 of file UDP.cpp.

00573   : control_inet_address_ (0)
00574 {
00575 }

TAO_AV_UDP_Connector::~TAO_AV_UDP_Connector ( void   )

Definition at line 577 of file UDP.cpp.

References TAO_FlowSpec_Entry::control_handler(), control_inet_address_, entry_, and TAO_AV_Core::TAO_AV_CONTROL.

00578 {
00579   if (this->flow_component_ == TAO_AV_Core::TAO_AV_CONTROL)
00580     {
00581       delete this->entry_->control_handler ();
00582     }
00583
00584   if (this->control_inet_address_ != 0)
00585     delete this->control_inet_address_;
00586 }

Member Function Documentation

int TAO_AV_UDP_Connector::activate_svc_handler ( TAO_AV_Flow_Handler *  handler  )  [virtual]

Definition at line 774 of file UDP.cpp.

References av_core_, TAO_AV_Flow_Handler::event_handler(), TAO_AV_Core::reactor(), ACE_Event_Handler::READ_MASK, TAO_AV_Flow_Handler::schedule_timer(), and TAO_AV_Core::TAO_AV_CONTROL.

Referenced by connect().

00775 {
00776   ACE_Event_Handler *event_handler = handler->event_handler ();
00777   int result = this->av_core_->reactor ()->register_handler (event_handler,
00778                                                              ACE_Event_Handler::READ_MASK);
00779
00780   if (this->flow_component_ == TAO_AV_Core::TAO_AV_CONTROL)
00781     handler->schedule_timer ();
00782
00783   return result;
00784 }

int TAO_AV_UDP_Connector::close ( void   )  [virtual]

Implements TAO_AV_Connector.

Definition at line 787 of file UDP.cpp.

00788 {
00789   return 0;
00790 }

int TAO_AV_UDP_Connector::connect ( TAO_FlowSpec_Entry *  entry,
TAO_AV_Transport *&  transport,
TAO_AV_Core::Flow_Component  flow_comp = TAO_AV_Core::TAO_AV_DATA
) [virtual]

Implements TAO_AV_Connector.

Definition at line 602 of file UDP.cpp.

References ACE_DEBUG, ACE_NEW_RETURN, activate_svc_handler(), ACE_INET_Addr::addr_to_string(), TAO_FlowSpec_Entry::address(), TAO_AV_UDP_Connection_Setup::CONNECTOR, TAO_FlowSpec_Entry::control_address(), TAO_FlowSpec_Entry::control_handler(), control_inet_address_, TAO_FlowSpec_Entry::control_protocol_object(), endpoint_, entry_, flow_component_, flow_protocol_factory_, TAO_FlowSpec_Entry::flowname(), TAO_AV_Connector::flowname_, TAO_AV_Core::get_control_flowname(), ACE_INET_Addr::get_host_name(), TAO_FlowSpec_Entry::get_local_control_addr(), TAO_FlowSpec_Entry::get_peer_addr(), ACE_INET_Addr::get_port_number(), TAO_FlowSpec_Entry::handler(), inet_addr(), TAO_FlowSpec_Entry::is_multicast(), ACE_OS::itoa(), LM_DEBUG, TAO_AV_Flow_Protocol_Factory::make_protocol_object(), TAO_FlowSpec_Entry::protocol_object(), TAO_Base_StreamEndPoint::set_control_flow_handler(), TAO_Base_StreamEndPoint::set_flow_handler(), TAO_FlowSpec_Entry::set_local_addr(), TAO_FlowSpec_Entry::set_local_control_addr(), TAO_AV_UDP_Connection_Setup::setup(), ACE_OS::strcasecmp(), TAO_AV_Core::TAO_AV_CONTROL, TAO_AV_Core::TAO_AV_DATA, and TAO_debug_level.

00605 {
00606   ACE_INET_Addr *local_addr = 0;
00607   ACE_INET_Addr *control_inet_addr = 0;
00608
00609   this->entry_ = entry;
00610   this->flow_component_ = flow_component;
00611
00612   ACE_INET_Addr *inet_addr;
00613
00614   if (flow_component == TAO_AV_Core::TAO_AV_CONTROL)
00615     {
00616       this->flowname_ = TAO_AV_Core::get_control_flowname (entry->flowname());
00617     inet_addr = dynamic_cast<ACE_INET_Addr*> (entry->control_address ());
00618     }
00619   else
00620     {
00621       this->flowname_ = entry->flowname ();
00622       inet_addr = dynamic_cast<ACE_INET_Addr*> (entry->address ());
00623       control_inet_addr = dynamic_cast<ACE_INET_Addr*> (entry->control_address ());
00624     }
00625
00626   TAO_AV_Flow_Handler *flow_handler = 0;
00627
00628   // if this is the control flow component, the
00629   //  handler and local address are already set in the flow spec entry
00630   if ((flow_component == TAO_AV_Core::TAO_AV_CONTROL)  &&
00631       (ACE_OS::strcasecmp(this->entry_->flow_protocol_str (), "RTP") == 0) &&
00632       !entry->is_multicast ())
00633     {
00634       flow_handler = this->entry_->control_handler ();
00635       flow_handler->set_remote_address (inet_addr);
00636
00637       local_addr = dynamic_cast<ACE_INET_Addr*> (this->entry_->get_local_control_addr ());
00638     }
00639   else
00640     {
00641       // this variable is only used for RTP/UDP; RFC 1889 requires an even/odd
00642       //  consecutive port pair
00643       int get_new_port = 1;
00644
00645       while (get_new_port)
00646         {
00647           // assume the ports will be OK
00648           get_new_port = 0;
00649
00650       ACE_Addr *addr;
00651       if ((addr = entry->get_peer_addr ()) != 0)
00652         {
00653           local_addr = dynamic_cast<ACE_INET_Addr*> (addr);
00654           char buf [BUFSIZ];
00655           local_addr->addr_to_string (buf, BUFSIZ);
00656         }
00657
00658           TAO_AV_UDP_Connection_Setup::setup (flow_handler,
00659                                               inet_addr,
00660                                               local_addr,
00661                                               entry->is_multicast (),
00662                                               TAO_AV_UDP_Connection_Setup::CONNECTOR);
00663
00664           if ((ACE_OS::strcasecmp(this->entry_->flow_protocol_str (), "RTP") == 0) &&
00665               (flow_component == TAO_AV_Core::TAO_AV_DATA) &&
00666               !entry->is_multicast ())
00667             {
00668               if (local_addr->get_port_number ()%2 != 0)
00669                 {
00670                   // RTP port should be even
00671                   delete local_addr;
00672                   local_addr = 0;
00673                   delete flow_handler;
00674                   get_new_port = 1;
00675                 }
00676               else
00677                 {
00678                   ACE_INET_Addr *local_control_addr = 0;
00679                   TAO_AV_Flow_Handler *control_flow_handler = 0;
00680
00681                   if (entry->is_multicast ())
00682                     control_inet_addr =  dynamic_cast<ACE_INET_Addr*> (entry->control_address ()) ;
00683                   else
00684                     {
00685
00686                       if (local_addr != 0)
00687                         {
00688                           char buf [BUFSIZ];
00689                           ACE_CString addr_str (local_addr->get_host_name ());
00690                           addr_str += ":";
00691                           addr_str += ACE_OS::itoa (local_addr->get_port_number () + 1, buf, 10);
00692                           ACE_NEW_RETURN (local_control_addr,
00693                                           ACE_INET_Addr (addr_str.c_str ()),
00694                                           -1);
00695                           local_control_addr->addr_to_string (buf, BUFSIZ);
00696                         }
00697
00698
00699                       if (entry->control_address () == 0)
00700                         ACE_NEW_RETURN (this->control_inet_address_,
00701                                         ACE_INET_Addr ("0"),
00702                                         -1);
00703                       else
00704                         control_inet_address_ = dynamic_cast<ACE_INET_Addr*> (entry->control_address ());
00705                     }
00706
00707                   TAO_AV_UDP_Connection_Setup::setup (control_flow_handler,
00708                                                       control_inet_addr,
00709                                                       local_control_addr,
00710                                                       entry->is_multicast (),
00711                                                       TAO_AV_UDP_Connection_Setup::CONNECTOR);
00712
00713                   if (local_control_addr->get_port_number () !=
00714                       local_addr->get_port_number () +1)
00715                     {
00716                       delete local_addr;
00717                       local_addr = 0;
00718                       delete flow_handler;
00719                       delete local_control_addr;
00720                       delete control_flow_handler;
00721                       get_new_port = 1;
00722                     }
00723                   else
00724                     {
00725                       this->entry_->set_local_control_addr (local_control_addr);
00726                       this->entry_->control_handler (control_flow_handler);
00727                     }
00728                 }
00729             }
00730         }
00731     }
00732
00733   TAO_AV_Protocol_Object *object =
00734     this->flow_protocol_factory_->make_protocol_object (this->entry_,
00735                                                         this->endpoint_,
00736                                                         flow_handler,
00737                                                         flow_handler->transport ());
00738
00739   flow_handler->protocol_object (object);
00740
00741   if (flow_component == TAO_AV_Core::TAO_AV_DATA)
00742     {
00743       this->endpoint_->set_flow_handler (this->flowname_.c_str (),
00744                                          flow_handler);
00745       this->entry_->protocol_object (object);
00746       entry->set_local_addr (local_addr);
00747       entry->handler (flow_handler);
00748       transport = flow_handler->transport ();
00749     }
00750   else
00751     {
00752       this->endpoint_->set_control_flow_handler (this->flowname_.c_str (),
00753                                                  flow_handler);
00754       this->entry_->control_protocol_object (object);
00755       entry->set_local_control_addr (local_addr);
00756       entry->control_handler (flow_handler);
00757       transport = flow_handler->transport ();
00758     }
00759
00760   if (local_addr != 0)
00761     {
00762       char buf[BUFSIZ];
00763       local_addr->addr_to_string (buf,BUFSIZ);
00764
00765       if (TAO_debug_level > 0)
00766         ACE_DEBUG ((LM_DEBUG,"TAO_AV_UDP_CONNECTOR::connect:%s \n",buf));
00767     }
00768
00769   // call activate svc handler.
00770   return this->activate_svc_handler (flow_handler);
00771 }

int TAO_AV_UDP_Connector::open ( TAO_Base_StreamEndPoint *  endpoint,
TAO_AV_Core *  av_core,
TAO_AV_Flow_Protocol_Factory *  factory
) [virtual]

Implements TAO_AV_Connector.

Definition at line 589 of file UDP.cpp.

References ACE_DEBUG, av_core_, endpoint_, flow_protocol_factory_, LM_DEBUG, and TAO_debug_level.

00593 {
00594   if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"TAO_AV_UDP_Connector::open "));
00595   this->endpoint_ = endpoint;
00596   this->av_core_ = av_core;
00597   this->flow_protocol_factory_ = factory;
00598   return 0;
00599 }

Member Data Documentation

TAO_AV_Core* TAO_AV_UDP_Connector::av_core_ [protected]

Definition at line 201 of file UDP.h.

Referenced by activate_svc_handler(), and open().

ACE_INET_Addr* TAO_AV_UDP_Connector::control_inet_address_ [protected]

Definition at line 199 of file UDP.h.

Referenced by connect(), and ~TAO_AV_UDP_Connector().

TAO_Base_StreamEndPoint* TAO_AV_UDP_Connector::endpoint_ [protected]

Definition at line 200 of file UDP.h.

Referenced by connect(), and open().

TAO_FlowSpec_Entry* TAO_AV_UDP_Connector::entry_ [protected]

Definition at line 202 of file UDP.h.

Referenced by connect(), and ~TAO_AV_UDP_Connector().

TAO_AV_Core::Flow_Component TAO_AV_UDP_Connector::flow_component_ [protected]

Definition at line 204 of file UDP.h.

Referenced by connect().

TAO_AV_Flow_Protocol_Factory* TAO_AV_UDP_Connector::flow_protocol_factory_ [protected]

Definition at line 203 of file UDP.h.

Referenced by connect(), and open().

The documentation for this class was generated from the following files:
