TAO_AV_Core Class Reference

This class encapsulates access to the TAO AV Core's resources and its state. More...

#include <AV_Core.h>

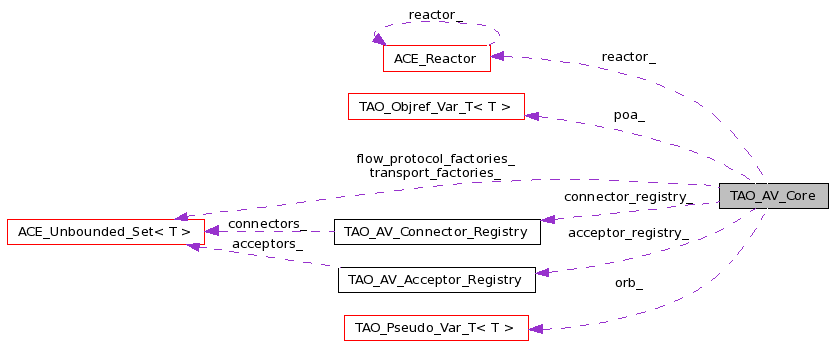

Collaboration diagram for TAO_AV_Core:

[legend]List of all members.

Public Types
	TAO_AV_ENDPOINT_A
	TAO_AV_ENDPOINT_B
	TAO_AV_NOPROTOCOL = -1
	TAO_AV_TCP = 0
	TAO_AV_UDP = 1
	TAO_AV_AAL5 = 2
	TAO_AV_AAL3_4 = 3
	TAO_AV_AAL1 = 4
	TAO_AV_RTP_UDP = 5
	TAO_AV_RTP_AAL5 = 6
	TAO_AV_IPX = 7
	TAO_AV_SFP_UDP = 8
	TAO_AV_UDP_MCAST = 9
	TAO_AV_RTP_UDP_MCAST = 10
	TAO_AV_SFP_UDP_MCAST = 11
	TAO_AV_QOS_UDP = 12
	TAO_AV_USERDEFINED_UDP = 13
	TAO_AV_USERDEFINED_UDP_MCAST = 14
	TAO_AV_SCTP_SEQ = 15
	TAO_AV_DATA = 1
	TAO_AV_CONTROL = 2
	TAO_AV_BOTH = 3
enum	EndPoint { TAO_AV_ENDPOINT_A, TAO_AV_ENDPOINT_B }
enum	Protocol {   TAO_AV_NOPROTOCOL = -1, TAO_AV_TCP = 0, TAO_AV_UDP = 1, TAO_AV_AAL5 = 2,   TAO_AV_AAL3_4 = 3, TAO_AV_AAL1 = 4, TAO_AV_RTP_UDP = 5, TAO_AV_RTP_AAL5 = 6,   TAO_AV_IPX = 7, TAO_AV_SFP_UDP = 8, TAO_AV_UDP_MCAST = 9, TAO_AV_RTP_UDP_MCAST = 10,   TAO_AV_SFP_UDP_MCAST = 11, TAO_AV_QOS_UDP = 12, TAO_AV_USERDEFINED_UDP = 13, TAO_AV_USERDEFINED_UDP_MCAST = 14,   TAO_AV_SCTP_SEQ = 15 }
enum	Flow_Component { TAO_AV_DATA = 1, TAO_AV_CONTROL = 2, TAO_AV_BOTH = 3 }
Public Member Functions
	TAO_AV_Core (void)
	Default constructor.
	~TAO_AV_Core (void)
	Destructor.
int	init (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa)
int	run (void)
int	stop_run (void)
int	init_forward_flows (TAO_Base_StreamEndPoint *endpoint, TAO_AV_FlowSpecSet &flow_spec_set, EndPoint direction, AVStreams::flowSpec &flow_spec)
int	init_reverse_flows (TAO_Base_StreamEndPoint *endpoint, TAO_AV_FlowSpecSet &forward_flow_spec_set, TAO_AV_FlowSpecSet &reverse_flow_spec_set, EndPoint direction)
int	init_transport_factories (void)
int	init_flow_protocol_factories (void)
int	load_default_transport_factories (void)
int	load_default_flow_protocol_factories (void)
TAO_AV_Acceptor *	get_acceptor (const char *flowname)
	= Get the acceptor registry
TAO_AV_Connector *	get_connector (const char *flowname)
int	remove_acceptor (const char *flowname)
int	remove_connector (const char *flowname)
TAO_AV_Connector_Registry *	connector_registry (void)
TAO_FlowSpec_Entry *	get_flow_spec_entry (TAO_AV_FlowSpecSet &flow_spec_set, const char *flowname)
TAO_AV_Acceptor_Registry *	acceptor_registry (void)
TAO_AV_Flow_Protocol_Factory *	get_flow_protocol_factory (const char *flow_protocol)
	= Set/get the <ACE_Reactor>.
TAO_AV_Transport_Factory *	get_transport_factory (const char *transport_protocol)
TAO_AV_Flow_ProtocolFactorySet *	flow_protocol_factories (void)
TAO_AV_TransportFactorySet *	transport_factories (void)
void	reactor (ACE_Reactor *r)
ACE_Reactor *	reactor (void)
CORBA::ORB_ptr	orb (void)
void	orb (CORBA::ORB_ptr orb_)
PortableServer::POA_ptr	poa (void)
void	poa (PortableServer::POA_ptr poa_)
Static Public Member Functions
static int	deactivate_servant (PortableServer::Servant servant)
static char *	get_flowname (const char *flow_spec_entry_str)
static ACE_CString	get_control_flowname (const char *flowname)
Protected Attributes
TAO_AV_Connector_Registry *	connector_registry_
TAO_AV_Acceptor_Registry *	acceptor_registry_
TAO_AV_TransportFactorySet	transport_factories_
	Pointer to the list of transports loaded into this AV_Core instance.
TAO_AV_Flow_ProtocolFactorySet	flow_protocol_factories_
	Pointer to the list of flow protocol loaded into this AV_Core instance.
ACE_Reactor *	reactor_
CORBA::ORB_var	orb_
PortableServer::POA_var	poa_
CORBA::Boolean	stop_run_

---

Detailed Description

This class encapsulates access to the TAO AV Core's resources and its state.

Definition at line 58 of file AV_Core.h.

---

Member Enumeration Documentation

enum TAO_AV_Core::EndPoint

Enumerator:

TAO_AV_ENDPOINT_A
TAO_AV_ENDPOINT_B

Definition at line 61 of file AV_Core.h.

{TAO_AV_ENDPOINT_A,TAO_AV_ENDPOINT_B};

enum TAO_AV_Core::Flow_Component

Enumerator:

TAO_AV_DATA
TAO_AV_CONTROL
TAO_AV_BOTH

Definition at line 84 of file AV_Core.h.

  {
    TAO_AV_DATA = 1,
    TAO_AV_CONTROL = 2,
    TAO_AV_BOTH = 3
  };

enum TAO_AV_Core::Protocol

Enumerator:

TAO_AV_NOPROTOCOL
TAO_AV_TCP
TAO_AV_UDP
TAO_AV_AAL5
TAO_AV_AAL3_4
TAO_AV_AAL1
TAO_AV_RTP_UDP
TAO_AV_RTP_AAL5
TAO_AV_IPX
TAO_AV_SFP_UDP
TAO_AV_UDP_MCAST
TAO_AV_RTP_UDP_MCAST
TAO_AV_SFP_UDP_MCAST
TAO_AV_QOS_UDP
TAO_AV_USERDEFINED_UDP
TAO_AV_USERDEFINED_UDP_MCAST
TAO_AV_SCTP_SEQ

Definition at line 63 of file AV_Core.h.

  {
    TAO_AV_NOPROTOCOL = -1,
    TAO_AV_TCP        =  0,
    TAO_AV_UDP        =  1,
    TAO_AV_AAL5       =  2,
    TAO_AV_AAL3_4     =  3,
    TAO_AV_AAL1       =  4,
    TAO_AV_RTP_UDP    =  5,
    TAO_AV_RTP_AAL5   =  6,
    TAO_AV_IPX        =  7,
    TAO_AV_SFP_UDP    =  8,
    TAO_AV_UDP_MCAST  =  9,
    TAO_AV_RTP_UDP_MCAST = 10,
    TAO_AV_SFP_UDP_MCAST = 11,
    TAO_AV_QOS_UDP       = 12,
    TAO_AV_USERDEFINED_UDP = 13,
    TAO_AV_USERDEFINED_UDP_MCAST = 14,
    TAO_AV_SCTP_SEQ =  15
  };

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_AV_Core::TAO_AV_Core

(

void

)

Default constructor.

Definition at line 33 of file AV_Core.cpp.

References ACE_NEW.

  :connector_registry_ (0),
   acceptor_registry_ (0)
{
  ACE_NEW (this->connector_registry_,
           TAO_AV_Connector_Registry
           );
  ACE_NEW (this->acceptor_registry_,
           TAO_AV_Acceptor_Registry
           );
}

TAO_AV_Core::~TAO_AV_Core

(

void

)

Destructor.

Definition at line 45 of file AV_Core.cpp.

References acceptor_registry_, ACE_Unbounded_Set_Ex< T, C >::begin(), connector_registry_, flow_protocol_factories_, and transport_factories_.

{
  delete this->connector_registry_;
  delete this->acceptor_registry_;

  TAO_AV_TransportFactorySetItor transport_iter =
      this->transport_factories_.begin();

  while (transport_iter != this->transport_factories_.end())
    {
      if ((*transport_iter)->factory()->ref_count != 1)
        {
          delete (*transport_iter)->factory();
        }
      delete (*transport_iter);
      transport_iter++;
    }

  TAO_AV_Flow_ProtocolFactorySetItor flow_iter =
      this->flow_protocol_factories_.begin();

  while (flow_iter != this->flow_protocol_factories_.end())
    {
      if ((*flow_iter)->factory()->ref_count != 1)
        {
          delete (*flow_iter)->factory();
        }
      delete (*flow_iter);

      flow_iter++;
    }
}

---

Member Function Documentation

TAO_AV_Acceptor_Registry * TAO_AV_Core::acceptor_registry

(

void

)

Definition at line 109 of file AV_Core.cpp.

References acceptor_registry_.

{
  return this->acceptor_registry_;
}

TAO_AV_Connector_Registry * TAO_AV_Core::connector_registry

(

void

)

Definition at line 103 of file AV_Core.cpp.

References connector_registry_.

{
  return this->connector_registry_;
}

int TAO_AV_Core::deactivate_servant

(

PortableServer::Servant

servant

)

[static]

Definition at line 1099 of file AV_Core.cpp.

References TAO_ServantBase::_default_POA(), CORBA::Exception::_tao_print_exception(), and poa().

Referenced by TAO_FDev< T_Producer, T_Consumer >::destroy(), TAO_FlowEndPoint::destroy(), TAO_FlowConnection::destroy(), TAO_MMDevice::destroy(), TAO_StreamEndPoint::destroy(), and TAO_StreamCtrl::destroy().

{
  // Because of reference counting, the POA will automatically delete
  // the servant when all pending requests on this servant are
  // complete.

  try
    {
      PortableServer::POA_var poa = servant->_default_POA ();

      PortableServer::ObjectId_var id = poa->servant_to_id (servant);

      poa->deactivate_object (id.in ());
    }
  catch (const CORBA::Exception& ex)
    {
      ex._tao_print_exception ("deactivate_servant");
      return -1;
    }
  return 0;
}

TAO_AV_Flow_ProtocolFactorySet * TAO_AV_Core::flow_protocol_factories

(

void

)

Definition at line 121 of file AV_Core.cpp.

References flow_protocol_factories_.

{
  return &this->flow_protocol_factories_;
}

TAO_AV_Acceptor * TAO_AV_Core::get_acceptor

(

const char *

flowname

)

= Get the acceptor registry

Definition at line 562 of file AV_Core.cpp.

References CORBA::Exception::_tao_print_exception(), acceptor_registry_, TAO_AV_Acceptor_Registry::begin(), TAO_AV_Acceptor_Registry::end(), and ACE_OS::strcmp().

{

  try
    {

      TAO_AV_AcceptorSetItor acceptor =  this->acceptor_registry_->begin ();

      TAO_AV_AcceptorSetItor end =
        this->acceptor_registry_->end ();

      for (;acceptor != end; ++acceptor)
        {
          if (ACE_OS::strcmp ((*acceptor)->flowname (),flowname) == 0)
            return *acceptor;
        }
    }
  catch (const CORBA::Exception& ex)
    {
      ex._tao_print_exception ("TAO_AV_Core::get_acceptor");
    }
  return 0;
}

TAO_AV_Connector * TAO_AV_Core::get_connector

(

const char *

flowname

)

Definition at line 615 of file AV_Core.cpp.

References TAO_AV_Connector_Registry::begin(), connector_registry_, TAO_AV_Connector_Registry::end(), and ACE_OS::strcmp().

{
  TAO_AV_ConnectorSetItor connector =
    this->connector_registry_->begin ();
  TAO_AV_ConnectorSetItor end =
    this->connector_registry_->end ();

  for (;connector != end; ++connector)
    {
      if (ACE_OS::strcmp ((*connector)->flowname (),flowname) == 0)
        return *connector;
    }
  return 0;
}

ACE_CString TAO_AV_Core::get_control_flowname

(

const char *

flowname

)

[static]

Definition at line 1136 of file AV_Core.cpp.

Referenced by TAO_AV_UDP_Connector::connect(), TAO_AV_TCP_Connector::connect(), TAO_StreamEndPoint::destroy(), TAO_AV_UDP_Acceptor::open(), TAO_AV_TCP_Acceptor::open(), TAO_AV_UDP_Acceptor::open_default(), and TAO_AV_TCP_Acceptor::open_default().

{
  ACE_CString control_flowname;
  control_flowname = "c_";
  control_flowname = control_flowname + flowname;

  return flowname;
}

TAO_AV_Flow_Protocol_Factory * TAO_AV_Core::get_flow_protocol_factory

(

const char *

flow_protocol

)

= Set/get the <ACE_Reactor>.

Definition at line 650 of file AV_Core.cpp.

References ACE_Unbounded_Set_Ex< T, C >::end(), and flow_protocol_factories_.

Referenced by TAO_AV_Acceptor_Registry::open(), TAO_AV_Connector_Registry::open(), and TAO_AV_Acceptor_Registry::open_default().

{
  if (flow_protocol == 0)
    return 0;

  for (TAO_AV_Flow_ProtocolFactorySetItor control_flow_factory =
         this->flow_protocol_factories_.begin ();
       control_flow_factory !=
         this->flow_protocol_factories_.end ();
       ++control_flow_factory)
    {
      if ((*control_flow_factory)->factory ()->match_protocol (flow_protocol))
        {
          return (*control_flow_factory)->factory ();
        }
    }

  // Not found.
  return 0;
}

TAO_FlowSpec_Entry * TAO_AV_Core::get_flow_spec_entry	(	TAO_AV_FlowSpecSet &	flow_spec_set,
		const char *	flowname
	)

Definition at line 546 of file AV_Core.cpp.

References ACE_Unbounded_Set_Ex< T, C >::begin(), ACE_Unbounded_Set_Ex< T, C >::end(), and ACE_OS::strcmp().

Referenced by init_reverse_flows().

{
  TAO_AV_FlowSpecSetItor end = flow_spec_set.end ();
  TAO_AV_FlowSpecSetItor begin = flow_spec_set.begin ();
  for (;
       begin != end;
       ++begin)
    {
      if (ACE_OS::strcmp ((*begin)->flowname (),flowname) == 0)
        return (*begin);
    }
  return 0;
}

char * TAO_AV_Core::get_flowname

(

const char *

flow_spec_entry_str

)

[static]

Definition at line 1123 of file AV_Core.cpp.

References ACE_String_Base< CHAR >::c_str(), ACE_String_Base< CHAR >::find(), ACE_String_Base_Const::npos, CORBA::string_dup(), and ACE_String_Base< CHAR >::substring().

Referenced by TAO_Basic_StreamCtrl::destroy(), TAO_Basic_StreamCtrl::start(), and TAO_Basic_StreamCtrl::stop().

{
  ACE_CString flow_spec_entry (flow_spec_entry_str);
  ACE_CString::size_type slash_pos = flow_spec_entry.find ('\\');
  ACE_CString flow_name;
  if (slash_pos != flow_spec_entry.npos)
    flow_name = flow_spec_entry.substring (0, slash_pos);
  else
    flow_name = flow_spec_entry_str;
  return CORBA::string_dup (flow_name.c_str ());
}

TAO_AV_Transport_Factory * TAO_AV_Core::get_transport_factory

(

const char *

transport_protocol

)

Definition at line 672 of file AV_Core.cpp.

References ACE_Unbounded_Set_Ex< T, C >::end(), and transport_factories_.

Referenced by TAO_AV_Acceptor_Registry::open(), TAO_AV_Connector_Registry::open(), and TAO_AV_Acceptor_Registry::open_default().

{
  if (transport_protocol == 0)
    return 0;

  for (TAO_AV_TransportFactorySetItor transport_factory =
         this->transport_factories_.begin ();
       transport_factory != this->transport_factories_.end ();
       ++transport_factory)
    {
      if ((*transport_factory)->factory ()->match_protocol (transport_protocol))
        {
          return (*transport_factory)->factory ();
        }
    }

  // Not found.
  return 0;
}

int TAO_AV_Core::init	(	CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa
	)

Definition at line 156 of file AV_Core.cpp.

References CORBA::ORB::_duplicate(), ACE_DEBUG, init_flow_protocol_factories(), init_transport_factories(), LM_DEBUG, orb(), orb_, poa_, reactor(), and TAO_debug_level.

{
  if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"TAO_AV_Core::init "));
  this->orb_ = CORBA::ORB::_duplicate (orb);
  this->poa_ = PortableServer::POA::_duplicate (poa);
  this->reactor (this->orb_->orb_core ()->reactor ());
  this->init_transport_factories ();
  this->init_flow_protocol_factories ();
  return 0;
}

int TAO_AV_Core::init_flow_protocol_factories

(

void

)

Definition at line 1050 of file AV_Core.cpp.

References ACE_DEBUG, ACE_ERROR_RETURN, ACE_TEXT(), ACE_Unbounded_Set_Ex< T, C >::begin(), ACE_Unbounded_Set_Ex< T, C >::end(), flow_protocol_factories_, LM_DEBUG, LM_ERROR, load_default_flow_protocol_factories(), and TAO_debug_level.

Referenced by init().

{
  TAO_AV_Flow_ProtocolFactorySetItor end = this->flow_protocol_factories_.end ();
  TAO_AV_Flow_ProtocolFactorySetItor factory = this->flow_protocol_factories_.begin ();

  if (factory == end)
    {
      ACE_DEBUG ((LM_DEBUG,
                  "Loading default flow protocol factories\n"));

      this->load_default_flow_protocol_factories ();
    }
  else
    {
      for (; factory != end; factory++)
        {
          const ACE_CString &name = (*factory)->name ();
          if (TAO_debug_level > 0)
            ACE_DEBUG ((LM_DEBUG,
                        "%s \n",
                        name.c_str ()));

          (*factory)->factory (
                               ACE_Dynamic_Service<TAO_AV_Flow_Protocol_Factory>::instance (name.c_str ()));
          if ((*factory)->factory () == 0)
            {
              ACE_ERROR_RETURN ((LM_ERROR,
                                 ACE_TEXT ("TAO (%P|%t) Unable to load ")
                                 ACE_TEXT ("protocol <%s>, %p\n"),
                                 name.c_str (), ""),
                                -1);
            }

          (*factory)->factory ()->ref_count = 1;

          if (TAO_debug_level > 0)
            {
              ACE_DEBUG ((LM_DEBUG,
                          ACE_TEXT ("TAO (%P|%t) Loaded protocol <%s>\n"),
                          name.c_str ()));
            }
        }
    }

  return 0;
}

int TAO_AV_Core::init_forward_flows	(	TAO_Base_StreamEndPoint *	endpoint,
		TAO_AV_FlowSpecSet &	flow_spec_set,
		EndPoint	direction,
		AVStreams::flowSpec &	flow_spec
	)

Definition at line 169 of file AV_Core.cpp.

References acceptor_registry_, ACE_DEBUG, ACE_ERROR_RETURN, ACE_Unbounded_Set_Ex< T, C >::begin(), connect(), connector_registry_, ACE_Unbounded_Set_Ex< T, C >::end(), ACE_Unbounded_Set_Ex< T, C >::find(), ACE_Unbounded_Set_Ex< T, C >::insert(), LM_DEBUG, LM_ERROR, TAO_AV_Acceptor_Registry::open(), TAO_AV_Connector_Registry::open(), ACE_Event_Handler::reactor(), ACE_Event_Handler::READ_MASK, ACE_Unbounded_Set_Ex< T, C >::size(), TAO_FlowSpec_Entry::TAO_AV_CONSUMER, TAO_FlowSpec_Entry::TAO_AV_DIR_IN, TAO_FlowSpec_Entry::TAO_AV_DIR_OUT, TAO_AV_ENDPOINT_A, TAO_AV_ENDPOINT_B, TAO_FlowSpec_Entry::TAO_AV_PRODUCER, and TAO_debug_level.

{
  if (TAO_debug_level > 0)
    ACE_DEBUG ((LM_DEBUG,
                "TAO_AV_Core::init_forward_flows\n"));

  TAO_AV_FlowSpecSet address_flow_set;
  TAO_AV_FlowSpecSet flow_set;
  TAO_AV_FlowSpecSetItor end = flow_spec_set.end ();
  for (TAO_AV_FlowSpecSetItor start = flow_spec_set.begin ();
       start != end; ++start)
    {
      TAO_FlowSpec_Entry *entry = (*start);
      switch (direction)
        {
        case TAO_AV_Core::TAO_AV_ENDPOINT_B:
          {
            switch (entry->direction ())
              {
              case TAO_FlowSpec_Entry::TAO_AV_DIR_IN:
                {
                  entry->role (TAO_FlowSpec_Entry::TAO_AV_CONSUMER);
                  break;
                }
              case TAO_FlowSpec_Entry::TAO_AV_DIR_OUT:
                {
                  entry->role (TAO_FlowSpec_Entry::TAO_AV_PRODUCER);
                  break;
                }
              }
            break;
          }
        case TAO_AV_Core::TAO_AV_ENDPOINT_A:
          {
            switch (entry->direction ())
              {
              case TAO_FlowSpec_Entry::TAO_AV_DIR_IN:
                entry->role (TAO_FlowSpec_Entry::TAO_AV_PRODUCER);
                break;
              case TAO_FlowSpec_Entry::TAO_AV_DIR_OUT:
                entry->role (TAO_FlowSpec_Entry::TAO_AV_CONSUMER);
                break;
              }
            break;
          }
        default:
          break;
        }
      ACE_Addr *address = entry->address ();
      if (address != 0)
        {
          if (TAO_debug_level > 0)
            ACE_DEBUG ((LM_DEBUG,
                        "address given for flow %s\n",
                        entry->flowname ()));

          address_flow_set.insert (entry);
        }
      else
        flow_set.insert (entry);
    } //End of For Loop


  int result = -1;
  switch (direction)
    {
    case TAO_AV_Core::TAO_AV_ENDPOINT_A:
      if (address_flow_set.size () > 0)
        {
          result = this->acceptor_registry_->open (endpoint,
                                                   this,
                                                   address_flow_set);
          if (result < 0)
            ACE_ERROR_RETURN ((LM_ERROR,
                               "TAO_AV_Core::init_forward_flows::acceptor_registry::open failed\n"),
                              -1);
          TAO_AV_FlowSpecSetItor end = address_flow_set.end ();
          for (TAO_AV_FlowSpecSetItor start = address_flow_set.begin ();
               start != end; ++start)
            {
              TAO_FlowSpec_Entry *entry = (*start);
              switch (entry->direction ())
                {
                case TAO_FlowSpec_Entry::TAO_AV_DIR_IN:
                  {
                    if (entry->handler () != 0)
                      {
                        //Yamuna:PLEASE CHECK THIS LATER
#if defined ACE_HAS_RAPI || defined (ACE_HAS_WINSOCK2_GQOS)
                        // For IN flows on the A side we should remove the handlers from the reactor.
                        ACE_Event_Handler *event_handler = entry->handler ()->event_handler ();

            if (event_handler->reactor () != 0)
              {
                result = event_handler->reactor ()->remove_handler (event_handler,
                                        ACE_Event_Handler::READ_MASK);

                if (result < 0)
                  if (TAO_debug_level > 0)
                ACE_DEBUG ((LM_DEBUG,
                        "TAO_AV_Core::init_forward_flows: remove_handler failed\n"));
              }
#endif //ACE_HAS_RAPI || ACE_HAS_WINSOCK2_GQOS
                      }
                  }
                default:
                  break;
                }
              // Now if the address_set has been changed due to the addition of a control entry we should
              // add that to the flow_spec_set also.
              if (flow_spec_set.find (entry) < 0)
                {
                  // entry doesn't exist so add it.
                  flow_spec_set.insert (entry);
                  //                   size_t len = flow_spec.length ();
                  //                   flow_spec.length (len+1);
                  //                   flow_spec [len] = entry->entry_to_string ();
                }
            }
        }
      break;
    case TAO_AV_Core::TAO_AV_ENDPOINT_B:
      {
        if (address_flow_set.size () > 0)
          {
            ACE_DEBUG ((LM_DEBUG,
                        "(%N,%l) This connector registry is called\n"));

            result = this->connector_registry_->open (endpoint,
                                                      this,
                                                      address_flow_set);
            if (result == -1)
              ACE_ERROR_RETURN ((LM_ERROR,"TAO_AV_Core::init_Forward_flows: connector_registry open failed\n"),-1);
            TAO_AV_FlowSpecSetItor end = address_flow_set.end ();
            for (TAO_AV_FlowSpecSetItor start = address_flow_set.begin ();
                 start != end; ++start)
              {
                TAO_FlowSpec_Entry *entry = (*start);
                switch (entry->direction ())
                  {
                  case TAO_FlowSpec_Entry::TAO_AV_DIR_OUT:
                    {
              if (entry->handler () != 0)
            {
              // @@Naga: This wont be called in the case of Full Profile.
              // For IN flows on the A side we should remove the handlers from the reactor.
              ACE_Event_Handler *event_handler = entry->handler ()->event_handler ();
              result = event_handler->reactor ()->remove_handler (event_handler,
                                          ACE_Event_Handler::READ_MASK);
              if (result < 0)
                if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"TAO_AV_Core::init_forward_flows: remove_handler failed\n"));
            }
                    }
                  default:
                    break;
                  }
        // Now if the address_set has been changed due to the addition of a control entry we should
        // add that to the flow_spec_set also.
        if (flow_spec_set.find (entry) < 0)
          {
            // entry doesn't exist so add it.
            flow_spec_set.insert (entry);
          }
              }
          }
        if (flow_set.size () > 0)
          {
            // If any of the flow spec entries have a valid peer address,
            // we need to set it as the forwarding address.  According to
            // Yamuna Krishnamurthy, this "happens when no address is
            // specified for the A endpoint."
        TAO_AV_FlowSpecSetItor end = flow_set.end ();
        TAO_AV_FlowSpecSetItor start = flow_set.begin ();
            for (; start != end; ++start)
              {
        TAO_FlowSpec_Entry *entry = *start;
        if (entry->get_peer_addr () != 0)
          {
            entry->address (entry->get_peer_addr (), false);
          }
          }

            result = this->acceptor_registry_->open (endpoint,
                                                     this,
                                                     flow_set);
            if (result == -1)
              ACE_ERROR_RETURN ((LM_ERROR,"TAO_AV_Core::init_Forward_flows: Acceptor_registry open failed\n"),-1);
            end = address_flow_set.end ();
        start = address_flow_set.begin ();
            for (; start != end; ++start)
              {
                TAO_FlowSpec_Entry *entry = (*start);
                switch (entry->direction ())
                  {
                  case TAO_FlowSpec_Entry::TAO_AV_DIR_OUT:
                    {
              if (entry->handler () != 0)
            {
              // For IN flows on the A side we should remove the handlers from the reactor.
              ACE_Event_Handler *event_handler = entry->handler ()->event_handler ();
              result = event_handler->reactor ()->remove_handler (event_handler,
                                          ACE_Event_Handler::READ_MASK);
              if (result < 0)
                if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"TAO_AV_Core::init_forward_flows: remove_handler failed\n"));
            }
                    }
                  default:
                    break;
                  }
        // Now if the address_set has been changed due to the addition of a control entry we should
        // add that to the flow_spec_set also.
        if (flow_spec_set.find (entry) < 0)
          {
            // entry doesn't exist so add it.
            flow_spec_set.insert (entry);
          }
              }
          }

        AVStreams::flowSpec new_flowspec (static_cast<CORBA::ULong> (flow_spec_set.size ()));
        int i=0;
        TAO_AV_FlowSpecSetItor connect_end = address_flow_set.end ();
        TAO_AV_FlowSpecSetItor connect = address_flow_set.begin ();
        for (;connect != connect_end;  ++connect)
          {
            ACE_Addr *local_addr;
            ACE_Addr *local_control_addr;
            local_addr = (*connect)->get_local_addr ();
            local_control_addr = (*connect)->get_local_control_addr ();
            if (local_addr != 0)
              {
                TAO_Reverse_FlowSpec_Entry entry ((*connect)->flowname (),
                                                  (*connect)->direction_str (),
                                                  (*connect)->format (),
                                                  (*connect)->flow_protocol_str (),
                                                  (*connect)->carrier_protocol_str (),
                                                  local_addr,
                                                  local_control_addr);
        /*
          ACE_Addr *addr;
          if ((addr = (*connect)->get_peer_addr ()) != 0)
          {
          entry.set_peer_addr (addr);
          };
        */
                int len = new_flowspec.length ();
                if (i == len)
                  new_flowspec.length (len+1);
                new_flowspec [i++] = entry.entry_to_string ();
                if (TAO_debug_level > 0)
                  ACE_DEBUG ((LM_DEBUG, "reverse Flow Spec Is %s\n", entry.entry_to_string ()));
              }
          }
        connect_end = flow_set.end ();
        for (connect = flow_set.begin ();
             connect != connect_end;  ++connect)
          {
            ACE_Addr *local_addr;
            ACE_Addr *local_control_addr;
            local_addr = (*connect)->get_local_addr ();
            local_control_addr = (*connect)->get_local_control_addr ();
            if (local_addr != 0)
              {
                TAO_Reverse_FlowSpec_Entry entry ((*connect)->flowname (),
                                                  (*connect)->direction_str (),
                                                  (*connect)->format (),
                                                  (*connect)->flow_protocol_str (),
                                                  (*connect)->carrier_protocol_str (),
                                                  local_addr,
                                                  local_control_addr);

                int len = new_flowspec.length ();
                if (i == len)
                  new_flowspec.length (len+1);
                new_flowspec [i++] = entry.entry_to_string ();
              }
          }
        // Change the reverse flow spec to be sent.
        //        int index = flow_spec.length () + 1;
        int index = new_flowspec.length ();
        flow_spec.length (index);
        for (i = 0; i < index; i++)
          {
            flow_spec [i] = new_flowspec [i];
          }
      }
      break;
    default:
      break;
    }
  return 0;
}

int TAO_AV_Core::init_reverse_flows	(	TAO_Base_StreamEndPoint *	endpoint,
		TAO_AV_FlowSpecSet &	forward_flow_spec_set,
		TAO_AV_FlowSpecSet &	reverse_flow_spec_set,
		EndPoint	direction
	)

Definition at line 466 of file AV_Core.cpp.

References ACE_DEBUG, ACE_ERROR_RETURN, ACE_Unbounded_Set_Ex< T, C >::begin(), connector_registry_, ACE_Unbounded_Set_Ex< T, C >::end(), get_flow_spec_entry(), ACE_Unbounded_Set_Ex< T, C >::insert(), LM_DEBUG, LM_ERROR, TAO_AV_Connector_Registry::open(), TAO_FlowSpec_Entry::set_peer_addr(), TAO_FlowSpec_Entry::TAO_AV_CONSUMER, TAO_FlowSpec_Entry::TAO_AV_DIR_IN, TAO_FlowSpec_Entry::TAO_AV_DIR_OUT, TAO_AV_ENDPOINT_A, TAO_AV_ENDPOINT_B, TAO_FlowSpec_Entry::TAO_AV_PRODUCER, and TAO_debug_level.

{
  if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"(%P|%t)TAO_AV_Core::init_reverse_flows\n"));
  TAO_AV_FlowSpecSet acceptor_flow_set;
  TAO_AV_FlowSpecSet connector_flow_set;
  TAO_AV_FlowSpecSetItor end = reverse_flow_spec_set.end ();
  TAO_AV_FlowSpecSetItor start = reverse_flow_spec_set.begin ();
  for (;start != end; ++start)
    {
      TAO_FlowSpec_Entry *entry = (*start);
      ACE_Addr *address = entry->address ();
      switch (direction)
        {
        case TAO_AV_Core::TAO_AV_ENDPOINT_B:
          {
            switch (entry->direction ())
              {
              case TAO_FlowSpec_Entry::TAO_AV_DIR_IN:
                entry->role (TAO_FlowSpec_Entry::TAO_AV_CONSUMER);
                break;
              case TAO_FlowSpec_Entry::TAO_AV_DIR_OUT:
                entry->role (TAO_FlowSpec_Entry::TAO_AV_PRODUCER);
                break;
              }
            break;
          }
        case TAO_AV_Core::TAO_AV_ENDPOINT_A:
          {
            switch (entry->direction ())
              {
              case TAO_FlowSpec_Entry::TAO_AV_DIR_IN:
                entry->role (TAO_FlowSpec_Entry::TAO_AV_PRODUCER);
                break;
              case TAO_FlowSpec_Entry::TAO_AV_DIR_OUT:
                entry->role (TAO_FlowSpec_Entry::TAO_AV_CONSUMER);
                break;
              }
            break;
          }
        default: break;
        }

      if (address != 0)
        {
          if (this->get_acceptor (entry->flowname ())!= 0)
            {
              ACE_Addr *address = entry->address ();
              TAO_FlowSpec_Entry *forward_entry =
                this->get_flow_spec_entry (forward_flow_spec_set,
                                           entry->flowname ());
              if (forward_entry != 0)
                forward_entry->set_peer_addr (address);
            }
          else
            connector_flow_set.insert (entry);
        }
    }
  int result = -1;
  switch (direction)
    {

    case TAO_AV_Core::TAO_AV_ENDPOINT_A:
      {
        result = this->connector_registry_->open (endpoint,
                                                  this,
                                                  connector_flow_set);
      }
        break;
    default:
      break;
    }
  if (result == -1)
    ACE_ERROR_RETURN ((LM_ERROR,"acceptor_registry::open"),-1);
  return 0;
}

int TAO_AV_Core::init_transport_factories

(

void

)

Definition at line 812 of file AV_Core.cpp.

References ACE_DEBUG, ACE_ERROR_RETURN, ACE_TEXT(), ACE_Unbounded_Set_Ex< T, C >::begin(), ACE_Unbounded_Set_Ex< T, C >::end(), LM_DEBUG, LM_ERROR, load_default_transport_factories(), TAO_debug_level, and transport_factories_.

Referenced by init().

{
  TAO_AV_TransportFactorySetItor end = this->transport_factories_.end ();
  TAO_AV_TransportFactorySetItor factory = this->transport_factories_.begin ();


  if (factory == end)
    {
      if (TAO_debug_level > 0)
        ACE_DEBUG ((LM_DEBUG,
                    "Loading default transport protocols\n"));
      this->load_default_transport_factories ();
    }
  else
    {
      for (; factory != end; factory++)
        {
          const ACE_CString &name = (*factory)->name ();
          if (TAO_debug_level > 0)
            ACE_DEBUG ((LM_DEBUG,
                        "%s \n",
                        name.c_str ()));

          (*factory)->factory (
                               ACE_Dynamic_Service<TAO_AV_Transport_Factory>::instance (name.c_str ()));
          if ((*factory)->factory () == 0)
            {
              ACE_ERROR_RETURN ((LM_ERROR,
                                 ACE_TEXT ("TAO (%P|%t) Unable to load ")
                                 ACE_TEXT ("protocol <%s>, %p\n"),
                                 name.c_str (), ""),
                                -1);
            }
          (*factory)->factory ()->ref_count = 1;

          if (TAO_debug_level > 0)
            {
              ACE_DEBUG ((LM_DEBUG,
                          ACE_TEXT ("TAO (%P|%t) Loaded protocol <%s>\n"),
                          name.c_str ()));
            }
        }
    }

  return 0;
}

int TAO_AV_Core::load_default_flow_protocol_factories

(

void

)

Definition at line 860 of file AV_Core.cpp.

References ACE_ERROR, ACE_NEW_RETURN, TAO_AV_Flow_Protocol_Item::factory(), flow_protocol_factories_, ACE_Unbounded_Set_Ex< T, C >::insert(), ACE_Dynamic_Service< TYPE >::instance(), LM_WARNING, TAO_AV_Flow_Protocol_Factory::ref_count, and TAO_debug_level.

Referenced by init_flow_protocol_factories().

{
  const char *udp_flow = "UDP_Flow_Factory";
  const char *tcp_flow = "TCP_Flow_Factory";
  const char *rtp_flow = "RTP_Flow_Factory";
  const char *rtcp_flow = "RTCP_Flow_Factory";
  const char *sfp_flow = "SFP_Flow_Factory";

  TAO_AV_Flow_Protocol_Factory *udp_flow_factory = 0;
  TAO_AV_Flow_Protocol_Item *udp_item = 0;

  udp_flow_factory =
    ACE_Dynamic_Service<TAO_AV_Flow_Protocol_Factory>::instance (udp_flow);
  if (udp_flow_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "UDP Flow Factory"));

      ACE_NEW_RETURN (udp_flow_factory,
                      TAO_AV_UDP_Flow_Factory,
                      -1);
    }
  else udp_flow_factory->ref_count = 1;

  ACE_NEW_RETURN (udp_item, TAO_AV_Flow_Protocol_Item ("UDP_Flow_Factory"), -1);
  udp_item->factory (udp_flow_factory);

  this->flow_protocol_factories_.insert (udp_item);

#if defined (ACE_HAS_RAPI) || defined (ACE_HAS_WINSOCK2_GQOS)

  const char *udp_qos_flow = "UDP_QoS_Flow_Factory";
  TAO_AV_Flow_Protocol_Factory *udp_qos_flow_factory = 0;
  TAO_AV_Flow_Protocol_Item *udp_qos_flow_item = 0;

  udp_qos_flow_factory =
    ACE_Dynamic_Service<TAO_AV_Flow_Protocol_Factory>::instance (udp_qos_flow);
  if (udp_qos_flow_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "UDP QoS Flow Factory"));

      ACE_NEW_RETURN (udp_qos_flow_factory,
                      TAO_AV_UDP_QoS_Flow_Factory,
                      -1);
    }
  else udp_qos_flow_factory->ref_count = 1;

  ACE_NEW_RETURN (udp_qos_flow_item, TAO_AV_Flow_Protocol_Item ("UDP_QoS_Flow_Factory"), -1);
  udp_qos_flow_item->factory (udp_qos_flow_factory);

  this->flow_protocol_factories_.insert (udp_qos_flow_item);

#endif /* defined (ACE_HAS_RAPI) || defined (ACE_HAS_WINSOCK2_GQOS) */

#if defined ACE_HAS_SCTP

  const char *sctp_seq_flow = "SCTP_SEQ_Flow_Factory";
  TAO_AV_Flow_Protocol_Factory *sctp_seq_flow_factory = 0;
  TAO_AV_Flow_Protocol_Item *sctp_seq_flow_item = 0;

  sctp_seq_flow_factory =
    ACE_Dynamic_Service<TAO_AV_Flow_Protocol_Factory>::instance (sctp_seq_flow);
  if (sctp_seq_flow_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "SCTP SEQ Flow Factory"));

      ACE_NEW_RETURN (sctp_seq_flow_factory,
                      TAO_AV_SCTP_SEQ_Flow_Factory,
                      -1);
    }
  else sctp_seq_flow_factory->ref_count = 1;

  ACE_NEW_RETURN (sctp_seq_flow_item, TAO_AV_Flow_Protocol_Item ("SCTP_SEQ_Flow_Factory"), -1);
  sctp_seq_flow_item->factory (sctp_seq_flow_factory);

  this->flow_protocol_factories_.insert (sctp_seq_flow_item);

#endif /* ACE_HAS_SCTP */

  TAO_AV_Flow_Protocol_Factory *tcp_flow_factory = 0;
  TAO_AV_Flow_Protocol_Item *tcp_item = 0;

  tcp_flow_factory =
    ACE_Dynamic_Service<TAO_AV_Flow_Protocol_Factory>::instance (tcp_flow);
  if (tcp_flow_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "TCP Flow Factory"));

      ACE_NEW_RETURN (tcp_flow_factory,
                      TAO_AV_TCP_Flow_Factory,
                      -1);
    }
  else tcp_flow_factory->ref_count = 1;

  ACE_NEW_RETURN (tcp_item, TAO_AV_Flow_Protocol_Item ("TCP_Flow_Factory"), -1);
  tcp_item->factory (tcp_flow_factory);

  this->flow_protocol_factories_.insert (tcp_item);

  TAO_AV_Flow_Protocol_Factory *rtp_flow_factory = 0;
  TAO_AV_Flow_Protocol_Item *rtp_item = 0;

  rtp_flow_factory =
    ACE_Dynamic_Service<TAO_AV_Flow_Protocol_Factory>::instance (rtp_flow);
  if (rtp_flow_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "RTP Flow Factory"));

      ACE_NEW_RETURN (rtp_flow_factory,
                      TAO_AV_RTP_Flow_Factory,
                      -1);
    }
  else rtp_flow_factory->ref_count = 1;

  ACE_NEW_RETURN (rtp_item, TAO_AV_Flow_Protocol_Item ("RTP_Flow_Factory"), -1);
  rtp_item->factory (rtp_flow_factory);

  this->flow_protocol_factories_.insert (rtp_item);

  TAO_AV_Flow_Protocol_Factory *rtcp_flow_factory = 0;
  TAO_AV_Flow_Protocol_Item *rtcp_item = 0;

  rtcp_flow_factory =
    ACE_Dynamic_Service<TAO_AV_Flow_Protocol_Factory>::instance (rtcp_flow);
  if (rtcp_flow_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "RTCP Flow Factory"));

      ACE_NEW_RETURN (rtcp_flow_factory,
                      TAO_AV_RTCP_Flow_Factory,
                      -1);
    }
  else rtcp_flow_factory->ref_count = 1;

  ACE_NEW_RETURN (rtcp_item, TAO_AV_Flow_Protocol_Item ("RTCP_Flow_Factory"), -1);
  rtcp_item->factory (rtcp_flow_factory);

  this->flow_protocol_factories_.insert (rtcp_item);

  TAO_AV_Flow_Protocol_Factory *sfp_flow_factory = 0;
  TAO_AV_Flow_Protocol_Item *sfp_item = 0;

  sfp_flow_factory =
    ACE_Dynamic_Service<TAO_AV_Flow_Protocol_Factory>::instance (sfp_flow);
  if (sfp_flow_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "SFP Flow Factory"));

      ACE_NEW_RETURN (sfp_flow_factory,
                      TAO_AV_SFP_Factory,
                      -1);
    }
  else sfp_flow_factory->ref_count = 1;

  ACE_NEW_RETURN (sfp_item, TAO_AV_Flow_Protocol_Item ("SFP_Flow_Factory"), -1);
  sfp_item->factory (sfp_flow_factory);

  this->flow_protocol_factories_.insert (sfp_item);

  return 0;
}

int TAO_AV_Core::load_default_transport_factories

(

void

)

Definition at line 693 of file AV_Core.cpp.

References ACE_ERROR, ACE_NEW_RETURN, TAO_AV_Transport_Item::factory(), ACE_Unbounded_Set_Ex< T, C >::insert(), ACE_Dynamic_Service< TYPE >::instance(), LM_WARNING, TAO_AV_Transport_Factory::ref_count, TAO_debug_level, and transport_factories_.

Referenced by init_transport_factories().

{
  const char *udp_factory_str = "UDP_Factory";
  const char *tcp_factory_str = "TCP_Factory";

  TAO_AV_Transport_Factory *udp_factory = 0;
  TAO_AV_Transport_Item *udp_item = 0;

  udp_factory =
    ACE_Dynamic_Service<TAO_AV_Transport_Factory>::instance (udp_factory_str);
  if (udp_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "UDP Factory"));

      ACE_NEW_RETURN (udp_factory,
                      TAO_AV_UDP_Factory,
                      -1);
    }
  else udp_factory->ref_count = 1;

  ACE_NEW_RETURN (udp_item, TAO_AV_Transport_Item ("UDP_Factory"), -1);
  udp_item->factory (udp_factory);

  this->transport_factories_.insert (udp_item);

  TAO_AV_Transport_Factory *tcp_factory = 0;
  TAO_AV_Transport_Item *tcp_item = 0;

  tcp_factory =
    ACE_Dynamic_Service<TAO_AV_Transport_Factory>::instance (tcp_factory_str);
  if (tcp_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "TCP Factory"));

      ACE_NEW_RETURN (tcp_factory,
                      TAO_AV_TCP_Factory,
                          -1);
    }
  else tcp_factory->ref_count = 1;

  ACE_NEW_RETURN (tcp_item, TAO_AV_Transport_Item ("TCP_Factory"), -1);
  tcp_item->factory (tcp_factory);

  this->transport_factories_.insert (tcp_item);

#if defined (ACE_HAS_RAPI) || defined (ACE_HAS_WINSOCK2_GQOS)
  const char *udp_qos_factory_str = "UDP_QoS_Factory";

  TAO_AV_Transport_Factory *udp_qos_factory = 0;
  TAO_AV_Transport_Item *udp_qos_item = 0;

  udp_qos_factory =
        ACE_Dynamic_Service<TAO_AV_Transport_Factory>::instance (udp_qos_factory_str);
  if (udp_qos_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "UDP QoS Factory"));

          ACE_NEW_RETURN (udp_qos_factory,
                          TAO_AV_UDP_QoS_Factory,
                          -1);
    }
  else udp_qos_factory->ref_count = 1;

  ACE_NEW_RETURN (udp_qos_item,
                  TAO_AV_Transport_Item ("UDP_QoS_Factory"),
                  -1);

  udp_qos_item->factory (udp_qos_factory);

  this->transport_factories_.insert (udp_qos_item);
#endif /* ACE_HAS_RAPI || ACE_HAS_WINSOCK2_GQOS */

#if defined ACE_HAS_SCTP
  const char *sctp_seq_factory_str = "SCTP_SEQ_Factory";

  TAO_AV_Transport_Factory *sctp_seq_factory = 0;
  TAO_AV_Transport_Item *sctp_seq_item = 0;

  sctp_seq_factory =
        ACE_Dynamic_Service<TAO_AV_Transport_Factory>::instance (sctp_seq_factory_str);
  if (sctp_seq_factory == 0)
    {
      if (TAO_debug_level)
        ACE_ERROR ((LM_WARNING,
                    "(%P|%t) WARNING - No %s found in Service Repository."
                    "  Using default instance.\n",
                    "SCTP SEQ Factory"));

      ACE_NEW_RETURN (sctp_seq_factory,
              TAO_AV_SCTP_SEQ_Factory,
              -1);
    }
  else sctp_seq_factory->ref_count = 1;

  ACE_NEW_RETURN (sctp_seq_item,
                  TAO_AV_Transport_Item ("SCTP_SEQ_Factory"),
                  -1);

  sctp_seq_item->factory (sctp_seq_factory);

  this->transport_factories_.insert (sctp_seq_item);
#endif /* ACE_HAS_SCTP */

  return 0;
}

void TAO_AV_Core::orb

(

CORBA::ORB_ptr

orb_

)

Definition at line 85 of file AV_Core.cpp.

References orb(), and orb_.

{
  this->orb_ = orb;
}

CORBA::ORB_ptr TAO_AV_Core::orb

(

void

)

Definition at line 79 of file AV_Core.cpp.

References TAO_Pseudo_Var_T< T >::in(), and orb_.

Referenced by init(), and orb().

{
  return this->orb_.in ();
}

void TAO_AV_Core::poa

(

PortableServer::POA_ptr

poa_

)

Definition at line 97 of file AV_Core.cpp.

References poa_.

{
  this->poa_ = poa;
}

PortableServer::POA_ptr TAO_AV_Core::poa

(

void

)

Definition at line 91 of file AV_Core.cpp.

References TAO_Objref_Var_T< T >::in(), and poa_.

Referenced by deactivate_servant().

{
  return this->poa_.in ();
}

ACE_Reactor * TAO_AV_Core::reactor

(

void

)

Definition at line 149 of file AV_Core.cpp.

References reactor_.

Referenced by init().

{
  return this->reactor_;
}

void TAO_AV_Core::reactor

(

ACE_Reactor *

r

)

Definition at line 143 of file AV_Core.cpp.

References reactor_.

Referenced by TAO_AV_UDP_Connector::activate_svc_handler(), TAO_AV_UDP_Acceptor::activate_svc_handler(), TAO_AV_TCP_Acceptor::open(), TAO_AV_TCP_Connector::open(), and TAO_AV_TCP_Acceptor::open_default().

{
  this->reactor_ = r;
}

int TAO_AV_Core::remove_acceptor

(

const char *

flowname

)

Definition at line 587 of file AV_Core.cpp.

References CORBA::Exception::_tao_print_exception(), acceptor_registry_, TAO_AV_Acceptor_Registry::begin(), TAO_AV_Acceptor_Registry::close(), TAO_AV_Acceptor_Registry::end(), and ACE_OS::strcmp().

{

  try
    {

      TAO_AV_AcceptorSetItor acceptor =  this->acceptor_registry_->begin ();

      TAO_AV_AcceptorSetItor end =
        this->acceptor_registry_->end ();

      for (;acceptor != end; ++acceptor)
        {
          if (ACE_OS::strcmp ((*acceptor)->flowname (),flowname) == 0)
            {
              this->acceptor_registry_->close (*acceptor);
              return 0;
            }
        }
    }
  catch (const CORBA::Exception& ex)
    {
      ex._tao_print_exception ("TAO_AV_Core::get_acceptor");
    }
  return -1;
}

int TAO_AV_Core::remove_connector

(

const char *

flowname

)

Definition at line 631 of file AV_Core.cpp.

References TAO_AV_Connector_Registry::begin(), TAO_AV_Connector_Registry::close(), connector_registry_, TAO_AV_Connector_Registry::end(), and ACE_OS::strcmp().

{
  TAO_AV_ConnectorSetItor connector =
    this->connector_registry_->begin ();
  TAO_AV_ConnectorSetItor end =
    this->connector_registry_->end ();

  for (;connector != end; ++connector)
    {
      if (ACE_OS::strcmp ((*connector)->flowname (),flowname) == 0)
        {
          this->connector_registry_->close (*connector);
          return 0;
        }
    }
  return -1;
}

int TAO_AV_Core::run

(

void

)

Definition at line 134 of file AV_Core.cpp.

References stop_run_.

{
  this->stop_run_ = 0;
  while (!this->stop_run_ && this->orb_->work_pending ())
    this->orb_->perform_work ();
  return 0;
}

int TAO_AV_Core::stop_run

(

void

)

Definition at line 127 of file AV_Core.cpp.

References stop_run_.

{
  this->stop_run_ = 1;
  return 0;
}

TAO_AV_TransportFactorySet * TAO_AV_Core::transport_factories

(

void

)

Definition at line 115 of file AV_Core.cpp.

References transport_factories_.

{
  return &this->transport_factories_;
}

---

Member Data Documentation

TAO_AV_Acceptor_Registry* TAO_AV_Core::acceptor_registry_ [protected]

The registry which maintains a list of acceptor factories for each loaded protocol.

Definition at line 149 of file AV_Core.h.

Referenced by acceptor_registry(), get_acceptor(), init_forward_flows(), remove_acceptor(), and ~TAO_AV_Core().

TAO_AV_Connector_Registry* TAO_AV_Core::connector_registry_ [protected]

The connector registry which all active connecters must register themselves with.

Definition at line 145 of file AV_Core.h.

Referenced by connector_registry(), get_connector(), init_forward_flows(), init_reverse_flows(), remove_connector(), and ~TAO_AV_Core().

TAO_AV_Flow_ProtocolFactorySet TAO_AV_Core::flow_protocol_factories_ [protected]

Pointer to the list of flow protocol loaded into this AV_Core instance.

Definition at line 155 of file AV_Core.h.

Referenced by flow_protocol_factories(), get_flow_protocol_factory(), init_flow_protocol_factories(), load_default_flow_protocol_factories(), and ~TAO_AV_Core().

CORBA::ORB_var TAO_AV_Core::orb_ [protected]

Definition at line 158 of file AV_Core.h.

Referenced by init(), and orb().

PortableServer::POA_var TAO_AV_Core::poa_ [protected]

Definition at line 159 of file AV_Core.h.

Referenced by init(), and poa().

ACE_Reactor* TAO_AV_Core::reactor_ [protected]

Definition at line 157 of file AV_Core.h.

Referenced by reactor().

CORBA::Boolean TAO_AV_Core::stop_run_ [protected]

Definition at line 160 of file AV_Core.h.

Referenced by run(), and stop_run().

TAO_AV_TransportFactorySet TAO_AV_Core::transport_factories_ [protected]

Pointer to the list of transports loaded into this AV_Core instance.

Definition at line 152 of file AV_Core.h.

Referenced by get_transport_factory(), init_transport_factories(), load_default_transport_factories(), transport_factories(), and ~TAO_AV_Core().

---

The documentation for this class was generated from the following files:

• AV_Core.h
• AV_Core.cpp

---
