TAO_AV_UDP_Acceptor Class Reference

#include <UDP.h>

Inheritance diagram for TAO_AV_UDP_Acceptor:

Inheritance graph
[legend]

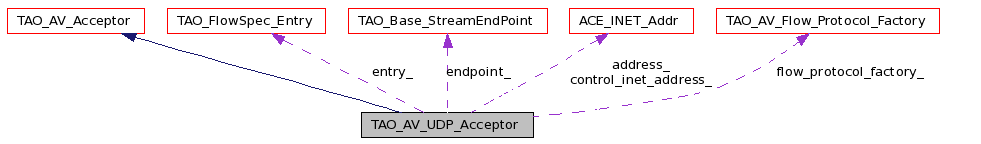

Collaboration diagram for TAO_AV_UDP_Acceptor:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_AV_UDP_Acceptor (void)
virtual ~TAO_AV_UDP_Acceptor (void)
virtual int open (TAO_Base_StreamEndPoint *endpoint, TAO_AV_Core *av_core, TAO_FlowSpec_Entry *entry, TAO_AV_Flow_Protocol_Factory *factory, TAO_AV_Core::Flow_Component flow_comp=TAO_AV_Core::TAO_AV_DATA)
virtual int open_default (TAO_Base_StreamEndPoint *endpoint, TAO_AV_Core *av_core, TAO_FlowSpec_Entry *entry, TAO_AV_Flow_Protocol_Factory *factory, TAO_AV_Core::Flow_Component flow_comp=TAO_AV_Core::TAO_AV_DATA)
virtual int open_i (ACE_INET_Addr *address, int is_default_open)
virtual int close (void)
virtual int activate_svc_handler (TAO_AV_Flow_Handler *handler)

Protected Attributes

ACE_INET_Addr * address_
ACE_INET_Addr * control_inet_address_
TAO_Base_StreamEndPoint * endpoint_
TAO_FlowSpec_Entry * entry_
TAO_AV_Flow_Protocol_Factory * flow_protocol_factory_
TAO_AV_Core::Flow_Component flow_component_

Detailed Description

Definition at line 141 of file UDP.h.

Constructor & Destructor Documentation

TAO_AV_UDP_Acceptor::TAO_AV_UDP_Acceptor ( void   )

Definition at line 325 of file UDP.cpp.

00326   : address_ (0),
00327     control_inet_address_ (0)
00328 {
00329 }

TAO_AV_UDP_Acceptor::~TAO_AV_UDP_Acceptor ( void   )  [virtual]

Definition at line 331 of file UDP.cpp.

References address_, TAO_FlowSpec_Entry::control_handler(), control_inet_address_, entry_, and TAO_AV_Core::TAO_AV_CONTROL.

00332 {
00333   if (this->flow_component_ == TAO_AV_Core::TAO_AV_CONTROL)
00334     delete this->entry_->control_handler ();
00335
00336   delete this->address_;
00337   delete this->control_inet_address_;
00338 }

Member Function Documentation

int TAO_AV_UDP_Acceptor::activate_svc_handler ( TAO_AV_Flow_Handler *  handler  )  [virtual]

Definition at line 341 of file UDP.cpp.

References TAO_AV_Acceptor::av_core_, TAO_AV_Flow_Handler::event_handler(), TAO_AV_Core::reactor(), ACE_Event_Handler::READ_MASK, TAO_AV_Flow_Handler::schedule_timer(), and TAO_AV_Core::TAO_AV_CONTROL.

Referenced by open_i().

00342 {
00343   ACE_Event_Handler *event_handler = handler->event_handler ();
00344   int result = this->av_core_->reactor ()->register_handler (event_handler,
00345                                                              ACE_Event_Handler::READ_MASK);
00346
00347   if (this->flow_component_ == TAO_AV_Core::TAO_AV_CONTROL)
00348     handler->schedule_timer ();
00349
00350  return result;
00351 }

int TAO_AV_UDP_Acceptor::close ( void   )  [virtual]

Implements TAO_AV_Acceptor.

Definition at line 564 of file UDP.cpp.

00565 {
00566   return 0;
00567 }

int TAO_AV_UDP_Acceptor::open ( TAO_Base_StreamEndPoint *  endpoint,
TAO_AV_Core *  av_core,
TAO_FlowSpec_Entry *  entry,
TAO_AV_Flow_Protocol_Factory *  factory,
TAO_AV_Core::Flow_Component  flow_comp = TAO_AV_Core::TAO_AV_DATA
) [virtual]

Implements TAO_AV_Acceptor.

Definition at line 354 of file UDP.cpp.

References ACE_DEBUG, TAO_FlowSpec_Entry::address(), TAO_AV_Acceptor::av_core_, TAO_FlowSpec_Entry::control_address(), endpoint_, entry_, flow_component_, flow_protocol_factory_, TAO_FlowSpec_Entry::flowname(), TAO_AV_Acceptor::flowname_, TAO_AV_Core::get_control_flowname(), inet_addr(), LM_DEBUG, open_i(), TAO_AV_Core::TAO_AV_CONTROL, and TAO_debug_level.

00359 {
00360   if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"TAO_AV_UDP_Acceptor::open\n"));
00361   this->av_core_ = av_core;
00362   this->endpoint_ = endpoint;
00363   this->entry_ = entry;
00364   this->flow_component_ = flow_comp;
00365   this->flow_protocol_factory_ = factory;
00366   ACE_INET_Addr *inet_addr;
00367   if (flow_comp == TAO_AV_Core::TAO_AV_CONTROL)
00368     {
00369       this->flowname_ = TAO_AV_Core::get_control_flowname (entry->flowname ());
00370       inet_addr = (ACE_INET_Addr *) entry->control_address ();
00371     }
00372   else
00373     {
00374       this->flowname_ = entry->flowname ();
00375       inet_addr = (ACE_INET_Addr *) entry->address ();
00376     }
00377
00378   if (inet_addr != 0)
00379     {
00380       char buf[BUFSIZ];
00381       inet_addr->addr_to_string (buf,
00382                  BUFSIZ);
00383
00384       if (TAO_debug_level > 0)
00385     ACE_DEBUG ((LM_DEBUG,
00386             "TAO_AV_UDP_Acceptor::open: %s\n",
00387             buf));
00388     }
00389
00390   int result = this->open_i (inet_addr, 0);
00391
00392   if (result < 0)
00393     return result;
00394   return 0;
00395 }

int TAO_AV_UDP_Acceptor::open_default ( TAO_Base_StreamEndPoint *  endpoint,
TAO_AV_Core *  av_core,
TAO_FlowSpec_Entry *  entry,
TAO_AV_Flow_Protocol_Factory *  factory,
TAO_AV_Core::Flow_Component  flow_comp = TAO_AV_Core::TAO_AV_DATA
) [virtual]

Implements TAO_AV_Acceptor.

Definition at line 398 of file UDP.cpp.

References ACE_NEW_RETURN, TAO_AV_Acceptor::av_core_, endpoint_, entry_, flow_component_, flow_protocol_factory_, TAO_FlowSpec_Entry::flowname(), TAO_AV_Acceptor::flowname_, TAO_AV_Core::get_control_flowname(), open_i(), and TAO_AV_Core::TAO_AV_CONTROL.

00403 {
00404   this->av_core_ = av_core;
00405   this->endpoint_ = endpoint;
00406   this->entry_ = entry;
00407   this->flow_component_ = flow_comp;
00408   this->flow_protocol_factory_ = factory;
00409   if (flow_comp == TAO_AV_Core::TAO_AV_CONTROL)
00410     {
00411       this->flowname_ = TAO_AV_Core::get_control_flowname (entry->flowname ());
00412     }
00413   else
00414     {
00415       this->flowname_ = entry->flowname ();
00416       ACE_NEW_RETURN (this->address_,
00417                     ACE_INET_Addr ("0"),
00418                     -1);
00419     }
00420
00421   int result = this->open_i (this->address_, 1);
00422   if (result < 0)
00423     return result;
00424
00425   return 0;
00426 }

int TAO_AV_UDP_Acceptor::open_i ( ACE_INET_Addr *  address,
int  is_default_open
) [virtual]

Definition at line 429 of file UDP.cpp.

References TAO_AV_UDP_Connection_Setup::ACCEPTOR, ACE_DEBUG, ACE_NEW_RETURN, activate_svc_handler(), ACE_INET_Addr::addr_to_string(), TAO_FlowSpec_Entry::address(), TAO_FlowSpec_Entry::control_address(), TAO_FlowSpec_Entry::control_handler(), TAO_FlowSpec_Entry::control_protocol_object(), endpoint_, entry_, flow_component_, flow_protocol_factory_, ACE_INET_Addr::get_host_name(), TAO_FlowSpec_Entry::get_local_control_addr(), ACE_INET_Addr::get_port_number(), TAO_FlowSpec_Entry::handler(), inet_addr(), ACE_INET_Addr::is_multicast(), LM_DEBUG, TAO_AV_Flow_Protocol_Factory::make_protocol_object(), TAO_FlowSpec_Entry::protocol_object(), TAO_AV_Flow_Handler::protocol_object(), ACE_INET_Addr::set(), TAO_Base_StreamEndPoint::set_control_flow_handler(), TAO_Base_StreamEndPoint::set_flow_handler(), TAO_FlowSpec_Entry::set_local_addr(), TAO_FlowSpec_Entry::set_local_control_addr(), TAO_AV_UDP_Connection_Setup::setup(), ACE_OS::strcasecmp(), TAO_AV_Core::TAO_AV_CONTROL, TAO_AV_Core::TAO_AV_DATA, TAO_debug_level, and TAO_AV_Flow_Handler::transport().

Referenced by open(), and open_default().

00431 {
00432   int result = -1;
00433   ACE_INET_Addr *local_addr = 0;
00434
00435   TAO_AV_Flow_Handler *flow_handler = 0;
00436
00437   // if using a default address and this is the control flow component, the
00438   //  handler and local address are already set in the flow spec entry
00439   if (is_default_addr &&
00440       (this->flow_component_ == TAO_AV_Core::TAO_AV_CONTROL)  &&
00441       (ACE_OS::strcasecmp(this->entry_->flow_protocol_str (), "RTP") == 0))
00442     {
00443       flow_handler = this->entry_->control_handler ();
00444
00445       local_addr = dynamic_cast<ACE_INET_Addr*> (this->entry_->get_local_control_addr ());
00446     }
00447   else
00448     {
00449       // this variable is only used for RTP/UDP; RFC 1889 requires an even/odd
00450       //  consecutive port pair
00451       int get_new_port = 1;
00452
00453       while (get_new_port)
00454         {
00455           // assume the ports will be OK
00456           get_new_port = 0;
00457
00458           result = TAO_AV_UDP_Connection_Setup::setup (flow_handler,
00459                                                        inet_addr,
00460                                                        local_addr,
00461                                                        this->entry_->is_multicast (),
00462                                                        TAO_AV_UDP_Connection_Setup::ACCEPTOR);
00463
00464       if (result < 0)
00465           {
00466              ACE_DEBUG((LM_DEBUG,"(%N,%l) Error during connection setup: %d\n", result));
00467           }
00468
00469           local_addr->set (local_addr->get_port_number (),
00470                            local_addr->get_host_name ());
00471
00472           if (is_default_addr)
00473             {
00474               if ((ACE_OS::strcasecmp(this->entry_->flow_protocol_str (), "RTP") == 0) &&
00475                   (this->flow_component_ == TAO_AV_Core::TAO_AV_DATA))
00476                 {
00477                   if (is_default_addr && local_addr->get_port_number ()%2 != 0)
00478                     {
00479                       // RTP port should be even
00480                       delete local_addr;
00481                       local_addr = 0;
00482                       delete flow_handler;
00483                       get_new_port = 1;
00484                     }
00485                   else
00486                     {
00487                       ACE_INET_Addr *local_control_addr = 0;
00488                       TAO_AV_Flow_Handler *control_flow_handler = 0;
00489
00490                       ACE_NEW_RETURN (this->control_inet_address_,
00491                                       ACE_INET_Addr ("0"),
00492                                       -1);
00493
00494                       TAO_AV_UDP_Connection_Setup::setup(control_flow_handler,
00495                                                          this->control_inet_address_,
00496                                                          local_control_addr,
00497                                                          this->entry_->is_multicast (),
00498                                                          TAO_AV_UDP_Connection_Setup::ACCEPTOR);
00499
00500                       if (local_control_addr->get_port_number () !=
00501                           local_addr->get_port_number () +1)
00502                         {
00503                           delete this->control_inet_address_;
00504                           delete local_addr;
00505                           local_addr = 0;
00506                           delete flow_handler;
00507                           delete local_control_addr;
00508                           delete control_flow_handler;
00509                           get_new_port = 1;
00510                         }
00511                       else
00512                         {
00513                           this->entry_->control_address (this->control_inet_address_);
00514                           this->entry_->set_local_control_addr (local_control_addr);
00515                           this->entry_->control_handler (control_flow_handler);
00516                         }
00517                     }
00518                 }
00519             }
00520         }
00521     }
00522
00523   TAO_AV_Protocol_Object *object =
00524     this->flow_protocol_factory_->make_protocol_object (this->entry_,
00525                                                         this->endpoint_,
00526                                                         flow_handler,
00527                                                         flow_handler->transport ());
00528   flow_handler->protocol_object (object);
00529
00530   if (this->flow_component_ == TAO_AV_Core::TAO_AV_DATA)
00531     {
00532       this->endpoint_->set_flow_handler (this->flowname_.c_str (),flow_handler);
00533
00534       this->entry_->protocol_object (object);
00535       this->entry_->set_local_addr (local_addr);
00536       this->entry_->handler (flow_handler);
00537       //this->entry_->address (inet_addr);
00538       this->entry_->address (local_addr);
00539     }
00540   else
00541     {
00542       this->endpoint_->set_control_flow_handler (this->flowname_.c_str (),flow_handler);
00543
00544       this->entry_->control_protocol_object (object);
00545       this->entry_->set_local_control_addr (local_addr);
00546       this->entry_->control_handler (flow_handler);
00547     }
00548
00549   if (local_addr != 0)
00550     {
00551       char buf[BUFSIZ];
00552       local_addr->addr_to_string (buf,BUFSIZ);
00553       if (TAO_debug_level > 0)
00554         ACE_DEBUG ((LM_DEBUG,
00555                     "TAO_AV_UDP_ACCEPTOR::open:%s \n",
00556                     buf));
00557     }
00558
00559   // call activate svc handler.
00560   return this->activate_svc_handler (flow_handler);
00561 }

Member Data Documentation

ACE_INET_Addr* TAO_AV_UDP_Acceptor::address_ [protected]

Reimplemented from TAO_AV_Acceptor.

Definition at line 168 of file UDP.h.

Referenced by ~TAO_AV_UDP_Acceptor().

ACE_INET_Addr* TAO_AV_UDP_Acceptor::control_inet_address_ [protected]

Definition at line 169 of file UDP.h.

Referenced by ~TAO_AV_UDP_Acceptor().

TAO_Base_StreamEndPoint* TAO_AV_UDP_Acceptor::endpoint_ [protected]

Definition at line 170 of file UDP.h.

Referenced by open(), open_default(), and open_i().

TAO_FlowSpec_Entry* TAO_AV_UDP_Acceptor::entry_ [protected]

Definition at line 171 of file UDP.h.

Referenced by open(), open_default(), open_i(), and ~TAO_AV_UDP_Acceptor().

TAO_AV_Core::Flow_Component TAO_AV_UDP_Acceptor::flow_component_ [protected]

Definition at line 173 of file UDP.h.

Referenced by open(), open_default(), and open_i().

TAO_AV_Flow_Protocol_Factory* TAO_AV_UDP_Acceptor::flow_protocol_factory_ [protected]

Definition at line 172 of file UDP.h.

Referenced by open(), open_default(), and open_i().

The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:48:06 2010 for TAO_AV by  doxygen 1.4.7
