TAO_AV_TCP_Flow_Handler Class Reference

#include <TCP.h>

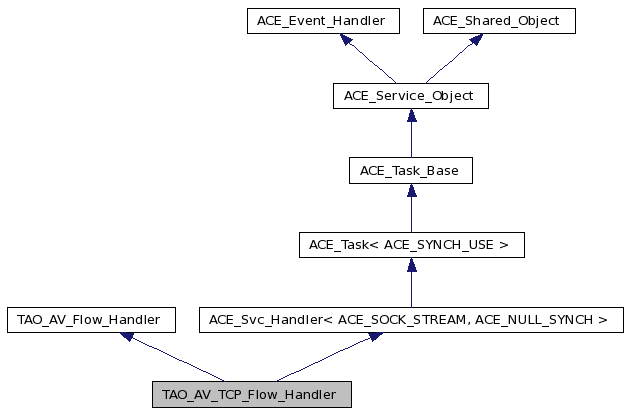

Inheritance diagram for TAO_AV_TCP_Flow_Handler:

[legend]Collaboration diagram for TAO_AV_TCP_Flow_Handler:

[legend]List of all members.

Public Member Functions
	TAO_AV_TCP_Flow_Handler (TAO_AV_Callback *callback=0)
virtual	~TAO_AV_TCP_Flow_Handler (void)
virtual TAO_AV_Transport *	transport (void)
	get the transport.
virtual int	open (void *=0)
virtual int	handle_input (ACE_HANDLE fd)
virtual int	handle_timeout (const ACE_Time_Value &tv, const void *arg=0)
	Handle timeout. called from reactor.
virtual ACE_Event_Handler *	event_handler (void)
	get the underlying event handler. To be overridden by the derived clases.
Protected Attributes
TAO_AV_Core *	av_core_

---

Detailed Description

Definition at line 105 of file TCP.h.

---

Constructor & Destructor Documentation

TAO_AV_TCP_Flow_Handler::TAO_AV_TCP_Flow_Handler

(

TAO_AV_Callback *

callback = 0

)

Definition at line 625 of file TCP.cpp.

References ACE_NEW.

      :TAO_AV_Flow_Handler (callback)
{
  ACE_NEW (this->transport_,
           TAO_AV_TCP_Transport (this));
}

TAO_AV_TCP_Flow_Handler::~TAO_AV_TCP_Flow_Handler

(

void

)

[virtual]

Definition at line 632 of file TCP.cpp.

References TAO_AV_Flow_Handler::transport_.

{
  delete this->transport_;
}

---

Member Function Documentation

virtual ACE_Event_Handler* TAO_AV_TCP_Flow_Handler::event_handler

(

void

)

[inline, virtual]

get the underlying event handler. To be overridden by the derived clases.

Implements TAO_AV_Flow_Handler.

Definition at line 116 of file TCP.h.

{ return this; }

int TAO_AV_TCP_Flow_Handler::handle_input

(

ACE_HANDLE

fd

)

[virtual]

Reimplemented from ACE_Event_Handler.

Definition at line 702 of file TCP.cpp.

References TAO_AV_Protocol_Object::handle_input(), and TAO_AV_Flow_Handler::protocol_object_.

{
  return this->protocol_object_->handle_input ();
}

int TAO_AV_TCP_Flow_Handler::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg = 0
	)			[virtual]

Handle timeout. called from reactor.

Reimplemented from TAO_AV_Flow_Handler.

Definition at line 708 of file TCP.cpp.

References TAO_AV_Flow_Handler::handle_timeout().

{
  return TAO_AV_Flow_Handler::handle_timeout (tv,arg);
}

int TAO_AV_TCP_Flow_Handler::open

(

void *

= 0

)

[virtual]

Reimplemented from ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >.

Definition at line 644 of file TCP.cpp.

References ACE_DEBUG, ACE_ERROR_RETURN, ACE_NONBLOCK, ACE_TEXT(), ACE_INET_Addr::addr_to_string(), IPPROTO_TCP, LM_DEBUG, LM_ERROR, MAXHOSTNAMELEN, ACE_Svc_Handler< ACE_SOCK_STREAM, ACE_NULL_SYNCH >::peer(), ACE_Event_Handler::reactor(), ACE_Event_Handler::READ_MASK, ACE_Reactor::register_handler(), SO_RCVBUF, SOL_SOCKET, TAO_debug_level, and TCP_NODELAY.

{

#if defined (TCP_NODELAY)
  int nodelay = 1;

  if (this->peer ().set_option (IPPROTO_TCP,
                                TCP_NODELAY,
                                (void *) &nodelay,
                                sizeof (nodelay)) == -1)
    ACE_ERROR_RETURN ((LM_ERROR,
                       "NODELAY failed\n"),
                      -1);
#endif /* TCP_NODELAY */

//begin: BJE: (allign the sizes of the buffers)
  int bufSize=BUFSIZ;
  int s= sizeof (bufSize);
  if(  this->peer ().get_option (SOL_SOCKET, /*IPPROTO_TCP,*/
                  SO_RCVBUF,
                                (void *) &bufSize,&s
                 ) == -1)
       bufSize=BUFSIZ;


    ((TAO_AV_TCP_Object*)(this->protocol_object_))->frame_.size (bufSize);
//end: BJE

  // Called by the <Strategy_Acceptor> when the handler is completely
  // connected.
  ACE_INET_Addr addr;

  if (this->peer ().get_remote_addr (addr) == -1)
    return -1;

  char server[MAXHOSTNAMELEN + 16];

  (void) addr.addr_to_string (server, sizeof (server));

  if (TAO_debug_level > 0)
    if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,
                "(%P|%t) connection to server <%s> on %d\n",
                server, this->peer ().get_handle ()));

  this->peer ().enable (ACE_NONBLOCK);
  // Register the handler with the reactor.
  if (this->reactor ()
      && this->reactor ()->register_handler
      (this,
       ACE_Event_Handler::READ_MASK) == -1)
    ACE_ERROR_RETURN ((LM_ERROR,
                       ACE_TEXT ("%p\n"),
                       ACE_TEXT ("unable to register client handler")),
                      -1);
  return 0;
}

TAO_AV_Transport * TAO_AV_TCP_Flow_Handler::transport

(

void

)

[virtual]

get the transport.

Reimplemented from TAO_AV_Flow_Handler.

Definition at line 638 of file TCP.cpp.

References TAO_AV_Flow_Handler::transport_.

Referenced by TAO_AV_TCP_Acceptor::make_svc_handler(), and TAO_AV_TCP_Connector::make_svc_handler().

{
  return this->transport_;
}

---

Member Data Documentation

TAO_AV_Core* TAO_AV_TCP_Flow_Handler::av_core_ [protected]

Definition at line 118 of file TCP.h.

---

The documentation for this class was generated from the following files:

• TCP.h
• TCP.cpp

---
