TAO_AV_Endpoint_Process_Strategy Class Reference

Process-based strategy for creating endpoints. Abstract base class. More...

#include <Endpoint_Strategy.h>

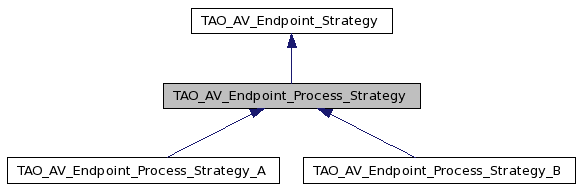

Inheritance diagram for TAO_AV_Endpoint_Process_Strategy:

Inheritance graph
[legend]

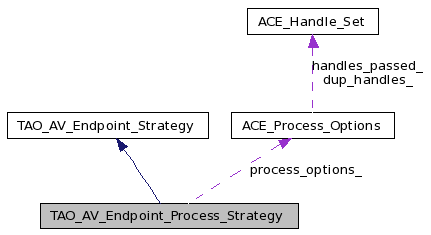

Collaboration diagram for TAO_AV_Endpoint_Process_Strategy:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_AV_Endpoint_Process_Strategy (ACE_Process_Options *process_options)
virtual ~TAO_AV_Endpoint_Process_Strategy (void)
 Destructor.
virtual int activate (void)

Protected Member Functions

virtual int bind_to_naming_service (void)
 Bind to the naming service.
virtual int get_stream_endpoint (void)=0
virtual int get_vdev (void)

Protected Attributes

CosNaming::NamingContext_var naming_context_
 Naming context.
ACE_Process_Options * process_options_
 Name and arguments for the process to be created.
char host_ [MAXHOSTNAMELEN]
 name of this host used for resolving unique names.
pid_t pid_
 My child's process id.

Detailed Description

Process-based strategy for creating endpoints. Abstract base class.

Definition at line 76 of file Endpoint_Strategy.h.

Constructor & Destructor Documentation

TAO_AV_Endpoint_Process_Strategy::TAO_AV_Endpoint_Process_Strategy ( ACE_Process_Options *  process_options  )

Constructor. The process_options contain the name and arguments for the process to be created

Definition at line 71 of file Endpoint_Strategy.cpp.

References ACE_OS::hostname().

00072   : process_options_ (process_options),
00073     pid_ (-1)
00074 {
00075   ACE_OS::hostname (this->host_,
00076                     sizeof this->host_);
00077 }

TAO_AV_Endpoint_Process_Strategy::~TAO_AV_Endpoint_Process_Strategy ( void   )  [virtual]

Destructor.

Definition at line 80 of file Endpoint_Strategy.cpp.

00081 {
00082 }

Member Function Documentation

int TAO_AV_Endpoint_Process_Strategy::activate ( void   )  [virtual]

creates a new child process, and waits on a semaphore until the child process has finished creating the endpoints

Definition at line 89 of file Endpoint_Strategy.cpp.

References CORBA::Exception::_tao_print_exception(), ACE_DEBUG, ACE_ERROR_RETURN, ACE_Process_Semaphore::acquire(), bind_to_naming_service(), get_stream_endpoint(), get_vdev(), ACE_OS::kill(), LM_DEBUG, LM_ERROR, pid_, ACE_Process_Semaphore::remove(), ACE_Process::spawn(), and ACE_OS::sprintf().

00090 {
00091   ACE_Process process;
00092
00093   // Create a new process to contain this endpoint
00094   this->pid_ = process.spawn (*this->process_options_);
00095
00096   // Process creation failed
00097   if (this->pid_ == -1)
00098     ACE_ERROR_RETURN ((LM_ERROR,
00099                        "(%P|%t) ACE_Process:: spawn failed: %p\n",
00100                        "spawn"),
00101                       -1);
00102
00103   // Create a unique semaphore name, using my hostname, and pid.
00104   char sem_str [BUFSIZ];
00105
00106   // create a unique semaphore name
00107   ACE_OS::sprintf (sem_str,
00108                    "%s:%s:%ld",
00109                    "TAO_AV_Process_Semaphore",
00110                    this->host_,
00111                    static_cast<long int> (this->pid_));
00112
00113   ACE_DEBUG ((LM_DEBUG,
00114               "(%P|%t) semaphore is %s\n",
00115               sem_str));
00116   // Create the semaphore
00117   ACE_Process_Semaphore semaphore (0, // 0 means that the
00118                                    // semaphore is locked initially
00119                                    sem_str);
00120
00121   // wait until the child finishes booting
00122   while (1)
00123     {
00124       if (semaphore.acquire () == -1)
00125         {
00126           // See if my child process is still alive -- if not, return an error
00127           if (ACE_OS::kill (this->pid_,
00128                             0) == -1)
00129             ACE_ERROR_RETURN ((LM_ERROR,
00130                                "(%P|%t) Process_Strategy: Process being waited on died unexpectedly.\n"),
00131                               -1);
00132           // if we were not interrupted due to a EINTR, break
00133           if (errno != EINTR)
00134             break;
00135         }
00136       else
00137         break;
00138     }
00139
00140   // The job of the semaphore is done, remove it.
00141   if (semaphore.remove () == -1)
00142     ACE_ERROR_RETURN ((LM_ERROR,
00143                        "(%P|%t) semaphore remove failed: %p\n",
00144                        "remove"),
00145                       -1);
00146
00147   try
00148     {
00149       // Get ourselves a Naming service
00150       this->bind_to_naming_service ();
00151
00152       // Get the stream endpoint created by the child from the naming service
00153       this->get_stream_endpoint ();
00154
00155       // Get the Vdev created by the child from the naming service
00156       this->get_vdev ();
00157     }
00158   catch (const CORBA::Exception& ex)
00159     {
00160       ex._tao_print_exception (
00161         "TAO_AV_Endpoint_Process_Strategy::activate");
00162       return -1;
00163     }
00164   return 0;
00165 }

int TAO_AV_Endpoint_Process_Strategy::bind_to_naming_service ( void   )  [protected, virtual]

Bind to the naming service.

Definition at line 169 of file Endpoint_Strategy.cpp.

References CORBA::Exception::_tao_print_exception(), ACE_ERROR_RETURN, TAO_Pseudo_Var_T< T >::in(), CORBA::is_nil(), LM_ERROR, naming_context_, TAO_ORB_Core::orb(), CORBA::ORB::resolve_initial_references(), and TAO_ORB_Core_instance().

Referenced by activate().

00170 {
00171   try
00172     {
00173       if (CORBA::is_nil (this->naming_context_.in ()) == 0)
00174         return 0;
00175
00176       CORBA::Object_var naming_obj =
00177         TAO_ORB_Core_instance ()->orb ()->resolve_initial_references ("NameService");
00178
00179       if (CORBA::is_nil (naming_obj.in ()))
00180         ACE_ERROR_RETURN ((LM_ERROR,
00181                            " (%P|%t) Unable to resolve the Name Service.\n"),
00182                           -1);
00183       this->naming_context_ =
00184         CosNaming::NamingContext::_narrow (naming_obj.in ());
00185     }
00186   catch (const CORBA::Exception& ex)
00187     {
00188       ex._tao_print_exception (
00189         "TAO_AV_Endpoint_Process_Strategy::bind_to_naming_service");
00190       return -1;
00191     }
00192   return 0;
00193 }

virtual int TAO_AV_Endpoint_Process_Strategy::get_stream_endpoint ( void   )  [protected, pure virtual]

Get the object reference for the newly created stream endpoint (which will be in the child process) Subclasses will define the functionality for this

Implemented in TAO_AV_Endpoint_Process_Strategy_A, and TAO_AV_Endpoint_Process_Strategy_B.

Referenced by activate().

int TAO_AV_Endpoint_Process_Strategy::get_vdev ( void   )  [protected, virtual]

Get the Vdev object reference for the newly created endpoint

Definition at line 197 of file Endpoint_Strategy.cpp.

References CORBA::Exception::_tao_print_exception(), ACE_DEBUG, ACE_ERROR_RETURN, TAO_Pseudo_Var_T< T >::in(), CORBA::is_nil(), LM_DEBUG, LM_ERROR, naming_context_, ACE_OS::sprintf(), CORBA::string_dup(), TAO_debug_level, and TAO_AV_Endpoint_Strategy::vdev_.

Referenced by activate().

00198 {
00199   try
00200     {
00201       char vdev_name [BUFSIZ];
00202       ACE_OS::sprintf (vdev_name,
00203                        "%s:%s:%ld",
00204                        "VDev",
00205                        this->host_,
00206                        (long) this->pid_);
00207
00208       if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"(%P|%t)%s\n",vdev_name));
00209
00210       // Create the name
00211       CosNaming::Name VDev_Name (1);
00212       VDev_Name.length (1);
00213       VDev_Name [0].id = CORBA::string_dup (vdev_name);
00214
00215       // Get the CORBA::Object
00216       CORBA::Object_var vdev =
00217         this->naming_context_->resolve (VDev_Name);
00218
00219       // Narrow it
00220       this->vdev_ =
00221         AVStreams::VDev::_narrow (vdev.in ());
00222
00223       // Check if valid
00224       if (CORBA::is_nil (this->vdev_.in() ))
00225         ACE_ERROR_RETURN ((LM_ERROR,
00226                            " could not resolve Stream_Endpoint_B in Naming service <%s>\n"),
00227                           -1);
00228     }
00229   catch (const CORBA::Exception& ex)
00230     {
00231       ex._tao_print_exception (
00232         "TAO_AV_Endpoint_Process_Strategy::get_vdev");
00233       return -1;
00234     }
00235   return 0;
00236 }

Member Data Documentation

char TAO_AV_Endpoint_Process_Strategy::host_[MAXHOSTNAMELEN] [protected]

name of this host used for resolving unique names.

Definition at line 114 of file Endpoint_Strategy.h.

CosNaming::NamingContext_var TAO_AV_Endpoint_Process_Strategy::naming_context_ [protected]

Naming context.

Definition at line 108 of file Endpoint_Strategy.h.

Referenced by bind_to_naming_service(), TAO_AV_Endpoint_Process_Strategy_B::get_stream_endpoint(), TAO_AV_Endpoint_Process_Strategy_A::get_stream_endpoint(), and get_vdev().

pid_t TAO_AV_Endpoint_Process_Strategy::pid_ [protected]

My child's process id.

Definition at line 117 of file Endpoint_Strategy.h.

Referenced by activate().

ACE_Process_Options* TAO_AV_Endpoint_Process_Strategy::process_options_ [protected]

Name and arguments for the process to be created.

Definition at line 111 of file Endpoint_Strategy.h.

The documentation for this class was generated from the following files:
