TAO_AV_Endpoint_Strategy Class Reference

#include <Endpoint_Strategy.h>

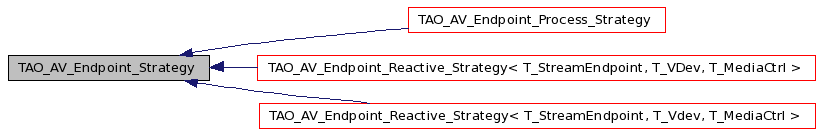

Inheritance diagram for TAO_AV_Endpoint_Strategy:


Public Member Functions
	TAO_AV_Endpoint_Strategy (void)
	Constructor.
virtual	~TAO_AV_Endpoint_Strategy (void)
	Destructor.
virtual int	create_A (AVStreams::StreamEndPoint_A_ptr &stream_endpoint, AVStreams::VDev_ptr &vdev)
	Called by the MMDevice, when it needs to create an A type endpoint.
virtual int	create_B (AVStreams::StreamEndPoint_B_ptr &stream_endpoint, AVStreams::VDev_ptr &vdev)
	Called by the MMDevice, when it needs to create an B type endpoint.
Protected Attributes
AVStreams::StreamEndPoint_A_var	stream_endpoint_a_
	The "A" stream endpoint.
AVStreams::StreamEndPoint_B_var	stream_endpoint_b_
	The "B" stream endpoint.
AVStreams::VDev_var	vdev_
	The vdev.

Detailed Description

Base class to define various endpoint strategies used by the MMDevice to create the Endpoint and Vdev

Definition at line 40 of file Endpoint_Strategy.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_AV_Endpoint_Strategy::TAO_AV_Endpoint_Strategy ( void )

Constructor.

Definition at line 29 of file Endpoint_Strategy.cpp.

00030 {
00031 }

TAO_AV_Endpoint_Strategy::~TAO_AV_Endpoint_Strategy ( void ) [virtual]

Destructor.

Definition at line 34 of file Endpoint_Strategy.cpp.

00035 {
00036
00037 }

Member Function Documentation

int TAO_AV_Endpoint_Strategy::create_A	(	AVStreams::StreamEndPoint_A_ptr &	stream_endpoint,
		AVStreams::VDev_ptr &	vdev
	)			`[virtual]`

Called by the MMDevice, when it needs to create an A type endpoint.

Reimplemented in TAO_AV_Endpoint_Process_Strategy_A, and TAO_AV_Endpoint_Reactive_Strategy_A< T_StreamEndpoint, T_VDev, T_MediaCtrl >.

Definition at line 44 of file Endpoint_Strategy.cpp.

References ACE_ERROR_RETURN, and LM_ERROR.

00046 {
00047   ACE_ERROR_RETURN ((LM_ERROR,
00048                      "(%P|%t) Error creating A endpoint\n"),
00049                     -1);
00050 }

int TAO_AV_Endpoint_Strategy::create_B	(	AVStreams::StreamEndPoint_B_ptr &	stream_endpoint,
		AVStreams::VDev_ptr &	vdev
	)			`[virtual]`

Called by the MMDevice, when it needs to create an B type endpoint.

Reimplemented in TAO_AV_Endpoint_Process_Strategy_B, and TAO_AV_Endpoint_Reactive_Strategy_B< T_StreamEndpoint, T_Vdev, T_MediaCtrl >.

Definition at line 57 of file Endpoint_Strategy.cpp.

References ACE_ERROR_RETURN, and LM_ERROR.

00059 {
00060   ACE_ERROR_RETURN ((LM_ERROR,
00061                      "(%P|%t) Error creating B endpoint\n"),
00062                     -1);
00063 }
