RTCP_SR_Packet Class Reference

The Sender Report packet is sent by all members of a session that are sending data. It contains statistics on the data being sent out. It also contains a list of RR_Block to represent each source this party is receiving data from. More...

#include <RTCP_Packet.h>

Inheritance diagram for RTCP_SR_Packet:

Inheritance graph
[legend]

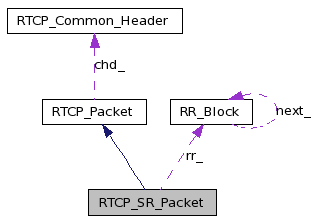

Collaboration diagram for RTCP_SR_Packet:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 RTCP_SR_Packet (char *buffer, int *len)
 Constructor for incoming SR packets.
 RTCP_SR_Packet (ACE_UINT32 ssrcVal, ACE_UINT32 ntpMSByte, ACE_UINT32 ntpLSByte, ACE_UINT32 timestamp, ACE_UINT32 pktsSent, ACE_UINT32 octetsSent, RR_Block *rrBlocks)
 Constructor for outgoing SR packets.
virtual ~RTCP_SR_Packet (void)
 Destructor.
unsigned int packet_size (void)
 Returns the size of the packet in bytes.
ACE_UINT32 ssrc (void)
 Returns the synchronization source id for the sender of this packet.
ACE_UINT32 ntp_ts_msw (void)
 Returns the most significant word of the NTP timestamp.
ACE_UINT32 ntp_ts_lsw (void)
 Returns the least significant word of the NTP timestamp.
void dump (void)
 Prints the contents of the packet.

Private Member Functions

void build_packet (void)
 Used to create the byte representation of the RTCP packet.

Private Attributes

ACE_UINT32 ssrc_
 The synchronization source id of the sender generating this report.
ACE_UINT32 ntp_ts_msw_
 The most significant word of the NTP timestamp.
ACE_UINT32 ntp_ts_lsw_
 The least significant word of the NTP timestamp.
ACE_UINT32 rtp_ts_
 The RTP timestamp.
ACE_UINT32 psent_
 The total number of packets sent.
ACE_UINT32 osent_
 The total number of octets sent.
RR_Block * rr_
 A linked list of receiver report blocks.

Detailed Description

The Sender Report packet is sent by all members of a session that are sending data. It contains statistics on the data being sent out. It also contains a list of RR_Block to represent each source this party is receiving data from.

Definition at line 343 of file RTCP_Packet.h.

Constructor & Destructor Documentation

RTCP_SR_Packet::RTCP_SR_Packet ( char *  buffer,
int *  len
)

Constructor for incoming SR packets.

Definition at line 1027 of file RTCP_Packet.cpp.

References ACE_NEW, ACE_NTOHL, RTCP_Packet::chd_, RTCP_Common_Header::count_, RR_Block::dlsr_, RR_Block::fraction_, RR_Block::jitter_, RR_Block::last_seq_, RTCP_Common_Header::length_, RR_Block::lost_, RR_Block::lsr_, RR_Block::next_, ntp_ts_lsw_, ntp_ts_msw_, osent_, RTCP_Packet::packet_data_, psent_, rr_, rtp_ts_, RR_Block::ssrc_, and ssrc_.

01029                 : RTCP_Packet (buffer)
01030 {
01031   unsigned int i = 0;
01032   RR_Block *local_block_ptr = 0;
01033
01034   this->rr_ = 0;
01035
01036   // The common part of the header is initialized in the parent.
01037   i=4;
01038   this->ssrc_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01039   i+=4;
01040   this->ntp_ts_msw_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01041   i+=4;
01042   this->ntp_ts_lsw_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01043   i+=4;
01044   this->rtp_ts_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01045   i+=4;
01046   this->psent_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01047   i+=4;
01048   this->osent_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01049   i+=4;
01050   for (unsigned int j=0; j<this->chd_.count_; j++)
01051     {
01052       if (j==0)
01053         {
01054           ACE_NEW (local_block_ptr,
01055                    RR_Block);
01056           this->rr_ = local_block_ptr;
01057         }
01058       else
01059         {
01060           ACE_NEW (local_block_ptr->next_,
01061                    RR_Block);
01062           local_block_ptr = local_block_ptr->next_;
01063         }
01064
01065       local_block_ptr->next_ = 0;
01066       local_block_ptr->ssrc_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01067       i+=4;
01068       ACE_UINT32 temp = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01069       local_block_ptr->fraction_ = (temp&0xff000000) >> 24;
01070       local_block_ptr->lost_ = temp & 0x00ffffff;
01071       i+=4;
01072       local_block_ptr->last_seq_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01073       i+=4;
01074       local_block_ptr->jitter_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01075       i+=4;
01076       local_block_ptr->lsr_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01077       i+=4;
01078       local_block_ptr->dlsr_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
01079       i+=4;
01080     }
01081
01082   *len-=(this->chd_.length_+1)*4;
01083
01084   this->packet_data_ = 0;
01085 }

RTCP_SR_Packet::RTCP_SR_Packet ( ACE_UINT32  ssrcVal,
ACE_UINT32  ntpMSByte,
ACE_UINT32  ntpLSByte,
ACE_UINT32  timestamp,
ACE_UINT32  pktsSent,
ACE_UINT32  octetsSent,
RR_Block *  rrBlocks
)

Constructor for outgoing SR packets.

Definition at line 983 of file RTCP_Packet.cpp.

References RTCP_Packet::chd_, RTCP_Common_Header::count_, RTCP_Common_Header::length_, RR_Block::next_, ntp_ts_lsw_, ntp_ts_msw_, osent_, RTCP_Packet::packet_data_, psent_, RTCP_Common_Header::pt_, rr_, RTCP_PT_SR, rtp_ts_, ssrc_, and RTCP_Common_Header::ver_.

00990 {
00991   RR_Block *block_ptr= 0;
00992   chd_.count_ = 0;
00993   chd_.ver_ = 2;
00994   chd_.pt_ = RTCP_PT_SR;
00995
00996   this->ssrc_ = ssrc;
00997   this->ntp_ts_msw_ = ntp_ts_msw;
00998   this->ntp_ts_lsw_ = ntp_ts_lsw;
00999   this->rtp_ts_ = timestamp;
01000   this->psent_ = packets_sent;
01001   this->osent_ = octets_sent;
01002   this->rr_ = blocks;
01003
01004   block_ptr = blocks;
01005
01006   while (block_ptr)
01007     {
01008       chd_.count_++;
01009
01010       // Can only have 31 receiver reports
01011       if (this->chd_.count_ == 31)
01012         {
01013           block_ptr->next_ = 0;
01014           break;
01015         }
01016
01017       block_ptr = block_ptr->next_;
01018     }
01019
01020   this->chd_.length_ = static_cast<ACE_UINT16> (6 + 6*(chd_.count_)); //+profile specific extensions ??
01021
01022   this->packet_data_ = 0;
01023 }

RTCP_SR_Packet::~RTCP_SR_Packet ( void   )  [virtual]

Destructor.

Definition at line 1089 of file RTCP_Packet.cpp.

References RR_Block::next_, RTCP_Packet::packet_data_, and rr_.

01090 {
01091   RR_Block *prev;
01092
01093   if (this->rr_)
01094     {
01095       while (this->rr_)
01096         {
01097           prev = this->rr_;
01098           this->rr_ = this->rr_->next_;
01099           delete prev;
01100         }
01101     }
01102
01103   if (this->packet_data_)
01104     delete []this->packet_data_;
01105 }

Member Function Documentation

void RTCP_SR_Packet::build_packet ( void   )  [private, virtual]

Used to create the byte representation of the RTCP packet.

Implements RTCP_Packet.

Definition at line 1119 of file RTCP_Packet.cpp.

References ACE_HTONL, ACE_HTONS, ACE_NEW, RTCP_Packet::chd_, RTCP_Common_Header::count_, RR_Block::dlsr_, RR_Block::fraction_, RR_Block::jitter_, RR_Block::last_seq_, RR_Block::lost_, RR_Block::lsr_, RR_Block::next_, RTCP_Packet::packet_data_, RTCP_Common_Header::pt_, rr_, RR_Block::ssrc_, and RTCP_Common_Header::ver_.

01120 {
01121   int index = 0;
01122   RR_Block *local_block_ptr;
01123
01124   if (this->packet_data_)
01125     delete []this->packet_data_;
01126
01127   ACE_NEW (this->packet_data_,
01128            char[this->packet_size()]);
01129
01130   this->packet_data_[index] = static_cast<char> ((this->chd_.ver_ << 6) |
01131                                                  (this->chd_.pad_ << 5) |
01132                                       this->chd_.count_);
01133   index++;
01134   this->packet_data_[index] = this->chd_.pt_;
01135   index++;
01136   *((ACE_UINT16*)&this->packet_data_[index]) = ACE_HTONS(this->chd_.length_);
01137   index+=2;
01138   *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(this->ssrc_);
01139   index+=4;
01140   *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(this->ntp_ts_msw_);
01141   index+=4;
01142   *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(this->ntp_ts_lsw_);
01143   index+=4;
01144   *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(this->rtp_ts_);
01145   index+=4;
01146   *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(this->psent_);
01147   index+=4;
01148   *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(this->osent_);
01149   index+=4;
01150
01151   local_block_ptr = this->rr_;
01152   while (local_block_ptr)
01153     {
01154       *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(local_block_ptr->ssrc_);
01155       index+=4;
01156       ACE_UINT32 temp = ACE_HTONL((local_block_ptr->fraction_&0xff) << 24) &
01157                               local_block_ptr->lost_;
01158       *((ACE_UINT32*)&this->packet_data_[index]) = temp;
01159       index+=4;
01160       *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(local_block_ptr->last_seq_);
01161       index+=4;
01162       *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(local_block_ptr->jitter_);
01163       index+=4;
01164       *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(local_block_ptr->lsr_);
01165       index+=4;
01166       *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(local_block_ptr->dlsr_);
01167       index+=4;
01168       local_block_ptr = local_block_ptr->next_;
01169     }
01170 }

void RTCP_SR_Packet::dump ( void   )

Prints the contents of the packet.

Definition at line 1173 of file RTCP_Packet.cpp.

References ACE_DEBUG, RR_Block::dlsr_, RR_Block::fraction_, RR_Block::jitter_, RR_Block::last_seq_, LM_DEBUG, RR_Block::lost_, RR_Block::lsr_, RR_Block::next_, rr_, and RR_Block::ssrc_.

Referenced by TAO_AV_RTCP_Callback::receive_control_frame().

01174 {
01175   RR_Block *b = this->rr_;
01176   int count = 1;
01177
01178   ACE_DEBUG ((LM_DEBUG,
01179               "\nRTCP_SR_Packet:: from %u - %d rr blocks follow.\n",
01180               this->ssrc_,
01181               this->chd_.count_));
01182   ACE_DEBUG ((LM_DEBUG,
01183               "    NTP(sec) %u.%u; RTP ts %u\n",
01184               this->ntp_ts_msw_,
01185               this->ntp_ts_lsw_,
01186               this->rtp_ts_));
01187   ACE_DEBUG ((LM_DEBUG,
01188               "    packets sent %u; octets sent %u\n",
01189               this->psent_,
01190               this->osent_));
01191
01192   while (b)
01193     {
01194       ACE_DEBUG ((LM_DEBUG,
01195                   "  Block %d: ssrc %u; frac %u; lost %u; last seq %u\n",
01196                   count,
01197                   b->ssrc_,
01198                   b->fraction_,
01199                   b->lost_,
01200                   b->last_seq_));
01201       ACE_DEBUG ((LM_DEBUG,
01202                   "           jitter %u; lsr %u; dlsr %u;\n",
01203                   b->jitter_,
01204                   b->lsr_,
01205                   b->dlsr_));
01206
01207       b = b->next_;
01208       ++count;
01209     }
01210 }

ACE_UINT32 RTCP_SR_Packet::ntp_ts_lsw ( void   )  [inline]

Returns the least significant word of the NTP timestamp.

Definition at line 371 of file RTCP_Packet.h.

References ntp_ts_lsw_.

Referenced by RTCP_Channel_In::updateStatistics().

00371 { return this->ntp_ts_lsw_; }

ACE_UINT32 RTCP_SR_Packet::ntp_ts_msw ( void   )  [inline]

Returns the most significant word of the NTP timestamp.

Definition at line 368 of file RTCP_Packet.h.

References ntp_ts_msw_.

Referenced by RTCP_Channel_In::updateStatistics().

00368 { return this->ntp_ts_msw_; }

unsigned int RTCP_SR_Packet::packet_size ( void   )  [virtual]

Returns the size of the packet in bytes.

Implements RTCP_Packet.

Definition at line 1109 of file RTCP_Packet.cpp.

References RTCP_Packet::chd_, and RTCP_Common_Header::count_.

01110 {
01111   ACE_UINT16 size  = static_cast<ACE_UINT16> ((2+chd_.count_*6) * 4); // + profile specific extensions ?
01112   size += 20; // the first line is the same as RR; 20 more bytes for SR
01113
01114   return size;
01115 }

ACE_UINT32 RTCP_SR_Packet::ssrc ( void   )  [inline]

Returns the synchronization source id for the sender of this packet.

Definition at line 365 of file RTCP_Packet.h.

References ssrc_.

Referenced by TAO_AV_RTCP_Callback::receive_control_frame().

00365 { return this->ssrc_; }

Member Data Documentation

ACE_UINT32 RTCP_SR_Packet::ntp_ts_lsw_ [private]

The least significant word of the NTP timestamp.

Definition at line 387 of file RTCP_Packet.h.

Referenced by ntp_ts_lsw(), and RTCP_SR_Packet().

ACE_UINT32 RTCP_SR_Packet::ntp_ts_msw_ [private]

The most significant word of the NTP timestamp.

Definition at line 384 of file RTCP_Packet.h.

Referenced by ntp_ts_msw(), and RTCP_SR_Packet().

ACE_UINT32 RTCP_SR_Packet::osent_ [private]

The total number of octets sent.

Definition at line 396 of file RTCP_Packet.h.

Referenced by RTCP_SR_Packet().

ACE_UINT32 RTCP_SR_Packet::psent_ [private]

The total number of packets sent.

Definition at line 393 of file RTCP_Packet.h.

Referenced by RTCP_SR_Packet().

RR_Block* RTCP_SR_Packet::rr_ [private]

A linked list of receiver report blocks.

Definition at line 399 of file RTCP_Packet.h.

Referenced by build_packet(), dump(), RTCP_SR_Packet(), and ~RTCP_SR_Packet().

ACE_UINT32 RTCP_SR_Packet::rtp_ts_ [private]

The RTP timestamp.

Definition at line 390 of file RTCP_Packet.h.

Referenced by RTCP_SR_Packet().

ACE_UINT32 RTCP_SR_Packet::ssrc_ [private]

The synchronization source id of the sender generating this report.

Definition at line 381 of file RTCP_Packet.h.

Referenced by RTCP_SR_Packet(), and ssrc().

The documentation for this class was generated from the following files:
Generated on Tue Feb 2 17:47:58 2010 for TAO_AV by  doxygen 1.4.7
