RTCP_SDES_Packet Class Reference

The Source Description packet is sent by all members of a session. At a minimum, the canonical name (or CNAME) is sent with each RTCP packet. Other items such as name, email, or location are included less frequently. More...

#include <RTCP_Packet.h>

Inheritance diagram for RTCP_SDES_Packet:

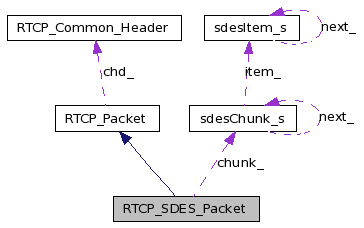

[legend]Collaboration diagram for RTCP_SDES_Packet:

[legend]List of all members.

Public Member Functions
	RTCP_SDES_Packet (char *buffer, int *len)
	Constructor for incoming SDES packets.
	RTCP_SDES_Packet (void)
	Constructor for outgoing SDES packets.
virtual	~RTCP_SDES_Packet (void)
	Destructor.
void	add_item (ACE_UINT32 ssrc, unsigned char type, unsigned char length, const char *data)
void	add_priv_item (ACE_UINT32 ssrc, unsigned char nameLength, const char *name, unsigned char dataLength, const char *data)
unsigned int	packet_size (void)
	Returns the size of the packet in bytes.
void	dump (void)
	Prints the contents of the packet.
ACE_UINT32	ssrc (void)
Private Member Functions
void	build_packet (void)
	Used to create the byte representation of the RTCP packet.
void	add_chunk (ACE_UINT32 ssrc)
	Add a chunk to the packet.
Private Attributes
unsigned long	num_chunks_
sdesChunk_t *	chunk_
	A linked list of chunks for this packet (only 1 for non-mixers).

---

Detailed Description

The Source Description packet is sent by all members of a session. At a minimum, the canonical name (or CNAME) is sent with each RTCP packet. Other items such as name, email, or location are included less frequently.

Definition at line 276 of file RTCP_Packet.h.

---

Constructor & Destructor Documentation

RTCP_SDES_Packet::RTCP_SDES_Packet	(	char *	buffer,
		int *	len
	)

Constructor for incoming SDES packets.

Definition at line 464 of file RTCP_Packet.cpp.

References ACE_NEW, ACE_NTOHL, RTCP_Packet::chd_, RTCP_Common_Header::count_, sdesItem_s::info_, sdesChunk_s::item_, RTCP_Common_Header::length_, ACE_OS::memcpy(), sdesItem_s::next_, sdesChunk_s::next_, num_chunks_, RTCP_Packet::packet_data_, sdesItem_s::priv_, RTCP_SDES_END, RTCP_SDES_PRIV, sdesChunk_s::ssrc_, sdesItem_s::standard_, and sdesItem_s::type_.

                                                        :
                   RTCP_Packet (buffer)
{
  unsigned int i;
  sdesChunk_t *cp = 0; // pointer to chunk
  sdesItem_t *ip = 0; // pointer to item

  // The common part of the control packet header is processed
  // in the parent. It is 4 bytes long.

  i=4;
  for (unsigned int j=0; j<this->chd_.count_; j++)
    {
      if (j==0)
        {
          ACE_NEW (this->chunk_,
                   sdesChunk_t);
          cp = this->chunk_;

          this->num_chunks_ = 1;
        }
      else
        {
          ACE_NEW (cp->next_,
                   sdesChunk_t);
          cp = cp->next_;

          this->num_chunks_++;
        }
      cp->next_ = 0;
      cp->item_ = 0;
      cp->ssrc_ = ACE_NTOHL(*(ACE_UINT32*)&buffer[i]);
      i+=4;

      while (buffer[i]!=RTCP_SDES_END)
        {
          if (!cp->item_)
            {
              ACE_NEW (cp->item_,
                       sdesItem_t);
              ip = cp->item_;

//              this->num_items_ = 1;
            }
          else
            {
              ACE_NEW (ip->next_,
                       sdesItem_t);
              ip = ip->next_;

//              this->num_items_++;
            }
          ip->next_ = 0;
          ip->type_ = buffer[i];
          i++;
          if (ip->type_ != RTCP_SDES_PRIV)
            {
              ip->info_.standard_.length_ = buffer[i];
              i++;
              ACE_NEW (ip->info_.standard_.data_,
                       char[ip->info_.standard_.length_+1]);
              ACE_OS::memcpy(ip->info_.standard_.data_,
                             &buffer[i],
                             ip->info_.standard_.length_);
              ip->info_.standard_.data_[ip->info_.standard_.length_] = 0;
              i+=ip->info_.standard_.length_;
            }
          else
            {
              ip->info_.priv_.name_length_ = buffer[i];
              i++;
              ip->info_.priv_.data_length_ = buffer[i];
              i++;
              ACE_NEW (ip->info_.priv_.name_,
                       char[ip->info_.priv_.name_length_+1]);
              ACE_OS::memcpy(ip->info_.priv_.name_,
                             &buffer[i],
                             ip->info_.priv_.name_length_);
              ip->info_.priv_.name_[ip->info_.priv_.name_length_] = 0;
              i+=ip->info_.priv_.name_length_;
              ACE_NEW (ip->info_.priv_.data_,
                       char[ip->info_.priv_.data_length_+1]);
              ACE_OS::memcpy(ip->info_.priv_.data_,
                             &buffer[i],
                             ip->info_.priv_.data_length_);
              ip->info_.priv_.data_[ip->info_.priv_.data_length_] = 0;
              i+=ip->info_.priv_.data_length_;
            }
        }
        i++; // each chunk ends with a zero (END) item
        // each chunk must end on an even 32 bit boundary
        while (i%4) i++;
    }

  *len-=(this->chd_.length_+1)*4;

  this->packet_data_ = 0;
}

RTCP_SDES_Packet::RTCP_SDES_Packet

(

void

)

Constructor for outgoing SDES packets.

Definition at line 452 of file RTCP_Packet.cpp.

References RTCP_Packet::chd_, chunk_, num_chunks_, RTCP_Packet::packet_data_, RTCP_Common_Header::pt_, and RTCP_PT_SDES.

                                       :
                   RTCP_Packet ()
{
  this->chd_.pt_ = RTCP_PT_SDES;
  this->chunk_ = 0;
  this->packet_data_ = 0;
  this->num_chunks_ = 0;
//  this->num_items_ = 0;
}

RTCP_SDES_Packet::~RTCP_SDES_Packet

(

void

)

[virtual]

Destructor.

Definition at line 565 of file RTCP_Packet.cpp.

References chunk_, sdesItem_s::info_, sdesChunk_s::item_, sdesChunk_s::next_, sdesItem_s::next_, RTCP_Packet::packet_data_, sdesItem_s::priv_, RTCP_SDES_PRIV, sdesItem_s::standard_, and sdesItem_s::type_.

{
  sdesChunk_t *cp; // pointer to chunk
  sdesChunk_t *cpprev;
  sdesItem_t *ip; // pointer to item
  sdesItem_t *ipprev;

  cp = this->chunk_;
  while (cp)
    {
      ip = cp->item_;
      while (ip)
        {
          ipprev = ip;
          ip = ip->next_;
          if (ipprev->type_ != RTCP_SDES_PRIV)
            {
              delete []ipprev->info_.standard_.data_;
            }
          else
            {
              delete []ipprev->info_.priv_.name_;
              delete []ipprev->info_.priv_.data_;
            }

          delete ipprev;
        }
      cpprev = cp;
      cp = cp->next_;
      delete cpprev;
    }

  if (this->packet_data_)
    delete []this->packet_data_;
}

---

Member Function Documentation

void RTCP_SDES_Packet::add_chunk

(

ACE_UINT32

ssrc

)

[private]

Add a chunk to the packet.

Definition at line 604 of file RTCP_Packet.cpp.

References ACE_NEW, RTCP_Packet::chd_, chunk_, RTCP_Common_Header::count_, sdesChunk_s::item_, sdesChunk_s::next_, and sdesChunk_s::ssrc_.

Referenced by add_item(), and add_priv_item().

{
  sdesChunk_t *cp = 0; // pointer to chunk

  // If this is the first chunk.
  if (chd_.count_ == 0)
    {
      ACE_NEW (this->chunk_,
               sdesChunk_t);
      this->chunk_->next_ = 0;
      this->chunk_->item_ = 0;
      cp = this->chunk_;
    }
  else
    {
      cp = this->chunk_;
      while (cp->next_)
        cp = cp->next_;

      ACE_NEW (cp->next_,
               sdesChunk_t);
      cp = cp->next_;
      cp->next_ = 0;
      cp->item_ = 0;
    }
  cp->ssrc_ = ssrc;    // store the source
  chd_.count_++;       // increment the source count
}

void RTCP_SDES_Packet::add_item	(	ACE_UINT32	ssrc,
		unsigned char	type,
		unsigned char	length,
		const char *	data
	)

This will add a standard item of type and length for the ssrc specified. When the first item for a ssrc is added, a chunk is created. Subsequent items for that ssrc are added to the same chunk. New chunks are created for each unique ssrc.

Definition at line 636 of file RTCP_Packet.cpp.

References ACE_NEW, add_chunk(), chunk_, sdesItem_s::info_, sdesChunk_s::item_, ACE_OS::memcpy(), sdesItem_s::next_, sdesChunk_s::next_, sdesChunk_s::ssrc_, sdesItem_s::standard_, and sdesItem_s::type_.

Referenced by TAO_AV_RTCP_Callback::send_report().

{
  sdesChunk_t *cp; // pointer to chunk
  sdesItem_t *ip; // pointer to item

  if (this->chunk_ == 0)
    {
      this->add_chunk(ssrc);
    }

  cp = this->chunk_;

  while (cp != 0)
    {
      if (cp->ssrc_ == ssrc)
        {
          break;
        }

      if (!cp->next_)
        {
          this->add_chunk(ssrc);
          cp = cp->next_;
          break;
        }

      cp = cp->next_;
    }

  ip = cp->item_;

  if (ip == 0)
    {
      ACE_NEW (cp->item_,
               sdesItem_t);

      ip = cp->item_;
      ip->next_= 0;
    }
  else
    {
      while (ip->next_)
        {
          ip = ip->next_;
        }

      ACE_NEW (ip->next_,
               sdesItem_t);

      ip = ip->next_;
      ip->next_ = 0;
    }

  ip->type_ = type;

  ip->info_.standard_.length_ = length;

  ACE_NEW (ip->info_.standard_.data_,
           char[length]);

  ACE_OS::memcpy(ip->info_.standard_.data_, data, length);
}

void RTCP_SDES_Packet::add_priv_item	(	ACE_UINT32	ssrc,
		unsigned char	nameLength,
		const char *	name,
		unsigned char	dataLength,
		const char *	data
	)

This will add a private item using the name and data for the ssrc specified. When the first item for a ssrc is added, a chunk is created. Subsequent items for that ssrc are added to the same chunk. New chunks are created for each unique ssrc.

Definition at line 705 of file RTCP_Packet.cpp.

References ACE_NEW, add_chunk(), chunk_, sdesItem_s::info_, sdesChunk_s::item_, ACE_OS::memcpy(), sdesItem_s::next_, sdesChunk_s::next_, sdesItem_s::priv_, RTCP_SDES_PRIV, sdesChunk_s::ssrc_, and sdesItem_s::type_.

{
  sdesChunk_t *cp; // pointer to chunk
  sdesItem_t *ip; // pointer to item

  if (this->chunk_ == 0)
    {
      this->add_chunk(ssrc);
    }

  cp = this->chunk_;

  while (cp != 0)
    {
      if (cp->ssrc_ == ssrc)
        {
          break;
        }

      if (!cp->next_)
        {
          this->add_chunk(ssrc);
          cp = cp->next_;
          break;
        }

      cp = cp->next_;
    }

  ip = cp->item_;

  if (ip == 0)
    {
      ACE_NEW (cp->item_,
               sdesItem_t);

      ip = cp->item_;
      ip->next_ = 0;
    }
  else
    {
      while (ip->next_)
        {
          ip = ip->next_;
        }

      ACE_NEW (ip->next_,
               sdesItem_t);

      ip = ip->next_;
      ip->next_ = 0;
    }

  ip->type_ = RTCP_SDES_PRIV;

  ip->info_.priv_.name_length_ = nameLength;
  ip->info_.priv_.data_length_ = dataLength;

  ACE_NEW (ip->info_.priv_.name_,
           char[nameLength]);

  ACE_NEW (ip->info_.priv_.data_,
           char[dataLength]);

  ACE_OS::memcpy(ip->info_.priv_.name_, name, nameLength);
  ACE_OS::memcpy(ip->info_.priv_.data_, data, dataLength);
}

void RTCP_SDES_Packet::build_packet

(

void

)

[private, virtual]

Used to create the byte representation of the RTCP packet.

Implements RTCP_Packet.

Definition at line 819 of file RTCP_Packet.cpp.

References ACE_HTONL, ACE_HTONS, ACE_NEW, RTCP_Packet::chd_, chunk_, RTCP_Common_Header::count_, sdesItem_s::info_, sdesChunk_s::item_, RTCP_Common_Header::length_, sdesChunk_s::next_, sdesItem_s::next_, RTCP_Packet::packet_data_, RTCP_Common_Header::pad_, sdesItem_s::priv_, RTCP_Common_Header::pt_, RTCP_SDES_PRIV, sdesChunk_s::ssrc_, sdesItem_s::standard_, sdesItem_s::type_, and RTCP_Common_Header::ver_.

{
  sdesChunk_t *cp; // pointer to chunk
  sdesItem_t *ip; // pointer to item
  int index, i;

  if (this->packet_data_)
    delete this->packet_data_;

  ACE_NEW (this->packet_data_,
           char[this->packet_size()]);

  index = 0;
  this->packet_data_[index] = static_cast<char> ((chd_.ver_ << 6) |
                                                 (chd_.pad_ << 5) |
                                     chd_.count_);
  index++;
  this->packet_data_[index] = chd_.pt_;
  index++;
  *((ACE_UINT16*)&this->packet_data_[index]) = ACE_HTONS(chd_.length_);
  index+=2;

  cp = this->chunk_;
  while (cp)
    {
      *((ACE_UINT32*)&this->packet_data_[index]) = ACE_HTONL(cp->ssrc_);
      index+=4;

      ip = cp->item_;
      while (ip && (ip->type_ != 0))
        {
          this->packet_data_[index] = ip->type_;
          index++;
          if (ip->type_ != RTCP_SDES_PRIV)
            {
              this->packet_data_[index] = ip->info_.standard_.length_;
              index++;
              for (i=0; i<ip->info_.standard_.length_; i++)
                {
                  this->packet_data_[index] = ip->info_.standard_.data_[i];
                  index++;
                }
            }
          else
            {
              this->packet_data_[index] = ip->info_.priv_.name_length_;
              index++;
              this->packet_data_[index] = ip->info_.priv_.data_length_;
              index++;
              for (i=0; i<ip->info_.priv_.name_length_; i++)
                {
                  this->packet_data_[index] = ip->info_.priv_.name_[i];
                  index++;
                }
              for (i=0; i<ip->info_.priv_.data_length_; i++)
                {
                  this->packet_data_[index] = ip->info_.priv_.data_[i];
                  index++;
                }
            }

          ip = ip->next_;
        }

      this->packet_data_[index] = 0;
      index++;

      i=1;
      while ((index)%4)
        { // pad chunk with zeros to 32 bit bound
          this->packet_data_[index] = 0;
          index++;
          i++;
        }

      // Store the number of bytes added. TODO: do we need this
      // this->packet_data_[index - 1] = i;

      cp = cp->next_;
    }
}

void RTCP_SDES_Packet::dump

(

void

)

Prints the contents of the packet.

Definition at line 902 of file RTCP_Packet.cpp.

References ACE_DEBUG, chunk_, sdesItem_s::info_, sdesChunk_s::item_, LM_DEBUG, sdesItem_s::next_, sdesItem_s::priv_, RTCP_SDES_CNAME, RTCP_SDES_EMAIL, RTCP_SDES_END, RTCP_SDES_LOC, RTCP_SDES_NAME, RTCP_SDES_NOTE, RTCP_SDES_PHONE, RTCP_SDES_PRIV, RTCP_SDES_TOOL, sdesItem_s::standard_, and sdesItem_s::type_.

Referenced by TAO_AV_RTCP_Callback::receive_control_frame().

{
  sdesItem_t *ip;

  ACE_DEBUG ((LM_DEBUG,
              "\nRTCP_SDES_Packet:: "));

  if (this->num_chunks_ != 1)
    {
      ACE_DEBUG ((LM_DEBUG,
                  "Mixers not currently supported.\n"));
      return;
    }

  ACE_DEBUG ((LM_DEBUG,
              "from ssrc %u\n",
              this->chunk_->ssrc_));

  // Loop through all of the items.
  ip = this->chunk_->item_;

  while (ip)
    {
      // If there is no data to store, continue.
      if (ip->info_.standard_.length_ == 0)
        {
          ip = ip->next_;
          continue;
        }

      switch (ip->type_)
      {
        case RTCP_SDES_END:
             break;
        case RTCP_SDES_CNAME:
             ACE_DEBUG ((LM_DEBUG,
                         "    CNAME '%s'\n",
                         ip->info_.standard_.data_));
             break;
        case RTCP_SDES_NAME:
             ACE_DEBUG ((LM_DEBUG,
                         "    NAME '%s'\n",
                         ip->info_.standard_.data_));
             break;
        case RTCP_SDES_EMAIL:
             ACE_DEBUG ((LM_DEBUG,
                         "    EMAIL '%s'\n",
                         ip->info_.standard_.data_));
             break;
        case RTCP_SDES_PHONE:
             ACE_DEBUG ((LM_DEBUG,
                         "    PHONE '%s'\n",
                         ip->info_.standard_.data_));
             break;
        case RTCP_SDES_LOC:
             ACE_DEBUG ((LM_DEBUG,
                         "    LOC '%s'\n",
                         ip->info_.standard_.data_));
             break;
        case RTCP_SDES_TOOL:
             ACE_DEBUG ((LM_DEBUG,
                         "    TOOL '%s'\n",
                         ip->info_.standard_.data_));
             break;
        case RTCP_SDES_NOTE:
             ACE_DEBUG ((LM_DEBUG,
                         "    NOTE '%s'\n",
                         ip->info_.standard_.data_));
             break;
        case RTCP_SDES_PRIV:
             ACE_DEBUG ((LM_DEBUG,
                         "    '%s' '%s'\n",
                         ip->info_.priv_.name_,
                         ip->info_.priv_.data_));
             break;
      }
      ip = ip->next_;
    }

}

unsigned int RTCP_SDES_Packet::packet_size

(

void

)

[virtual]

Returns the size of the packet in bytes.

Implements RTCP_Packet.

Definition at line 780 of file RTCP_Packet.cpp.

References RTCP_Packet::chd_, chunk_, sdesItem_s::info_, sdesChunk_s::item_, RTCP_Common_Header::length_, sdesChunk_s::next_, sdesItem_s::next_, sdesItem_s::priv_, RTCP_SDES_PRIV, sdesItem_s::standard_, and sdesItem_s::type_.

{
  int size;
  sdesChunk_t *cp; // pointer to chunk
  sdesItem_t *ip; // pointer to item

  // Determine the size of the packet.
  size = 4;  // size of common header data in octets

  cp = this->chunk_;
  while (cp)
    {
      size += 4; // size of ssrc
      ip = cp->item_;

      while (ip && (ip->type_ != 0))
        {
          if (ip->type_ != RTCP_SDES_PRIV)
            {
              size += 2 + ip->info_.standard_.length_;  // size of item
            }
          else
            {
              size += 3 + ip->info_.priv_.name_length_ + ip->info_.priv_.data_length_;
            }
          ip = ip->next_;
        }
      size += 4 - size%4;           // pad with zeros to even 32 bit bound
      cp = cp->next_;
    }

  chd_.length_ = static_cast<ACE_UINT16> (size/4 - 1);

  return size;
}

ACE_UINT32 RTCP_SDES_Packet::ssrc

(

void

)

[inline]

This returns the synchronization source id for this packet. This assumes that this source is only receiving messages from end systems (i.e. only one source id per SDES)

Definition at line 316 of file RTCP_Packet.h.

References chunk_, and sdesChunk_s::ssrc_.

{ return this->chunk_->ssrc_; }

---

Member Data Documentation

sdesChunk_t* RTCP_SDES_Packet::chunk_ [private]

A linked list of chunks for this packet (only 1 for non-mixers).

Definition at line 332 of file RTCP_Packet.h.

Referenced by add_chunk(), add_item(), add_priv_item(), build_packet(), dump(), packet_size(), RTCP_SDES_Packet(), ssrc(), and ~RTCP_SDES_Packet().

unsigned long RTCP_SDES_Packet::num_chunks_ [private]

The number of chunks contained in this packet. 1 for end systems, 1+ for mixers

Definition at line 327 of file RTCP_Packet.h.

Referenced by RTCP_SDES_Packet().

---

The documentation for this class was generated from the following files:

• RTCP_Packet.h
• RTCP_Packet.cpp

---
