ACE_Filecache Class Reference

A hash table holding the information about entry point into the Cached Virtual Filesystem. On insertion, the reference count is incremented. On destruction, reference count is decremented. More...

#include <Filecache.h>

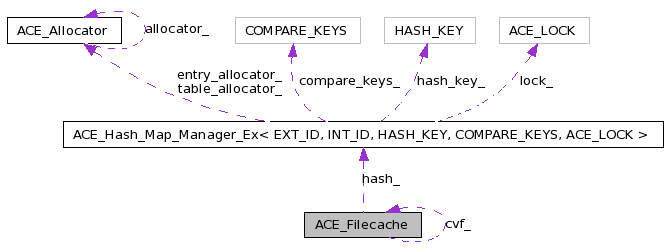

Collaboration diagram for ACE_Filecache:

[legend]List of all members.

Public Types
	ACE_DEFAULT_VIRTUAL_FILESYSTEM_TABLE_SIZE = 512
	ACE_DEFAULT_VIRTUAL_FILESYSTEM_CACHE_SIZE = 20
enum	{ ACE_DEFAULT_VIRTUAL_FILESYSTEM_TABLE_SIZE = 512, ACE_DEFAULT_VIRTUAL_FILESYSTEM_CACHE_SIZE = 20 }
Public Member Functions
	~ACE_Filecache (void)
int	find (const ACE_TCHAR *filename)
ACE_Filecache_Object *	fetch (const ACE_TCHAR *filename, int mapit=1)
ACE_Filecache_Object *	remove (const ACE_TCHAR *filename)
	Remove the file associated with ``filename'' from the cache.
ACE_Filecache_Object *	create (const ACE_TCHAR *filename, int size)
	Create a new Filecache_Object, returns it.
ACE_Filecache_Object *	finish (ACE_Filecache_Object *&new_file)
Static Public Member Functions
static ACE_Filecache *	instance (void)
	Singleton pattern.
Protected Member Functions
ACE_Filecache_Object *	insert_i (const ACE_TCHAR *filename, ACE_SYNCH_RW_MUTEX &filelock, int mapit)
ACE_Filecache_Object *	remove_i (const ACE_TCHAR *filename)
ACE_Filecache_Object *	update_i (const ACE_TCHAR *filename, ACE_SYNCH_RW_MUTEX &filelock, int mapit)
	ACE_Filecache (void)
	Prevent it from being called.
Private Attributes
ACE_OFF_T	size_
ACE_Filecache_Hash	hash_
	The hash table.
ACE_SYNCH_RW_MUTEX	hash_lock_ [ACE_DEFAULT_VIRTUAL_FILESYSTEM_TABLE_SIZE]
ACE_SYNCH_RW_MUTEX	file_lock_ [ACE_DEFAULT_VIRTUAL_FILESYSTEM_TABLE_SIZE]
Static Private Attributes
static ACE_Filecache *	cvf_ = 0
	The reference to the instance.

---

Detailed Description

A hash table holding the information about entry point into the Cached Virtual Filesystem. On insertion, the reference count is incremented. On destruction, reference count is decremented.

Definition at line 165 of file Filecache.h.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

ACE_DEFAULT_VIRTUAL_FILESYSTEM_TABLE_SIZE	For this stupid implementation, use an array. Someday, use a balanced search tree, or real hash table.
ACE_DEFAULT_VIRTUAL_FILESYSTEM_CACHE_SIZE	This determines the highwater mark in megabytes for the cache. This will be ignored for now.

Definition at line 202 of file Filecache.h.

  {
    /// For this stupid implementation, use an array.  Someday, use a
    /// balanced search tree, or real hash table.
    ACE_DEFAULT_VIRTUAL_FILESYSTEM_TABLE_SIZE = 512,

    /// This determines the highwater mark in megabytes for the cache.
    /// This will be ignored for now.
    ACE_DEFAULT_VIRTUAL_FILESYSTEM_CACHE_SIZE = 20
  };

---

Constructor & Destructor Documentation

ACE_Filecache::~ACE_Filecache

(

void

)

Definition at line 236 of file Filecache.cpp.

{
}

ACE_Filecache::ACE_Filecache

(

void

)

[protected]

Prevent it from being called.

Definition at line 230 of file Filecache.cpp.

  : size_ (ACE_DEFAULT_VIRTUAL_FILESYSTEM_TABLE_SIZE),
    hash_ (size_)
{
}

---

Member Function Documentation

ACE_Filecache_Object * ACE_Filecache::create	(	const ACE_TCHAR *	filename,
		int	size
	)

Create a new Filecache_Object, returns it.

Definition at line 383 of file Filecache.cpp.

References ACE_NEW_RETURN, ACE_SYNCH_RW_MUTEX, ACE_Filecache_Object::acquire(), file_lock_, ACE::hash_pjw(), and size_.

Referenced by ACE_Filecache_Handle::ACE_Filecache_Handle().

{
  ACE_Filecache_Object *handle = 0;

  ACE_OFF_T loc = ACE::hash_pjw (filename) % this->size_;
  ACE_SYNCH_RW_MUTEX &filelock = this->file_lock_[loc];

  ACE_NEW_RETURN (handle,
                  ACE_Filecache_Object (filename, size, filelock),
                  0);
  handle->acquire ();

  return handle;
}

ACE_Filecache_Object * ACE_Filecache::fetch	(	const ACE_TCHAR *	filename,
		int	mapit = 1
	)

Return the file associated with ``filename'' if it is in the cache, or create if not.

Definition at line 335 of file Filecache.cpp.

References ACE_SYNCH_RW_MUTEX, ACE_WRITE_GUARD_RETURN, file_lock_, hash_lock_, ACE::hash_pjw(), insert_i(), size_, ACE_Filecache_Object::update(), and update_i().

Referenced by ACE_Filecache_Handle::ACE_Filecache_Handle().

{
  ACE_Filecache_Object *handle = 0;

  ACE_OFF_T loc = ACE::hash_pjw (filename) % this->size_;
  ACE_SYNCH_RW_MUTEX &hashlock = this->hash_lock_[loc];
  ACE_SYNCH_RW_MUTEX &filelock = this->file_lock_[loc];

  filelock.acquire_read ();

  if (this->hash_.find (filename, handle) == -1)
    {
      ACE_WRITE_GUARD_RETURN (ACE_SYNCH_RW_MUTEX,
                              ace_mon,
                              hashlock,
                              0);

      // Second check in the method call
      handle = this->insert_i (filename, filelock, mapit);

      if (handle == 0)
        filelock.release ();
    }
  else
    {
      if (handle->update ())
        {
          {
            // Double check locking pattern
            ACE_WRITE_GUARD_RETURN (ACE_SYNCH_RW_MUTEX,
                                    ace_mon,
                                    hashlock,
                                    0);

            // Second check in the method call
            handle = this->update_i (filename, filelock, mapit);

            if (handle == 0)
              filelock.release ();
          }
        }
      //      ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("   (%t) CVF: found %s\n"), filename));
    }

  return handle;
}

int ACE_Filecache::find

(

const ACE_TCHAR *

filename

)

Returns 0 if the file associated with ``filename'' is in the cache, or -1 if not.

Definition at line 305 of file Filecache.cpp.

References ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::find(), and hash_.

{
  return this->hash_.find (filename);
}

ACE_Filecache_Object * ACE_Filecache::finish

(

ACE_Filecache_Object *&

new_file

)

Release an acquired Filecache_Object, returns it again or NULL if it was deleted.

Definition at line 399 of file Filecache.cpp.

References ACE_SYNCH_RW_MUTEX, ACE_WRITE_GUARD_RETURN, ACE_Filecache_Object::ACE_WRITING, ACE_Filecache_Object::acquire(), ACE_Filecache_Object::action_, ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::bind(), ACE_Filecache_Object::filename(), ACE_Filecache_Object::filename_, hash_, hash_lock_, ACE::hash_pjw(), ACE_Filecache_Object::lock_, ACE_Filecache_Object::release(), remove_i(), size_, and ACE_Filecache_Object::stale_.

Referenced by ACE_Filecache_Handle::~ACE_Filecache_Handle().

{
  if (file == 0)
    return file;

  ACE_OFF_T loc = ACE::hash_pjw (file->filename_) % this->size_;
  ACE_SYNCH_RW_MUTEX &hashlock = this->hash_lock_[loc];

  if (file != 0)
    switch (file->action_)
      {
      case ACE_Filecache_Object::ACE_WRITING:
        {
          ACE_WRITE_GUARD_RETURN (ACE_SYNCH_RW_MUTEX,
                                  ace_mon,
                                  hashlock,
                                  0);

          file->release ();

          this->remove_i (file->filename_);
#if 0
          int result = this->hash_.bind (file->filename (), file);

          if (result == 0)
            file->acquire ();
#else
        // Last one using a stale file is resposible for deleting it.
        if (file->stale_)
          {
            // Try a lock.  If it succeds, we can delete it now.
            // Otherwise, it will clean itself up later.
            if (file->lock_.tryacquire_write () == 0)
              {
                delete file;
                file = 0;
              }
          }
#endif
        }

        break;
      default:
        file->release ();

        // Last one using a stale file is resposible for deleting it.
        if (file->stale_)
          {
            // Try a lock.  If it succeds, we can delete it now.
            // Otherwise, it will clean itself up later.
            if (file->lock_.tryacquire_write () == 0)
              {
                delete file;
                file = 0;
              }
          }

        break;
      }

  return file;
}

ACE_Filecache_Object * ACE_Filecache::insert_i	(	const ACE_TCHAR *	filename,
		ACE_SYNCH_RW_MUTEX &	filelock,
		int	mapit
	)			[protected]

Definition at line 241 of file Filecache.cpp.

References ACE_NEW_RETURN.

Referenced by fetch(), and update_i().

{
  ACE_Filecache_Object *handle = 0;

  if (this->hash_.find (filename, handle) == -1)
    {
      ACE_NEW_RETURN (handle,
                      ACE_Filecache_Object (filename, filelock, 0, mapit),
                      0);

      //      ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("   (%t) CVF: creating %s\n"), filename));

      if (this->hash_.bind (filename, handle) == -1)
        {
          delete handle;
          handle = 0;
        }
    }
  else
    handle = 0;

  return handle;
}

ACE_Filecache * ACE_Filecache::instance

(

void

)

[static]

Singleton pattern.

Definition at line 209 of file Filecache.cpp.

References ACE_Object_Manager::ACE_FILECACHE_LOCK, ACE_GUARD_RETURN, ACE_NEW_RETURN, ACE_SYNCH_RW_MUTEX, and ACE_Managed_Object< TYPE >::get_preallocated_object().

Referenced by ACE_Filecache_Handle::ACE_Filecache_Handle(), and ACE_Filecache_Handle::~ACE_Filecache_Handle().

{
  // Double check locking pattern.
  if (ACE_Filecache::cvf_ == 0)
    {
      ACE_SYNCH_RW_MUTEX &lock =
        *ACE_Managed_Object<ACE_SYNCH_RW_MUTEX>::get_preallocated_object
          (ACE_Object_Manager::ACE_FILECACHE_LOCK);
      ACE_GUARD_RETURN (ACE_SYNCH_RW_MUTEX, ace_mon, lock, 0);

      // @@ James, please check each of the ACE_NEW_RETURN calls to
      // make sure that it is safe to return if allocation fails.
      if (ACE_Filecache::cvf_ == 0)
        ACE_NEW_RETURN (ACE_Filecache::cvf_,
                        ACE_Filecache,
                        0);
    }

  return ACE_Filecache::cvf_;
}

ACE_Filecache_Object * ACE_Filecache::remove

(

const ACE_TCHAR *

filename

)

Remove the file associated with ``filename'' from the cache.

Definition at line 312 of file Filecache.cpp.

References ACE_SYNCH_RW_MUTEX, ACE_WRITE_GUARD_RETURN, hash_lock_, ACE::hash_pjw(), remove_i(), and size_.

Referenced by ACE_Filecache_Handle::ACE_Filecache_Handle().

{
  ACE_Filecache_Object *handle = 0;

  ACE_OFF_T loc = ACE::hash_pjw (filename) % this->size_;
  ACE_SYNCH_RW_MUTEX &hashlock = this->hash_lock_[loc];
  // ACE_SYNCH_RW_MUTEX &filelock = this->file_lock_[loc];

  if (this->hash_.find (filename, handle) != -1)
    {
      ACE_WRITE_GUARD_RETURN (ACE_SYNCH_RW_MUTEX,
                              ace_mon,
                              hashlock,
                              0);

      return this->remove_i (filename);
    }

  return 0;
}

ACE_Filecache_Object * ACE_Filecache::remove_i

(

const ACE_TCHAR *

filename

)

[protected]

Definition at line 268 of file Filecache.cpp.

References ACE_Filecache_Object::lock_, and ACE_Filecache_Object::stale_.

Referenced by finish(), remove(), and update_i().

{
  ACE_Filecache_Object *handle = 0;

  // Disassociate file from the cache.
  if (this->hash_.unbind (filename, handle) == 0)
    {
      handle->stale_ = 1;

      // Try a lock.  If it succeeds, we can delete it now.
      // Otherwise, it will clean itself up later.
      if (handle->lock_.tryacquire_write () == 0)
        {
          delete handle;
          handle = 0;
        }
    }
  else
    handle = 0;

  return handle;
}

ACE_Filecache_Object * ACE_Filecache::update_i	(	const ACE_TCHAR *	filename,
		ACE_SYNCH_RW_MUTEX &	filelock,
		int	mapit
	)			[protected]

Definition at line 292 of file Filecache.cpp.

References insert_i(), and remove_i().

Referenced by fetch().

{
  ACE_Filecache_Object *handle = 0;

  handle = this->remove_i (filename);
  handle = this->insert_i (filename, filelock, mapit);

  return handle;
}

---

Member Data Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Filecache * ACE_Filecache::cvf_ = 0 [static, private]

The reference to the instance.

Definition at line 224 of file Filecache.h.

ACE_SYNCH_RW_MUTEX ACE_Filecache::file_lock_[ACE_DEFAULT_VIRTUAL_FILESYSTEM_TABLE_SIZE] [private]

Definition at line 228 of file Filecache.h.

Referenced by create(), and fetch().

ACE_Filecache_Hash ACE_Filecache::hash_ [private]

The hash table.

Definition at line 221 of file Filecache.h.

Referenced by find(), and finish().

ACE_SYNCH_RW_MUTEX ACE_Filecache::hash_lock_[ACE_DEFAULT_VIRTUAL_FILESYSTEM_TABLE_SIZE] [private]

Definition at line 227 of file Filecache.h.

Referenced by fetch(), finish(), and remove().

ACE_OFF_T ACE_Filecache::size_ [private]

Definition at line 218 of file Filecache.h.

Referenced by create(), fetch(), finish(), and remove().

---

The documentation for this class was generated from the following files:

• Filecache.h
• Filecache.cpp

---
