ACE_Buffered_Svc_Handler<, > Class Template Reference

Defines the interface for a service that exchanges data with its connected peer and supports buffering. More...

#include <Svc_Handler.h>

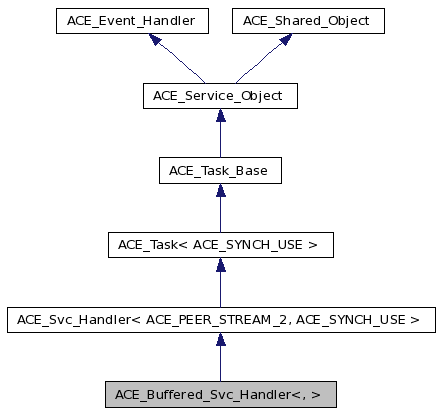

Inheritance diagram for ACE_Buffered_Svc_Handler<, >:

Inheritance graph
[legend]

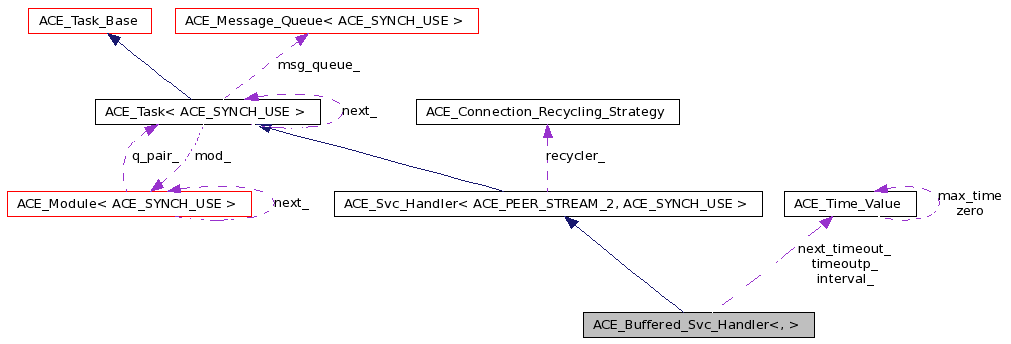

Collaboration diagram for ACE_Buffered_Svc_Handler<, >:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Buffered_Svc_Handler (ACE_Thread_Manager *thr_mgr=0, ACE_Message_Queue< ACE_SYNCH_USE > *mq=0, ACE_Reactor *reactor=ACE_Reactor::instance(), size_t max_buffer_size=0, ACE_Time_Value *relative_timeout=0)
virtual ~ACE_Buffered_Svc_Handler (void)
 Destructor, which calls <flush>.
virtual int put (ACE_Message_Block *message_block, ACE_Time_Value *timeout=0)
virtual int flush (void)
virtual int handle_timeout (const ACE_Time_Value &time, const void *)
void dump (void) const
 Dump the state of an object.

Protected Member Functions

virtual int flush_i (void)

Protected Attributes

size_t maximum_buffer_size_
size_t current_buffer_size_
 Current size in bytes of the <Message_Queue> contents.
ACE_Time_Value next_timeout_
 Timeout value used to control when the buffer is flushed.
ACE_Time_Value interval_
 Interval of the timeout.
ACE_Time_Value * timeoutp_
 Timeout pointer.

Detailed Description

template<ACE_PEER_STREAM_1, ACE_SYNCH_DECL>
class ACE_Buffered_Svc_Handler<, >

Defines the interface for a service that exchanges data with its connected peer and supports buffering.

The buffering feature makes it possible to queue up ACE_Message_Blocks in an ACE_Message_Queue until (1) the queue is "full" or (2) a period of time elapses, at which point the queue is "flushed" via <sendv_n> to the peer.

Definition at line 260 of file Svc_Handler.h.

Constructor & Destructor Documentation

template<PR_ST_1 , ACE_SYNCH_DECL >
ACE_Buffered_Svc_Handler<, >::ACE_Buffered_Svc_Handler ( ACE_Thread_Manager *  thr_mgr = 0,
ACE_Message_Queue< ACE_SYNCH_USE > *  mq = 0,
ACE_Reactor *  reactor = ACE_Reactor::instance(),
size_t  max_buffer_size = 0,
ACE_Time_Value *  relative_timeout = 0
)

Constructor initializes the thr_mgr and mq by passing them down to the ACE_Task base class. The reactor is passed to the ACE_Event_Handler. The max_buffer_size and relative_timeout are used to determine at what point to flush the mq. By default, there's no buffering at all. The relative_timeout value is interpreted to be in a unit that's relative to the current time returned by <ACE_OS::gettimeofday>.

Definition at line 413 of file Svc_Handler.cpp.

References ACE_TRACE, ACE_OS::gettimeofday(), ACE_Buffered_Svc_Handler<, >::interval_, and ACE_Buffered_Svc_Handler<, >::next_timeout_.

00418   : ACE_Svc_Handler<PR_ST_2, ACE_SYNCH_USE> (tm, mq, reactor),
00419     maximum_buffer_size_ (maximum_buffer_size),
00420     current_buffer_size_ (0),
00421     timeoutp_ (timeout)
00422 {
00423   ACE_TRACE ("ACE_Buffered_Svc_Handler<PR_ST_2, ACE_SYNCH_USE>::ACE_Buffered_Svc_Handler");
00424
00425   if (this->timeoutp_ != 0)
00426     {
00427       this->interval_ = *timeout;
00428       this->next_timeout_ = ACE_OS::gettimeofday () + this->interval_;
00429     }
00430 }

template<PR_ST_1 , ACE_SYNCH_DECL >
ACE_Buffered_Svc_Handler<, >::~ACE_Buffered_Svc_Handler ( void   )  [virtual]

Destructor, which calls <flush>.

Definition at line 407 of file Svc_Handler.cpp.

References ACE_Buffered_Svc_Handler<, >::flush().

00408 {
00409   this->flush ();
00410 }

Member Function Documentation

template<PR_ST_1 , ACE_SYNCH_DECL >
void ACE_Buffered_Svc_Handler<, >::dump ( void   )  const

Dump the state of an object.

Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

Definition at line 493 of file Svc_Handler.cpp.

References ACE_DEBUG, ACE_TRACE, LM_DEBUG, ACE_Buffered_Svc_Handler<, >::next_timeout_, and ACE_Time_Value::usec().

00494 {
00495 #if defined (ACE_HAS_DUMP)
00496   ACE_TRACE ("ACE_Buffered_Svc_Handler<PR_ST_2, ACE_SYNCH_USE>::dump");
00497
00498   ACE_Buffered_Svc_Handler<PR_ST_2, ACE_SYNCH_USE>::dump ();
00499   ACE_DEBUG ((LM_DEBUG,
00500               "maximum_buffer_size_ = %d\n",
00501               this->maximum_buffer_size_));
00502   ACE_DEBUG ((LM_DEBUG,
00503               "current_buffer_size_ = %d\n",
00504               this->current_buffer_size_));
00505   if (this->timeoutp_ != 0)
00506     ACE_DEBUG ((LM_DEBUG,
00507                 "next_timeout_.sec = %d, next_timeout_.usec = %d\n",
00508                 this->next_timeout_.sec (),
00509                 this->next_timeout_.usec ()));
00510 #endif /* ACE_HAS_DUMP */
00511 }

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::flush ( void   )  [virtual]

Flush the ACE_Message_Queue, which writes all the queued ACE_Message_Blocks to the <PEER_STREAM>.

Definition at line 460 of file Svc_Handler.cpp.

References ACE_GUARD_RETURN, ACE_SYNCH_MUTEX_T, and ACE_Buffered_Svc_Handler<, >::flush_i().

Referenced by ACE_Buffered_Svc_Handler<, >::~ACE_Buffered_Svc_Handler().

00461 {
00462   ACE_GUARD_RETURN (ACE_SYNCH_MUTEX_T, m, this->msg_queue ()->lock (), -1);
00463
00464   return this->flush_i ();
00465 }

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::flush_i ( void   )  [protected, virtual]

Implement the flush operation on the ACE_Message_Queue, which writes all the queued ACE_Message_Blocks to the <PEER_STREAM>. Assumes that the caller holds the lock.

Definition at line 468 of file Svc_Handler.cpp.

References ACE_Buffered_Svc_Handler<, >::current_buffer_size_, ACE_Message_Queue<>::flush_i(), ACE_Buffered_Svc_Handler<, >::interval_, ACE_Task< ACE_SYNCH_USE >::msg_queue(), and ACE_Buffered_Svc_Handler<, >::next_timeout_.

Referenced by ACE_Buffered_Svc_Handler<, >::flush(), and ACE_Buffered_Svc_Handler<, >::put().

00469 {
00470   ACE_Message_Queue_Iterator<ACE_SYNCH_USE> iterator (*this->msg_queue ());
00471   ACE_Message_Block *mblk = 0;
00472   ssize_t result = 0;
00473
00474   // Get the first <ACE_Message_Block> so that we can write everything
00475   // out via the <send_n>.
00476   if (iterator.next (mblk) != 0)
00477     result = this->peer ().send_n (mblk);
00478
00479   // This method assumes the caller holds the queue's lock!
00480   if (result != -1)
00481     this->msg_queue ()->flush_i ();
00482
00483   if (this->timeoutp_ != 0)
00484     // Update the next timeout period by adding the interval.
00485     this->next_timeout_ += this->interval_;
00486
00487   this->current_buffer_size_ = 0;
00488
00489   return result;
00490 }

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::handle_timeout ( const ACE_Time_Value &  time,
const void *
) [virtual]

This method is not currently implemented -- this is where the integration with the <Reactor> would occur.

Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM_2, ACE_SYNCH_USE >.

Definition at line 514 of file Svc_Handler.cpp.

References ACE_TRACE.

00516 {
00517   ACE_TRACE ("ACE_Buffered_Svc_Handler<PR_ST_2, ACE_SYNCH_USE>::handle_timeout");
00518   return 0;
00519 }

template<PR_ST_1 , ACE_SYNCH_DECL >
int ACE_Buffered_Svc_Handler<, >::put ( ACE_Message_Block *  message_block,
ACE_Time_Value *  timeout = 0
) [virtual]

Insert the ACE_Message_Block chain rooted at message_block into the ACE_Message_Queue with the designated timeout. The <flush> method will be called if this <put> causes the number of bytes to exceed the maximum buffer size or if the timeout period has elapsed.

Reimplemented from ACE_Task_Base.

Definition at line 433 of file Svc_Handler.cpp.

References ACE_GUARD_RETURN, ACE_SYNCH_MUTEX_T, ACE_Buffered_Svc_Handler<, >::current_buffer_size_, ACE_Buffered_Svc_Handler<, >::flush_i(), ACE_OS::gettimeofday(), and ACE_Message_Block::total_size().

00435 {
00436   ACE_GUARD_RETURN (ACE_SYNCH_MUTEX_T, m, this->msg_queue ()->lock (), -1);
00437
00438   // Enqueue <mb> onto the message queue.
00439   if (this->putq (mb, tv) == -1)
00440     return -1;
00441   else
00442     {
00443       // Update the current number of bytes on the queue.
00444       this->current_buffer_size_ += mb->total_size ();
00445
00446       // Flush the buffer when the number of bytes exceeds the maximum
00447       // buffer size or when the timeout period has elapsed.
00448       if (this->current_buffer_size_ >= this->maximum_buffer_size_
00449           || (this->timeoutp_ != 0
00450               && this->next_timeout_ <= ACE_OS::gettimeofday ()))
00451         return this->flush_i ();
00452       else
00453         return 0;
00454     }
00455 }

Member Data Documentation

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
size_t ACE_Buffered_Svc_Handler<, >::current_buffer_size_ [protected]

Current size in bytes of the <Message_Queue> contents.

Definition at line 315 of file Svc_Handler.h.

Referenced by ACE_Buffered_Svc_Handler<, >::flush_i(), and ACE_Buffered_Svc_Handler<, >::put().

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
ACE_Time_Value ACE_Buffered_Svc_Handler<, >::interval_ [protected]

Interval of the timeout.

Definition at line 321 of file Svc_Handler.h.

Referenced by ACE_Buffered_Svc_Handler<, >::ACE_Buffered_Svc_Handler(), and ACE_Buffered_Svc_Handler<, >::flush_i().

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
size_t ACE_Buffered_Svc_Handler<, >::maximum_buffer_size_ [protected]

Maximum size the <Message_Queue> can be before we have to flush the buffer.

Definition at line 312 of file Svc_Handler.h.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
ACE_Time_Value ACE_Buffered_Svc_Handler<, >::next_timeout_ [protected]

Timeout value used to control when the buffer is flushed.

Definition at line 318 of file Svc_Handler.h.

Referenced by ACE_Buffered_Svc_Handler<, >::ACE_Buffered_Svc_Handler(), ACE_Buffered_Svc_Handler<, >::dump(), and ACE_Buffered_Svc_Handler<, >::flush_i().

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >
ACE_Time_Value* ACE_Buffered_Svc_Handler<, >::timeoutp_ [protected]

Timeout pointer.

Definition at line 324 of file Svc_Handler.h.

The documentation for this class was generated from the following files:
