TAO::Portable_Server::Servant_Upcall Class Reference

This class finds out the POA and the servant to perform an upcall. It can only be instantiated without the object adapter's lock held. For each upcall a new instance of this class is created. More...

#include <Servant_Upcall.h>

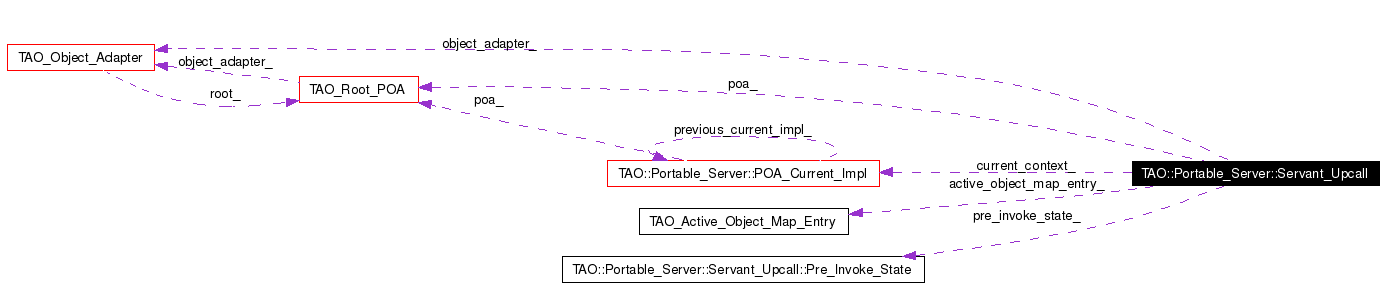

Collaboration diagram for TAO::Portable_Server::Servant_Upcall:

Collaboration graph
[legend]
List of all members.

Public Types

enum  State {
  INITIAL_STAGE, OBJECT_ADAPTER_LOCK_ACQUIRED, POA_CURRENT_SETUP, OBJECT_ADAPTER_LOCK_RELEASED,
  SERVANT_LOCK_ACQUIRED
}

Public Member Functions

 Servant_Upcall (TAO_ORB_Core *orb_core)
 Constructor.

 ~Servant_Upcall (void)
 Destructor.

int prepare_for_upcall (const TAO::ObjectKey &key, const char *operation, CORBA::Object_out forward_to)
 Locate POA and servant.

int prepare_for_upcall_i (const TAO::ObjectKey &key, const char *operation, CORBA::Object_out forward_to, bool &wait_occurred_restart_call)
 Helper.

void pre_invoke_remote_request (TAO_ServerRequest &req)
 Run pre_invoke for a remote request.

void pre_invoke_collocated_request (void)
 Run pre_invoke for a collocated request.

void post_invoke (void)
 Run post_invoke for a request.

::TAO_Root_POA * lookup_POA (const TAO::ObjectKey &key)
 Locate POA.

::TAO_Root_POA & poa (void) const
 POA accessor.

TAO_Object_Adapter & object_adapter (void) const
 Object Adapter accessor.

const PortableServer::ObjectId & id (void) const
 System ID accessor.

void user_id (const PortableServer::ObjectId *)
const PortableServer::ObjectId & user_id (void) const
PortableServer::Servant servant (void) const
 Servant accessor.

void * locator_cookie (void) const
 Get the Servant Locator's cookie.

void locator_cookie (void *cookie)
 Set the Servant Locator's cookie.

const char * operation (void) const
 Get the operation name.

void operation (const char *)
 Set the operation name.

void active_object_map_entry (TAO_Active_Object_Map_Entry *entry)
 Set the active_object_map_entry.

TAO_Active_Object_Map_Entry * active_object_map_entry (void) const
 Get the active_object_map_entry.

CORBA::Short priority (void) const
 Get the priority for the current upcall.

State state (void) const
 Get the state.

void state (State)
 Set the state.

void increment_servant_refcount (void)
 Increment the refcount.


Protected Member Functions

void post_invoke_servant_cleanup (void)
void single_threaded_poa_setup (void)
void single_threaded_poa_cleanup (void)
void servant_cleanup (void)
void poa_cleanup (void)
void upcall_cleanup (void)
 Clean-up / reset state of this Servant_Upcall object.


Protected Attributes

TAO_Object_Adapter * object_adapter_
::TAO_Root_POA * poa_
PortableServer::Servant servant_
State state_
CORBA::Octet system_id_buf_ [TAO_POA_OBJECT_ID_BUF_SIZE]
PortableServer::ObjectId system_id_
const PortableServer::ObjectId * user_id_
POA_Current_Impl current_context_
void * cookie_
 Servant Locator's cookie.

const char * operation_
 Operation name for this current.

TAO_Active_Object_Map_Entry * active_object_map_entry_
Pre_Invoke_State pre_invoke_state_
 Preinvoke data for the upcall.


Private Member Functions

 Servant_Upcall (const Servant_Upcall &)
void operator= (const Servant_Upcall &)

Friends

class ::TAO_RT_Collocation_Resolver

Detailed Description

This class finds out the POA and the servant to perform an upcall. It can only be instantiated without the object adapter's lock held. For each upcall a new instance of this class is created.

Definition at line 60 of file Servant_Upcall.h.

Member Enumeration Documentation

enum TAO::Portable_Server::Servant_Upcall::State


Enumeration values:
INITIAL_STAGE
OBJECT_ADAPTER_LOCK_ACQUIRED
POA_CURRENT_SETUP
OBJECT_ADAPTER_LOCK_RELEASED
SERVANT_LOCK_ACQUIRED

Definition at line 165 of file Servant_Upcall.h.

00166       {
00167         INITIAL_STAGE,
00168         OBJECT_ADAPTER_LOCK_ACQUIRED,
00169         POA_CURRENT_SETUP,
00170         OBJECT_ADAPTER_LOCK_RELEASED,
00171         SERVANT_LOCK_ACQUIRED
00172       };

Constructor & Destructor Documentation

TAO::Portable_Server::Servant_Upcall::Servant_Upcall (  TAO_ORB_Core *  orb_core  )  [explicit]


Constructor.

Definition at line 32 of file Servant_Upcall.cpp.

References TAO_ORB_Core::poa_adapter(), TAO_HAS_MINIMUM_POA, and TAO_POA_OBJECT_ID_BUF_SIZE.

00033       : object_adapter_ (0),
00034         poa_ (0),
00035         servant_ (0),
00036         state_ (INITIAL_STAGE),
00037         system_id_ (TAO_POA_OBJECT_ID_BUF_SIZE, 0, system_id_buf_),
00038         user_id_ (0),
00039         current_context_ (),
00040 #if (TAO_HAS_MINIMUM_POA == 0)
00041         cookie_ (0),
00042         operation_ (0),
00043 #endif /* TAO_HAS_MINIMUM_POA == 0 */
00044         active_object_map_entry_ (0)
00045     {
00046       TAO_Object_Adapter *object_adapter =
00047         dynamic_cast<TAO_Object_Adapter *>(oc->poa_adapter ());
00048       this->object_adapter_ = object_adapter;
00049     }

TAO::Portable_Server::Servant_Upcall::~Servant_Upcall (  void   )


Destructor.

Definition at line 234 of file Servant_Upcall.cpp.

References upcall_cleanup().

00235     {
00236       this->upcall_cleanup ();
00237     }

TAO::Portable_Server::Servant_Upcall::Servant_Upcall (  const Servant_Upcall &   )  [private]


Member Function Documentation

ACE_INLINE TAO_Active_Object_Map_Entry * TAO::Portable_Server::Servant_Upcall::active_object_map_entry (  void   )  const


Get the active_object_map_entry.

Definition at line 83 of file Servant_Upcall.inl.

References active_object_map_entry_.

Referenced by prepare_for_upcall_i().

00084     {
00085       return this->active_object_map_entry_;
00086     }

ACE_INLINE void TAO::Portable_Server::Servant_Upcall::active_object_map_entry (  TAO_Active_Object_Map_Entry *  entry  )


Set the active_object_map_entry.

Definition at line 77 of file Servant_Upcall.inl.

References active_object_map_entry_.

Referenced by TAO::Portable_Server::ServantRetentionStrategyRetain::find_servant(), and TAO::Portable_Server::ServantRetentionStrategyRetain::rebind_using_user_id_and_system_id().

00078     {
00079       this->active_object_map_entry_ = entry;
00080     }

ACE_INLINE const PortableServer::ObjectId & TAO::Portable_Server::Servant_Upcall::id (  void   )  const


System ID accessor.

Definition at line 30 of file Servant_Upcall.inl.

00031     {
00032       return this->system_id_;
00033     }

void TAO::Portable_Server::Servant_Upcall::increment_servant_refcount (  void   )


Increment the refcount.

Definition at line 337 of file Servant_Upcall.cpp.

References active_object_map_entry_, and TAO_Active_Object_Map_Entry::reference_count_.

Referenced by TAO::Portable_Server::ServantRetentionStrategyRetain::find_servant(), and TAO::Portable_Server::RequestProcessingStrategyServantActivator::locate_servant().

00338     {
00339       // Cleanup servant related stuff.
00340       if (this->active_object_map_entry_ != 0)
00341         ++this->active_object_map_entry_->reference_count_;
00342     }

ACE_INLINE void TAO::Portable_Server::Servant_Upcall::locator_cookie (  void *  cookie  )


Set the Servant Locator's cookie.

Definition at line 57 of file Servant_Upcall.inl.

References cookie_.

00058     {
00059       this->cookie_ = cookie;
00060     }

ACE_INLINE void * TAO::Portable_Server::Servant_Upcall::locator_cookie (  void   )  const


Get the Servant Locator's cookie.

Definition at line 51 of file Servant_Upcall.inl.

References cookie_.

Referenced by TAO::Portable_Server::RequestProcessingStrategyServantLocator::locate_servant(), and TAO::Portable_Server::RequestProcessingStrategyServantLocator::post_invoke_servant_cleanup().

00052     {
00053       return this->cookie_;
00054     }

TAO_Root_POA * TAO::Portable_Server::Servant_Upcall::lookup_POA (  const TAO::ObjectKey &  key  )


Locate POA.

Definition at line 212 of file Servant_Upcall.cpp.

References ACE_Lock::acquire(), TAO_Object_Adapter::locate_poa(), TAO_Object_Adapter::lock(), OBJECT_ADAPTER_LOCK_ACQUIRED, and TAO_Object_Adapter::wait_for_non_servant_upcalls_to_complete().

00213     {
00214       // Acquire the object adapter lock first.
00215       if (this->object_adapter_->lock ().acquire () == -1)
00216         // Locking error.
00217         throw ::CORBA::OBJ_ADAPTER ();
00218
00219       // We have acquired the object adapter lock.  Record this for later
00220       // use.
00221       this->state_ = OBJECT_ADAPTER_LOCK_ACQUIRED;
00222
00223       // Check if a non-servant upcall is in progress.  If a non-servant
00224       // upcall is in progress, wait for it to complete.  Unless of
00225       // course, the thread making the non-servant upcall is this thread.
00226       this->object_adapter_->wait_for_non_servant_upcalls_to_complete ();
00227
00228       // Locate the POA.
00229       this->object_adapter_->locate_poa (key, this->system_id_, this->poa_);
00230
00231       return this->poa_;
00232     }

ACE_INLINE TAO_Object_Adapter & TAO::Portable_Server::Servant_Upcall::object_adapter (  void   )  const


Object Adapter accessor.

Definition at line 24 of file Servant_Upcall.inl.

00025     {
00026       return *this->object_adapter_;
00027     }

ACE_INLINE void TAO::Portable_Server::Servant_Upcall::operation (  const char *   )


Set the operation name.

Definition at line 69 of file Servant_Upcall.inl.

00070     {
00071       this->operation_ = name;
00072     }

ACE_INLINE const char * TAO::Portable_Server::Servant_Upcall::operation (  void   )  const


Get the operation name.

Definition at line 63 of file Servant_Upcall.inl.

Referenced by TAO::Portable_Server::RequestProcessingStrategyServantLocator::locate_servant(), and TAO::Portable_Server::RequestProcessingStrategyServantLocator::post_invoke_servant_cleanup().

00064     {
00065       return this->operation_;
00066     }

void TAO::Portable_Server::Servant_Upcall::operator= (  const Servant_Upcall &   )  [private]


ACE_INLINE::TAO_Root_POA & TAO::Portable_Server::Servant_Upcall::poa (  void   )  const


POA accessor.

Definition at line 12 of file Servant_Upcall.inl.

00013     {
00014       return *this->poa_;
00015     }

void TAO::Portable_Server::Servant_Upcall::poa_cleanup (  void   )  [protected]


Definition at line 379 of file Servant_Upcall.cpp.

References TAO_Root_POA::complete_destruction_i(), TAO_Root_POA::decrement_outstanding_requests(), TAO_Object_Adapter::enable_locking_, TAO_Root_POA::outstanding_requests_condition_, TAO_Root_POA::wait_for_completion_pending_, and TAO_Root_POA::waiting_destruction_.

Referenced by upcall_cleanup().

00380     {
00381       // Decrease <poa->outstanding_requests_> now that the upcall
00382       // is complete.
00383       //
00384       // Note that the object adapter lock is acquired before
00385       // <POA::outstanding_requests_> is decreased.
00386       CORBA::ULong outstanding_requests =
00387         this->poa_->decrement_outstanding_requests ();
00388
00389       // Check if all pending requests are over.
00390       if (outstanding_requests == 0)
00391         {
00392           // If locking is enabled and some thread is waiting in POA::destroy.
00393           if (this->object_adapter_->enable_locking_ &&
00394               this->poa_->wait_for_completion_pending_)
00395             {
00396               // Wakeup all waiting threads.
00397               this->poa_->outstanding_requests_condition_.broadcast ();
00398             }
00399
00400           // Note that there is no need to check for
00401           // <non_servant_upcall_in_progress> since it is not possible for
00402           // non-servant upcalls to be in progress at this point.
00403           if (this->poa_->waiting_destruction_)
00404             {
00405               try
00406                 {
00407                   this->poa_->complete_destruction_i ();
00408                 }
00409               catch (const ::CORBA::Exception& ex)
00410                 {
00411                   // Ignore exceptions
00412                   ex._tao_print_exception ("TAO_POA::~complete_destruction_i");
00413                 }
00414
00415               this->poa_ = 0;
00416             }
00417         }
00418     }

void TAO::Portable_Server::Servant_Upcall::post_invoke (  void   )


Run post_invoke for a request.

Definition at line 197 of file Servant_Upcall.cpp.

References TAO_Servant_Dispatcher::post_invoke(), pre_invoke_state_, and TAO_Object_Adapter::servant_dispatcher_.

Referenced by upcall_cleanup().

00198     {
00199       this->object_adapter_->servant_dispatcher_->post_invoke (
00200         this->poa (),
00201         this->pre_invoke_state_);
00202     }

void TAO::Portable_Server::Servant_Upcall::post_invoke_servant_cleanup (  void   )  [protected]


Definition at line 301 of file Servant_Upcall.cpp.

References TAO_Root_POA::post_invoke_servant_cleanup().

Referenced by upcall_cleanup().

00302     {
00303       this->poa_->post_invoke_servant_cleanup (this->current_context_.object_id (),
00304                                                *this);
00305     }

void TAO::Portable_Server::Servant_Upcall::pre_invoke_collocated_request (  void   )


Run pre_invoke for a collocated request.

Definition at line 188 of file Servant_Upcall.cpp.

References TAO_Servant_Dispatcher::pre_invoke_collocated_request(), pre_invoke_state_, priority(), and TAO_Object_Adapter::servant_dispatcher_.

Referenced by TAO::Collocated_Object_Proxy_Broker::_get_interface(), TAO::Collocated_Object_Proxy_Broker::_is_a(), TAO::Collocated_Object_Proxy_Broker::_non_existent(), and TAO_Object_Adapter::dispatch_servant().

00189     {
00190       this->object_adapter_->servant_dispatcher_->pre_invoke_collocated_request (
00191         this->poa (),
00192         this->priority (),
00193         this->pre_invoke_state_);
00194     }

void TAO::Portable_Server::Servant_Upcall::pre_invoke_remote_request (  TAO_ServerRequest &  req  )


Run pre_invoke for a remote request.

Definition at line 178 of file Servant_Upcall.cpp.

References TAO_Servant_Dispatcher::pre_invoke_remote_request(), pre_invoke_state_, priority(), and TAO_Object_Adapter::servant_dispatcher_.

Referenced by TAO_Object_Adapter::dispatch_servant().

00179     {
00180       this->object_adapter_->servant_dispatcher_->pre_invoke_remote_request (
00181         this->poa (),
00182         this->priority (),
00183         req,
00184         this->pre_invoke_state_);
00185     }

int TAO::Portable_Server::Servant_Upcall::prepare_for_upcall (  const TAO::ObjectKey &  key,
const char *  operation,
CORBA::Object_out  forward_to
)


Locate POA and servant.

Definition at line 52 of file Servant_Upcall.cpp.

References prepare_for_upcall_i(), and upcall_cleanup().

Referenced by TAO::Collocated_Object_Proxy_Broker::_get_component(), TAO::Collocated_Object_Proxy_Broker::_get_interface(), TAO::Collocated_Object_Proxy_Broker::_is_a(), TAO::Collocated_Object_Proxy_Broker::_non_existent(), TAO::Collocated_Object_Proxy_Broker::_repository_id(), and TAO_Object_Adapter::dispatch_servant().

00056     {
00057       while (1)
00058         {
00059           bool wait_occurred_restart_call = false;
00060
00061           int result =
00062             this->prepare_for_upcall_i (key,
00063                                         operation,
00064                                         forward_to,
00065                                         wait_occurred_restart_call);
00066
00067           if (result == TAO_Adapter::DS_FAILED &&
00068               wait_occurred_restart_call)
00069             {
00070               // We ended up waiting on a condition variable.  The POA
00071               // state may have changed while we are waiting.  Therefore,
00072               // we need to call prepare_for_upcall_i() again.  We also
00073               // need to cleanup the state of the upcall object before
00074               // continuing.
00075               this->upcall_cleanup ();
00076               continue;
00077             }
00078           else
00079             {
00080               return result;
00081             }
00082         }
00083     }

int TAO::Portable_Server::Servant_Upcall::prepare_for_upcall_i (  const TAO::ObjectKey &  key,
const char *  operation,
CORBA::Object_out  forward_to,
bool &  wait_occurred_restart_call
)


Helper.

Definition at line 86 of file Servant_Upcall.cpp.

References CORBA::Object::_duplicate(), ACE_Lock::acquire(), active_object_map_entry(), TAO_Root_POA::check_state(), current_context_, TAO_Root_POA::increment_outstanding_requests(), TAO_Object_Adapter::locate_poa(), TAO_Root_POA::locate_servant_i(), TAO_Object_Adapter::lock(), OBJECT_ADAPTER_LOCK_ACQUIRED, OBJECT_ADAPTER_LOCK_RELEASED, POA_CURRENT_SETUP, TAO::Portable_Server::POA_Current_Impl::priority(), ACE_Lock::release(), TAO::Portable_Server::POA_Current_Impl::servant(), SERVANT_LOCK_ACQUIRED, TAO::Portable_Server::POA_Current_Impl::setup(), single_threaded_poa_setup(), and TAO_Object_Adapter::wait_for_non_servant_upcalls_to_complete().

Referenced by prepare_for_upcall().

00091     {
00092       // Acquire the object adapter lock first.
00093       int result = this->object_adapter_->lock ().acquire ();
00094       if (result == -1)
00095         // Locking error.
00096         throw ::CORBA::OBJ_ADAPTER ();
00097
00098       // We have acquired the object adapter lock.  Record this for later
00099       // use.
00100       this->state_ = OBJECT_ADAPTER_LOCK_ACQUIRED;
00101
00102       // Check if a non-servant upcall is in progress.  If a non-servant
00103       // upcall is in progress, wait for it to complete.  Unless of
00104       // course, the thread making the non-servant upcall is this thread.
00105       this->object_adapter_->wait_for_non_servant_upcalls_to_complete ();
00106
00107       // Locate the POA.
00108       this->object_adapter_->locate_poa (key, this->system_id_, this->poa_);
00109
00110       // Check the state of the POA.
00111       this->poa_->check_state ();
00112
00113       // Setup current for this request.
00114       this->current_context_.setup (this->poa_, key);
00115
00116       // Increase <poa->outstanding_requests_> for the duration of finding
00117       // the POA, finding the servant, and making the upcall.
00118       this->poa_->increment_outstanding_requests ();
00119
00120       // We have setup the POA Current.  Record this for later use.
00121       this->state_ = POA_CURRENT_SETUP;
00122
00123 #if (TAO_HAS_MINIMUM_CORBA == 0) && !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO)
00124       try
00125         {
00126 #endif /* TAO_HAS_MINIMUM_CORBA */
00127           // Lookup the servant.
00128           this->servant_ =
00129             this->poa_->locate_servant_i (operation,
00130                                           this->system_id_,
00131                                           *this,
00132                                           this->current_context_,
00133                                           wait_occurred_restart_call);
00134
00135           if (wait_occurred_restart_call)
00136             return TAO_Adapter::DS_FAILED;
00137 #if (TAO_HAS_MINIMUM_CORBA == 0) && !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO)
00138         }
00139       catch (const ::PortableServer::ForwardRequest& forward_request)
00140         {
00141           forward_to =
00142             CORBA::Object::_duplicate (forward_request.forward_reference.in ());
00143           return TAO_Adapter::DS_FORWARD;
00144         }
00145 #else
00146       ACE_UNUSED_ARG (forward_to);
00147 #endif /* TAO_HAS_MINIMUM_CORBA */
00148
00149       // Now that we know the servant.
00150       this->current_context_.servant (this->servant_);
00151
00152       // For servants from Servant Locators, there is no active object map
00153       // entry.
00154       if (this->active_object_map_entry ())
00155         this->current_context_.priority (this->active_object_map_entry ()->priority_);
00156
00157       if (this->state_ != OBJECT_ADAPTER_LOCK_RELEASED)
00158         {
00159           // Release the object adapter lock.
00160           this->object_adapter_->lock ().release ();
00161
00162           // We have release the object adapter lock.  Record this for
00163           // later use.
00164           this->state_ = OBJECT_ADAPTER_LOCK_RELEASED;
00165         }
00166
00167       // Serialize servants (if appropriate).
00168       this->single_threaded_poa_setup ();
00169
00170       // We have acquired the servant lock.  Record this for later use.
00171       this->state_ = SERVANT_LOCK_ACQUIRED;
00172
00173       // After this point, <this->servant_> is ready for dispatching.
00174       return TAO_Adapter::DS_OK;
00175     }

ACE_INLINE CORBA::Short TAO::Portable_Server::Servant_Upcall::priority (  void   )  const


Get the priority for the current upcall.

Definition at line 89 of file Servant_Upcall.inl.

References current_context_, and TAO::Portable_Server::POA_Current_Impl::priority().

Referenced by pre_invoke_collocated_request(), and pre_invoke_remote_request().

00090     {
00091       return this->current_context_.priority ();
00092     }

ACE_INLINE PortableServer::Servant TAO::Portable_Server::Servant_Upcall::servant (  void   )  const


Servant accessor.

Definition at line 18 of file Servant_Upcall.inl.

Referenced by TAO::Collocated_Object_Proxy_Broker::_get_component(), TAO::Collocated_Object_Proxy_Broker::_get_interface(), TAO::Collocated_Object_Proxy_Broker::_is_a(), TAO::Collocated_Object_Proxy_Broker::_non_existent(), TAO::Collocated_Object_Proxy_Broker::_repository_id(), TAO_Object_Adapter::do_dispatch(), and TAO::Portable_Server::RequestProcessingStrategyServantLocator::post_invoke_servant_cleanup().

00019     {
00020       return this->servant_;
00021     }

void TAO::Portable_Server::Servant_Upcall::servant_cleanup (  void   )  [protected]


Definition at line 345 of file Servant_Upcall.cpp.

References active_object_map_entry_, TAO_Root_POA::cleanup_servant(), TAO_Object_Adapter::enable_locking_, TAO_Active_Object_Map_Entry::reference_count_, TAO_Root_POA::servant_deactivation_condition_, and TAO_Root_POA::waiting_servant_deactivation().

Referenced by upcall_cleanup().

00346     {
00347       // Cleanup servant related stuff.
00348       if (this->active_object_map_entry_ != 0)
00349         {
00350           // Decrement the reference count.
00351           CORBA::UShort const new_count =
00352             --this->active_object_map_entry_->reference_count_;
00353
00354           if (new_count == 0)
00355             {
00356               try
00357                 {
00358                   this->poa_->cleanup_servant (
00359                     this->active_object_map_entry_->servant_,
00360                     this->active_object_map_entry_->user_id_);
00361
00362                 }
00363               catch (...)
00364                 {
00365                   // Ignore errors from servant cleanup ....
00366                 }
00367
00368               if (this->poa_->waiting_servant_deactivation() > 0 &&
00369                   this->object_adapter_->enable_locking_)
00370                 {
00371                   // Wakeup all waiting threads.
00372                   this->poa_->servant_deactivation_condition_.broadcast ();
00373                 }
00374             }
00375         }
00376     }

void TAO::Portable_Server::Servant_Upcall::single_threaded_poa_cleanup (  void   )  [protected]


Definition at line 326 of file Servant_Upcall.cpp.

References TAO_Root_POA::exit().

Referenced by upcall_cleanup().

00327     {
00328 #if (TAO_HAS_MINIMUM_POA == 0)
00329       // Since the servant lock was acquired, we must release it.
00330       int const result = this->poa_->exit ();
00331
00332       ACE_UNUSED_ARG (result);
00333 #endif /* TAO_HAS_MINIMUM_POA == 0 */
00334     }

void TAO::Portable_Server::Servant_Upcall::single_threaded_poa_setup (  void   )  [protected]


Definition at line 308 of file Servant_Upcall.cpp.

References TAO_Root_POA::enter().

Referenced by prepare_for_upcall_i().

00309     {
00310 #if (TAO_HAS_MINIMUM_POA == 0)
00311       // Serialize servants (if necessary).
00312       //
00313       // Note that this lock must be acquired *after* the object adapter
00314       // lock has been released.  This is necessary since we cannot block
00315       // waiting for the servant lock while holding the object adapter
00316       // lock.  Otherwise, the thread that wants to release this lock will
00317       // not be able to do so since it can't acquire the object adapterx
00318       // lock.
00319       if (this->poa_->enter() == -1)
00320         // Locking error.
00321         throw ::CORBA::OBJ_ADAPTER ();
00322 #endif /* !TAO_HAS_MINIMUM_POA == 0 */
00323     }

ACE_INLINE void TAO::Portable_Server::Servant_Upcall::state (  State   )


Set the state.

Definition at line 101 of file Servant_Upcall.inl.

00102     {
00103       this->state_ = state;
00104     }

ACE_INLINE Servant_Upcall::State TAO::Portable_Server::Servant_Upcall::state (  void   )  const


Get the state.

Definition at line 95 of file Servant_Upcall.inl.

Referenced by TAO::Portable_Server::RequestProcessingStrategyServantLocator::locate_servant().

00096     {
00097       return this->state_;
00098     }

void TAO::Portable_Server::Servant_Upcall::upcall_cleanup (  void   )  [protected]


Clean-up / reset state of this Servant_Upcall object.

Definition at line 240 of file Servant_Upcall.cpp.

References ACE_Lock::acquire(), current_context_, INITIAL_STAGE, TAO_Object_Adapter::lock(), OBJECT_ADAPTER_LOCK_ACQUIRED, OBJECT_ADAPTER_LOCK_RELEASED, poa_cleanup(), POA_CURRENT_SETUP, post_invoke(), post_invoke_servant_cleanup(), ACE_Lock::release(), servant_cleanup(), SERVANT_LOCK_ACQUIRED, single_threaded_poa_cleanup(), TAO::Portable_Server::POA_Current_Impl::teardown(), and TAO_Object_Adapter::wait_for_non_servant_upcalls_to_complete_no_throw().

Referenced by prepare_for_upcall(), and ~Servant_Upcall().

00241     {
00242       this->post_invoke ();
00243
00244       switch (this->state_)
00245         {
00246         case SERVANT_LOCK_ACQUIRED:
00247           // Unlock servant (if appropriate).
00248           this->single_threaded_poa_cleanup ();
00249
00250           /* FALLTHRU */
00251
00252         case OBJECT_ADAPTER_LOCK_RELEASED:
00253           // Cleanup servant locator related state.  Note that because
00254           // this operation does not change any Object Adapter related
00255           // state, it is ok to call it outside the lock.
00256           this->post_invoke_servant_cleanup ();
00257
00258           // Since the object adapter lock was released, we must acquire
00259           // it.
00260           //
00261           // Note that errors are ignored here since we cannot do much
00262           // with it.
00263           this->object_adapter_->lock ().acquire ();
00264
00265           // Check if a non-servant upcall is in progress.  If a
00266           // non-servant upcall is in progress, wait for it to complete.
00267           // Unless of course, the thread making the non-servant upcall is
00268           // this thread.
00269           this->object_adapter_->wait_for_non_servant_upcalls_to_complete_no_throw ();
00270
00271           // Cleanup servant related state.
00272           this->servant_cleanup ();
00273
00274           /* FALLTHRU */
00275
00276         case POA_CURRENT_SETUP:
00277           // Cleanup POA related state.
00278           this->poa_cleanup ();
00279
00280           // Teardown current for this request.
00281           this->current_context_.teardown ();
00282
00283           /* FALLTHRU */
00284
00285         case OBJECT_ADAPTER_LOCK_ACQUIRED:
00286           // Finally, since the object adapter lock was acquired, we must
00287           // release it.
00288           this->object_adapter_->lock ().release ();
00289
00290           /* FALLTHRU */
00291
00292         case INITIAL_STAGE:
00293         default:
00294           // @@ Keep compiler happy, the states above are the only
00295           //    possible ones.
00296           break;
00297         }
00298     }

ACE_INLINE const PortableServer::ObjectId & TAO::Portable_Server::Servant_Upcall::user_id (  void   )  const


Definition at line 43 of file Servant_Upcall.inl.

00044     {
00045       return *(this->user_id_);
00046     }

ACE_INLINE void TAO::Portable_Server::Servant_Upcall::user_id (  const PortableServer::ObjectId *   )


User ID accessors. This is the same value returned by PortableServer::Current::get_object_id().

Definition at line 36 of file Servant_Upcall.inl.

Referenced by TAO::Portable_Server::ServantRetentionStrategyRetain::find_servant(), and TAO::Portable_Server::ServantRetentionStrategyNonRetain::find_servant().

00038     {
00039       this->user_id_ = id;
00040     }

Friends And Related Function Documentation

friend class ::TAO_RT_Collocation_Resolver [friend]


Definition at line 63 of file Servant_Upcall.h.

Member Data Documentation

TAO_Active_Object_Map_Entry* TAO::Portable_Server::Servant_Upcall::active_object_map_entry_ [protected]


Pointer to the entry in the TAO_Active_Object_Map corresponding to the servant for this request.

Definition at line 223 of file Servant_Upcall.h.

Referenced by active_object_map_entry(), increment_servant_refcount(), and servant_cleanup().

void* TAO::Portable_Server::Servant_Upcall::cookie_ [protected]


Servant Locator's cookie.

Definition at line 214 of file Servant_Upcall.h.

Referenced by locator_cookie().

POA_Current_Impl TAO::Portable_Server::Servant_Upcall::current_context_ [protected]


Definition at line 209 of file Servant_Upcall.h.

Referenced by prepare_for_upcall_i(), priority(), and upcall_cleanup().

TAO_Object_Adapter* TAO::Portable_Server::Servant_Upcall::object_adapter_ [protected]


Definition at line 196 of file Servant_Upcall.h.

const char* TAO::Portable_Server::Servant_Upcall::operation_ [protected]


Operation name for this current.

Definition at line 217 of file Servant_Upcall.h.

::TAO_Root_POA* TAO::Portable_Server::Servant_Upcall::poa_ [protected]


Definition at line 198 of file Servant_Upcall.h.

Pre_Invoke_State TAO::Portable_Server::Servant_Upcall::pre_invoke_state_ [protected]


Preinvoke data for the upcall.

Definition at line 226 of file Servant_Upcall.h.

Referenced by post_invoke(), pre_invoke_collocated_request(), and pre_invoke_remote_request().

PortableServer::Servant TAO::Portable_Server::Servant_Upcall::servant_ [protected]


Definition at line 200 of file Servant_Upcall.h.

State TAO::Portable_Server::Servant_Upcall::state_ [protected]


Definition at line 202 of file Servant_Upcall.h.

PortableServer::ObjectId TAO::Portable_Server::Servant_Upcall::system_id_ [protected]


Definition at line 205 of file Servant_Upcall.h.

CORBA::Octet TAO::Portable_Server::Servant_Upcall::system_id_buf_[TAO_POA_OBJECT_ID_BUF_SIZE] [protected]


Definition at line 204 of file Servant_Upcall.h.

const PortableServer::ObjectId* TAO::Portable_Server::Servant_Upcall::user_id_ [protected]


Definition at line 207 of file Servant_Upcall.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 13:29:20 2008 for TAO_PortableServer by doxygen 1.3.6
