TAO_Notify_Admin Class Reference

Base class for the ConsumerAdmin and SupplierAdmin. More...

#include <Admin.h>

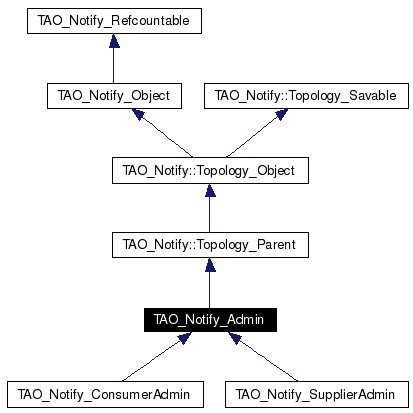

Inheritance diagram for TAO_Notify_Admin:

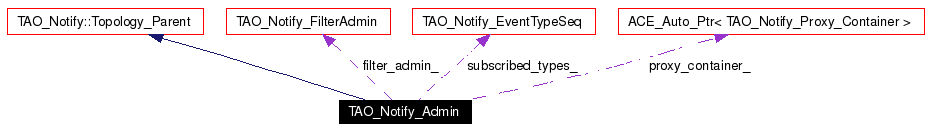

[legend]Collaboration diagram for TAO_Notify_Admin:


Public Types
typedef CosNotifyChannelAdmin::AdminIDSeq	SEQ
typedef CosNotifyChannelAdmin::AdminIDSeq_var	SEQ_VAR
Public Member Functions
	TAO_Notify_Admin ()
	Constuctor.
virtual	~TAO_Notify_Admin ()
	Destructor.
void	init (TAO_Notify::Topology_Parent *parent)
	Init.
void	insert (TAO_Notify_Proxy *proxy)
	Insert the proxy in the .
void	remove (TAO_Notify_Proxy *proxy)
	Remove type from container_.
TAO_Notify_FilterAdmin &	filter_admin (void)
	Access Admin FilterAdmin.
void	filter_operator (CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Set Filter operator.
CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator (void)
	Access Filter operator.
void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Admin's subscribed types.
TAO_Notify_EventChannel *	event_channel () const
virtual int	shutdown (void)
	Shutdown.
virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)
virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
virtual void	reconnect (void)
void	set_default (bool is_default)
bool	is_default () const
virtual void	load_attrs (const TAO_Notify::NVPList &attrs)
Protected Types
typedef TAO_Notify_Container_T< TAO_Notify_Proxy >	TAO_Notify_Proxy_Container
Protected Member Functions
void	save_attrs (TAO_Notify::NVPList &attrs)
virtual const char *	get_admin_type_name (void) const=0
TAO_Notify_Proxy_Container &	proxy_container ()
Protected Attributes
TAO_Notify_EventChannel::Ptr	ec_
	= Data Members The EventChannel.
TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we've subscribed our proxy objects with the event manager.
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration.
CosNotifyChannelAdmin::InterFilterGroupOperator	filter_operator_
	Filter operator.
bool	is_default_
Private Attributes
ACE_Auto_Ptr< TAO_Notify_Proxy_Container >	proxy_container_
	The Proxy Container.
Friends
class	TAO_Notify_Builder

Detailed Description

Base class for the ConsumerAdmin and SupplierAdmin.

Definition at line 40 of file Admin.h.

Member Typedef Documentation

typedef CosNotifyChannelAdmin::AdminIDSeq TAO_Notify_Admin::SEQ

Definition at line 44 of file Admin.h.

typedef CosNotifyChannelAdmin::AdminIDSeq_var TAO_Notify_Admin::SEQ_VAR

Definition at line 45 of file Admin.h.

typedef TAO_Notify_Container_T<TAO_Notify_Proxy> TAO_Notify_Admin::TAO_Notify_Proxy_Container [protected]

Definition at line 93 of file Admin.h.
Referenced by init().

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Admin::TAO_Notify_Admin ( )

Constuctor.

Definition at line 34 of file Admin.cpp.
References ACE_Unbounded_Set< TAO_Notify_EventType >::insert(), and subscribed_types_.

00035 : ec_ (0) 00036 , filter_operator_ (CosNotifyChannelAdmin::OR_OP) 00037 , is_default_ (false) 00038 { 00039 // Initialize all Admin objects to initially be subscribed for all 00040 // events. This is a reasonable default and is required to allow 00041 // Cos Event consumers/suppliers to send/receive events, 00042 this->subscribed_types_.insert (TAO_Notify_EventType::special ()); 00043 }

TAO_Notify_Admin::~TAO_Notify_Admin ( ) [virtual]

Destructor.

Definition at line 45 of file Admin.cpp.

00046 { 00047 }

Member Function Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_Notify_EventChannel * TAO_Notify_Admin::event_channel ( ) const

Definition at line 9 of file Admin.inl.
References ec_.

00010 { 00011 return this->ec_.get(); 00012 }

ACE_INLINE TAO_Notify_FilterAdmin & TAO_Notify_Admin::filter_admin ( void )

Access Admin FilterAdmin.

Definition at line 16 of file Admin.inl.
References filter_admin_.
Referenced by TAO_Notify_Method_Request_Lookup::execute_i(), and TAO_Notify_Method_Request_Dispatch::execute_i().

00017 { 00018 return this->filter_admin_; 00019 }

ACE_INLINE CosNotifyChannelAdmin::InterFilterGroupOperator TAO_Notify_Admin::filter_operator ( void )

Access Filter operator.

Definition at line 28 of file Admin.inl.
References filter_operator_.

00029 { 00030 return this->filter_operator_; 00031 }

ACE_INLINE void TAO_Notify_Admin::filter_operator ( CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator )

Set Filter operator.

Definition at line 22 of file Admin.inl.
References filter_operator_.
Referenced by TAO_Notify_Builder::build_consumer_admin(), TAO_Notify_Builder::build_supplier_admin(), TAO_Notify_Method_Request_Lookup::execute_i(), and TAO_Notify_Method_Request_Dispatch::execute_i().

00023 { 00024 this->filter_operator_ = filter_operator; 00025 }

virtual const char* TAO_Notify_Admin::get_admin_type_name ( void ) const [protected, pure virtual]

Implemented in TAO_Notify_ConsumerAdmin, and TAO_Notify_SupplierAdmin.
Referenced by save_persistent().

void TAO_Notify_Admin::init ( TAO_Notify::Topology_Parent * parent )

Init.

Definition at line 50 of file Admin.cpp.
References ACE_ASSERT, ACE_NEW_THROW_EX, ec_, TAO_Notify_Container_T< TYPE >::init(), TAO_Notify::Topology_Object::initialize(), proxy_container(), proxy_container_, ACE_Auto_Basic_Ptr< X >::reset(), and TAO_Notify_Proxy_Container.
Referenced by TAO_Notify_SupplierAdmin::init(), and TAO_Notify_ConsumerAdmin::init().

00051 { 00052 ACE_ASSERT (this->ec_.get() == 0); 00053 00054 this->ec_.reset (dynamic_cast<TAO_Notify_EventChannel *>(parent)); 00055 ACE_ASSERT (this->ec_.get() != 0); 00056 00057 // this-> on the following line confuses VC6 00058 initialize (parent); 00059 00060 TAO_Notify_Proxy_Container* proxy_container = 0; 00061 ACE_NEW_THROW_EX (proxy_container, 00062 TAO_Notify_Proxy_Container (), 00063 CORBA::INTERNAL ()); 00064 this->proxy_container_.reset (proxy_container); 00065 00066 this->proxy_container().init (); 00067 00068 }

void TAO_Notify_Admin::insert ( TAO_Notify_Proxy * proxy )

Insert the proxy in the .

Definition at line 103 of file Admin.cpp.
References TAO_Notify_Container_T< TYPE >::insert(), and proxy_container().

00104 { 00105 this->proxy_container().insert (proxy); 00106 }

ACE_INLINE bool TAO_Notify_Admin::is_default ( ) const

Definition at line 42 of file Admin.inl.
References is_default_.
Referenced by TAO_Notify_EventChannel::load_child().

00043 { 00044 return this->is_default_; 00045 }

void TAO_Notify_Admin::load_attrs ( const TAO_Notify::NVPList & attrs ) [virtual]

Load our attributes. Each derived type should call the superclass load first before loading its own attributes.
Reimplemented from TAO_Notify_Object.
Definition at line 155 of file Admin.cpp.
References ACE_OS::atoi(), filter_operator_, TAO_Notify::NVPList::find(), is_default_, TAO_Notify_Object::load_attrs(), and ACE_OS::strcmp().
Referenced by TAO_Notify_EventChannel::load_child().

00156 { 00157 TAO_Notify_Object::load_attrs (attrs); 00158 const char* value = 0; 00159 if (attrs.find ("InterFilterGroupOperator", value)) 00160 { 00161 this->filter_operator_ = static_cast <CosNotifyChannelAdmin::InterFilterGroupOperator> (ACE_OS::atoi (value)); 00162 } 00163 00164 if (attrs.find ("default", value)) 00165 { 00166 this->is_default_ = (ACE_OS::strcmp (value, "yes") == 0); 00167 } 00168 }

TAO_Notify::Topology_Object * TAO_Notify_Admin::load_child ( const ACE_CString & type,

CORBA::Long id,

const TAO_Notify::NVPList & attrs

) [virtual]

Reimplemented in TAO_Notify_ConsumerAdmin, and TAO_Notify_SupplierAdmin.
Definition at line 171 of file Admin.cpp.
References ACE_DEBUG, ACE_TEXT(), DEBUG_LEVEL, filter_admin_, LM_DEBUG, ACE_Unbounded_Set< TAO_Notify_EventType >::reset(), and subscribed_types_.
Referenced by TAO_Notify_SupplierAdmin::load_child(), and TAO_Notify_ConsumerAdmin::load_child().

00174 { 00175 ACE_UNUSED_ARG (attrs); 00176 TAO_Notify::Topology_Object* result = this; 00177 if (type == "subscriptions") 00178 { 00179 if (DEBUG_LEVEL) 00180 ACE_DEBUG ((LM_DEBUG, 00181 ACE_TEXT ("(%P|%t) Admin reload subscription %d\n"), 00182 static_cast<int> (id) 00183 )); 00184 // since we initialized our subscribed types to everything 00185 // in the constructor. we have to clear it out first. 00186 this->subscribed_types_.reset(); 00187 result = &this->subscribed_types_; 00188 } 00189 else if (type == "filter_admin") 00190 { 00191 if (DEBUG_LEVEL) 00192 ACE_DEBUG ((LM_DEBUG, 00193 ACE_TEXT ("(%P|%t) Admin reload filter_admin %d\n"), 00194 static_cast<int> (id) 00195 )); 00196 result = & this->filter_admin_; 00197 } 00198 return result; 00199 }

ACE_INLINE TAO_Notify_Admin::TAO_Notify_Proxy_Container & TAO_Notify_Admin::proxy_container ( ) [protected]

Definition at line 48 of file Admin.inl.
References ACE_ASSERT, ACE_Auto_Basic_Ptr< X >::get(), and proxy_container_.
Referenced by TAO_Notify_SupplierAdmin::destroy(), TAO_Notify_ConsumerAdmin::destroy(), init(), insert(), TAO_Notify_SupplierAdmin::offer_change(), reconnect(), remove(), save_persistent(), shutdown(), and TAO_Notify_ConsumerAdmin::subscription_change().

00049 { 00050 ACE_ASSERT( proxy_container_.get() != 0 ); 00051 return *proxy_container_; 00052 }

void TAO_Notify_Admin::reconnect ( void ) [virtual]

Re-establish connections that we had before a shutdown.
After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same.
Reimplemented from TAO_Notify::Topology_Savable.
Definition at line 202 of file Admin.cpp.
References TAO_Notify_Container_T< TYPE >::collection(), and proxy_container().

00203 { 00204 TAO_Notify::Reconnect_Worker<TAO_Notify_Proxy> wrk; 00205 this->proxy_container().collection()->for_each(&wrk); 00206 }

void TAO_Notify_Admin::remove ( TAO_Notify_Proxy * proxy )

Remove type from container_.

Definition at line 71 of file Admin.cpp.
References proxy_container(), and TAO_Notify_Container_T< TYPE >::remove().

00072 { 00073 this->proxy_container().remove (proxy); 00074 }

void TAO_Notify_Admin::save_attrs ( TAO_Notify::NVPList & attrs ) [protected, virtual]

Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.
Reimplemented from TAO_Notify_Object.
Definition at line 143 of file Admin.cpp.
References is_default_, TAO_Notify::NVPList::push_back(), and TAO_Notify_Object::save_attrs().
Referenced by save_persistent().

00144 { 00145 TAO_Notify_Object::save_attrs(attrs); 00146 attrs.push_back(TAO_Notify::NVP("InterFilterGroupOperator", 00147 this->filter_operator_)); 00148 if (this->is_default_) 00149 { 00150 attrs.push_back (TAO_Notify::NVP ("default", "yes")); 00151 } 00152 }

void TAO_Notify_Admin::save_persistent ( TAO_Notify::Topology_Saver & saver ) [virtual]

Save our state to a Topology_Saver.
Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change); for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver); } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type); )
Implements TAO_Notify::Topology_Savable.
Definition at line 109 of file Admin.cpp.
References TAO_Notify::Topology_Saver::begin_object(), TAO_Notify_Container_T< TYPE >::collection(), TAO_Notify::Topology_Saver::end_object(), filter_admin_, get_admin_type_name(), TAO_Notify::Topology_Object::is_changed(), TAO_Notify::Topology_Object::is_persistent(), proxy_container(), save_attrs(), TAO_Notify_EventTypeSeq::save_persistent(), TAO_Notify_FilterAdmin::save_persistent(), and subscribed_types_.

00110 { 00111 bool changed = this->children_changed_; 00112 this->children_changed_ = false; 00113 this->self_changed_ = false; 00114 00115 if (is_persistent ()) 00116 { 00117 TAO_Notify::NVPList attrs; 00118 this->save_attrs(attrs); 00119 00120 const char* type = this->get_admin_type_name(); 00121 00122 bool want_all_children = 00123 saver.begin_object(this->id(), type, attrs, changed); 00124 00125 if (want_all_children || this->filter_admin_.is_changed ()) 00126 { 00127 this->filter_admin_.save_persistent(saver); 00128 } 00129 if (want_all_children || this->subscribed_types_.is_changed ()) 00130 { 00131 this->subscribed_types_.save_persistent(saver); 00132 } 00133 00134 TAO_Notify::Save_Persist_Worker<TAO_Notify_Proxy> 00135 wrk(saver, want_all_children); 00136 this->proxy_container().collection()->for_each(&wrk); 00137 00138 saver.end_object(this->id(), type); 00139 } 00140 }

ACE_INLINE void TAO_Notify_Admin::set_default ( bool is_default )

Definition at line 35 of file Admin.inl.
References is_default_.
Referenced by TAO_Notify_EventChannel::default_consumer_admin(), and TAO_Notify_EventChannel::default_supplier_admin().

00036 { 00037 this->is_default_ = is_default; 00038 }

int TAO_Notify_Admin::shutdown ( void ) [virtual]

Shutdown.

Reimplemented from TAO_Notify_Object.
Definition at line 91 of file Admin.cpp.
References proxy_container(), TAO_Notify_Container_T< TYPE >::shutdown(), and TAO_Notify_Object::shutdown().
Referenced by TAO_Notify_SupplierAdmin::destroy(), and TAO_Notify_ConsumerAdmin::destroy().

00092 { 00093 int sd_ret = TAO_Notify_Object::shutdown (); 00094 if (sd_ret == 1) 00095 return 1; 00096 00097 this->proxy_container().shutdown (); 00098 00099 return 0; 00100 }

void TAO_Notify_Admin::subscribed_types ( TAO_Notify_EventTypeSeq & subscribed_types )

Obtain the Admin's subscribed types.

Definition at line 77 of file Admin.cpp.
References ACE_GUARD_THROW_EX, TAO_Notify_EventTypeSeq::add_and_remove(), and TAO_SYNCH_MUTEX.

00078 { 00079 ACE_GUARD_THROW_EX (TAO_SYNCH_MUTEX, ace_mon, this->lock_, 00080 CORBA::INTERNAL ()); 00081 00082 // Adopt the Admin's subscription. 00083 TAO_Notify_EventTypeSeq added (this->subscribed_types_), removed; 00084 00085 added.add_and_remove (subscribed_types, removed); 00086 00087 subscribed_types = added; 00088 }

Friends And Related Function Documentation

friend class TAO_Notify_Builder [friend]

Reimplemented from TAO_Notify_Object.
Definition at line 42 of file Admin.h.

Member Data Documentation

TAO_Notify_EventChannel::Ptr TAO_Notify_Admin::ec_ [protected]

= Data Members The EventChannel.

Definition at line 99 of file Admin.h.
Referenced by event_channel(), and init().

TAO_Notify_FilterAdmin TAO_Notify_Admin::filter_admin_ [protected]

Filter Administration.

Definition at line 106 of file Admin.h.
Referenced by filter_admin(), load_child(), and save_persistent().

CosNotifyChannelAdmin::InterFilterGroupOperator TAO_Notify_Admin::filter_operator_ [protected]

Filter operator.

Definition at line 109 of file Admin.h.
Referenced by filter_operator(), and load_attrs().

bool TAO_Notify_Admin::is_default_ [protected]

Definition at line 111 of file Admin.h.
Referenced by is_default(), load_attrs(), save_attrs(), and set_default().

ACE_Auto_Ptr< TAO_Notify_Proxy_Container > TAO_Notify_Admin::proxy_container_ [private]

The Proxy Container.

Definition at line 114 of file Admin.h.
Referenced by init(), and proxy_container().

TAO_Notify_EventTypeSeq TAO_Notify_Admin::subscribed_types_ [protected]

The types that we've subscribed our proxy objects with the event manager.

Definition at line 103 of file Admin.h.
Referenced by load_child(), save_persistent(), and TAO_Notify_Admin().

The documentation for this class was generated from the following files:

Generated on Sun Jan 27 15:48:37 2008 for TAO_CosNotification by

1.3.6
