TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy > Class Template Reference

CORBA::TypeCode implementation for an OMG IDL valuetype or event. More...

#include <Value_TypeCode.h>

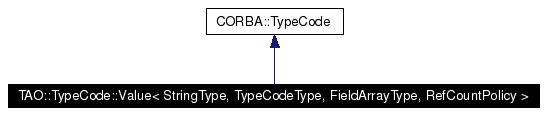

Inheritance diagram for TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >:

Inheritance graph
[legend]

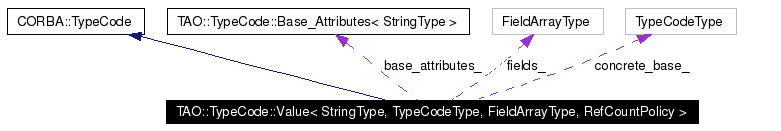

Collaboration diagram for TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 Value (CORBA::TCKind kind, char const *id, char const *name, CORBA::ValueModifier modifier, TypeCodeType const &concrete_base, FieldArrayType const &fields, CORBA::ULong nfields)
 Constructor.

 Value (CORBA::TCKind kind, char const *id)
 Constructor used for recursive TypeCodes.

TAO-specific @c CORBA::TypeCode Methods
Methods required by TAO's implementation of the CORBA::TypeCode class.

See also:
CORBA::TypeCode


virtual bool tao_marshal (TAO_OutputCDR &cdr, CORBA::ULong offset) const
 Marshal this TypeCode into a CDR output stream.

virtual void tao_duplicate (void)
 Increase the reference count on this TypeCode.

virtual void tao_release (void)
 Decrease the reference count on this object.


Protected Member Functions

@c TAO CORBA::TypeCode Template Methods
tk_value or tk_event CORBA::TypeCode -specific template methods.

See also:
CORBA::TypeCode


virtual CORBA::Boolean equal_i (CORBA::TypeCode_ptr tc) const
virtual CORBA::Boolean equivalent_i (CORBA::TypeCode_ptr tc) const
virtual CORBA::TypeCode_ptr get_compact_typecode_i (void) const
virtual char const * id_i (void) const
virtual char const * name_i (void) const
virtual CORBA::ULong member_count_i (void) const
virtual char const * member_name_i (CORBA::ULong index) const
virtual CORBA::TypeCode_ptr member_type_i (CORBA::ULong index) const
virtual CORBA::Visibility member_visibility_i (CORBA::ULong index) const
virtual CORBA::ValueModifier type_modifier_i (void) const
virtual CORBA::TypeCode_ptr concrete_base_type_i (void) const

Protected Attributes

Base_Attributes< StringType > base_attributes_
CORBA::ValueModifier type_modifier_
TypeCodeType concrete_base_
CORBA::ULong nfields_
 The number of fields in the OMG IDL value.

FieldArrayType fields_

Detailed Description

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
class TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >

CORBA::TypeCode implementation for an OMG IDL valuetype or event.

This class implements a CORBA::TypeCode for an OMG IDL valuetype or event.

Definition at line 52 of file Value_TypeCode.h.

Constructor & Destructor Documentation

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::Value (  CORBA::TCKind  kind,
char const *  id,
char const *  name,
CORBA::ValueModifier  modifier,
TypeCodeType const &  concrete_base,
FieldArrayType const &  fields,
CORBA::ULong  nfields
)


Constructor.

Definition at line 15 of file Value_TypeCode.inl.

00029   : ::CORBA::TypeCode (kind)
00030   , RefCountPolicy ()
00031   , base_attributes_ (id, name)
00032   , type_modifier_ (modifier)
00033   , concrete_base_ (concrete_base)
00034   , nfields_ (nfields)
00035   , fields_ (fields)
00036 {
00037 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
ACE_INLINE TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::Value (  CORBA::TCKind  kind,
char const *  id
)


Constructor used for recursive TypeCodes.

Definition at line 47 of file Value_TypeCode.inl.

00050   : ::CORBA::TypeCode (kind)
00051   , RefCountPolicy ()
00052   , base_attributes_ (id)
00053   , type_modifier_ (CORBA::VM_NONE)
00054   , concrete_base_ ()
00055   , nfields_ (0)
00056   , fields_ ()
00057 {
00058 }

Member Function Documentation

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::TypeCode_ptr TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::concrete_base_type_i (  void   )  const [protected, virtual]


Reimplemented from CORBA::TypeCode.

Definition at line 418 of file Value_TypeCode.cpp.

References CORBA::TypeCode::_duplicate().

00419 {
00420   return
00421     CORBA::TypeCode::_duplicate (
00422       Traits<StringType>::get_typecode (this->concrete_base_));
00423 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::Boolean TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::equal_i (  CORBA::TypeCode_ptr  tc  )  const [protected, virtual]


Implements CORBA::TypeCode.

Definition at line 119 of file Value_TypeCode.cpp.

References TAO::TypeCode::Value_Field< StringType, TypeCodeType >::name, ACE_OS::strcmp(), TAO::TypeCode::Value_Field< StringType, TypeCodeType >::type, and TAO::TypeCode::Value_Field< StringType, TypeCodeType >::visibility.

00122 {
00123   // None of these calls should throw since CORBA::TypeCode::equal()
00124   // verified that the TCKind is the same as our's prior to invoking
00125   // this method.
00126
00127   CORBA::ValueModifier const tc_type_modifier =
00128     tc->type_modifier ();
00129
00130   if (tc_type_modifier != this->type_modifier_)
00131     return false;
00132
00133   CORBA::TypeCode_var rhs_concrete_base_type =
00134     tc->concrete_base_type ();
00135
00136   CORBA::Boolean const equal_concrete_base_types =
00137     this->equal (rhs_concrete_base_type.in ()
00138                 );
00139
00140   if (!equal_concrete_base_types)
00141     return false;
00142
00143   CORBA::ULong const tc_nfields =
00144     tc->member_count ();
00145
00146   if (tc_nfields != this->nfields_)
00147     return false;
00148
00149   for (CORBA::ULong i = 0; i < this->nfields_; ++i)
00150     {
00151       Value_Field<StringType, TypeCodeType> const & lhs_field =
00152         this->fields_[i];
00153
00154       CORBA::Visibility const lhs_visibility = lhs_field.visibility;
00155       CORBA::Visibility const rhs_visibility =
00156         tc->member_visibility (i
00157                               );
00158
00159       if (lhs_visibility != rhs_visibility)
00160         return false;
00161
00162       char const * const lhs_name =
00163         Traits<StringType>::get_string (lhs_field.name);
00164       char const * const rhs_name = tc->member_name (i);
00165
00166       if (ACE_OS::strcmp (lhs_name, rhs_name) != 0)
00167         return false;
00168
00169       CORBA::TypeCode_ptr const lhs_tc =
00170         Traits<StringType>::get_typecode (lhs_field.type);
00171       CORBA::TypeCode_var const rhs_tc =
00172         tc->member_type (i);
00173
00174       CORBA::Boolean const equal_members =
00175         lhs_tc->equal (rhs_tc.in ());
00176
00177       if (!equal_members)
00178         return false;
00179     }
00180
00181   return true;
00182 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::Boolean TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::equivalent_i (  CORBA::TypeCode_ptr  tc  )  const [protected, virtual]


Implements CORBA::TypeCode.

Definition at line 192 of file Value_TypeCode.cpp.

References TAO::TypeCode::Value_Field< StringType, TypeCodeType >::type, and TAO::TypeCode::Value_Field< StringType, TypeCodeType >::visibility.

00193 {
00194   CORBA::ValueModifier const tc_type_modifier =
00195     tc->type_modifier ();
00196
00197   if (tc_type_modifier != this->type_modifier_)
00198     return false;
00199
00200   CORBA::TypeCode_var rhs_concrete_base_type =
00201     tc->concrete_base_type ();
00202
00203   CORBA::Boolean const equivalent_concrete_base_types =
00204     this->equivalent (rhs_concrete_base_type.in ());
00205
00206   if (!equivalent_concrete_base_types)
00207     return false;
00208
00209   // Perform a structural comparison, excluding the name() and
00210   // member_name() operations.
00211
00212   CORBA::ULong const tc_nfields =
00213     tc->member_count ();
00214
00215   if (tc_nfields != this->nfields_)
00216     return false;
00217
00218   for (CORBA::ULong i = 0; i < this->nfields_; ++i)
00219     {
00220       Value_Field<StringType, TypeCodeType> const & lhs_field =
00221         this->fields_[i];
00222
00223       CORBA::Visibility const lhs_visibility =
00224         lhs_field.visibility;
00225       CORBA::Visibility const rhs_visibility =
00226         tc->member_visibility (i);
00227
00228       if (lhs_visibility != rhs_visibility)
00229         return false;
00230
00231       CORBA::TypeCode_ptr const lhs_tc =
00232         Traits<StringType>::get_typecode (lhs_field.type);
00233       CORBA::TypeCode_var const rhs_tc =
00234         tc->member_type (i);
00235
00236       CORBA::Boolean const equiv_types =
00237         lhs_tc->equivalent (rhs_tc.in ()
00238                            );
00239
00240       if (!equiv_types)
00241         return false;
00242     }
00243
00244   return true;
00245 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::TypeCode_ptr TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::get_compact_typecode_i (  void   )  const [protected, virtual]


Implements CORBA::TypeCode.

Definition at line 255 of file Value_TypeCode.cpp.

References TAO_TypeCodeFactory_Adapter::create_value_event_tc(), and ACE_Dynamic_Service< TYPE >::instance().

00256 {
00257   ACE_Array_Base<Value_Field<CORBA::String_var, CORBA::TypeCode_var> >
00258     tc_fields (this->nfields_);
00259
00260   if (this->nfields_ > 0)
00261     {
00262       // Dynamically construct a new array of fields stripped of
00263       // member names.
00264
00265       static char const empty_name[] = "";
00266
00267       for (CORBA::ULong i = 0; i < this->nfields_; ++i)
00268         {
00269           // Member names will be stripped, i.e. not embedded within
00270           // the compact TypeCode.
00271
00272           tc_fields[i].name = empty_name;
00273           tc_fields[i].type =
00274             Traits<StringType>::get_typecode (
00275               this->fields_[i].type)->get_compact_typecode (
00276                 );
00277           tc_fields[i].visibility = this->fields_[i].visibility;
00278         }
00279     }
00280
00281   TAO_TypeCodeFactory_Adapter * const adapter =
00282     ACE_Dynamic_Service<TAO_TypeCodeFactory_Adapter>::instance (
00283       TAO_ORB_Core::typecodefactory_adapter_name ());
00284
00285   if (adapter == 0)
00286     {
00287       throw ::CORBA::INTERNAL ();
00288     }
00289
00290   return
00291     adapter->create_value_event_tc (
00292       this->kind_,
00293       this->base_attributes_.id (),
00294       "", // empty name
00295       this->type_modifier_,
00296       Traits<StringType>::get_typecode (this->concrete_base_),
00297       tc_fields,
00298       this->nfields_
00299      );
00300 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
char const * TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::id_i (  void   )  const [protected, virtual]


Reimplemented from CORBA::TypeCode.

Definition at line 310 of file Value_TypeCode.cpp.

00311 {
00312   // Ownership is retained by the TypeCode, as required by the C++
00313   // mapping.
00314   return this->base_attributes_.id ();
00315 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::ULong TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::member_count_i (  void   )  const [protected, virtual]


Reimplemented from CORBA::TypeCode.

Definition at line 340 of file Value_TypeCode.cpp.

00341 {
00342   return this->nfields_;
00343 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
char const * TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::member_name_i (  CORBA::ULong  index  )  const [protected, virtual]


Reimplemented from CORBA::TypeCode.

Definition at line 353 of file Value_TypeCode.cpp.

00354 {
00355   // Ownership is retained by the TypeCode, as required by the C++
00356   // mapping.
00357   if (index >= this->nfields_)
00358     throw ::CORBA::TypeCode::Bounds ();
00359
00360   return Traits<StringType>::get_string (this->fields_[index].name);
00361 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::TypeCode_ptr TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::member_type_i (  CORBA::ULong  index  )  const [protected, virtual]


Reimplemented from CORBA::TypeCode.

Definition at line 371 of file Value_TypeCode.cpp.

References CORBA::TypeCode::_duplicate().

00372 {
00373   if (index >= this->nfields_)
00374     throw ::CORBA::TypeCode::Bounds ();
00375
00376   return
00377     CORBA::TypeCode::_duplicate (
00378       Traits<StringType>::get_typecode (this->fields_[index].type));
00379 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::Visibility TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::member_visibility_i (  CORBA::ULong  index  )  const [protected, virtual]


Reimplemented from CORBA::TypeCode.

Definition at line 389 of file Value_TypeCode.cpp.

00390 {
00391   if (index >= this->nfields_)
00392     throw ::CORBA::TypeCode::Bounds ();
00393
00394   return this->fields_[index].visibility;
00395 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
char const * TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::name_i (  void   )  const [protected, virtual]


Reimplemented from CORBA::TypeCode.

Definition at line 325 of file Value_TypeCode.cpp.

00326 {
00327   // Ownership is retained by the TypeCode, as required by the C++
00328   // mapping.
00329   return this->base_attributes_.name ();
00330 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
void TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::tao_duplicate (  void   )  [virtual]


Increase the reference count on this TypeCode.

Implements CORBA::TypeCode.

Definition at line 93 of file Value_TypeCode.cpp.

00094 {
00095   this->RefCountPolicy::add_ref ();
00096 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
TAO_BEGIN_VERSIONED_NAMESPACE_DECL bool TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::tao_marshal (  TAO_OutputCDR &  cdr,
CORBA::ULong  offset
)  const [virtual]


Marshal this TypeCode into a CDR output stream.

Marshal this TypeCode into the cdr output CDR stream, excluding the TypeCode kind. Existing cdr contents will not be altered. The marshaled TypeCode will be appended to the given cdr CDR output stream.

Parameters:
cdr Output CDR stream into which the TypeCode will be marshaled.
offset Number of bytes currently in the output CDR stream, including the top-level TypeCode TCKind. This argument is useful for recursive TypeCodes. TypeCodes that contain other TypeCodes should pass an updated offset value to the marshaling operation for those contained TypeCodes.
Returns:
true if marshaling was successful.
Note:
This is a TAO-specific method that is not part of the standard CORBA::TypeCode interface.

If this method returns false, the contents of the cdr output CDR stream are undefined.

Implements CORBA::TypeCode.

Definition at line 30 of file Value_TypeCode.cpp.

References ACE_align_binary(), ACE_OutputCDR::begin(), TAO::TypeCode::Value_Field< StringType, TypeCodeType >::name, TAO_ENCAP_BYTE_ORDER, ACE_OutputCDR::total_length(), TAO::TypeCode::Value_Field< StringType, TypeCodeType >::type, and TAO::TypeCode::Value_Field< StringType, TypeCodeType >::visibility.

00033 {
00034   // A tk_value TypeCode has a "complex" parameter list type (see
00035   // Table 15-2 in Section 15.3.5.1 "TypeCode" in the CDR section of
00036   // the CORBA specification), meaning that it must be marshaled into
00037   // a CDR encapsulation.
00038
00039   // Create a CDR encapsulation.
00040   TAO_OutputCDR enc;
00041
00042   // Account for the encoded CDR encapsulation length and byte order.
00043   //
00044   // Aligning on an octet since the next value after the CDR
00045   // encapsulation length will always be the byte order octet/boolean
00046   // in this case.
00047   offset = ACE_align_binary (offset + 4,
00048                              ACE_CDR::OCTET_ALIGN);
00049
00050   bool const success =
00051     (enc << TAO_OutputCDR::from_boolean (TAO_ENCAP_BYTE_ORDER))
00052     && (enc << TAO_OutputCDR::from_string (this->base_attributes_.id (), 0))
00053     && (enc << TAO_OutputCDR::from_string (this->base_attributes_.name (), 0))
00054     && (enc << this->type_modifier_)
00055     && marshal (enc,
00056                 Traits<StringType>::get_typecode (this->concrete_base_),
00057                 offset + enc.total_length ())
00058     && (enc << this->nfields_);
00059
00060   if (!success)
00061     return false;
00062
00063   Value_Field<StringType, TypeCodeType> const * const begin =
00064     &this->fields_[0];
00065   Value_Field<StringType, TypeCodeType> const * const end =
00066     begin + this->nfields_;
00067
00068   for (Value_Field<StringType, TypeCodeType> const * i = begin; i != end; ++i)
00069     {
00070       Value_Field<StringType, TypeCodeType> const & field = *i;
00071
00072       if (!(enc << Traits<StringType>::get_string (field.name))
00073           || !marshal (enc,
00074                        Traits<StringType>::get_typecode (field.type),
00075                        offset + enc.total_length ())
00076           || !(enc << field.visibility))
00077         return false;
00078     }
00079
00080   return
00081     cdr << static_cast<CORBA::ULong> (enc.total_length ())
00082     && cdr.write_octet_array_mb (enc.begin ());
00083 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
void TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::tao_release (  void   )  [virtual]


Decrease the reference count on this object.

Implements CORBA::TypeCode.

Definition at line 106 of file Value_TypeCode.cpp.

00107 {
00108   this->RefCountPolicy::remove_ref ();
00109 }

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::ValueModifier TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::type_modifier_i (  void   )  const [protected, virtual]


Reimplemented from CORBA::TypeCode.

Definition at line 405 of file Value_TypeCode.cpp.

00406 {
00407   return this->type_modifier_;
00408 }

Member Data Documentation

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
Base_Attributes<StringType> TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::base_attributes_ [protected]


Base attributes containing repository ID and name of valuetype.

Definition at line 132 of file Value_TypeCode.h.

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
TypeCodeType TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::concrete_base_ [protected]


The TypeCode corresponding to the concrete base valuetype or eventtype.

Definition at line 140 of file Value_TypeCode.h.

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
FieldArrayType TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::fields_ [protected]


Array of TAO::TypeCode fields representing structure of the OMG IDL defined value.

Definition at line 147 of file Value_TypeCode.h.

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::ULong TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::nfields_ [protected]


The number of fields in the OMG IDL value.

Definition at line 143 of file Value_TypeCode.h.

template<typename StringType, typename TypeCodeType, class FieldArrayType, class RefCountPolicy>
CORBA::ValueModifier TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::type_modifier_ [protected]


The ValueModifier of the valuetype of eventtype represented by this TypeCode.

Definition at line 136 of file Value_TypeCode.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 13:22:16 2008 for TAO_AnyTypeCode by doxygen 1.3.6
