TAO::Invocation_Adapter Class Reference

Generic interface for the invocation object visible to the IDL compiler. More...

#include <Invocation_Adapter.h>

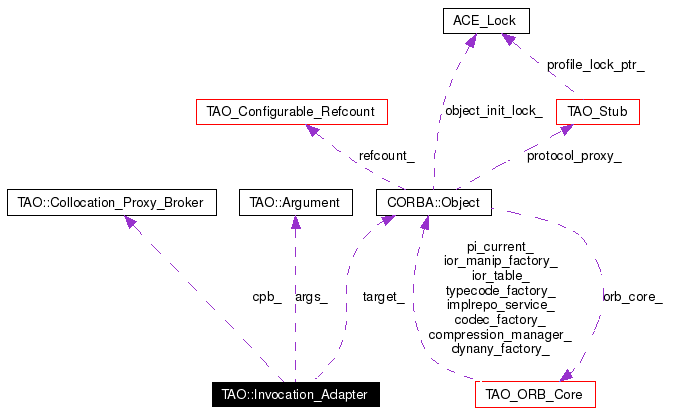

Collaboration diagram for TAO::Invocation_Adapter:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 Invocation_Adapter (CORBA::Object_ptr target, Argument **args, int arg_number, const char *operation, size_t op_len, Collocation_Proxy_Broker *cpb, TAO::Invocation_Type type=TAO_TWOWAY_INVOCATION, TAO::Invocation_Mode mode=TAO_SYNCHRONOUS_INVOCATION)
virtual ~Invocation_Adapter (void)
virtual void invoke (TAO::Exception_Data *ex, unsigned long ex_count)
 Invoke the target, and used by the generated code.


Protected Member Functions

virtual void invoke_i (TAO_Stub *stub, TAO_Operation_Details &details)
bool get_timeout (TAO_Stub *stub, ACE_Time_Value &val)
TAO_Stub * get_stub (void) const
 Helper method that extracts TAO_Stub from the target object.

void object_forwarded (CORBA::Object_var &effective_target, TAO_Stub *stub, CORBA::Boolean permanent_forward)
void set_response_flags (TAO_Stub *stub, TAO_Operation_Details &details)
 Helper method to set the response flags within details.

Helper methods for making different types of invocations.
These methods useful for various types of invocations like SII, AMI, DII and DSI. All the subclasses implement these methods to get the right behaviour at their level.

virtual Invocation_Status invoke_remote_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, ACE_Time_Value *&max_wait_time)
virtual Invocation_Status invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)
 Make a collocated call.

virtual Invocation_Status invoke_twoway (TAO_Operation_Details &details, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)
 Helper method to make a two way invocation.

virtual Invocation_Status invoke_oneway (TAO_Operation_Details &details, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)
 Helper method to make a one way invocation.


Protected Attributes

CORBA::Object_ptr target_
 The target object on which this invocation is carried out.

Argument **const  args_
 Array of arguments for this operation.

int const  number_args_
 Number of arguments for this operation.

char const * operation_
 Name of the operation.

size_t const  op_len_
 String length of the operation name.

Collocation_Proxy_Broker
*const  		cpb_
 Collocation proxy broker for this operation.

Invocation_Type const  type_
 The invocation type.

Invocation_Mode const  mode_
 The invocation mode.


Private Member Functions

 Invocation_Adapter (void)
 Dont allow default initializations.

 Invocation_Adapter (Invocation_Adapter const &)
Invocation_Adapter & operator= (const Invocation_Adapter &)

Detailed Description

Generic interface for the invocation object visible to the IDL compiler.

The main objective of this class is to adapt the type and invocation specific information declared in the IDL by the application and convert them as CORBA invocations to the target object. Implementation of this class knows how to make invocations on a collocated or a remote object.

This adapter class serves as the base class for various types of invocations like AMI, DII, DSI etc. Adapter classes for AMI, DII, DSI inherit from this class and their local behavioural information before kicking off an invocation.

@ More info.. Wafer thin inclusions All stuff created on stack Only handles starts and restarts

Definition at line 75 of file Invocation_Adapter.h.

Constructor & Destructor Documentation

TAO::Invocation_Adapter::Invocation_Adapter (  CORBA::Object_ptr  target,
Argument **  args,
int  arg_number,
const char *  operation,
size_t  op_len,
Collocation_Proxy_Broker *  cpb,
TAO::Invocation_Type  type = TAO_TWOWAY_INVOCATION,
TAO::Invocation_Mode  mode = TAO_SYNCHRONOUS_INVOCATION
)


Parameters:
target Points to the object on which this invocation is being invoked.
args Array of pointers to the argument list in the operation declaration. This includes the return, inout and out arguments.
arg_number Number of arguments in the above array. This is the number of elements in the above array.
operation The name of the operation being invoked.
op_len Number of charecters in the operation name. This is an optimization which helps us to avoid calling strlen () while creating a message format.
cpb The collocation proxy broker for the target if one exists. This is useful especially to route the call to the collocated target.
type The operation type which could be a oneway or two way operation. This information is available in the IDL file.
mode Invocation mode. This information is also available in the IDL file and in the generated code.

TAO::Invocation_Adapter::~Invocation_Adapter (  void   )  [virtual]


Definition at line 32 of file Invocation_Adapter.cpp.

00033   {
00034   }

TAO::Invocation_Adapter::Invocation_Adapter (  void   )  [private]


Dont allow default initializations.

TAO::Invocation_Adapter::Invocation_Adapter (  Invocation_Adapter const &   )  [private]


Member Function Documentation

TAO_Stub * TAO::Invocation_Adapter::get_stub (  void   )  const [protected]


Helper method that extracts TAO_Stub from the target object.

Definition at line 133 of file Invocation_Adapter.cpp.

References CORBA::Object::_stubobj().

Referenced by invoke().

00134   {
00135     TAO_Stub * const stub = this->target_->_stubobj ();
00136
00137     if (stub == 0)
00138       throw ::CORBA::INTERNAL (
00139         CORBA::SystemException::_tao_minor_code (
00140           TAO::VMCID,
00141           EINVAL),
00142         CORBA::COMPLETED_NO);
00143
00144     return stub;
00145   }

bool TAO::Invocation_Adapter::get_timeout (  TAO_Stub *  stub,
ACE_Time_Value &  val
)  [protected]


Helper function that extracts the roundtrip timeout policies set in the ORB.

Definition at line 124 of file Invocation_Adapter.cpp.

References TAO_ORB_Core::call_timeout_hook(), and CORBA::Object::orb_core().

Referenced by invoke_remote_i().

00125   {
00126     bool has_timeout = false;
00127     this->target_->orb_core ()->call_timeout_hook (stub, has_timeout, timeout);
00128
00129     return has_timeout;
00130   }

void TAO::Invocation_Adapter::invoke (  TAO::Exception_Data *  ex,
unsigned long  ex_count
)  [virtual]


Invoke the target, and used by the generated code.

The implementation decides whether the target is remote or collocated and takes the right decision.

Parameters:
ex Array of exception data declared by the application in their IDL.
ex_count Number of elements in the array.

Definition at line 37 of file Invocation_Adapter.cpp.

References get_stub(), and invoke_i().

Referenced by TAO::Remote_Object_Proxy_Broker::_get_component(), TAO::Remote_Object_Proxy_Broker::_is_a(), TAO::Remote_Object_Proxy_Broker::_non_existent(), TAO::Remote_Object_Proxy_Broker::_repository_id(), CORBA::Policy::copy(), CORBA::Policy::destroy(), and TAO_CORBANAME_Parser::parse_string_dynamic_request_helper().

00039   {
00040     // Should stub object be refcounted here?
00041     TAO_Stub *stub = this->get_stub ();
00042
00043     TAO_Operation_Details op_details (this->operation_,
00044                                       this->op_len_,
00045                                       this->args_,
00046                                       this->number_args_,
00047                                       ex_data,
00048                                       ex_count);
00049
00050     this->invoke_i (stub, op_details);
00051   }

Invocation_Status TAO::Invocation_Adapter::invoke_collocated_i (  TAO_Stub *  stub,
TAO_Operation_Details &  details,
CORBA::Object_var &  effective_target,
Collocation_Strategy  strat
)  [protected, virtual]


Make a collocated call.

This method creates an object that takes care of making collocated invocations and calls invoke () on it. If the invoke () returns with a location forwarded reply we return a restart

Parameters:
stub The stub object on which the invocation is made.
details The operations details of the operation that is being invoked.

Definition at line 148 of file Invocation_Adapter.cpp.

References ACE_ASSERT, cpb_, TAO_Pseudo_Var_T< T >::in(), TAO::Collocated_Invocation::invoke(), TAO::Invocation_Base::is_forwarded(), object_forwarded(), CORBA::Object_var, TAO::Invocation_Base::reply_status(), TAO::Invocation_Base::steal_forwarded_reference(), TAO::TAO_CS_THRU_POA_STRATEGY, TAO_GIOP_LOCATION_FORWARD_PERM, TAO::TAO_INVOKE_RESTART, TAO::TAO_INVOKE_START, and TAO::TAO_TWOWAY_INVOCATION.

Referenced by invoke_i().

00152   {
00153     // To make a collocated call we must have a collocated proxy broker, the
00154     // invoke_i() will make sure that we only come here when we have one
00155     ACE_ASSERT (cpb_ != 0
00156                 || (strat == TAO_CS_THRU_POA_STRATEGY
00157                     && effective_target->_servant () != 0));
00158
00159     // Initial state
00160     TAO::Invocation_Status status = TAO_INVOKE_START;
00161
00162     Collocated_Invocation coll_inv (this->target_,
00163                                     effective_target.in (),
00164                                     stub,
00165                                     details,
00166                                     this->type_ == TAO_TWOWAY_INVOCATION);
00167
00168     status = coll_inv.invoke (this->cpb_, strat);
00169
00170     if (status == TAO_INVOKE_RESTART && coll_inv.is_forwarded ())
00171       {
00172         effective_target = coll_inv.steal_forwarded_reference ();
00173
00174 #if TAO_HAS_INTERCEPTORS == 1
00175         CORBA::Boolean const is_permanent_forward =
00176             (coll_inv.reply_status() == TAO_GIOP_LOCATION_FORWARD_PERM);
00177 #else
00178         CORBA::Boolean const is_permanent_forward = false;
00179 #endif
00180
00181         this->object_forwarded (effective_target, stub, is_permanent_forward);
00182       }
00183
00184     return status;
00185   }

void TAO::Invocation_Adapter::invoke_i (  TAO_Stub *  stub,
TAO_Operation_Details &  details
)  [protected, virtual]


The stub pointer passed to this call has all the details about the object to which the invocation needs to be routed to. The implementation of this method looks if we are collocated or not and takes care of reinvoking the target if it receives forwarding information or if the first invocation fails for some reason, like a loss of connection during send () etc.

Definition at line 54 of file Invocation_Adapter.cpp.

References CORBA::Object::_duplicate(), ACE_DEBUG, TAO_ORB_Core::collocation_strategy(), TAO::Collocation_Strategy, TAO_ORB_Core::configuration(), cpb_, TAO_Pseudo_Var_T< T >::in(), invoke_collocated_i(), invoke_remote_i(), LM_DEBUG, CORBA::Object_var, TAO_Stub::orb_core(), TAO_Operation_Details::reset_reply_service_info(), TAO_Operation_Details::reset_request_service_info(), set_response_flags(), TAO::TAO_CS_LAST, TAO::TAO_CS_REMOTE_STRATEGY, TAO::TAO_CS_THRU_POA_STRATEGY, TAO_debug_level, TAO::TAO_INVOKE_RESTART, and TAO::TAO_INVOKE_START.

Referenced by invoke().

00055   {
00056     // The invocation has got to be within the context of the
00057     // corresponding ORB's configuration. Otherwise things like
00058     // timeout hooks, etc may not work as expected. Especially if
00059     // there are multiple ORB instances in the process, each with its
00060     // own, local configuration.
00061     ACE_Service_Config_Guard scg (stub->orb_core ()->configuration ());
00062
00063     // Cache the target to a local variable.
00064     CORBA::Object_var effective_target =
00065       CORBA::Object::_duplicate (this->target_);
00066
00067     // Initial state
00068     TAO::Invocation_Status status = TAO_INVOKE_START;
00069
00070     while (status == TAO_INVOKE_START ||
00071            status == TAO_INVOKE_RESTART)
00072       {
00073         // Default we go to remote
00074         Collocation_Strategy strat = TAO_CS_REMOTE_STRATEGY;
00075
00076         // If we have a collocated proxy broker we look if we maybe
00077         // can use a collocated invocation.  Similarly, if the
00078         // target object reference contains a pointer to a servant,
00079         // the object reference also refers to a collocated object.
00080         if (cpb_ != 0 || effective_target->_servant () != 0)
00081           {
00082             strat = TAO_ORB_Core::collocation_strategy (effective_target.in ());
00083           }
00084
00085         if (strat == TAO_CS_REMOTE_STRATEGY || strat == TAO_CS_LAST)
00086           {
00087             ACE_Time_Value *max_wait_time = 0;
00088             status =
00089               this->invoke_remote_i (stub,
00090                                      details,
00091                                      effective_target,
00092                                      max_wait_time);
00093           }
00094         else
00095           {
00096             if (strat == TAO_CS_THRU_POA_STRATEGY)
00097               {
00098                 (void) this->set_response_flags (stub, details);
00099               }
00100
00101             status =
00102               this->invoke_collocated_i (stub,
00103                                          details,
00104                                          effective_target,
00105                                          strat);
00106           }
00107
00108         if (status == TAO_INVOKE_RESTART)
00109           {
00110             details.reset_request_service_info ();
00111             details.reset_reply_service_info ();
00112
00113             if (TAO_debug_level > 2)
00114               {
00115                 ACE_DEBUG ((LM_DEBUG,
00116                   "TAO (%P|%t) - Invocation_Adapter::invoke_i, "
00117                   "handling forwarded locations \n"));
00118               }
00119           }
00120       }
00121   }

Invocation_Status TAO::Invocation_Adapter::invoke_oneway (  TAO_Operation_Details &  details,
CORBA::Object_var &  effective_target,
Profile_Transport_Resolver &  r,
ACE_Time_Value *&  max_wait_time
)  [protected, virtual]


Helper method to make a one way invocation.

This method creates a synchronous oneway invocation object to which the actual task of request handling is delegated. Once the invocation returns this method checks whether the request is forwarded to a new location to take appropriate action.

Definition at line 321 of file Invocation_Adapter.cpp.

References TAO::Invocation_Status, TAO::Invocation_Base::is_forwarded(), object_forwarded(), CORBA::Object_var, TAO::Synch_Oneway_Invocation::remote_oneway(), TAO::Invocation_Base::reply_status(), TAO::Invocation_Base::steal_forwarded_reference(), TAO::Profile_Transport_Resolver::stub(), TAO_GIOP_LOCATION_FORWARD_PERM, and TAO::TAO_INVOKE_RESTART.

Referenced by invoke_remote_i().

00325   {
00326     TAO::Synch_Oneway_Invocation synch (this->target_, r, details);
00327
00328     Invocation_Status const s = synch.remote_oneway (max_wait_time);
00329
00330     if (s == TAO_INVOKE_RESTART && synch.is_forwarded ())
00331       {
00332         effective_target = synch.steal_forwarded_reference ();
00333
00334 #if TAO_HAS_INTERCEPTORS == 1
00335         CORBA::Boolean const is_permanent_forward =
00336             (synch.reply_status() == TAO_GIOP_LOCATION_FORWARD_PERM);
00337 #else
00338         CORBA::Boolean const is_permanent_forward = false;
00339 #endif
00340         this->object_forwarded (effective_target,
00341                                 r.stub (),
00342                                 is_permanent_forward);
00343       }
00344
00345     return s;
00346   }

Invocation_Status TAO::Invocation_Adapter::invoke_remote_i (  TAO_Stub *  stub,
TAO_Operation_Details &  details,
CORBA::Object_var &  effective_target,
ACE_Time_Value *&  max_wait_time
)  [protected, virtual]


Helper method that prepares the necessary stuff for a remote invocation.

Definition at line 222 of file Invocation_Adapter.cpp.

References ACE_DEBUG, ACE_TEXT, get_timeout(), TAO_Pseudo_Var_T< T >::in(), invoke_oneway(), invoke_twoway(), LM_DEBUG, CORBA::Object_var, TAO_Transport_Mux_Strategy::request_id(), TAO_Operation_Details::request_id(), TAO::Profile_Transport_Resolver::resolve(), TAO_Operation_Details::response_flags(), set_response_flags(), TAO_debug_level, TAO::TAO_INVOKE_FAILURE, TAO::TAO_ONEWAY_INVOCATION, TAO::TAO_TWOWAY_INVOCATION, TAO_Transport::tms(), and TAO::Profile_Transport_Resolver::transport().

Referenced by invoke_i().

00226   {
00227     ACE_Time_Value tmp_wait_time;
00228     bool const is_timeout = this->get_timeout (stub, tmp_wait_time);
00229
00230     if (is_timeout)
00231       max_wait_time = &tmp_wait_time;
00232
00233     (void) this->set_response_flags (stub, details);
00234
00235     CORBA::Octet rflags = details.response_flags ();
00236     bool block_connect =
00237       rflags != static_cast<CORBA::Octet> (Messaging::SYNC_NONE)
00238       && rflags != static_cast<CORBA::Octet> (TAO::SYNC_DELAYED_BUFFERING);
00239
00240     // Create the resolver which will pick (or create) for us a
00241     // transport and a profile from the effective_target.
00242     Profile_Transport_Resolver resolver (
00243       effective_target.in (),
00244       stub,
00245       block_connect);
00246
00247     resolver.resolve (max_wait_time);
00248
00249     if (TAO_debug_level)
00250       {
00251         if (is_timeout && *max_wait_time == ACE_Time_Value::zero)
00252           ACE_DEBUG ((LM_DEBUG,
00253                       ACE_TEXT ("(%P|%t)Invocation_Adapter::invoke_remote_i: ")
00254                       ACE_TEXT ("max wait time consumed during transport resolution\n")));
00255       }
00256
00257
00258     // Update the request id now that we have a transport
00259     details.request_id (resolver.transport ()->tms ()->request_id ());
00260
00261     if (this->type_ == TAO_ONEWAY_INVOCATION)
00262       {
00263         return this->invoke_oneway (details,
00264                                     effective_target,
00265                                     resolver,
00266                                     max_wait_time);
00267       }
00268     else if (this->type_ == TAO_TWOWAY_INVOCATION)
00269       {
00270         return this->invoke_twoway (details,
00271                                     effective_target,
00272                                     resolver,
00273                                     max_wait_time);
00274       }
00275
00276     return TAO_INVOKE_FAILURE;
00277   }

Invocation_Status TAO::Invocation_Adapter::invoke_twoway (  TAO_Operation_Details &  details,
CORBA::Object_var &  effective_target,
Profile_Transport_Resolver &  r,
ACE_Time_Value *&  max_wait_time
)  [protected, virtual]


Helper method to make a two way invocation.

This method creates a synchronous twoway invocation object to which the actual task of request handling is delegated. Once the invocation returns this method checks whether the request is forwarded to a new location.

Definition at line 280 of file Invocation_Adapter.cpp.

References TAO::Invocation_Status, TAO::Invocation_Base::is_forwarded(), object_forwarded(), CORBA::Object_var, TAO::Synch_Twoway_Invocation::remote_twoway(), TAO::Invocation_Base::reply_status(), TAO::Invocation_Base::steal_forwarded_reference(), TAO::Profile_Transport_Resolver::stub(), TAO_GIOP_LOCATION_FORWARD_PERM, TAO::TAO_INVOKE_RESTART, TAO::TAO_SYNCHRONOUS_INVOCATION, and TAO::TAO_TWOWAY_INVOCATION.

Referenced by invoke_remote_i().

00284   {
00285     // Simple sanity check
00286     if (this->mode_ != TAO_SYNCHRONOUS_INVOCATION ||
00287         this->type_ != TAO_TWOWAY_INVOCATION)
00288       {
00289         throw ::CORBA::INTERNAL (
00290           CORBA::SystemException::_tao_minor_code (
00291             TAO::VMCID,
00292             EINVAL),
00293           CORBA::COMPLETED_NO);
00294       }
00295
00296     TAO::Synch_Twoway_Invocation synch (this->target_,  r, details);
00297
00298     Invocation_Status const status = synch.remote_twoway (max_wait_time);
00299
00300     if (status == TAO_INVOKE_RESTART &&
00301         synch.is_forwarded ())
00302       {
00303         effective_target = synch.steal_forwarded_reference ();
00304
00305 #if TAO_HAS_INTERCEPTORS == 1
00306         CORBA::Boolean const is_permanent_forward =
00307             (synch.reply_status() == TAO_GIOP_LOCATION_FORWARD_PERM);
00308 #else
00309         CORBA::Boolean const is_permanent_forward = false;
00310 #endif
00311
00312         this->object_forwarded (effective_target,
00313                                 r.stub (),
00314                                 is_permanent_forward);
00315       }
00316
00317     return status;
00318   }

void TAO::Invocation_Adapter::object_forwarded (  CORBA::Object_var &  effective_target,
TAO_Stub *  stub,
CORBA::Boolean  permanent_forward
)  [protected]


Helper method that takes care of setting the profiles within the stub object if the target gets forwarded

Definition at line 349 of file Invocation_Adapter.cpp.

References TAO_Stub::add_forward_profiles(), TAO_Stub::base_profiles(), TAO_Stub::next_profile(), CORBA::Object_var, and TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE.

Referenced by invoke_collocated_i(), invoke_oneway(), and invoke_twoway().

00352   {
00353     // The object pointer has to be changed to a TAO_Stub pointer
00354     // in order to obtain the profiles.
00355     TAO_Stub *stubobj = effective_target->_stubobj ();
00356
00357     if (stubobj == 0)
00358       throw ::CORBA::INTERNAL (
00359         CORBA::SystemException::_tao_minor_code (
00360           TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE,
00361           errno),
00362         CORBA::COMPLETED_NO);
00363
00364     // Reset the profile in the stubs
00365     stub->add_forward_profiles (stubobj->base_profiles (), permanent_forward);
00366
00367     if (stub->next_profile () == 0)
00368       throw ::CORBA::TRANSIENT (
00369         CORBA::SystemException::_tao_minor_code (
00370           TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE,
00371           errno),
00372         CORBA::COMPLETED_NO);
00373
00374     return;
00375   }

Invocation_Adapter& TAO::Invocation_Adapter::operator= (  const Invocation_Adapter &   )  [private]


void TAO::Invocation_Adapter::set_response_flags (  TAO_Stub *  stub,
TAO_Operation_Details &  details
)  [protected]


Helper method to set the response flags within details.

Definition at line 188 of file Invocation_Adapter.cpp.

References TAO_ORB_Core::call_sync_scope_hook(), TAO_Stub::orb_core(), TAO_Operation_Details::response_flags(), Messaging::SyncScope, TAO::TAO_ONEWAY_INVOCATION, TAO::TAO_TWOWAY_INVOCATION, and TAO_TWOWAY_RESPONSE_FLAG.

Referenced by invoke_i(), and invoke_remote_i().

00191   {
00192     switch (this->type_)
00193       {
00194       case TAO_ONEWAY_INVOCATION:
00195         {
00196           // Grab the syncscope policy from the ORB.
00197           Messaging::SyncScope sync_scope;
00198
00199           bool has_synchronization = false;
00200
00201           stub->orb_core ()->call_sync_scope_hook (stub,
00202                                                    has_synchronization,
00203                                                    sync_scope);
00204           if (has_synchronization)
00205             details.response_flags (CORBA::Octet (sync_scope));
00206           else
00207             details.response_flags (
00208               CORBA::Octet (Messaging::SYNC_WITH_TRANSPORT));
00209           break;
00210         }
00211       case TAO_TWOWAY_INVOCATION:
00212         {
00213           // @@note: Need to change this to something better. Too many
00214           // hash defines meaning the same things.
00215           details.response_flags (TAO_TWOWAY_RESPONSE_FLAG);
00216           break;
00217         }
00218       }
00219   }

Member Data Documentation

Argument** const TAO::Invocation_Adapter::args_ [protected]


Array of arguments for this operation.

Definition at line 245 of file Invocation_Adapter.h.

Collocation_Proxy_Broker* const TAO::Invocation_Adapter::cpb_ [protected]


Collocation proxy broker for this operation.

Definition at line 260 of file Invocation_Adapter.h.

Referenced by invoke_collocated_i(), and invoke_i().

Invocation_Mode const TAO::Invocation_Adapter::mode_ [protected]


The invocation mode.

Definition at line 266 of file Invocation_Adapter.h.

int const TAO::Invocation_Adapter::number_args_ [protected]


Number of arguments for this operation.

This includes the return values too

Definition at line 251 of file Invocation_Adapter.h.

size_t const TAO::Invocation_Adapter::op_len_ [protected]


String length of the operation name.

Definition at line 257 of file Invocation_Adapter.h.

char const* TAO::Invocation_Adapter::operation_ [protected]


Name of the operation.

Definition at line 254 of file Invocation_Adapter.h.

CORBA::Object_ptr TAO::Invocation_Adapter::target_ [protected]


The target object on which this invocation is carried out.

Definition at line 242 of file Invocation_Adapter.h.

Invocation_Type const TAO::Invocation_Adapter::type_ [protected]


The invocation type.

Definition at line 263 of file Invocation_Adapter.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 13:18:07 2008 for TAO by doxygen 1.3.6
