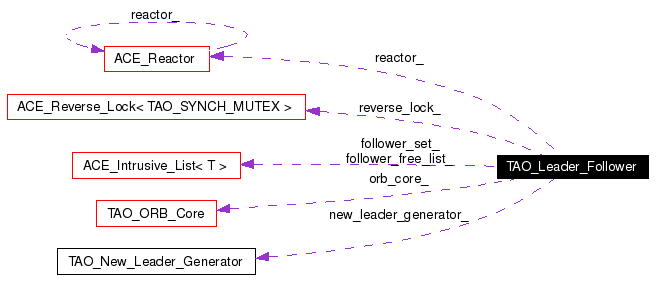

TAO: TAO_Leader_Follower class Reference

00015   : orb_core_ (orb_core),
00016     reverse_lock_ (lock_),
00017     leaders_ (0),
00018     clients_ (0),
00019     reactor_ (0),
00020     client_thread_is_leader_ (0),
00021     event_loop_threads_waiting_ (0),
00022     event_loop_threads_condition_ (lock_),
00023     new_leader_generator_ (new_leader_generator)
00024 {
00025 }

00028 {
00029   while (!this->follower_free_list_.empty ())
00030     {
00031       TAO_LF_Follower *follower =
00032         this->follower_free_list_.pop_front ();
00033       delete follower;
00034     }
00035   // Hand the reactor back to the resource factory.
00036   // use GUI reactor factory if available
00037   if ( this->orb_core_->gui_resource_factory () )
00038     this->orb_core_->gui_resource_factory ()->reclaim_reactor (this->reactor_);
00039   else
00040     this->orb_core_->resource_factory ()->reclaim_reactor (this->reactor_);
00041
00042   this->reactor_ = 0;
00043 }

00177 {
00178   this->follower_set_.push_back (follower);
00179 }

00047 {
00048   if (!this->follower_free_list_.empty ())
00049     return this->follower_free_list_.pop_front ();
00050
00051   TAO_LF_Follower* ptr = 0;
00052   ACE_NEW_RETURN (ptr,
00053                   TAO_LF_Follower (*this),
00054                   0);
00055   return ptr;
00056 }

00048 {
00049   if (this->leaders_ == 0)
00050     {
00051       if (this->event_loop_threads_waiting_)
00052         {
00053           return this->event_loop_threads_condition_.broadcast ();
00054         }
00055       else if (this->follower_available ())
00056         {
00057           return this->elect_new_leader_i ();
00058         }
00059       else
00060         {
00061           this->no_leaders_available ();
00062         }
00063     }
00064   return 0;
00065 }

00066 {
00067   TAO_LF_Follower* const follower =
00068     this->follower_set_.head ();
00069
00070 #if defined (TAO_DEBUG_LEADER_FOLLOWER)
00071   ACE_DEBUG ((LM_DEBUG,
00072               "TAO (%P|%t) LF::elect_new_leader_i - "
00073               "follower is %x\n",
00074               follower));
00075 #endif /* TAO_DEBUG_LEADER_FOLLOWER */
00076
00077   return follower->signal ();
00078 }

00035 {
00036   return !this->follower_set_.empty ();
00037 }

00029 {
00030   return this->orb_core_->get_tss_resources ();
00031 }

00195 {
00196   return this->clients_;
00197 }

00170 {
00171   TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
00172   return tss->client_leader_thread_ != 0;
00173 }

00146 {
00147   return this->leaders_ != 0;
00148 }

00126 {
00127   return this->lock_;
00128 }

00041 {
00042   if (this->new_leader_generator_)
00043     this->new_leader_generator_->no_leaders_available ();
00044 }

00128 {
00129   if (this->reactor_ == 0)
00130     {
00131       ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock (), 0);
00132       if (this->reactor_ == 0)
00133         {
00134           // use GUI reactor factory if available
00135           if ( this->orb_core_->gui_resource_factory () )
00136             this->reactor_ =
00137               this->orb_core_->gui_resource_factory ()->get_reactor ();
00138           else
00139             this->reactor_ =
00140               this->orb_core_->resource_factory ()->get_reactor ();
00141         }
00142     }
00143   return this->reactor_;
00144 }

00060 {
00061   this->follower_free_list_.push_front (follower);
00062 }

00183 {
00184   this->follower_set_.remove (follower);
00185 }

00161 {
00162   TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
00163   --tss->client_leader_thread_;
00164   --this->leaders_;
00165   --this->client_thread_is_leader_;
00166 }

00172 {
00173   // If we were a leader thread or an event loop thread, take back
00174   // leadership.
00175   TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
00176   if (tss->event_loop_thread_ ||
00177       tss->client_leader_thread_)
00178     {
00179       ++this->leaders_;
00180     }
00181
00182   --this->clients_;
00183   if (this->clients_ == 0 &&
00184       this->orb_core_->has_shutdown ())
00185     {
00186       // The ORB has shutdown and we are the last client thread, we
00187       // must stop the reactor to ensure that any server threads go
00188       // away.
00189       this->orb_core_->reactor ()->end_reactor_event_loop ();
00190     }
00191 }

00118 {
00119   TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
00120   if (tss->event_loop_thread_ > 0)
00121     this->reset_event_loop_thread_i (tss);
00122 }

00102 {
00103   // Always decrement <event_loop_thread_>. If <event_loop_thread_>
00104   // reaches 0 and we are not a client leader, we are done with our
00105   // duties of running the event loop. Therefore, decrement the
00106   // leaders.  Otherwise, we just got done with a nested call to the
00107   // event loop or a call to the event loop when we were the client
00108   // leader.
00109   --tss->event_loop_thread_;
00110
00111   if (tss->event_loop_thread_ == 0 &&
00112       tss->client_leader_thread_ == 0)
00113     --this->leaders_;
00114 }

00189 {
00190   return this->reverse_lock_;
00191 }

00152 {
00153   TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
00154   ++this->leaders_;
00155   ++this->client_thread_is_leader_;
00156   ++tss->client_leader_thread_;
00157 }

00148 {
00149   // If we were a leader thread or an event loop thread, give up
00150   // leadership.
00151   TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
00152   if (tss->event_loop_thread_ ||
00153       tss->client_leader_thread_)
00154     {
00155       --this->leaders_;
00156     }
00157
00158   if (this->clients_ == 0 &&
00159       this->orb_core_->has_shutdown () &&
00160       !this->orb_core_->resource_factory ()->drop_replies_during_shutdown ())
00161     {
00162       // The ORB has shutdown and we are the first client after
00163       // that. This means that the reactor is disabled, we must
00164       // re-enable it if we want to receive any replys...
00165       this->orb_core_->reactor ()->reset_reactor_event_loop ();
00166     }
00167   ++this->clients_;
00168 }

00069 {
00070   TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
00071
00072   // Make sure that there is no other client thread run the show.  If
00073   // we are the client thread running the show, then it is ok.
00074   if (this->client_thread_is_leader_ &&
00075       tss->client_leader_thread_ == 0)
00076     {
00077       int result =
00078         this->wait_for_client_leader_to_complete (max_wait_time);
00079
00080       if (result != 0)
00081         return result;
00082     }
00083
00084   // If <event_loop_thread_> == 0 and <client_leader_thread_> == 0, we
00085   // are running the event loop for the first time.  Therefore,
00086   // increment the leaders.  Otherwise, simply increment
00087   // <event_loop_thread_> since either (a) if <event_loop_thread_> !=
00088   // 0 this is a nested call to the event loop, or (b)
00089   // <client_leader_thread_> != 0 this is a call to the event loop
00090   // while we are a client leader.
00091   if (tss->event_loop_thread_ == 0 &&
00092       tss->client_leader_thread_ == 0)
00093     ++this->leaders_;
00094
00095   ++tss->event_loop_thread_;
00096
00097   return 0;
00098 }

00132 {
00133   TAO_ORB_Core_TSS_Resources *tss = this->get_tss_resources ();
00134
00135   if (tss->event_loop_thread_ > 0)
00136     {
00137       ACE_GUARD (TAO_SYNCH_MUTEX, ace_mon, this->lock ());
00138       this->reset_event_loop_thread_i (tss);
00139
00140       this->elect_new_leader ();
00141     }
00142 }

00082 {
00083   int result = 0;
00084   ACE_Countdown_Time countdown (max_wait_time);
00085
00086   // Note that we are waiting.
00087   ++this->event_loop_threads_waiting_;
00088
00089   while (this->client_thread_is_leader_ &&
00090          result != -1)
00091     {
00092       if (max_wait_time == 0)
00093         {
00094           if (this->event_loop_threads_condition_.wait () == -1)
00095             {
00096               ACE_ERROR ((LM_ERROR,
00097                           ACE_TEXT ("TAO (%P|%t): TAO_Leader_Follower::wait_for_client_leader_to_complete - ")
00098                           ACE_TEXT ("Condition variable wait failed\n")));
00099
00100               result = -1;
00101             }
00102         }
00103       else
00104         {
00105           countdown.update ();
00106           ACE_Time_Value tv = ACE_OS::gettimeofday ();
00107           tv += *max_wait_time;
00108           if (this->event_loop_threads_condition_.wait (&tv) == -1)
00109             {
00110               if (errno != ETIME)
00111                 ACE_ERROR ((LM_ERROR,
00112                             ACE_TEXT ("TAO (%P|%t): TAO_Leader_Follower::wait_for_client_leader_to_complete - ")
00113                             ACE_TEXT ("Condition variable wait failed\n")));
00114
00115               result = -1;
00116             }
00117         }
00118     }
00119
00120   // Reset waiting state.
00121   --this->event_loop_threads_waiting_;
00122
00123   return result;
00124 }

00197 {
00198   // Obtain the lock.
00199   ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock (), -1);
00200
00201   ACE_Countdown_Time countdown (max_wait_time);
00202
00203   // Optmize the first iteration [no access to errno]
00204   int result = 1;
00205
00206   // For some cases the transport may dissappear like when waiting for
00207   // connection to be initiated or closed. So cache the id.
00208   // @@ NOTE: This is not completely safe either. We will be fine for
00209   // cases that dont access the id ie. when debug level is off but
00210   // with debugging level on we are on a sticky wicket. Hopefully none
00211   // of our users should run TAO with debugging enabled like they did
00212   // in PathFinder
00213   size_t t_id = 0;
00214
00215   if (TAO_debug_level && transport != 0)
00216     {
00217       t_id = transport->id ();
00218     }
00219
00220   {
00221     // Calls this->set_client_thread () on construction and
00222     // this->reset_client_thread () on destruction.
00223     TAO_LF_Client_Thread_Helper client_thread_helper (*this);
00224     ACE_UNUSED_ARG (client_thread_helper);
00225
00226     // Check if there is a leader.  Note that it cannot be us since we
00227     // gave up our leadership when we became a client.
00228     if (this->leader_available ())
00229       {
00230         // = Wait as a follower.
00231
00232         // Grab a follower:
00233         TAO_LF_Follower_Auto_Ptr follower (*this);
00234         if (follower.get () == 0)
00235           return -1;
00236
00237         if (TAO_debug_level >= 5)
00238           ACE_DEBUG ((LM_DEBUG,
00239                       "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
00240                       " (follower), cond <%x>\n",
00241                       t_id, follower.get ()));
00242
00243         // Bound the follower and the LF_Event, this is important to
00244         // get a signal when the event terminates
00245         TAO_LF_Event_Binder event_binder (event, follower.get ());
00246
00247         while (event->keep_waiting () &&
00248                this->leader_available ())
00249           {
00250             // Add ourselves to the list, do it everytime we wake up
00251             // from the CV loop. Because:
00252             //
00253             // - The leader thread could have elected us as the new
00254             // leader.
00255             // - Before we can assume the role another thread becomes
00256             // the leader
00257             // - But our condition variable could have been removed
00258             // already, if we don't add it again we will never wake
00259             // up.
00260             //
00261             // Notice that we can have spurious wake ups, in that case
00262             // adding the leader results in an error, that must be
00263             // ignored.
00264             // You may be thinking of not removing the condition
00265             // variable in the code that sends the signal, but
00266             // removing it here, that does not work either, in that
00267             // case the condition variable may be used twice:
00268             //
00269             //  - Wake up because its reply arrived
00270             //  - Wake up because it must become the leader
00271             //
00272             // but only the first one has any effect, so the leader is
00273             // lost.
00274             //
00275
00276             TAO_LF_Follower_Auto_Adder auto_adder (*this, follower);
00277
00278             if (max_wait_time == 0)
00279               {
00280                 if (follower->wait (max_wait_time) == -1)
00281                   {
00282                     if (TAO_debug_level >= 5)
00283                       ACE_DEBUG ((LM_DEBUG,
00284                                   "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event, "
00285                                   " (follower) [no timer, cond failed]\n",
00286                                   t_id));
00287
00288                     // @@ Michael: What is our error handling in this case?
00289                     //             We could be elected as leader and
00290                     //             no leader would come in?
00291                     return -1;
00292                   }
00293               }
00294             else
00295               {
00296                 countdown.update ();
00297                 ACE_Time_Value tv = ACE_OS::gettimeofday ();
00298                 tv += *max_wait_time;
00299                 if (follower->wait (&tv) == -1)
00300                   {
00301                     if (TAO_debug_level >= 5)
00302                       ACE_DEBUG ((LM_DEBUG,
00303                                   "TAO (%P|%t) - Leader_Follower[%d]::wait, "
00304                                   "(follower) [has timer, follower failed]\n",
00305                                   t_id ));
00306
00307                     // If we have timedout set the state in the
00308                     // LF_Event. We call the non-locking,
00309                     // no-signalling method on LF_Event.
00310                     if (errno == ETIME)
00311                         // We have timedout
00312                         event->set_state (TAO_LF_Event::LFS_TIMEOUT);
00313
00314                     if (!event->successful ())
00315                       {
00316                         // Remove follower can fail because either
00317                         // 1) the condition was satisfied (i.e. reply
00318                         //    received or queue drained), or
00319                         // 2) somebody elected us as leader, or
00320                         // 3) the connection got closed.
00321                         //
00322                         // Therefore:
00323                         // If remove_follower fails and the condition
00324                         // was not satisfied, we know that we got
00325                         // elected as a leader.
00326                         // But we got a timeout, so we cannot become
00327                         // the leader, therefore, we have to select a
00328                         // new leader.
00329                         //
00330
00331                         if (this->elect_new_leader () == -1
00332                             && TAO_debug_level > 0)
00333                           {
00334                             ACE_ERROR ((LM_ERROR,
00335                                         "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event, "
00336                                         "elect_new_leader failed\n",
00337                                         t_id ));
00338                           }
00339                       }
00340
00341
00342                     return -1;
00343                   }
00344               }
00345           }
00346
00347         countdown.update ();
00348
00349         // @@ Michael: This is an old comment why we do not want to
00350         //             remove the follower here.
00351         // We should not remove the follower here, we *must* remove it when
00352         // we signal it so the same condition is not signalled for
00353         // both wake up as a follower and as the next leader.
00354
00355         if (TAO_debug_level >= 5)
00356           ACE_DEBUG ((LM_DEBUG,
00357                       "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
00358                       " done (follower), successful %d\n",
00359                       t_id,
00360                       event->successful ()));
00361
00362         // Now somebody woke us up to become a leader or to handle our
00363         // input. We are already removed from the follower queue.
00364
00365         if (event->successful ())
00366           return 0;
00367
00368         if (event->error_detected ())
00369           return -1;
00370
00371         // FALLTHROUGH
00372         // We only get here if we woke up but the reply is not
00373         // complete yet, time to assume the leader role....
00374         // i.e. ACE_ASSERT (event->successful () == 0);
00375       }
00376
00377     // = Leader Code.
00378
00379     // The only way to reach this point is if we must become the
00380     // leader, because there is no leader or we have to update to a
00381     // leader or we are doing nested upcalls in this case we do
00382     // increase the refcount on the leader in TAO_ORB_Core.
00383
00384     // Calls this->set_client_leader_thread () on
00385     // construction and this->reset_client_leader_thread ()
00386     // on destruction.  Note that this may increase the refcount of
00387     // the leader.
00388     TAO_LF_Client_Leader_Thread_Helper client_leader_thread_helper (*this);
00389     ACE_UNUSED_ARG (client_leader_thread_helper);
00390
00391     {
00392       ACE_GUARD_RETURN (ACE_Reverse_Lock<TAO_SYNCH_MUTEX>, rev_mon,
00393                         this->reverse_lock (), -1);
00394
00395       // Become owner of the reactor.
00396       ACE_Reactor *reactor = this->reactor_;
00397       reactor->owner (ACE_Thread::self ());
00398
00399       // Run the reactor event loop.
00400
00401       if (TAO_debug_level >= 5)
00402         ACE_DEBUG ((LM_DEBUG,
00403                     "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
00404                     " (leader) enter reactor event loop\n",
00405                     t_id));
00406
00407       // If we got our event, no need to run the event loop any
00408       // further.
00409       while (event->keep_waiting ())
00410         {
00411           // Run the event loop.
00412           result = reactor->handle_events (max_wait_time);
00413
00414           // Did we timeout? If so, stop running the loop.
00415           if (result == 0 &&
00416               max_wait_time != 0 &&
00417               *max_wait_time == ACE_Time_Value::zero)
00418             break;
00419
00420           // Other errors? If so, stop running the loop.
00421           if (result == -1)
00422             break;
00423
00424           // Otherwise, keep going...
00425         }
00426
00427       if (TAO_debug_level >= 5)
00428         ACE_DEBUG ((LM_DEBUG,
00429                     "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
00430                     " (leader) exit reactor event loop\n",
00431                     t_id));
00432     }
00433   }
00434   //
00435   // End artificial scope for auto_ptr like helpers calling:
00436   // this->reset_client_thread () and (maybe)
00437   // this->reset_client_leader_thread ().
00438   //
00439
00440   // Wake up the next leader, we cannot do that in handle_input,
00441   // because the woken up thread would try to get into handle_events,
00442   // which is at the time in handle_input still occupied. But do it
00443   // before checking the error in <result>, even if there is an error
00444   // in our input we should continue running the loop in another
00445   // thread.
00446
00447   if (this->elect_new_leader () == -1)
00448     ACE_ERROR_RETURN ((LM_ERROR,
00449                        "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
00450                        " failed to elect new leader\n",
00451                        t_id),
00452                       -1);
00453
00454   if (result == -1 && !this->reactor_->reactor_event_loop_done ())
00455     ACE_ERROR_RETURN ((LM_ERROR,
00456                        "TAO (%P|%t) - Leader_Follower[%d]::wait_for_event,"
00457                        " handle_events failed\n",
00458                        t_id),
00459                       -1);
00460
00461   // Return an error if there was a problem receiving the reply...
00462   if (max_wait_time != 0)
00463     {
00464       if (!event->successful ()
00465           && *max_wait_time == ACE_Time_Value::zero)
00466         {
00467           result = -1;
00468           errno = ETIME;
00469         }
00470       else if (event->error_detected ())
00471         {
00472           // If the time did not expire yet, but we get a failure,
00473           // e.g. the connections closed, we should still return an error.
00474           result = -1;
00475         }
00476     }
00477   else
00478     {
00479       /**
00480        * There should be no reason to reset the value of result
00481        * here. If there was an error in handle_events () that the
00482        * leader saw, I (Bala) beleave it should be propogated to the
00483        * clients.
00484        * result = 0;
00485        */
00486       if (event->error_detected ())
00487         {
00488           result = -1;
00489         }
00490     }
00491
00492   return result;
00493 }


Public Member Functions
	TAO_Leader_Follower (TAO_ORB_Core orb_core, TAO_New_Leader_Generator new_leader_generator=0)
	Constructor.
	~TAO_Leader_Follower (void)
	Destructor.
int	set_event_loop_thread (ACE_Time_Value *max_wait_time)
void	reset_event_loop_thread (void)
void	set_upcall_thread (void)
int	leader_available (void) const
	Is there any thread running as a leader?
void	set_client_thread (void)
	A server thread is making a request.
void	reset_client_thread (void)
	A server thread has finished is making a request.
int	wait_for_event (TAO_LF_Event event, TAO_Transport transport, ACE_Time_Value *max_wait_time)
	Wait on the Leader/Followers loop until one event happens.
void	set_client_leader_thread (void)
void	reset_client_leader_thread (void)
void	set_client_leader_thread (ACE_thread_t thread_ID)
int	is_client_leader_thread (void) const
	checks if we are a leader thread
int	elect_new_leader (void)
TAO_SYNCH_MUTEX &	lock (void)
	Get a reference to the underlying mutex.
ACE_Reverse_Lock< TAO_SYNCH_MUTEX > &	reverse_lock (void)
int	has_clients (void) const
	Check if there are any client threads running.
ACE_Reactor *	reactor (void)
	Accesor to the reactor.
void	no_leaders_available (void)
	Called when we are out of leaders.
Follower creation/destructions
The Leader/Followers set acts as a factory for the Follower objects. Followers are used to represent a thread blocked waiting in the Follower set. The Leader/Followers abstraction keeps a list of the waiting followers, so it can wake up one when the leader thread stops handling events. For performance reasons the Leader/Followers set uses a pool (or free-list) to keep Follower objects unattached to any thread. It could be tempting to use TSS to keep such followers, after all a thread can only need one such Follower object, however, that does not work with multiple Leader/Followers sets, consult this bug report for more details: http://ace.cs.wustl.edu/bugzilla/show_bug.cgi?id=296
TAO_LF_Follower *	allocate_follower (void)
	Allocate a new follower to the caller.
void	release_follower (TAO_LF_Follower *)
	The caller has finished using a follower.
Follower Set Operations
void	add_follower (TAO_LF_Follower *follower)
	Add a new follower to the set.
void	remove_follower (TAO_LF_Follower *follower)
	Removes a follower from the leader-follower set.
int	follower_available (void) const
	Checks if there are any followers available.
Private Types
typedef ACE_Intrusive_List< TAO_LF_Follower >	Follower_Set
	Implement the Leader/Followers set using an intrusive list.
Private Member Functions
TAO_ORB_Core_TSS_Resources *	get_tss_resources (void) const
	Shortcut to obtain the TSS resources of the orb core.
int	wait_for_client_leader_to_complete (ACE_Time_Value *max_wait_time)
	Wait for the client leader to complete.
void	reset_event_loop_thread_i (TAO_ORB_Core_TSS_Resources *tss)
Follower Set Operations
int	elect_new_leader_i (void)
Private Attributes
TAO_ORB_Core *	orb_core_
	The orb core.
TAO_SYNCH_MUTEX	lock_
	To synchronize access to the members.
ACE_Reverse_Lock< TAO_SYNCH_MUTEX >	reverse_lock_
	do protect the access to the following three members
Follower_Set	follower_set_
Follower_Set	follower_free_list_
	Use a free list to allocate and release Follower objects.
int	leaders_
int	clients_
ACE_Reactor *	reactor_
	The reactor.
int	client_thread_is_leader_
	Is a client thread the current leader?
int	event_loop_threads_waiting_
	Are server threads waiting for the client leader to complete?
TAO_SYNCH_CONDITION	event_loop_threads_condition_
TAO_New_Leader_Generator *	new_leader_generator_

TAO_Leader_Follower Class Reference

Public Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
