#include <Reverse_Lock_T.h>

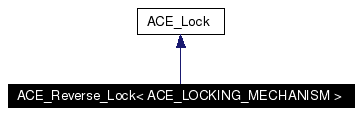

Inheritance diagram for ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >:
Public Types | |
| typedef ACE_LOCKING_MECHANISM | ACE_LOCK |
Public Member Functions | |
| ACE_Reverse_Lock (ACE_LOCKING_MECHANISM &lock, ACE_Acquire_Method::METHOD_TYPE acquire_method=ACE_Acquire_Method::ACE_REGULAR) | |
| Constructor. All locking requests will be forwarded to . | |
| virtual | ~ACE_Reverse_Lock (void) |
| virtual int | acquire (void) |
| Release the lock. | |
| virtual int | tryacquire (void) |
| Release the lock. | |
| virtual int | release (void) |
| Acquire the lock. | |
| virtual int | acquire_read (void) |
| Release the lock. | |
| virtual int | acquire_write (void) |
| Release the lock. | |
| virtual int | tryacquire_read (void) |
| Release the lock. | |
| virtual int | tryacquire_write (void) |
| Release the lock. | |
| virtual int | tryacquire_write_upgrade (void) |
| Release the lock. | |
| virtual int | remove (void) |
| Explicitly destroy the lock. | |
Private Attributes | |
| ACE_LOCKING_MECHANISM & | lock_ |
| The concrete locking mechanism that all the methods delegate to. | |
| ACE_Acquire_Method::METHOD_TYPE | acquire_method_ |
| This indicates what kind of acquire method will be called. | |
This is an interesting adapter class that changes a lock into a reverse lock, i.e., on this class calls on the lock, and on this class calls on the lock. One motivation for this class is when we temporarily want to release a lock (which we have already acquired) but then reacquire it soon after. An alternative design would be to add a Anti_Guard or Reverse_Guard class which would on construction and destruction. However, there are *many* varieties of the Guard class and this design choice would lead to at least 6 new classes. One new ACE_Reverse_Lock class seemed more reasonable.
Definition at line 72 of file Reverse_Lock_T.h.
|
|||||
|
Definition at line 76 of file Reverse_Lock_T.h. |
|
||||||||||||||||
|
Constructor. All locking requests will be forwarded to .
Definition at line 11 of file Reverse_Lock_T.inl.
00014 : lock_ (lock), 00015 acquire_method_ (acquire_method) 00016 { 00017 } |
|
||||||||||
|
Destructor. If was not passed in by the user, it will be deleted. Definition at line 19 of file Reverse_Lock_T.cpp.
00020 {
00021 }
|
|
||||||||||
|
Release the lock.
Implements ACE_Lock. Definition at line 32 of file Reverse_Lock_T.cpp.
00033 {
00034 return this->lock_.release ();
00035 }
|
|
||||||||||
|
Release the lock.
Implements ACE_Lock. Definition at line 58 of file Reverse_Lock_T.cpp. References ACE_NOTSUP_RETURN.
00059 {
00060 ACE_NOTSUP_RETURN (-1);
00061 }
|
|
||||||||||
|
Release the lock.
Implements ACE_Lock. Definition at line 65 of file Reverse_Lock_T.cpp. References ACE_NOTSUP_RETURN.
00066 {
00067 ACE_NOTSUP_RETURN (-1);
00068 }
|
|
||||||||||
|
Acquire the lock.
Implements ACE_Lock. Definition at line 46 of file Reverse_Lock_T.cpp. References ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::acquire_method_.
00047 {
00048 if (this->acquire_method_ == ACE_Acquire_Method::ACE_READ)
00049 return this->lock_.acquire_read ();
00050 else if (this->acquire_method_ == ACE_Acquire_Method::ACE_WRITE)
00051 return this->lock_.acquire_write ();
00052 else
00053 return this->lock_.acquire ();
00054 }
|
|
||||||||||
|
Explicitly destroy the lock.
Implements ACE_Lock. Definition at line 25 of file Reverse_Lock_T.cpp.
00026 {
00027 return this->lock_.remove ();
00028 }
|
|
||||||||||
|
Release the lock.
Implements ACE_Lock. Definition at line 39 of file Reverse_Lock_T.cpp. References ACE_NOTSUP_RETURN.
00040 {
00041 ACE_NOTSUP_RETURN (-1);
00042 }
|
|
||||||||||
|
Release the lock.
Implements ACE_Lock. Definition at line 72 of file Reverse_Lock_T.cpp. References ACE_NOTSUP_RETURN.
00073 {
00074 ACE_NOTSUP_RETURN (-1);
00075 }
|
|
||||||||||
|
Release the lock.
Implements ACE_Lock. Definition at line 79 of file Reverse_Lock_T.cpp. References ACE_NOTSUP_RETURN.
00080 {
00081 ACE_NOTSUP_RETURN (-1);
00082 }
|
|
||||||||||
|
Release the lock.
Implements ACE_Lock. Definition at line 86 of file Reverse_Lock_T.cpp. References ACE_NOTSUP_RETURN.
00087 {
00088 ACE_NOTSUP_RETURN (-1);
00089 }
|
|
|||||
|
This indicates what kind of acquire method will be called.
Definition at line 121 of file Reverse_Lock_T.h. Referenced by ACE_Reverse_Lock< ACE_LOCKING_MECHANISM >::release(). |
|
|||||
|
The concrete locking mechanism that all the methods delegate to.
Definition at line 118 of file Reverse_Lock_T.h. |
