TAO_Default_Client_Strategy_Factory Class Reference

This is the "default" client strategy factor for TAO. It includes strategies that are configured through command-line options so that everything operates as if there were no dynamically-linkable strategies. More...

#include <default_client.h>

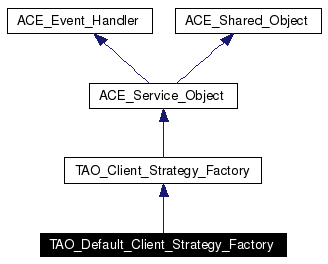

Inheritance diagram for TAO_Default_Client_Strategy_Factory:

Inheritance graph
[legend]

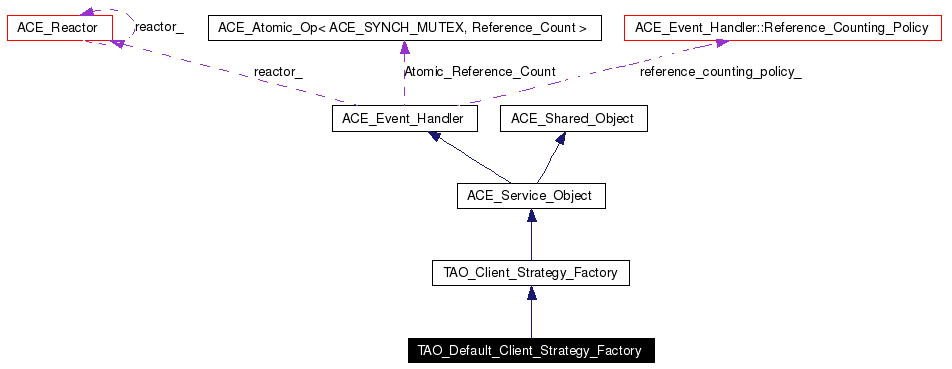

Collaboration diagram for TAO_Default_Client_Strategy_Factory:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Default_Client_Strategy_Factory (void)
 Constructor.

virtual ~TAO_Default_Client_Strategy_Factory (void)
 Destructor.

virtual int init (int argc, ACE_TCHAR *argv[])
 Dynamic linking hook.

int parse_args (int argc, ACE_TCHAR *argv[])
 Parse svc.conf arguments.

virtual ACE_Lock * create_profile_lock (void)
virtual TAO_Configurable_Refcount create_profile_refcount (void)
 Create the refcount for the profile.

virtual TAO_Transport_Mux_Strategy * create_transport_mux_strategy (TAO_Transport *transport)
 Create the correct client request muxing strategy.

virtual ACE_Lock * create_transport_mux_strategy_lock (void)
 Create the correct lock for request muxing strategy.

virtual int reply_dispatcher_table_size (void) const
 Return the size of the reply dispatcher table.

virtual int allow_callback (void)
 Does the client allow any form of callback?

virtual TAO_Wait_Strategy * create_wait_strategy (TAO_Transport *transport)
 Create the correct client strategy.

virtual TAO_Connect_Strategy * create_connect_strategy (TAO_ORB_Core *)
 Create the correct client strategy.

virtual bool use_cleanup_options (void) const
 Cleanup options for wait strategy.

virtual Connect_Strategy connect_strategy (void) const
 Return the selected connection strategy option.


Protected Member Functions

void report_option_value_error (const ACE_TCHAR *option_name, const ACE_TCHAR *option_value)

Private Types

enum  Lock_Type { TAO_NULL_LOCK, TAO_THREAD_LOCK }
enum  Transport_Mux_Strategy { TAO_MUXED_TMS, TAO_EXCLUSIVE_TMS }
enum  Wait_Strategy { TAO_WAIT_ON_LEADER_FOLLOWER, TAO_WAIT_ON_REACTOR, TAO_WAIT_ON_READ, TAO_WAIT_ON_LF_NO_UPCALL }

Private Attributes

Lock_Type profile_lock_type_
 the lock type for forwarding IIOP Profile

Transport_Mux_Strategy transport_mux_strategy_
 The client Request Mux Strategy.

Wait_Strategy wait_strategy_
 The wait-for-reply strategy.

Connect_Strategy connect_strategy_
 The connection initiation strategy.

int rd_table_size_
 Size of the reply dispatcher table.

Lock_Type muxed_strategy_lock_type_
 Type of lock for the muxed_strategy.

bool use_cleanup_options_
 Cleanupoptions for RW strategy.

Detailed Description

This is the "default" client strategy factor for TAO. It includes strategies that are configured through command-line options so that everything operates as if there were no dynamically-linkable strategies.

Definition at line 36 of file default_client.h.

Member Enumeration Documentation

enum TAO_Default_Client_Strategy_Factory::Lock_Type [private]


Enumeration values:
TAO_NULL_LOCK
TAO_THREAD_LOCK

Definition at line 72 of file default_client.h.

00073   {
00074     TAO_NULL_LOCK,
00075     TAO_THREAD_LOCK
00076   };

enum TAO_Default_Client_Strategy_Factory::Transport_Mux_Strategy [private]


Enumeration values:
TAO_MUXED_TMS
TAO_EXCLUSIVE_TMS

Definition at line 81 of file default_client.h.

00082   {
00083     TAO_MUXED_TMS,
00084     TAO_EXCLUSIVE_TMS
00085   };

enum TAO_Default_Client_Strategy_Factory::Wait_Strategy [private]


Enumeration values:
TAO_WAIT_ON_LEADER_FOLLOWER
TAO_WAIT_ON_REACTOR
TAO_WAIT_ON_READ
TAO_WAIT_ON_LF_NO_UPCALL

Definition at line 90 of file default_client.h.

00091   {
00092     TAO_WAIT_ON_LEADER_FOLLOWER,
00093     TAO_WAIT_ON_REACTOR,
00094     TAO_WAIT_ON_READ,
00095     TAO_WAIT_ON_LF_NO_UPCALL
00096   };

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Default_Client_Strategy_Factory::TAO_Default_Client_Strategy_Factory (  void   )


Constructor.

Definition at line 28 of file default_client.cpp.

References TAO_EXCLUSIVE_TMS, TAO_MUXED_TMS, TAO_RD_TABLE_SIZE, TAO_WAIT_ON_LEADER_FOLLOWER, TAO_WAIT_ON_REACTOR, transport_mux_strategy_, and wait_strategy_.

00029   : profile_lock_type_ (TAO_THREAD_LOCK)
00030   , transport_mux_strategy_ (TAO_MUXED_TMS)
00031   , wait_strategy_ (TAO_WAIT_ON_LEADER_FOLLOWER)
00032   , connect_strategy_ (TAO_LEADER_FOLLOWER_CONNECT)
00033   , rd_table_size_ (TAO_RD_TABLE_SIZE)
00034   , muxed_strategy_lock_type_ (TAO_THREAD_LOCK)
00035   , use_cleanup_options_ (false)
00036 {
00037   // Use single thread client connection handler
00038 #if defined (TAO_USE_ST_CLIENT_CONNECTION_HANDLER)
00039   this->wait_strategy_ = TAO_WAIT_ON_REACTOR;
00040 #else
00041   this->wait_strategy_ = TAO_WAIT_ON_LEADER_FOLLOWER;
00042 #endif /* TAO_USE_ST_CLIENT_CONNECTION_HANDLER */
00043
00044 #if TAO_USE_MUXED_TRANSPORT_MUX_STRATEGY == 1
00045   this->transport_mux_strategy_ = TAO_MUXED_TMS;
00046 #else
00047   this->transport_mux_strategy_ = TAO_EXCLUSIVE_TMS;
00048 #endif /* TAO_USE_MUXED_TRANSPORT_MUX_STRATEGY */
00049
00050   // @todo: will be changed when other strategies are implemented.
00051   this->connect_strategy_ = TAO_LEADER_FOLLOWER_CONNECT;
00052 }

TAO_Default_Client_Strategy_Factory::~TAO_Default_Client_Strategy_Factory (  void   )  [virtual]


Destructor.

Definition at line 54 of file default_client.cpp.

00055 {
00056 }

Member Function Documentation

int TAO_Default_Client_Strategy_Factory::allow_callback (  void   )  [virtual]


Does the client allow any form of callback?

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 388 of file default_client.cpp.

References TAO_WAIT_ON_READ, and wait_strategy_.

00389 {
00390   return (this->wait_strategy_ != TAO_WAIT_ON_READ);
00391 }

TAO_Client_Strategy_Factory::Connect_Strategy TAO_Default_Client_Strategy_Factory::connect_strategy (  void   )  const [virtual]


Return the selected connection strategy option.

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 356 of file default_client.cpp.

00357 {
00358   return this->connect_strategy_;
00359 }

TAO_Connect_Strategy * TAO_Default_Client_Strategy_Factory::create_connect_strategy (  TAO_ORB_Core *   )  [virtual]


Create the correct client strategy.

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 362 of file default_client.cpp.

References ACE_NEW_RETURN.

00363 {
00364   TAO_Connect_Strategy *cs = 0;
00365
00366   if (this->connect_strategy_ == TAO_BLOCKED_CONNECT)
00367     ACE_NEW_RETURN (cs,
00368                     TAO_Blocked_Connect_Strategy (orb_core),
00369                     0);
00370   else if (this->connect_strategy_ == TAO_REACTIVE_CONNECT)
00371     ACE_NEW_RETURN (cs,
00372                     TAO_Reactive_Connect_Strategy (orb_core),
00373                     0);
00374   else
00375     {
00376       // = Leader follower model.
00377
00378       ACE_NEW_RETURN (cs,
00379                       TAO_LF_Connect_Strategy (orb_core),
00380                       0);
00381     }
00382
00383   return cs;
00384 }

ACE_Lock * TAO_Default_Client_Strategy_Factory::create_profile_lock (  void   )  [virtual]


Create the lock for the stub and the profile

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 248 of file default_client.cpp.

References ACE_NEW_RETURN, and profile_lock_type_.

00249 {
00250   ACE_Lock *the_lock = 0;
00251
00252   if (this->profile_lock_type_ == TAO_NULL_LOCK)
00253     ACE_NEW_RETURN (the_lock,
00254                     ACE_Lock_Adapter<ACE_SYNCH_NULL_MUTEX> (),
00255                     0);
00256   else
00257     ACE_NEW_RETURN (the_lock,
00258                     ACE_Lock_Adapter<TAO_SYNCH_MUTEX> (),
00259                     0);
00260
00261   return the_lock;
00262 }

TAO_Configurable_Refcount TAO_Default_Client_Strategy_Factory::create_profile_refcount (  void   )  [virtual]


Create the refcount for the profile.

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 265 of file default_client.cpp.

References profile_lock_type_.

00266 {
00267   switch (this->profile_lock_type_)
00268     {
00269     case TAO_NULL_LOCK:
00270       return TAO_Configurable_Refcount (
00271                      TAO_Configurable_Refcount::TAO_NULL_LOCK);
00272     case TAO_THREAD_LOCK:
00273     default:
00274       return TAO_Configurable_Refcount (
00275                      TAO_Configurable_Refcount::TAO_THREAD_LOCK);
00276     }
00277 }

TAO_Transport_Mux_Strategy * TAO_Default_Client_Strategy_Factory::create_transport_mux_strategy (  TAO_Transport *  transport  )  [virtual]


Create the correct client request muxing strategy.

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 281 of file default_client.cpp.

References ACE_NEW_RETURN, TAO_MUXED_TMS, and transport_mux_strategy_.

00282 {
00283   TAO_Transport_Mux_Strategy *tms = 0;
00284
00285   if (this->transport_mux_strategy_ == TAO_MUXED_TMS)
00286     ACE_NEW_RETURN (tms,
00287                     TAO_Muxed_TMS (transport),
00288                     0);
00289   else
00290     ACE_NEW_RETURN (tms,
00291                     TAO_Exclusive_TMS (transport),
00292                     0);
00293
00294   return tms;
00295 }

ACE_Lock * TAO_Default_Client_Strategy_Factory::create_transport_mux_strategy_lock (  void   )  [virtual]


Create the correct lock for request muxing strategy.

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 298 of file default_client.cpp.

References ACE_NEW_RETURN, and muxed_strategy_lock_type_.

00299 {
00300   ACE_Lock *the_lock = 0;
00301
00302   if (this->muxed_strategy_lock_type_ == TAO_NULL_LOCK)
00303     ACE_NEW_RETURN (the_lock,
00304                     ACE_Lock_Adapter<ACE_SYNCH_NULL_MUTEX> (),
00305                     0);
00306   else
00307     ACE_NEW_RETURN (the_lock,
00308                     ACE_Lock_Adapter<TAO_SYNCH_RECURSIVE_MUTEX> (),
00309                     0);
00310
00311   return the_lock;
00312 }

TAO_Wait_Strategy * TAO_Default_Client_Strategy_Factory::create_wait_strategy (  TAO_Transport *  transport  )  [virtual]


Create the correct client strategy.

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 321 of file default_client.cpp.

References ACE_NEW_RETURN, TAO_WAIT_ON_LF_NO_UPCALL, TAO_WAIT_ON_REACTOR, TAO_WAIT_ON_READ, and wait_strategy_.

00322 {
00323   TAO_Wait_Strategy *ws = 0;
00324
00325 /*
00326  * Hook to customize the wait strategy object when the concrete wait strategy
00327  * object is known a priori.
00328  */
00329 //@@ WAIT_STRATEGY_SPL_COMMENT_HOOK_START
00330   if (this->wait_strategy_ == TAO_WAIT_ON_READ)
00331     ACE_NEW_RETURN (ws,
00332                     TAO_Wait_On_Read (transport),
00333                     0);
00334   else if (this->wait_strategy_ == TAO_WAIT_ON_REACTOR)
00335     ACE_NEW_RETURN (ws,
00336                     TAO_Wait_On_Reactor (transport),
00337                     0);
00338   else if (this->wait_strategy_ == TAO_WAIT_ON_LF_NO_UPCALL)
00339     ACE_NEW_RETURN (ws,
00340                     TAO::Wait_On_LF_No_Upcall (transport),
00341                     0);
00342   else
00343     {
00344       // = Leader follower model.
00345
00346       ACE_NEW_RETURN (ws,
00347                       TAO_Wait_On_Leader_Follower (transport),
00348                       0);
00349     }
00350 //@@ WAIT_STRATEGY_SPL_COMMENT_HOOK_END
00351
00352   return ws;
00353 }

int TAO_Default_Client_Strategy_Factory::init (  int  argc,
ACE_TCHAR *  argv[]
)  [virtual]


Dynamic linking hook.

Reimplemented from ACE_Shared_Object.

Definition at line 59 of file default_client.cpp.

References parse_args().

00060 {
00061   return this->parse_args (argc, argv);
00062 }

int TAO_Default_Client_Strategy_Factory::parse_args (  int  argc,
ACE_TCHAR *  argv[]
)


Parse svc.conf arguments.

Definition at line 65 of file default_client.cpp.

References ACE_DEBUG, ACE_ERROR, ACE_TCHAR, ACE_TEXT, ACE_TRACE, ACE_OS::atoi(), LM_DEBUG, LM_ERROR, muxed_strategy_lock_type_, profile_lock_type_, rd_table_size_, report_option_value_error(), ACE_OS::strcasecmp(), ACE_OS::strcmp(), ACE_OS::strncmp(), TAO_EXCLUSIVE_TMS, TAO_MUXED_TMS, TAO_WAIT_ON_LEADER_FOLLOWER, TAO_WAIT_ON_LF_NO_UPCALL, TAO_WAIT_ON_REACTOR, TAO_WAIT_ON_READ, transport_mux_strategy_, use_cleanup_options_, and wait_strategy_.

Referenced by init().

00066 {
00067   ACE_TRACE ("TAO_Default_Client_Strategy_Factory::parse_args");
00068
00069   int curarg;
00070
00071   for (curarg = 0; curarg < argc && argv[curarg]; ++curarg)
00072     {
00073       if (ACE_OS::strcasecmp (argv[curarg],
00074                               ACE_TEXT("-ORBProfileLock")) == 0)
00075         {
00076         curarg++;
00077         if (curarg < argc)
00078           {
00079             ACE_TCHAR* name = argv[curarg];
00080
00081             if (ACE_OS::strcasecmp (name,
00082                                     ACE_TEXT("thread")) == 0)
00083               this->profile_lock_type_ = TAO_THREAD_LOCK;
00084             else if (ACE_OS::strcasecmp (name,
00085                                          ACE_TEXT("null")) == 0)
00086               this->profile_lock_type_ = TAO_NULL_LOCK;
00087             else
00088               this->report_option_value_error (ACE_TEXT("-ORBProfileLock"), name);
00089           }
00090         }
00091       else if (ACE_OS::strcasecmp (argv[curarg],
00092                                    ACE_TEXT("-ORBIIOPProfileLock")) == 0)
00093         {
00094           ACE_DEBUG ((LM_DEBUG,
00095                       ACE_TEXT ("WARNING: The -ORBIIOPProfileLock option")
00096                       ACE_TEXT (" is deprecated and will be removed.\n")
00097                       ACE_TEXT ("         Please use -ORBProfileLock instead\n")));
00098           curarg++;
00099           if (curarg < argc)
00100             {
00101               ACE_TCHAR* name = argv[curarg];
00102
00103               if (ACE_OS::strcasecmp (name,
00104                                       ACE_TEXT("thread")) == 0)
00105                 this->profile_lock_type_ = TAO_THREAD_LOCK;
00106               else if (ACE_OS::strcasecmp (name,
00107                                            ACE_TEXT("null")) == 0)
00108                 this->profile_lock_type_ = TAO_NULL_LOCK;
00109               else
00110                 this->report_option_value_error (ACE_TEXT("-ORBIIOPProfileLock"), name);
00111             }
00112         }
00113
00114       else if (ACE_OS::strcasecmp (argv[curarg],
00115                                    ACE_TEXT("-ORBClientConnectionHandler")) == 0
00116                ||
00117                ACE_OS::strcasecmp (argv[curarg],
00118                                    ACE_TEXT("-ORBWaitStrategy")) == 0)
00119         {
00120           curarg++;
00121           if (curarg < argc)
00122             {
00123               ACE_TCHAR* name = argv[curarg];
00124
00125               if (ACE_OS::strcasecmp (name,
00126                                       ACE_TEXT("MT")) == 0)
00127                 this->wait_strategy_ = TAO_WAIT_ON_LEADER_FOLLOWER;
00128               else if (ACE_OS::strcasecmp (name,
00129                                            ACE_TEXT("ST")) == 0)
00130                 this->wait_strategy_ = TAO_WAIT_ON_REACTOR;
00131               else if (ACE_OS::strcasecmp (name,
00132                                            ACE_TEXT("RW")) == 0)
00133                 this->wait_strategy_ = TAO_WAIT_ON_READ;
00134               else if (ACE_OS::strcasecmp (name,
00135                                            ACE_TEXT("MT_NOUPCALL")) == 0)
00136                 this->wait_strategy_ = TAO_WAIT_ON_LF_NO_UPCALL;
00137               else
00138                 this->report_option_value_error (ACE_TEXT("-ORBClientConnectionHandler"), name);
00139             }
00140         }
00141       else if (ACE_OS::strcasecmp (argv[curarg],
00142                                    ACE_TEXT("-ORBTransportMuxStrategy")) == 0)
00143         {
00144           curarg++;
00145           if (curarg < argc)
00146             {
00147               ACE_TCHAR* name = argv[curarg];
00148
00149               if (ACE_OS::strcasecmp (name,
00150                                       ACE_TEXT("MUXED")) == 0)
00151                 this->transport_mux_strategy_ = TAO_MUXED_TMS;
00152               else if (ACE_OS::strcasecmp (name,
00153                                            ACE_TEXT("EXCLUSIVE")) == 0)
00154                 this->transport_mux_strategy_ = TAO_EXCLUSIVE_TMS;
00155               else
00156                 this->report_option_value_error (ACE_TEXT("-ORBTransportMuxStrategy"), name);
00157             }
00158         }
00159       else if (ACE_OS::strcasecmp (argv[curarg],
00160                                    ACE_TEXT("-ORBTransportMuxStrategyLock")) == 0)
00161         {
00162           curarg++;
00163           if (curarg < argc)
00164             {
00165               ACE_TCHAR* name = argv[curarg];
00166
00167               if (ACE_OS::strcasecmp (name,
00168                                       ACE_TEXT("null")) == 0)
00169                 this->muxed_strategy_lock_type_ = TAO_NULL_LOCK;
00170               else if (ACE_OS::strcasecmp (name,
00171                                            ACE_TEXT("thread")) == 0)
00172                 this->muxed_strategy_lock_type_ = TAO_THREAD_LOCK;
00173               else
00174                 this->report_option_value_error (ACE_TEXT("-ORBTransportMuxStrategyLock"), name);
00175             }
00176         }
00177       else if (ACE_OS::strcasecmp (argv[curarg],
00178                                    ACE_TEXT("-ORBConnectStrategy")) == 0)
00179         {
00180           curarg++;
00181           if (curarg < argc)
00182             {
00183               ACE_TCHAR* name = argv[curarg];
00184
00185               if (ACE_OS::strcasecmp (name,
00186                                       ACE_TEXT("Blocked")) == 0)
00187                 this->connect_strategy_ = TAO_BLOCKED_CONNECT;
00188               else if (ACE_OS::strcasecmp (name,
00189                                            ACE_TEXT("Reactive")) == 0)
00190                 this->connect_strategy_ = TAO_REACTIVE_CONNECT;
00191               else if (ACE_OS::strcasecmp (name,
00192                                            ACE_TEXT("LF")) == 0)
00193                 this->connect_strategy_ = TAO_LEADER_FOLLOWER_CONNECT;
00194               else
00195                 this->report_option_value_error (ACE_TEXT("-ORBConnectStrategy"), name);
00196             }
00197         }
00198       else if (ACE_OS::strcasecmp (argv[curarg],
00199                                    ACE_TEXT("-ORBReplyDispatcherTableSize")) == 0)
00200         {
00201           curarg++;
00202           if (curarg < argc)
00203             {
00204               this->rd_table_size_ = ACE_OS::atoi (argv[curarg]);
00205             }
00206         }
00207       else if (ACE_OS::strcmp (argv[curarg],
00208                                ACE_TEXT("-ORBConnectionHandlerCleanup")) == 0)
00209          {
00210            curarg++;
00211            if (curarg < argc)
00212              {
00213                ACE_TCHAR* name = argv[curarg];
00214
00215                if (ACE_OS::strcmp (name, ACE_TEXT("0")) == 0 ||
00216                    ACE_OS::strcasecmp (name, ACE_TEXT("false")) == 0)
00217                  this->use_cleanup_options_ = false;
00218                else if (ACE_OS::strcmp (name, ACE_TEXT("1")) == 0 ||
00219                         ACE_OS::strcasecmp (name, ACE_TEXT("true")) == 0)
00220                  this->use_cleanup_options_ = true;
00221                else
00222                  this->report_option_value_error (ACE_TEXT("-ORBConnectionHandlerCleanup"), name);
00223              }
00224          }
00225       else if (ACE_OS::strncmp (argv[curarg], ACE_TEXT("-ORB"), 4) == 0)
00226         {
00227           // Can we assume there is an argument after the option?
00228           // curarg++;
00229           ACE_ERROR ((LM_ERROR,
00230                       "Client_Strategy_Factory - "
00231                       "unknown option <%s>\n",
00232                       argv[curarg]));
00233         }
00234       else
00235         {
00236           ACE_DEBUG ((LM_DEBUG,
00237                       "Client_Strategy_Factory - "
00238                       "ignoring option <%s>\n",
00239                       argv[curarg]));
00240         }
00241
00242
00243     }
00244   return 0;
00245 }

int TAO_Default_Client_Strategy_Factory::reply_dispatcher_table_size (  void   )  const [virtual]


Return the size of the reply dispatcher table.

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 315 of file default_client.cpp.

References rd_table_size_.

00316 {
00317   return this->rd_table_size_;
00318 }

void TAO_Default_Client_Strategy_Factory::report_option_value_error (  const ACE_TCHAR *  option_name,
const ACE_TCHAR *  option_value
)  [protected]


Definition at line 394 of file default_client.cpp.

References ACE_DEBUG, ACE_TEXT, and LM_DEBUG.

Referenced by parse_args().

00397 {
00398   ACE_DEBUG((LM_DEBUG,
00399              ACE_TEXT ("Client_Strategy_Factory - unknown argument")
00400              ACE_TEXT (" <%s> for <%s>\n"),
00401              option_value, option_name));
00402 }

bool TAO_Default_Client_Strategy_Factory::use_cleanup_options (  void   )  const [virtual]


Cleanup options for wait strategy.

Only applicable to RW wait strategy

Reimplemented from TAO_Client_Strategy_Factory.

Definition at line 405 of file default_client.cpp.

References use_cleanup_options_.

00406 {
00407   return this->use_cleanup_options_;
00408 }

Member Data Documentation

Connect_Strategy TAO_Default_Client_Strategy_Factory::connect_strategy_ [private]


The connection initiation strategy.

Definition at line 102 of file default_client.h.

Lock_Type TAO_Default_Client_Strategy_Factory::muxed_strategy_lock_type_ [private]


Type of lock for the muxed_strategy.

Definition at line 108 of file default_client.h.

Referenced by create_transport_mux_strategy_lock(), and parse_args().

Lock_Type TAO_Default_Client_Strategy_Factory::profile_lock_type_ [private]


the lock type for forwarding IIOP Profile

Definition at line 79 of file default_client.h.

Referenced by create_profile_lock(), create_profile_refcount(), and parse_args().

int TAO_Default_Client_Strategy_Factory::rd_table_size_ [private]


Size of the reply dispatcher table.

Definition at line 105 of file default_client.h.

Referenced by parse_args(), and reply_dispatcher_table_size().

Transport_Mux_Strategy TAO_Default_Client_Strategy_Factory::transport_mux_strategy_ [private]


The client Request Mux Strategy.

Definition at line 88 of file default_client.h.

Referenced by create_transport_mux_strategy(), parse_args(), and TAO_Default_Client_Strategy_Factory().

bool TAO_Default_Client_Strategy_Factory::use_cleanup_options_ [private]


Cleanupoptions for RW strategy.

Definition at line 111 of file default_client.h.

Referenced by parse_args(), and use_cleanup_options().

Wait_Strategy TAO_Default_Client_Strategy_Factory::wait_strategy_ [private]


The wait-for-reply strategy.

Definition at line 99 of file default_client.h.

Referenced by allow_callback(), create_wait_strategy(), parse_args(), and TAO_Default_Client_Strategy_Factory().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 13:14:22 2008 for TAO by doxygen 1.3.6
