ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK > Class Template Reference

Generic interface for iterating over a subclass of ACE_Timer_Queue. More...

#include <Timer_Queue_T.h>

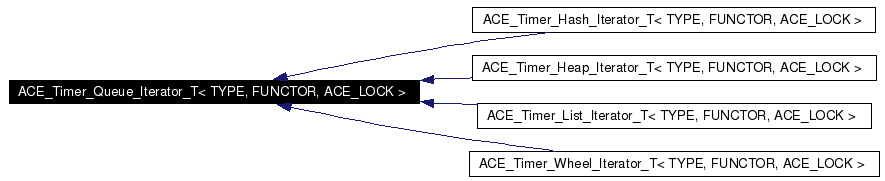

Inheritance diagram for ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >:

[legend]List of all members.

Public Member Functions
	ACE_Timer_Queue_Iterator_T (void)
	Constructor.
virtual	~ACE_Timer_Queue_Iterator_T (void)
	Destructor.
virtual void	first (void)=0
	Positions the iterator at the earliest node in the Timer Queue.
virtual void	next (void)=0
	Positions the iterator at the next node in the Timer Queue.
virtual int	isdone (void) const=0
	Returns true when there are no more nodes in the sequence.
virtual ACE_Timer_Node_T< TYPE > *	item (void)=0
	Returns the node at the current position in the sequence.

---

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK>
class ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >

Generic interface for iterating over a subclass of ACE_Timer_Queue.

This is a generic iterator that can be used to visit every node of a timer queue. Be aware that it isn't guaranteed that the transversal will be in order of timeout values.

Definition at line 174 of file Timer_Queue_T.h.

---

Constructor & Destructor Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK> ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Queue_Iterator_T (  void   )

Constructor. Definition at line 66 of file Timer_Queue_T.cpp. { }

template<class TYPE, class FUNCTOR, class ACE_LOCK> ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Queue_Iterator_T (  void   )  [virtual]

Destructor. Definition at line 71 of file Timer_Queue_T.cpp. { }

---

Member Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK> virtual void ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::first (  void   )  [pure virtual]

Positions the iterator at the earliest node in the Timer Queue. Implemented in ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK> virtual int ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::isdone (  void   )  const [pure virtual]

Returns true when there are no more nodes in the sequence. Implemented in ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK> virtual ACE_Timer_Node_T<TYPE>* ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::item (  void   )  [pure virtual]

Returns the node at the current position in the sequence. Implemented in ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK> virtual void ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >::next (  void   )  [pure virtual]

Positions the iterator at the next node in the Timer Queue. Implemented in ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >.

---

The documentation for this class was generated from the following files:

• Timer_Queue_T.h
• Timer_Queue_T.cpp

---
