ACE_Shared_Memory_Pool Class Reference

Make a memory pool that is based on System V shared memory (shmget(2) etc.). This implementation allows memory to be shared between processes. If your platform doesn't support System V shared memory (e.g., Win32 and many RTOS platforms do not) then you should use ACE_MMAP_Memory_Pool instead of this class. In fact, you should probably use ACE_MMAP_Memory_Pool on platforms that *do* support System V shared memory since it provides more powerful features, such as persistent backing store and greatly scalability. More...

#include <Shared_Memory_Pool.h>

Inheritance diagram for ACE_Shared_Memory_Pool:

Inheritance graph
[legend]

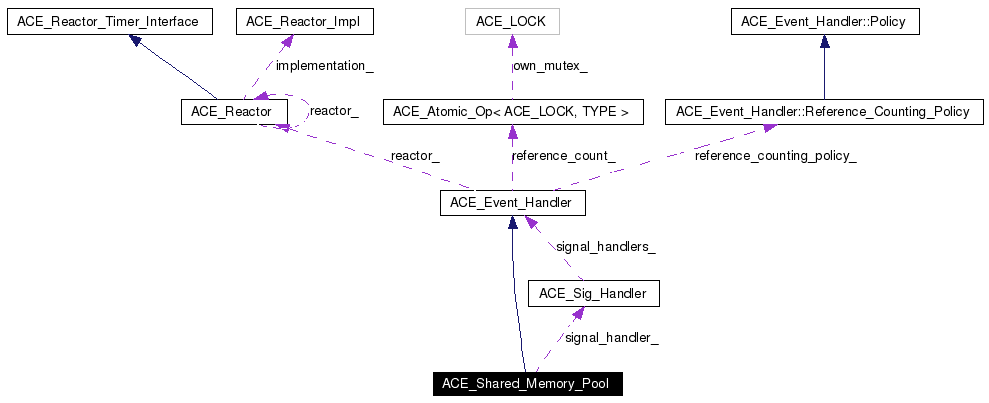

Collaboration diagram for ACE_Shared_Memory_Pool:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Shared_Memory_Pool_Options OPTIONS

Public Member Functions

 ACE_Shared_Memory_Pool (const ACE_TCHAR *backing_store_name=0, const OPTIONS *options=0)
 Initialize the pool.

virtual ~ACE_Shared_Memory_Pool (void)
virtual void * init_acquire (size_t nbytes, size_t &rounded_bytes, int &first_time)
 Ask system for initial chunk of local memory.

virtual void * acquire (size_t nbytes, size_t &rounded_bytes)
virtual int release (int destroy=1)
 Instruct the memory pool to release all of its resources.

virtual int sync (ssize_t len=-1, int flags=MS_SYNC)
virtual int sync (void *addr, size_t len, int flags=MS_SYNC)
 Sync the memory region to the backing store starting at addr.

virtual int protect (ssize_t len=-1, int prot=PROT_RDWR)
virtual int protect (void *addr, size_t len, int prot=PROT_RDWR)
virtual void * base_addr (void) const
virtual void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Protected Member Functions

virtual size_t round_up (size_t nbytes)
virtual int commit_backing_store_name (size_t rounded_bytes, ACE_OFF_T &offset)
virtual int find_seg (const void *const searchPtr, ACE_OFF_T &offset, size_t &counter)
 Find the segment that contains the searchPtr.

virtual int in_use (ACE_OFF_T &offset, size_t &counter)
 Determine how much memory is currently in use.

virtual int handle_signal (int signum, siginfo_t *, ucontext_t *)

Protected Attributes

void * base_addr_
size_t file_perms_
 File permissions to use when creating/opening a segment.

size_t max_segments_
 Number of shared memory segments in the table.

ACE_OFF_T minimum_bytes_
 What the minimim bytes of the initial segment should be.

size_t segment_size_
 Shared memory segment size.

key_t base_shm_key_
 Base shared memory key for the segment.

ACE_Sig_Handler signal_handler_
 Handles SIGSEGV.

Detailed Description

Make a memory pool that is based on System V shared memory (shmget(2) etc.). This implementation allows memory to be shared between processes. If your platform doesn't support System V shared memory (e.g., Win32 and many RTOS platforms do not) then you should use ACE_MMAP_Memory_Pool instead of this class. In fact, you should probably use ACE_MMAP_Memory_Pool on platforms that *do* support System V shared memory since it provides more powerful features, such as persistent backing store and greatly scalability.

Definition at line 82 of file Shared_Memory_Pool.h.

Member Typedef Documentation

typedef ACE_Shared_Memory_Pool_Options ACE_Shared_Memory_Pool::OPTIONS


Definition at line 85 of file Shared_Memory_Pool.h.

Constructor & Destructor Documentation

ACE_Shared_Memory_Pool::ACE_Shared_Memory_Pool (  const ACE_TCHAR *  backing_store_name = 0,
const OPTIONS *  options = 0
)


Initialize the pool.

Definition at line 228 of file Shared_Memory_Pool.cpp.

References ACE_DEFAULT_FILE_PERMS, ACE_DEFAULT_MAX_SEGMENTS, ACE_DEFAULT_SEGMENT_SIZE, ACE_DEFAULT_SHM_KEY, ACE_ERROR, ACE_TCHAR, ACE_TEXT, ACE_TEXT_ALWAYS_CHAR, ACE_TRACE, base_shm_key_, ACE::crc32(), IPC_PRIVATE, LM_ERROR, ACE_Sig_Handler::register_handler(), and SIGSEGV.

00231   : base_addr_ (0),
00232     file_perms_ (ACE_DEFAULT_FILE_PERMS),
00233     max_segments_ (ACE_DEFAULT_MAX_SEGMENTS),
00234     minimum_bytes_ (0),
00235     segment_size_ (ACE_DEFAULT_SEGMENT_SIZE)
00236 {
00237   ACE_TRACE ("ACE_Shared_Memory_Pool::ACE_Shared_Memory_Pool");
00238
00239   // Only change the defaults if <options> != 0.
00240   if (options)
00241     {
00242       this->base_addr_ =
00243         reinterpret_cast<void *> (const_cast<char *> (options->base_addr_));
00244       this->max_segments_ = options->max_segments_;
00245       this->file_perms_ = options->file_perms_;
00246       this->minimum_bytes_ = options->minimum_bytes_;
00247       this->segment_size_ = options->segment_size_;
00248     }
00249
00250   if (backing_store_name)
00251     {
00252       // Convert the string into a number that is used as the segment
00253       // key.
00254
00255       int segment_key;
00256       int result = ::sscanf (ACE_TEXT_ALWAYS_CHAR (backing_store_name),
00257                              "%d",
00258                              &segment_key);
00259
00260       if (result == 0 || result == EOF)
00261         // The conversion to a number failed so hash with crc32
00262         // ACE::crc32 is also used in <SV_Semaphore_Simple>.
00263         this->base_shm_key_ =
00264           (key_t) ACE::crc32 (ACE_TEXT_ALWAYS_CHAR (backing_store_name));
00265       else
00266         this->base_shm_key_ = segment_key;
00267
00268       if (this->base_shm_key_ == IPC_PRIVATE)
00269         // Make sure that the segment can be shared between unrelated
00270         // processes.
00271         this->base_shm_key_ = ACE_DEFAULT_SHM_KEY;
00272     }
00273   else
00274     this->base_shm_key_ = ACE_DEFAULT_SHM_KEY;
00275
00276   if (this->signal_handler_.register_handler (SIGSEGV, this) == -1)
00277     ACE_ERROR ((LM_ERROR,
00278                 ACE_TEXT ("%p\n"),
00279                 ACE_TEXT ("ACE_Sig_Handler::register_handler")));
00280 }

ACE_Shared_Memory_Pool::~ACE_Shared_Memory_Pool (  void   )  [virtual]


Definition at line 282 of file Shared_Memory_Pool.cpp.

00283 {
00284 }

Member Function Documentation

void * ACE_Shared_Memory_Pool::acquire (  size_t  nbytes,
size_t &  rounded_bytes
)  [virtual]


Acquire at least nbytes from the memory pool. rounded_byes is the actual number of bytes allocated. Also acquires an internal semaphore that ensures proper serialization of Memory_Pool initialization across processes.

Definition at line 289 of file Shared_Memory_Pool.cpp.

References ACE_OFF_T, ACE_TRACE, commit_backing_store_name(), and round_up().

00291 {
00292   ACE_TRACE ("ACE_Shared_Memory_Pool::acquire");
00293
00294   rounded_bytes = this->round_up (nbytes);
00295
00296   // ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("(%P|%t) acquiring more chunks, nbytes = %d, rounded_bytes = %d\n"), nbytes, rounded_bytes));
00297
00298   ACE_OFF_T offset;
00299
00300   if (this->commit_backing_store_name (rounded_bytes, offset) == -1)
00301     return 0;
00302
00303   // ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("(%P|%t) acquired more chunks, nbytes = %d, rounded_bytes = %d\n"), nbytes, rounded_bytes));
00304   return ((char *) this->base_addr_) + offset;
00305 }

void * ACE_Shared_Memory_Pool::base_addr (  void   )  const [virtual]


Return the base address of this memory pool, 0 if base_addr never changes.

Definition at line 440 of file Shared_Memory_Pool.cpp.

References ACE_TRACE.

00441 {
00442   ACE_TRACE ("ACE_Shared_Memory_Pool::base_addr");
00443   return this->base_addr_;
00444 }

int ACE_Shared_Memory_Pool::commit_backing_store_name (  size_t  rounded_bytes,
ACE_OFF_T &  offset
)  [protected, virtual]


Commits a new shared memory segment if necessary after an or a signal. is set to the new offset into the backing store.

Definition at line 100 of file Shared_Memory_Pool.cpp.

References ACE_ERROR_RETURN, ACE_OFF_T, ACE_TEXT, ACE_TRACE, in_use(), IPC_CREAT, IPC_EXCL, LM_ERROR, ACE_OS::shmat(), ACE_OS::shmget(), ACE_Shared_Memory_Pool::SHM_TABLE::shmid_, and ACE_Shared_Memory_Pool::SHM_TABLE::used_.

Referenced by acquire().

00102 {
00103   ACE_TRACE ("ACE_Shared_Memory_Pool::commit_backing_store_name");
00104
00105   size_t counter;
00106   SHM_TABLE *st = reinterpret_cast<SHM_TABLE *> (this->base_addr_);
00107
00108   if (this->in_use (offset, counter) == -1)
00109     return -1;
00110
00111   if (counter == this->max_segments_)
00112     ACE_ERROR_RETURN ((LM_ERROR,
00113                       "exceeded max number of segments = %d, base = %u, offset = %u\n",
00114                        counter,
00115                        this->base_addr_,
00116                        offset),
00117                       -1);
00118   else
00119     {
00120       int shmid = ACE_OS::shmget (st[counter].key_,
00121                                   rounded_bytes,
00122                                   this->file_perms_ | IPC_CREAT | IPC_EXCL);
00123       if (shmid == -1)
00124         ACE_ERROR_RETURN ((LM_ERROR,
00125                            ACE_TEXT ("(%P|%t) %p\n"),
00126                            ACE_TEXT ("shmget")),
00127                           -1);
00128       st[counter].shmid_ = shmid;
00129       st[counter].used_ = 1;
00130
00131       void *address = (void *) (((char *) this->base_addr_) + offset);
00132       void *shmem = ACE_OS::shmat (st[counter].shmid_,
00133                                    (char *) address,
00134                                    0);
00135
00136       if (shmem != address)
00137         ACE_ERROR_RETURN ((LM_ERROR,
00138                            "(%P|%t) %p, shmem = %u, address = %u\n",
00139                            "shmat",
00140                            shmem,
00141                            address),
00142                           -1);
00143     }
00144   return 0;
00145 }

void ACE_Shared_Memory_Pool::dump (  void   )  const [virtual]


Dump the state of an object.

Definition at line 32 of file Shared_Memory_Pool.cpp.

References ACE_TRACE.

00033 {
00034 #if defined (ACE_HAS_DUMP)
00035   ACE_TRACE ("ACE_Shared_Memory_Pool::dump");
00036 #endif /* ACE_HAS_DUMP */
00037 }

int ACE_Shared_Memory_Pool::find_seg (  const void *const  searchPtr,
ACE_OFF_T &  offset,
size_t &  counter
)  [protected, virtual]


Find the segment that contains the searchPtr.

Definition at line 64 of file Shared_Memory_Pool.cpp.

References ACE_ERROR_RETURN, ACE_OFF_T, ACE_TEXT, IPC_STAT, LM_ERROR, ACE_OS::shmctl(), and ACE_Shared_Memory_Pool::SHM_TABLE::used_.

Referenced by handle_signal().

00067 {
00068   offset = 0;
00069   SHM_TABLE *st = reinterpret_cast<SHM_TABLE *> (this->base_addr_);
00070   shmid_ds buf;
00071
00072   for (counter = 0;
00073        counter < this->max_segments_
00074          && st[counter].used_ == 1;
00075        counter++)
00076     {
00077       if (ACE_OS::shmctl (st[counter].shmid_, IPC_STAT, &buf) == -1)
00078         ACE_ERROR_RETURN ((LM_ERROR,
00079                            ACE_TEXT ("(%P|%t) %p\n"),
00080                            ACE_TEXT ("shmctl")),
00081                           -1);
00082       offset += buf.shm_segsz;
00083
00084       // If segment 'counter' starts at a location greater than the
00085       // place we are searching for. We then decrement the offset to
00086       // the start of counter-1. (flabar@vais.net)
00087       if (((ptrdiff_t) offset + (ptrdiff_t) (this->base_addr_)) > (ptrdiff_t) searchPtr)
00088         {
00089           --counter;
00090           offset -= buf.shm_segsz;
00091           return 0;
00092         }
00093       // ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("(%P|%t) segment size = %d, offset = %d\n"), buf.shm_segsz, offset));
00094     }
00095
00096   return 0;
00097 }

int ACE_Shared_Memory_Pool::handle_signal (  int  signum,
siginfo_t *  ,
ucontext_t *
)  [protected, virtual]


Handle SIGSEGV and SIGBUS signals to remap shared memory properly.

Reimplemented from ACE_Event_Handler.

Definition at line 150 of file Shared_Memory_Pool.cpp.

References ACE_ERROR, ACE_ERROR_RETURN, ACE_OFF_T, ACE_TEXT, ACE_TRACE, find_seg(), in_use(), LM_ERROR, ACE_OS::shmat(), and ucontext_t.

00151 {
00152   ACE_TRACE ("ACE_Shared_Memory_Pool::handle_signal");
00153   // ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("signal %S occurred\n"), signum));
00154
00155   // While FreeBSD 5.X has a siginfo_t struct with a si_addr field,
00156   // it does not define SEGV_MAPERR.
00157 #if defined (ACE_HAS_SIGINFO_T) && !defined (ACE_LACKS_SI_ADDR) && \
00158         (defined (SEGV_MAPERR) || defined (SEGV_MEMERR))
00159   ACE_OFF_T offset;
00160   // Make sure that the pointer causing the problem is within the
00161   // range of the backing store.
00162
00163   if (siginfo != 0)
00164     {
00165       // ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("(%P|%t) si_signo = %d, si_code = %d, addr = %u\n"), siginfo->si_signo, siginfo->si_code, siginfo->si_addr));
00166       size_t counter;
00167       if (this->in_use (offset, counter) == -1)
00168         ACE_ERROR ((LM_ERROR,
00169                     ACE_TEXT ("(%P|%t) %p\n"),
00170                     ACE_TEXT ("in_use")));
00171 #if !defined(_UNICOS)
00172       else if (!(siginfo->si_code == SEGV_MAPERR
00173            && siginfo->si_addr < (((char *) this->base_addr_) + offset)
00174            && siginfo->si_addr >= ((char *) this->base_addr_)))
00175         ACE_ERROR_RETURN ((LM_ERROR,
00176                            "(%P|%t) address %u out of range\n",
00177                            siginfo->si_addr),
00178                           -1);
00179 #else /* ! _UNICOS */
00180       else if (!(siginfo->si_code == SEGV_MEMERR
00181            && siginfo->si_addr < (((unsigned long) this->base_addr_) + offset)
00182            && siginfo->si_addr >= ((unsigned long) this->base_addr_)))
00183         ACE_ERROR_RETURN ((LM_ERROR,
00184                            "(%P|%t) address %u out of range\n",
00185                            siginfo->si_addr),
00186                           -1);
00187 #endif /* ! _UNICOS */
00188     }
00189
00190   // The above if case will check to see that the address is in the
00191   // proper range.  Therefore there is a segment out there that the
00192   // pointer wants to point into.  Find the segment that someone else
00193   // has used and attach to it (flabar@vais.net)
00194
00195   size_t counter; // ret value to get shmid from the st table.
00196
00197 #if !defined(_UNICOS)
00198   if (this->find_seg (siginfo->si_addr, offset, counter) == -1)
00199 #else /* ! _UNICOS */
00200   if (this->find_seg ((const void *)siginfo->si_addr, offset, counter) == -1)
00201 #endif /* ! _UNICOS */
00202       ACE_ERROR_RETURN ((LM_ERROR,
00203                          ACE_TEXT ("(%P|%t) %p\n"),
00204                          ACE_TEXT ("in_use")),
00205                         -1);
00206
00207   void *address = (void *) (((char *) this->base_addr_) + offset);
00208   SHM_TABLE *st = reinterpret_cast<SHM_TABLE *> (this->base_addr_);
00209
00210   void *shmem = ACE_OS::shmat (st[counter].shmid_, (char *) address, 0);
00211
00212   if (shmem != address)
00213       ACE_ERROR_RETURN ((LM_ERROR,
00214                          "(%P|%t) %p, shmem = %u, address = %u\n",
00215                          "shmat",
00216                          shmem,
00217                          address),
00218                         -1);
00219
00220   // NOTE: this won't work if we dont have SIGINFO_T or SI_ADDR
00221 #else
00222   ACE_UNUSED_ARG (siginfo);
00223 #endif /* ACE_HAS_SIGINFO_T && !defined (ACE_LACKS_SI_ADDR) */
00224
00225   return 0;
00226 }

int ACE_Shared_Memory_Pool::in_use (  ACE_OFF_T &  offset,
size_t &  counter
)  [protected, virtual]


Determine how much memory is currently in use.

Definition at line 40 of file Shared_Memory_Pool.cpp.

References ACE_ERROR_RETURN, ACE_OFF_T, ACE_TEXT, IPC_STAT, LM_ERROR, ACE_OS::shmctl(), and ACE_Shared_Memory_Pool::SHM_TABLE::used_.

Referenced by commit_backing_store_name(), and handle_signal().

00042 {
00043   offset = 0;
00044   SHM_TABLE *st = reinterpret_cast<SHM_TABLE *> (this->base_addr_);
00045   shmid_ds buf;
00046
00047   for (counter = 0;
00048        counter < this->max_segments_ && st[counter].used_ == 1;
00049        counter++)
00050     {
00051       if (ACE_OS::shmctl (st[counter].shmid_, IPC_STAT, &buf) == -1)
00052         ACE_ERROR_RETURN ((LM_ERROR,
00053                            ACE_TEXT ("(%P|%t) %p\n"),
00054                            ACE_TEXT ("shmctl")),
00055                           -1);
00056       offset += buf.shm_segsz;
00057       // ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("(%P|%t) segment size = %d, offset = %d\n"), buf.shm_segsz, offset));
00058     }
00059
00060   return 0;
00061 }

void * ACE_Shared_Memory_Pool::init_acquire (  size_t  nbytes,
size_t &  rounded_bytes,
int &  first_time
)  [virtual]


Ask system for initial chunk of local memory.

Definition at line 310 of file Shared_Memory_Pool.cpp.

References ACE_ERROR_RETURN, ACE_OFF_T, ACE_TEXT, ACE_TRACE, base_shm_key_, IPC_CREAT, IPC_EXCL, ACE_Shared_Memory_Pool::SHM_TABLE::key_, LM_ERROR, ACE::round_to_pagesize(), round_up(), ACE_OS::shmat(), ACE_OS::shmget(), ACE_Shared_Memory_Pool::SHM_TABLE::shmid_, and ACE_Shared_Memory_Pool::SHM_TABLE::used_.

00313 {
00314   ACE_TRACE ("ACE_Shared_Memory_Pool::init_acquire");
00315
00316   ACE_OFF_T shm_table_offset = ACE::round_to_pagesize (sizeof (SHM_TABLE));
00317   rounded_bytes = this->round_up (nbytes > (size_t) this->minimum_bytes_
00318                                   ? nbytes
00319                                   : (size_t) this->minimum_bytes_);
00320
00321   // Acquire the semaphore to serialize initialization and prevent
00322   // race conditions.
00323
00324   int shmid = ACE_OS::shmget (this->base_shm_key_,
00325                               rounded_bytes + shm_table_offset,
00326                               this->file_perms_ | IPC_CREAT | IPC_EXCL);
00327   if (shmid == -1)
00328     {
00329       if (errno != EEXIST)
00330         ACE_ERROR_RETURN ((LM_ERROR,
00331                            ACE_TEXT ("(%P|%t) %p\n"),
00332                            ACE_TEXT ("shmget")),
00333                           0);
00334       first_time = 0;
00335
00336       shmid = ACE_OS::shmget (this->base_shm_key_, 0, 0);
00337
00338       if (shmid == -1)
00339         ACE_ERROR_RETURN ((LM_ERROR,
00340                            ACE_TEXT ("(%P|%t) %p\n"),
00341                            ACE_TEXT ("shmget")),
00342                           0);
00343
00344       // This implementation doesn't care if we don't get the key we
00345       // want...
00346       this->base_addr_ =
00347         ACE_OS::shmat (shmid,
00348                        reinterpret_cast<char *> (this->base_addr_),
00349                        0);
00350       if (this->base_addr_ == reinterpret_cast<void *> (-1))
00351         ACE_ERROR_RETURN ((LM_ERROR,
00352                            "(%P|%t) %p, base_addr = %u\n",
00353                            "shmat",
00354                            this->base_addr_),
00355                           0);
00356     }
00357   else
00358     {
00359       first_time = 1;
00360
00361       // This implementation doesn't care if we don't get the key we
00362       // want...
00363       this->base_addr_ =
00364         ACE_OS::shmat (shmid,
00365                        reinterpret_cast<char *> (this->base_addr_),
00366                        0);
00367       if (this->base_addr_ == reinterpret_cast<char *> (-1))
00368         ACE_ERROR_RETURN ((LM_ERROR,
00369                            "(%P|%t) %p, base_addr = %u\n",
00370                            "shmat",
00371                            this->base_addr_), 0);
00372
00373       SHM_TABLE *st = reinterpret_cast<SHM_TABLE *> (this->base_addr_);
00374       st[0].key_ = this->base_shm_key_;
00375       st[0].shmid_ = shmid;
00376
00377       st[0].used_ = 1;
00378
00379       for (size_t counter = 1; // Skip over the first entry...
00380            counter < this->max_segments_;
00381            counter++)
00382         {
00383           st[counter].key_ = this->base_shm_key_ + counter;
00384           st[counter].shmid_ = 0;
00385           st[counter].used_ = 0;
00386         }
00387     }
00388
00389   return (void *) (((char *) this->base_addr_) + shm_table_offset);
00390 }

int ACE_Shared_Memory_Pool::protect (  void *  addr,
size_t  len,
int  prot = PROT_RDWR
)  [virtual]


Change the protection of the pages of the mapped region to prot starting at addr up to len bytes.

Definition at line 433 of file Shared_Memory_Pool.cpp.

References ACE_TRACE.

00434 {
00435   ACE_TRACE ("ACE_Shared_Memory_Pool::protect");
00436   return 0;
00437 }

int ACE_Shared_Memory_Pool::protect (  ssize_t  len = -1,
int  prot = PROT_RDWR
)  [virtual]


Change the protection of the pages of the mapped region to prot starting at this->base_addr_ up to len bytes. If len == -1 then change protection of all pages in the mapped region.

Definition at line 426 of file Shared_Memory_Pool.cpp.

References ACE_TRACE, and ssize_t.

00427 {
00428   ACE_TRACE ("ACE_Shared_Memory_Pool::protect");
00429   return 0;
00430 }

int ACE_Shared_Memory_Pool::release (  int  destroy = 1  )  [virtual]


Instruct the memory pool to release all of its resources.

Definition at line 395 of file Shared_Memory_Pool.cpp.

References ACE_TRACE, IPC_RMID, ACE_OS::shmctl(), and ACE_Shared_Memory_Pool::SHM_TABLE::used_.

00396 {
00397   ACE_TRACE ("ACE_Shared_Memory_Pool::release");
00398
00399   int result = 0;
00400   SHM_TABLE *st = reinterpret_cast<SHM_TABLE *> (this->base_addr_);
00401
00402   for (size_t counter = 0;
00403        counter < this->max_segments_ && st[counter].used_ == 1;
00404        counter++)
00405     if (ACE_OS::shmctl (st[counter].shmid_, IPC_RMID, 0) == -1)
00406       result = -1;
00407
00408   return result;
00409 }

size_t ACE_Shared_Memory_Pool::round_up (  size_t  nbytes  )  [protected, virtual]


Implement the algorithm for rounding up the request to an appropriate chunksize.

Definition at line 450 of file Shared_Memory_Pool.cpp.

References ACE_TRACE, and ACE::round_to_pagesize().

Referenced by acquire(), and init_acquire().

00451 {
00452   ACE_TRACE ("ACE_Shared_Memory_Pool::round_up");
00453   if (nbytes < this->segment_size_)
00454     nbytes = this->segment_size_;
00455
00456   return ACE::round_to_pagesize (nbytes);
00457 }

int ACE_Shared_Memory_Pool::sync (  void *  addr,
size_t  len,
int  flags = MS_SYNC
)  [virtual]


Sync the memory region to the backing store starting at addr.

Definition at line 419 of file Shared_Memory_Pool.cpp.

References ACE_TRACE.

00420 {
00421   ACE_TRACE ("ACE_Shared_Memory_Pool::sync");
00422   return 0;
00423 }

int ACE_Shared_Memory_Pool::sync (  ssize_t  len = -1,
int  flags = MS_SYNC
)  [virtual]


Sync the memory region to the backing store starting at this->base_addr_.

Definition at line 412 of file Shared_Memory_Pool.cpp.

References ACE_TRACE, and ssize_t.

00413 {
00414   ACE_TRACE ("ACE_Shared_Memory_Pool::sync");
00415   return 0;
00416 }

Member Data Documentation

ACE_Shared_Memory_Pool::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Definition at line 136 of file Shared_Memory_Pool.h.

void* ACE_Shared_Memory_Pool::base_addr_ [protected]


Base address of the shared memory segment. If this has the value of 0 then the OS is free to select any address, otherwise this value is what the OS must try to use to map the shared memory segment.

Definition at line 170 of file Shared_Memory_Pool.h.

key_t ACE_Shared_Memory_Pool::base_shm_key_ [protected]


Base shared memory key for the segment.

Definition at line 185 of file Shared_Memory_Pool.h.

Referenced by ACE_Shared_Memory_Pool(), and init_acquire().

size_t ACE_Shared_Memory_Pool::file_perms_ [protected]


File permissions to use when creating/opening a segment.

Definition at line 173 of file Shared_Memory_Pool.h.

size_t ACE_Shared_Memory_Pool::max_segments_ [protected]


Number of shared memory segments in the table.

Definition at line 176 of file Shared_Memory_Pool.h.

ACE_OFF_T ACE_Shared_Memory_Pool::minimum_bytes_ [protected]


What the minimim bytes of the initial segment should be.

Definition at line 179 of file Shared_Memory_Pool.h.

size_t ACE_Shared_Memory_Pool::segment_size_ [protected]


Shared memory segment size.

Definition at line 182 of file Shared_Memory_Pool.h.

ACE_Sig_Handler ACE_Shared_Memory_Pool::signal_handler_ [protected]


Handles SIGSEGV.

Definition at line 197 of file Shared_Memory_Pool.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 12:57:29 2008 for ACE by doxygen 1.3.6
