ACE_Module<> Class Template Reference

An abstraction for managing a bi-directional flow of messages. More...

#include <Module.h>

Inheritance diagram for ACE_Module<>:

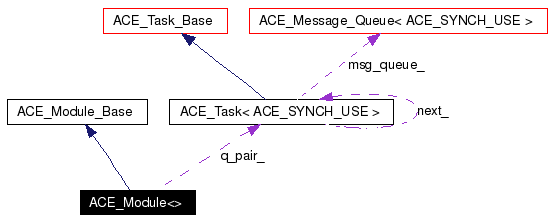

[legend]Collaboration diagram for ACE_Module<>:

[legend]List of all members.

Public Member Functions
	ACE_Module (void)
	Create an empty Module.
virtual	~ACE_Module (void)
	Shutdown the Module.
	ACE_Module (const ACE_TCHAR *module_name, ACE_Task< ACE_SYNCH_USE > *writer=0, ACE_Task< ACE_SYNCH_USE > *reader=0, void *args=0, int flags=M_DELETE)
int	open (const ACE_TCHAR *module_name, ACE_Task< ACE_SYNCH_USE > *writer=0, ACE_Task< ACE_SYNCH_USE > *reader=0, void *a=0, int flags=M_DELETE)
int	close (int flags=M_DELETE_NONE)
ACE_Task< ACE_SYNCH_USE > *	writer (void)
	Get the writer task.
void	writer (ACE_Task< ACE_SYNCH_USE > *q, int flags=M_DELETE_WRITER)
ACE_Task< ACE_SYNCH_USE > *	reader (void)
	Get the reader task.
void	reader (ACE_Task< ACE_SYNCH_USE > *q, int flags=M_DELETE_READER)
ACE_Task< ACE_SYNCH_USE > *	sibling (ACE_Task< ACE_SYNCH_USE > *orig)
	Set and get pointer to sibling ACE_Task in an ACE_Module.
const ACE_TCHAR *	name (void) const
	Get the module name.
void	name (const ACE_TCHAR *)
	Set the module name.
void *	arg (void) const
	Get the argument passed to the tasks.
void	arg (void *)
	Set the argument passed to the tasks.
void	link (ACE_Module< ACE_SYNCH_USE > *m)
	Link to other modules in the ustream stack.
ACE_Module< ACE_SYNCH_USE > *	next (void)
	Get the next pointer to the module above in the stream.
void	next (ACE_Module< ACE_SYNCH_USE > *m)
	Set the next pointer to the module above in the stream.
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Member Functions
int	close_i (int which, int flags)
Private Attributes
ACE_Task< ACE_SYNCH_USE > *	q_pair_ [2]
ACE_TCHAR	name_ [MAXPATHLEN+1]
	Name of the ACE_Module.
ACE_Module< ACE_SYNCH_USE > *	next_
	Next ACE_Module in the stack.
void *	arg_
int	flags_

---

Detailed Description

template<ACE_SYNCH_DECL>
class ACE_Module<>

An abstraction for managing a bi-directional flow of messages.

This is based on the Module concept in System V Streams, which contains a pair of Tasks, one for handling upstream processing, one for handling downstream processing. In general, you shouldn't subclass from this class, but instead subclass from the ACE_Task.

Definition at line 78 of file Module.h.

---

Constructor & Destructor Documentation

template<ACE_SYNCH_DECL > ACE_Module<>::ACE_Module (  void   )

Create an empty Module.

template<ACE_SYNCH_DECL > virtual ACE_Module<>::~ACE_Module (  void   )  [virtual]

Shutdown the Module.

template<ACE_SYNCH_DECL > ACE_Module<>::ACE_Module (  const ACE_TCHAR *  module_name, ACE_Task< ACE_SYNCH_USE > *  writer = 0, ACE_Task< ACE_SYNCH_USE > *  reader = 0, void *  args = 0, int  flags = M_DELETE )

Create an initialized module with module_name as its identity and reader and writer as its tasks.

---

Member Function Documentation

template<ACE_SYNCH_DECL > void ACE_Module<>::arg (  void *   )

Set the argument passed to the tasks.

template<ACE_SYNCH_DECL > void* ACE_Module<>::arg (  void   )  const

Get the argument passed to the tasks. Referenced by ACE_Stream<>::insert(), ACE_Stream<>::push_module(), and ACE_Stream<>::replace().

template<ACE_SYNCH_DECL > int ACE_Module<>::close (  int  flags = M_DELETE_NONE  )

Close down the module and its tasks. The flags argument can be used to override the default behaviour, which depends on previous values in calls to c'tor, , , and . A previous value M_DELETE[_XXX] can not be overridden. Should not be called from within <ACE_Task::module_closed>. Referenced by ACE_Module_Type::fini(), ACE_Stream<>::pop(), ACE_Stream<>::remove(), and ACE_Stream<>::replace().

template<ACE_SYNCH_DECL > int ACE_Module<>::close_i (  int  which, int  flags )  [private]

Implements the close operation for either the reader or the writer task (depending on ).

template<ACE_SYNCH_DECL > void ACE_Module<>::dump (  void   )  const

Dump the state of an object.

template<ACE_SYNCH_DECL > void ACE_Module<>::link (  ACE_Module< ACE_SYNCH_USE > *  m  )

Link to other modules in the ustream stack. Referenced by ACE_Stream<>::insert(), ACE_Stream<>::push_module(), ACE_Stream<>::remove(), and ACE_Stream<>::replace().

template<ACE_SYNCH_DECL > void ACE_Module<>::name (  const ACE_TCHAR *   )

Set the module name.

template<ACE_SYNCH_DECL > const ACE_TCHAR* ACE_Module<>::name (  void   )  const

Get the module name. Referenced by ace_get_module(), ACE_Stream<>::ACE_Stream(), ACE_Stream<>::dump(), ACE_Stream<>::find(), ACE_Stream<>::insert(), ACE_Stream<>::remove(), and ACE_Stream<>::replace().

template<ACE_SYNCH_DECL > void ACE_Module<>::next (  ACE_Module< ACE_SYNCH_USE > *  m  )

Set the next pointer to the module above in the stream.

template<ACE_SYNCH_DECL > ACE_Module<ACE_SYNCH_USE>* ACE_Module<>::next (  void   )

Get the next pointer to the module above in the stream. Referenced by ACE_Stream<>::dump(), ACE_Stream<>::find(), ACE_Stream<>::insert(), ACE_Stream<>::link_i(), ACE_Stream<>::pop(), ACE_Stream<>::push(), ACE_Stream<>::push_module(), ACE_Stream<>::remove(), ACE_Stream<>::replace(), and ACE_Stream<>::unlink_i().

template<ACE_SYNCH_DECL > int ACE_Module<>::open (  const ACE_TCHAR *  module_name, ACE_Task< ACE_SYNCH_USE > *  writer = 0, ACE_Task< ACE_SYNCH_USE > *  reader = 0, void *  a = 0, int  flags = M_DELETE )

Initialize the module with as its identity and and as its tasks. Previously register reader or writers or closed down and deleted according to the value of flags_. Should not be called from within <ACE_Task::module_closed>.

template<ACE_SYNCH_DECL > void ACE_Module<>::reader (  ACE_Task< ACE_SYNCH_USE > *  q, int  flags = M_DELETE_READER )

Set the reader task. flags can be used to indicate that the module should delete the reader during a call to close or to the destructor. If a previous reader exists, it is closed. It may also be deleted, depending on the old flags_ value. Should not be called from within <ACE_Task::module_closed>.

template<ACE_SYNCH_DECL > ACE_Task<ACE_SYNCH_USE>* ACE_Module<>::reader (  void   )

Get the reader task. Referenced by ACE_Stream<>::dump(), ACE_Module_Type::fini(), ACE_Module_Type::init(), ACE_Stream<>::insert(), ACE_Stream<>::link_i(), ACE_Stream<>::pop(), ACE_Stream<>::push_module(), ACE_Stream<>::replace(), ACE_Module_Type::resume(), and ACE_Module_Type::suspend().

template<ACE_SYNCH_DECL > ACE_Task<ACE_SYNCH_USE>* ACE_Module<>::sibling (  ACE_Task< ACE_SYNCH_USE > *  orig  )

Set and get pointer to sibling ACE_Task in an ACE_Module.

template<ACE_SYNCH_DECL > void ACE_Module<>::writer (  ACE_Task< ACE_SYNCH_USE > *  q, int  flags = M_DELETE_WRITER )

Set the writer task. flags can be used to indicate that the module should delete the writer during a call to close or to the destructor. If a previous writer exists, it is closed. It may also be deleted, depending on the old flags_ value. Should not be called from within <ACE_Task::module_closed>.

template<ACE_SYNCH_DECL > ACE_Task<ACE_SYNCH_USE>* ACE_Module<>::writer (  void   )

Get the writer task. Referenced by ACE_Stream<>::dump(), ACE_Module_Type::fini(), ACE_Module_Type::init(), ACE_Stream<>::insert(), ACE_Stream<>::link_i(), ACE_Stream<>::pop(), ACE_Stream<>::push_module(), ACE_Stream<>::replace(), ACE_Module_Type::resume(), ACE_Module_Type::suspend(), and ACE_Stream<>::unlink_i().

---

Member Data Documentation

template<ACE_SYNCH_DECL > ACE_Module<>::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Definition at line 173 of file Module.h.

template<ACE_SYNCH_DECL > void* ACE_Module<>::arg_ [private]

Argument passed through to the reader and writer task when they are opened. Definition at line 192 of file Module.h.

template<ACE_SYNCH_DECL > int ACE_Module<>::flags_ [private]

Holds flags which are used to determine if the reader and writer task have to be deleted on exit Definition at line 196 of file Module.h.

template<ACE_SYNCH_DECL > ACE_TCHAR ACE_Module<>::name_[MAXPATHLEN + 1] [private]

Name of the ACE_Module. Definition at line 185 of file Module.h.

template<ACE_SYNCH_DECL > ACE_Module<ACE_SYNCH_USE>* ACE_Module<>::next_ [private]

Next ACE_Module in the stack. Definition at line 188 of file Module.h.

template<ACE_SYNCH_DECL > ACE_Task<ACE_SYNCH_USE>* ACE_Module<>::q_pair_[2] [private]

Pair of Tasks that form the "read-side" and "write-side" of the ACE_Module partitioning. Definition at line 182 of file Module.h.

---

The documentation for this class was generated from the following file:

• Module.h

---
