ACE_Message_Queue_Reverse_Iterator<> Class Template Reference

Reverse Iterator for the ACE_Message_Queue. More...

#include <Message_Queue_T.h>

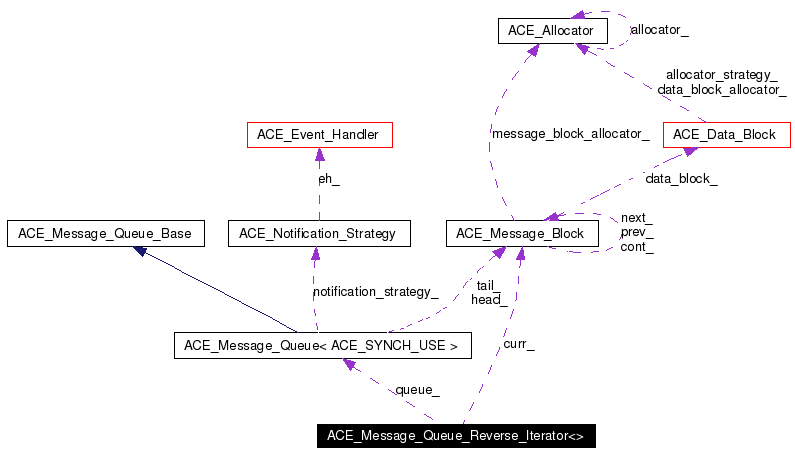

Collaboration diagram for ACE_Message_Queue_Reverse_Iterator<>:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Message_Queue_Reverse_Iterator (ACE_Message_Queue< ACE_SYNCH_USE > &queue)
int next (ACE_Message_Block *&entry)
int done (void) const
 Returns 1 when all items have been seen, else 0.

int advance (void)
void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Attributes

ACE_Message_Queue< ACE_SYNCH_USE > & queue_
 Message_Queue we are iterating over.

ACE_Message_Block * curr_
 Keeps track of how far we've advanced...

Detailed Description

template<ACE_SYNCH_DECL>
class ACE_Message_Queue_Reverse_Iterator<>

Reverse Iterator for the ACE_Message_Queue.

Definition at line 650 of file Message_Queue_T.h.

Constructor & Destructor Documentation

template<ACE_SYNCH_DECL >
ACE_Message_Queue_Reverse_Iterator<>::ACE_Message_Queue_Reverse_Iterator (  ACE_Message_Queue< ACE_SYNCH_USE > &  queue  )


Definition at line 640 of file Message_Queue_T.cpp.

00641   : queue_ (q),
00642     curr_ (queue_.tail_)
00643 {
00644 }

Member Function Documentation

template<ACE_SYNCH_DECL >
int ACE_Message_Queue_Reverse_Iterator<>::advance (  void   )


Move forward by one element in the queue. Returns 0 when all the items in the set have been seen, else 1.

Definition at line 669 of file Message_Queue_T.cpp.

References ACE_READ_GUARD_RETURN, ACE_SYNCH_MUTEX_T, and ACE_Message_Block::prev().

00670 {
00671   ACE_READ_GUARD_RETURN (ACE_SYNCH_MUTEX_T, m, this->queue_.lock_, -1)
00672
00673   if (this->curr_)
00674     this->curr_ = this->curr_->prev ();
00675   return this->curr_ != 0;
00676 }

template<ACE_SYNCH_DECL >
int ACE_Message_Queue_Reverse_Iterator<>::done (  void   )  const


Returns 1 when all items have been seen, else 0.

Definition at line 661 of file Message_Queue_T.cpp.

References ACE_READ_GUARD_RETURN, and ACE_SYNCH_MUTEX_T.

00662 {
00663   ACE_READ_GUARD_RETURN (ACE_SYNCH_MUTEX_T, m, this->queue_.lock_, -1)
00664
00665   return this->curr_ == 0;
00666 }

template<ACE_SYNCH_DECL >
void ACE_Message_Queue_Reverse_Iterator<>::dump (  void   )  const


Dump the state of an object.

Definition at line 679 of file Message_Queue_T.cpp.

00680 {
00681 #if defined (ACE_HAS_DUMP)
00682 #endif /* ACE_HAS_DUMP */
00683 }

template<ACE_SYNCH_DECL >
int ACE_Message_Queue_Reverse_Iterator<>::next (  ACE_Message_Block *&  entry  )


Pass back the that hasn't been seen in the queue. Returns 0 when all items have been seen, else 1.

Definition at line 647 of file Message_Queue_T.cpp.

References ACE_READ_GUARD_RETURN, and ACE_SYNCH_MUTEX_T.

00648 {
00649   ACE_READ_GUARD_RETURN (ACE_SYNCH_MUTEX_T, m, this->queue_.lock_, -1)
00650
00651   if (this->curr_ != 0)
00652     {
00653       entry = this->curr_;
00654       return 1;
00655     }
00656
00657   return 0;
00658 }

Member Data Documentation

template<ACE_SYNCH_DECL >
ACE_Message_Queue_Reverse_Iterator<>::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Definition at line 672 of file Message_Queue_T.h.

template<ACE_SYNCH_DECL >
ACE_Message_Block* ACE_Message_Queue_Reverse_Iterator<>::curr_ [private]


Keeps track of how far we've advanced...

Definition at line 679 of file Message_Queue_T.h.

template<ACE_SYNCH_DECL >
ACE_Message_Queue<ACE_SYNCH_USE>& ACE_Message_Queue_Reverse_Iterator<>::queue_ [private]


Message_Queue we are iterating over.

Definition at line 676 of file Message_Queue_T.h.

The documentation for this class was generated from the following files:
