#include <EC_TPC_Dispatching.h>

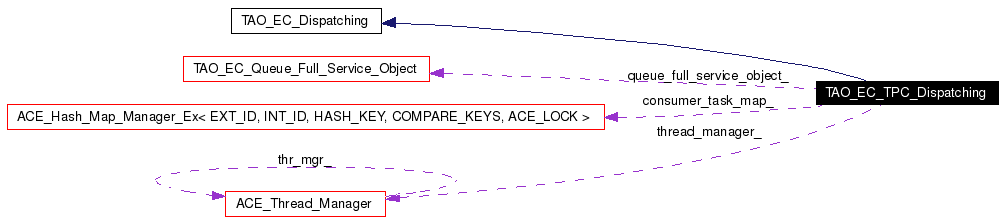

Inheritance diagram for TAO_EC_TPC_Dispatching:
This strategy uses a thread per consumer, and was specifically designed to isolate the effects of an ill-behaved consumer from affecting other consumers.
Definition at line 39 of file EC_TPC_Dispatching.h.
|
|
Definition at line 66 of file EC_TPC_Dispatching.h. |
|
|
Definition at line 18 of file EC_TPC_Dispatching.cpp. References ACE_ASSERT, and TAO_EC_TPC_DISPATCHING_DEFAULT_MAP_SIZE.
00019 : consumer_task_map_(TAO_EC_TPC_DISPATCHING_DEFAULT_MAP_SIZE) 00020 , queue_full_service_object_(so) 00021 { 00022 ACE_ASSERT (this->queue_full_service_object_ != 0); 00023 } |
|
|
Definition at line 25 of file EC_TPC_Dispatching.cpp.
00026 {
00027 // No other dispatching strategy has a DTOR body. I can only
00028 // assume that it's guaranteed that shutdown() is called before
00029 // the DTOR, so the tear-down logic needs to go in the shutdown,
00030 // and the DTOR need not call shutdown.
00031 }
|
|
|
Initialize all the data structures, activate any internal threads, etc. Implements TAO_EC_Dispatching. Definition at line 121 of file EC_TPC_Dispatching.cpp.
00122 {
00123 }
|
|
|
Definition at line 34 of file EC_TPC_Dispatching.cpp. References ACE_DEBUG, ACE_GUARD_RETURN, ACE_SYNCH_MUTEX, ACE_Task_Base::activate(), ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::bind(), consumer_task_map_, EC_TPC_debug_level, LM_DEBUG, LM_WARNING, ACE_Task< ACE_SYNCH >::putq(), TAO_EC_DEFAULT_DISPATCHING_THREADS_FLAGS, TAO_EC_DEFAULT_DISPATCHING_THREADS_PRIORITY, and ACE_Task_Base::wait().
00036 {
00037 ACE_GUARD_RETURN (ACE_SYNCH_MUTEX, ace_mon, this->lock_, -1);
00038
00039 // Duplicate the pointer and hold it safely
00040 RtecEventComm::PushConsumer_var pc =
00041 RtecEventComm::PushConsumer::_duplicate(consumer);
00042
00043 if (EC_TPC_debug_level > 0)
00044 ACE_DEBUG ((LM_DEBUG, "EC (%P|%t) TPC_Dispatching::add_consumer(%@)\n", pc.in()));
00045
00046 TAO_EC_Dispatching_Task* dtask =
00047 new TAO_EC_TPC_Dispatching_Task (&this->thread_manager_,
00048 this->queue_full_service_object_);
00049
00050 if (EC_TPC_debug_level > 0)
00051 ACE_DEBUG ((LM_DEBUG, "EC (%P|%t) TPC_Dispatching::add_consumer(%@): new task %@\n", pc.in(), dtask));
00052
00053 if ((dtask->activate (TAO_EC_DEFAULT_DISPATCHING_THREADS_FLAGS,
00054 1, // we only want one thread to dispatch to a consumer
00055 1, // magic number??
00056 TAO_EC_DEFAULT_DISPATCHING_THREADS_PRIORITY)) == -1)
00057 {
00058 ACE_DEBUG ((LM_WARNING,
00059 "EC (%P|%t): TPC_Dispatching::add_consumer unable to activate"
00060 " dispatching task for consumer (%@)\n",
00061 consumer));
00062 delete dtask;
00063 return -1;
00064 }
00065
00066 int bindresult =
00067 this->consumer_task_map_.bind (RtecEventComm::PushConsumer::_duplicate(pc.in()),
00068 dtask);
00069 const char* explanation = 0;
00070 if (bindresult == -1)
00071 explanation = "general failure";
00072 else if (bindresult == 1)
00073 explanation = "entry already exists";
00074
00075 if (explanation != 0)
00076 {
00077 ACE_DEBUG ((LM_WARNING,
00078 "EC (%P|%t): TPC_Dispatching::add_consumer failed to bind consumer (%@)"
00079 " and dispatch task in map (%s): %p\n",
00080 consumer, explanation));
00081 dtask->putq (new TAO_EC_Shutdown_Task_Command);
00082 dtask->wait ();
00083 delete dtask;
00084 return -1;
00085 }
00086
00087 return 0;
00088 }
|
|
||||||||||||||||||||
|
The consumer represented by proxy should receive event. It can use the information in qos_info to determine the event priority (among other things). Implements TAO_EC_Dispatching. Definition at line 162 of file EC_TPC_Dispatching.cpp. References ACE_ENV_ARG_PARAMETER, RtecEventComm::EventSet, and push_nocopy().
00167 {
00168 RtecEventComm::EventSet event_copy = event;
00169 this->push_nocopy (proxy, consumer, event_copy, qos_info ACE_ENV_ARG_PARAMETER);
00170 }
|
|
||||||||||||||||||||
|
Implements TAO_EC_Dispatching. Referenced by push(). |
|
|
Definition at line 91 of file EC_TPC_Dispatching.cpp. References ACE_DEBUG, ACE_GUARD_RETURN, ACE_SYNCH_MUTEX, consumer_task_map_, ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::find(), LM_WARNING, ACE_Task< ACE_SYNCH >::putq(), CORBA::release(), and ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::unbind().
00093 {
00094 ACE_GUARD_RETURN (ACE_SYNCH_MUTEX, ace_mon, this->lock_, -1);
00095
00096 TAO_EC_Dispatching_Task* dtask = 0;
00097
00098 if (this->consumer_task_map_.find (consumer, dtask) == -1)
00099 {
00100 ACE_DEBUG ((LM_WARNING,
00101 "EC (%P|%t): TPC_Dispatching::remove_consumer failed to"
00102 " find consumer (%@) in map\n", consumer));
00103 return -1;
00104 }
00105
00106 // Must have found it...first try to unbind
00107 if (this->consumer_task_map_.unbind (consumer) == -1)
00108 {
00109 ACE_DEBUG ((LM_WARNING,
00110 "EC (%P|%t): TPC_Dispatching::remove_consumer failed to"
00111 " unbind consumer (%@) and task in map\n", consumer));
00112 return -1;
00113 }
00114
00115 dtask->putq (new TAO_EC_Shutdown_Task_Command);
00116 CORBA::release (consumer); // This matches the _duplicate in add_consumer
00117 return 0;
00118 }
|
|
|
Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs. Implements TAO_EC_Dispatching. Definition at line 126 of file EC_TPC_Dispatching.cpp. References ACE_GUARD, ACE_SYNCH_MUTEX, ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::begin(), consumer_task_map_, CORBA::release(), ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::unbind_all(), and ACE_Thread_Manager::wait().
00127 {
00128 ACE_GUARD (ACE_SYNCH_MUTEX, ace_mon, this->lock_);
00129
00130 // The MT_Dispatching strategy sends a TAO_EC_Shutdown_Task_Command
00131 // to the dispatching task. Is that what we should do here?
00132 MAPTYPE::ITERATOR iter = this->consumer_task_map_.begin ();
00133 while (! iter.done())
00134 {
00135 MAPTYPE::ENTRY* entry = 0;
00136 if (! iter.next(entry))
00137 continue;
00138
00139 entry->int_id_->putq (new TAO_EC_Shutdown_Task_Command);
00140 iter.advance ();
00141 }
00142
00143 this->thread_manager_.wait (); // Wait for the threads to terminate
00144
00145 // Now iterate again and call CORBA::release on the ext_id;
00146 // we don't have to delete int_id_ b/c that happens in its close() method.
00147 iter = this->consumer_task_map_.begin ();
00148 while (! iter.done())
00149 {
00150 MAPTYPE::ENTRY* entry = 0;
00151 if (! iter.next(entry))
00152 continue;
00153
00154 CORBA::release (entry->ext_id_);
00155 iter.advance ();
00156 }
00157
00158 this->consumer_task_map_.unbind_all ();
00159 }
|
|
|
Definition at line 70 of file EC_TPC_Dispatching.h. Referenced by add_consumer(), remove_consumer(), and shutdown(). |
|
|
Definition at line 75 of file EC_TPC_Dispatching.h. |
|
|
Definition at line 78 of file EC_TPC_Dispatching.h. |
|
|
Definition at line 64 of file EC_TPC_Dispatching.h. |
