TAO_ECG_UDP_Out_Endpoint Class Reference

Maintains information about an outgoing endpoint. More...

#include <ECG_UDP_Out_Endpoint.h>

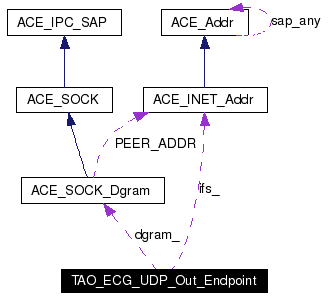

Collaboration diagram for TAO_ECG_UDP_Out_Endpoint:

[legend]List of all members.

Public Member Functions
	TAO_ECG_UDP_Out_Endpoint (void)
	Constructor.
	~TAO_ECG_UDP_Out_Endpoint (void)
	Constructor.
	TAO_ECG_UDP_Out_Endpoint (const TAO_ECG_UDP_Out_Endpoint &rhs)
	Copy Constructor.
TAO_ECG_UDP_Out_Endpoint &	operator= (const TAO_ECG_UDP_Out_Endpoint &rhs)
	Assignment operator.
ACE_SOCK_Dgram &	dgram (void)
CORBA::ULong	next_request_id (void)
	Obtain the next request id.
CORBA::Boolean	is_loopback (const ACE_INET_Addr &from)
Private Attributes
ACE_Atomic_Op< TAO_SYNCH_MUTEX, CORBA::ULong >	request_id_generator_
	The request id....
ACE_SOCK_Dgram	dgram_
	The datagram....
u_short	port_number_
size_t	if_count_
ACE_INET_Addr *	ifs_

---

Detailed Description

Maintains information about an outgoing endpoint.

UDP senders can share a single endpoint to send UDP packets, but there is more state associated with this endpoint than its datagram SAP; for instance we need to keep track of the request id.

Definition at line 46 of file ECG_UDP_Out_Endpoint.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_ECG_UDP_Out_Endpoint::TAO_ECG_UDP_Out_Endpoint (  void   )

Constructor. Definition at line 8 of file ECG_UDP_Out_Endpoint.i. : port_number_ (0), if_count_ (0), ifs_ (0) { }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_ECG_UDP_Out_Endpoint::~TAO_ECG_UDP_Out_Endpoint (  void   )

Constructor. Definition at line 15 of file ECG_UDP_Out_Endpoint.cpp. References ACE_SOCK::close(), and ifs_. { this->dgram_.close (); delete [] this->ifs_; }

ACE_INLINE TAO_ECG_UDP_Out_Endpoint::TAO_ECG_UDP_Out_Endpoint (  const TAO_ECG_UDP_Out_Endpoint &  rhs  )

Copy Constructor. Definition at line 16 of file ECG_UDP_Out_Endpoint.i. : port_number_ (0), if_count_ (0), ifs_ (0) { *this = rhs; }

---

Member Function Documentation

ACE_INLINE ACE_SOCK_Dgram & TAO_ECG_UDP_Out_Endpoint::dgram (  void   )

Obtain the datagram associated with this endpoint. Clients of this class must open, and register (if necessary) this datagram. Definition at line 26 of file ECG_UDP_Out_Endpoint.i. Referenced by is_loopback(). { return this->dgram_; }

CORBA::Boolean TAO_ECG_UDP_Out_Endpoint::is_loopback (  const ACE_INET_Addr &  from  )

The endpoint can detect if a data-gram was sent by itself, this is useful to ignore or remove messages sent by the same process. Definition at line 23 of file ECG_UDP_Out_Endpoint.cpp. References dgram(), ACE_INET_Addr::get_ip_address(), ACE::get_ip_interfaces(), ACE_SOCK::get_local_addr(), ACE_INET_Addr::get_port_number(), if_count_, ifs_, and port_number_. { if (this->port_number_ == 0) { // Cache the port number... ACE_INET_Addr local_addr; if (this->dgram ().get_local_addr (local_addr) == -1) return 0; this->port_number_ = local_addr.get_port_number (); } // Most of the time the port number is enough to determine if the // message is remote, only when the local port number and the remote // port number match we have to look at the local ip addresses. if (from.get_port_number () != this->port_number_) return 0; if (this->ifs_ == 0) { ACE::get_ip_interfaces (this->if_count_, this->ifs_); } for (ACE_INET_Addr* i = this->ifs_; i != this->ifs_ + this->if_count_; ++i) { if ((*i).get_ip_address () == from.get_ip_address ()) return 1; } return 0; }

ACE_INLINE CORBA::ULong TAO_ECG_UDP_Out_Endpoint::next_request_id (  void   )

Obtain the next request id. Definition at line 32 of file ECG_UDP_Out_Endpoint.i. { return this->request_id_generator_++; }

TAO_ECG_UDP_Out_Endpoint & TAO_ECG_UDP_Out_Endpoint::operator= (  const TAO_ECG_UDP_Out_Endpoint &  rhs  )

Assignment operator. Definition at line 56 of file ECG_UDP_Out_Endpoint.cpp. References ACE_NEW_RETURN, dgram_, if_count_, ifs_, port_number_, and request_id_generator_. { if (this != &rhs) { this->request_id_generator_ = rhs.request_id_generator_; this->dgram_ = rhs.dgram_; this->port_number_ = rhs.port_number_; this->if_count_ = rhs.if_count_; delete [] this->ifs_; this->ifs_ = 0; if (this->if_count_ != 0) { ACE_NEW_RETURN (this->ifs_, ACE_INET_Addr [this->if_count_], *this); for(size_t i = 0; i < this->if_count_; ++i) { this->ifs_[i] = rhs.ifs_[i]; } } } return *this; }

---

Member Data Documentation

ACE_SOCK_Dgram TAO_ECG_UDP_Out_Endpoint::dgram_ [private]

The datagram.... Definition at line 77 of file ECG_UDP_Out_Endpoint.h. Referenced by operator=().

size_t TAO_ECG_UDP_Out_Endpoint::if_count_ [private]

Keep the list of local interfaces, needed for the is_loopback method. Definition at line 85 of file ECG_UDP_Out_Endpoint.h. Referenced by is_loopback(), and operator=().

ACE_INET_Addr* TAO_ECG_UDP_Out_Endpoint::ifs_ [private]

Definition at line 86 of file ECG_UDP_Out_Endpoint.h. Referenced by is_loopback(), operator=(), and ~TAO_ECG_UDP_Out_Endpoint().

u_short TAO_ECG_UDP_Out_Endpoint::port_number_ [private]

Cache the port-number so we can quickly determine if an event is coming from another endpoint. Definition at line 81 of file ECG_UDP_Out_Endpoint.h. Referenced by is_loopback(), and operator=().

ACE_Atomic_Op<TAO_SYNCH_MUTEX,CORBA::ULong> TAO_ECG_UDP_Out_Endpoint::request_id_generator_ [private]

The request id.... Definition at line 74 of file ECG_UDP_Out_Endpoint.h. Referenced by operator=().

---

The documentation for this class was generated from the following files:

• ECG_UDP_Out_Endpoint.h
• ECG_UDP_Out_Endpoint.cpp
• ECG_UDP_Out_Endpoint.i

---
