TAO_Notify_Proxy Class Reference

Base class proxy for all proxys in NS. More...

#include <Proxy.h>

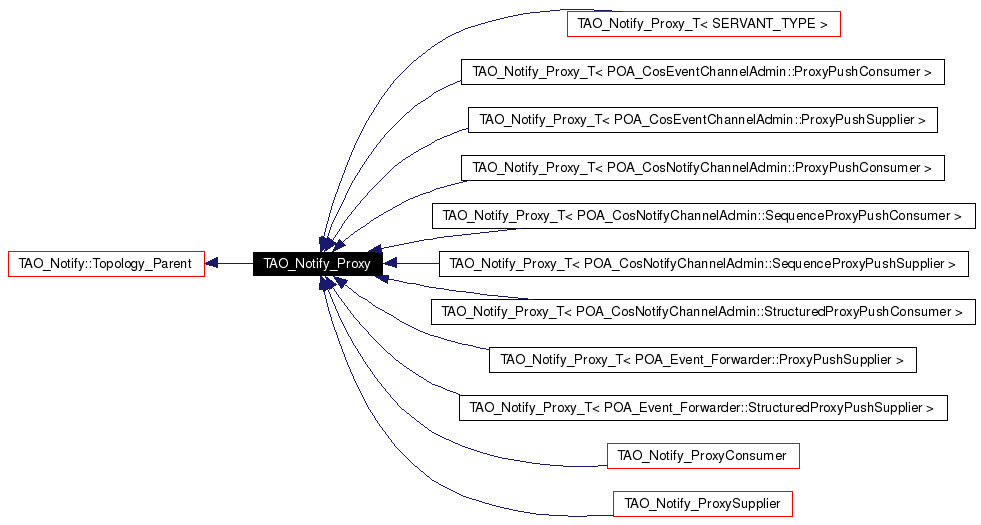

Inheritance diagram for TAO_Notify_Proxy:

Inheritance graph
[legend]

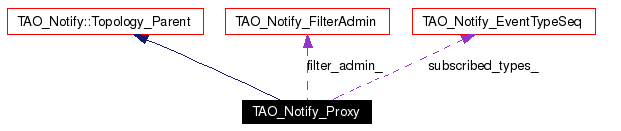

Collaboration diagram for TAO_Notify_Proxy:

Collaboration graph
[legend]
List of all members.

Public Types

typedef TAO_Notify_Refcountable_Guard_T<
TAO_Notify_Proxy > 		Ptr
typedef CosNotifyChannelAdmin::ProxyIDSeq SEQ
typedef CosNotifyChannelAdmin::ProxyIDSeq_var SEQ_VAR

Public Member Functions

 TAO_Notify_Proxy (void)
 Constuctor.

virtual ~TAO_Notify_Proxy ()
 Destructor.

virtual CORBA::Object_ptr activate (PortableServer::Servant servant)
 Activate.

virtual CORBA::Object_ptr activate (PortableServer::Servant servant, CORBA::Long id)
 Activate with a given ID.

void deactivate ()
 Deactivate.

void subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
 Obtain the Proxy's subscribed types.

CORBA::Boolean check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
 Check if this event passes the admin and proxy filters.

void types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
 Inform this proxy that the following types are being advertised.

CORBA::Boolean updates_off (void)
 Have updates been turned off.

virtual void destroy ()=0
 Destroy this object.

virtual TAO_Notify_Peer * peer (void)=0
 Access our Peer.

virtual CosNotification::EventTypeSeq * obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types) throw (CORBA::SystemException)
 Implement the Obtain Types.

virtual void admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
 Notification of subscriptions/offers set at the admin.

virtual void qos_changed (const TAO_Notify_QoSProperties &qos_properties)
 Override, TAO_Notify_Object::qos_changed.

virtual void save_persistent (TAO_Notify::Topology_Saver &saver)
virtual void save_attrs (TAO_Notify::NVPList &attrs)
virtual const char * get_proxy_type_name (void) const=0
virtual TAO_Notify::Topology_Object * load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)

Protected Attributes

TAO_Notify_FilterAdmin filter_admin_
 Filter Administration.

TAO_Notify_EventTypeSeq subscribed_types_
 The types that we're subscribed with the event manager.

CORBA::Boolean updates_off_
 True if updates have been turned off.


Friends

class TAO_Notify_Peer

Detailed Description

Base class proxy for all proxys in NS.

Definition at line 38 of file Proxy.h.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_Proxy> TAO_Notify_Proxy::Ptr


Reimplemented from TAO_Notify_Refcountable.

Reimplemented in TAO_Notify_ProxyConsumer, and TAO_Notify_ProxySupplier.

Definition at line 44 of file Proxy.h.

typedef CosNotifyChannelAdmin::ProxyIDSeq TAO_Notify_Proxy::SEQ


Definition at line 45 of file Proxy.h.

typedef CosNotifyChannelAdmin::ProxyIDSeq_var TAO_Notify_Proxy::SEQ_VAR


Definition at line 46 of file Proxy.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Proxy::TAO_Notify_Proxy (  void   )


Constuctor.

Definition at line 21 of file Proxy.cpp.

00022   : updates_off_ (0)
00023 {
00024 }

TAO_Notify_Proxy::~TAO_Notify_Proxy (   )  [virtual]


Destructor.

Definition at line 26 of file Proxy.cpp.

00027 {
00028 }

Member Function Documentation

CORBA::Object_ptr TAO_Notify_Proxy::activate (  PortableServer::Servant  servant,
CORBA::Long  id
)  [virtual]


Activate with a given ID.

Reimplemented from TAO_Notify_Object.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

Definition at line 39 of file Proxy.cpp.

References ACE_ENV_ARG_PARAMETER, TAO_Notify_Object::activate(), and TAO_Notify_Object::set_primary_as_proxy_poa().

00042 {
00043   // Set the POA that we use to return our <ref>
00044   this->set_primary_as_proxy_poa();
00045   return TAO_Notify_Object::activate (servant, id ACE_ENV_ARG_PARAMETER);
00046 }

CORBA::Object_ptr TAO_Notify_Proxy::activate (  PortableServer::Servant  servant  )  [virtual]


Activate.

Reimplemented from TAO_Notify_Object.

Reimplemented in TAO_Notify_RT_StructuredProxyPushSupplier.

Definition at line 31 of file Proxy.cpp.

References ACE_ENV_ARG_PARAMETER, TAO_Notify_Object::activate(), and TAO_Notify_Object::set_primary_as_proxy_poa().

Referenced by TAO_Notify_RT_StructuredProxyPushSupplier::activate().

00032 {
00033   // Set the POA that we use to return our <ref>
00034   this->set_primary_as_proxy_poa();
00035   return TAO_Notify_Object::activate (servant ACE_ENV_ARG_PARAMETER);
00036 }

virtual void TAO_Notify_Proxy::admin_types_changed (  const CosNotification::EventTypeSeq &  added,
const CosNotification::EventTypeSeq &  removed
)  [pure virtual]


Notification of subscriptions/offers set at the admin.

Implemented in TAO_Notify_ProxyConsumer_T< SERVANT_TYPE >, TAO_Notify_ProxySupplier_T< SERVANT_TYPE >, TAO_Notify_ProxyConsumer_T< POA_CosNotifyChannelAdmin::ProxyPushConsumer >, TAO_Notify_ProxyConsumer_T< POA_CosNotifyChannelAdmin::SequenceProxyPushConsumer >, TAO_Notify_ProxyConsumer_T< POA_CosEventChannelAdmin::ProxyPushConsumer >, TAO_Notify_ProxyConsumer_T< POA_CosNotifyChannelAdmin::StructuredProxyPushConsumer >, TAO_Notify_ProxySupplier_T< POA_Event_Forwarder::ProxyPushSupplier >, TAO_Notify_ProxySupplier_T< POA_CosNotifyChannelAdmin::SequenceProxyPushSupplier >, TAO_Notify_ProxySupplier_T< POA_Event_Forwarder::StructuredProxyPushSupplier >, and TAO_Notify_ProxySupplier_T< POA_CosEventChannelAdmin::ProxyPushSupplier >.

ACE_INLINE CORBA::Boolean TAO_Notify_Proxy::check_filters (  const TAO_Notify_Event *  event,
TAO_Notify_FilterAdmin &  parent_filter_admin,
CosNotifyChannelAdmin::InterFilterGroupOperator  filter_operator
)


Check if this event passes the admin and proxy filters.

Definition at line 14 of file Proxy.inl.

References ACE_CHECK_RETURN, ACE_ENV_ARG_PARAMETER, and TAO_Notify_FilterAdmin::match().

Referenced by TAO_Notify_Method_Request_Lookup::execute_i().

00018 {
00019   // check if it passes the parent filter.
00020   CORBA::Boolean parent_val =
00021     parent_filter_admin.match (event ACE_ENV_ARG_PARAMETER);
00022   ACE_CHECK_RETURN (0);
00023
00024   CORBA::Boolean val = 0;
00025
00026   if (filter_operator == CosNotifyChannelAdmin::AND_OP)
00027     {
00028       val = parent_val && this->filter_admin_.match (event ACE_ENV_ARG_PARAMETER);
00029       ACE_CHECK_RETURN (0);
00030     }
00031   else
00032     {
00033       val = parent_val || this->filter_admin_.match (event ACE_ENV_ARG_PARAMETER);
00034       ACE_CHECK_RETURN (0);
00035     }
00036
00037   return val;
00038 }

void TAO_Notify_Proxy::deactivate (   )


Deactivate.

Reimplemented from TAO_Notify_Object.

Definition at line 49 of file Proxy.cpp.

References ACE_ASSERT, ACE_ENV_ARG_PARAMETER, TAO_Notify_POA_Helper::deactivate(), and TAO_Notify_Object::proxy_poa().

00050 {
00051   ACE_ASSERT (this->proxy_poa() != 0 );
00052   this->proxy_poa()->deactivate (this->id() ACE_ENV_ARG_PARAMETER);
00053 }

virtual void TAO_Notify_Proxy::destroy (   )  [pure virtual]


Destroy this object.

Implemented in TAO_Notify_ProxyConsumer, and TAO_Notify_ProxySupplier.

Referenced by TAO_Notify_Peer::handle_dispatch_exception().

virtual const char* TAO_Notify_Proxy::get_proxy_type_name (  void   )  const [pure virtual]


Implemented in TAO_Notify_CosEC_ProxyPushConsumer, TAO_Notify_CosEC_ProxyPushSupplier, TAO_Notify_ProxyPushConsumer, TAO_Notify_ProxyPushSupplier, TAO_Notify_SequenceProxyPushConsumer, TAO_Notify_SequenceProxyPushSupplier, TAO_Notify_StructuredProxyPushConsumer, and TAO_Notify_StructuredProxyPushSupplier.

Referenced by save_persistent().

TAO_Notify::Topology_Object * TAO_Notify_Proxy::load_child (  const ACE_CString &  type,
CORBA::Long  id,
const TAO_Notify::NVPList &  attrs
)  [virtual]


Definition at line 178 of file Proxy.cpp.

References ACE_CHECK_RETURN, and ACE_Unbounded_Set< TAO_Notify_EventType >::reset().

00180 {
00181   ACE_UNUSED_ARG (id);
00182   ACE_UNUSED_ARG (attrs);
00183   TAO_Notify::Topology_Object* result = this;
00184   if (type == "subscriptions")
00185   {
00186     // since we initialized our subscribed types to everything
00187     // in the constructor. we have to clear it out first.
00188     this->subscribed_types_.reset();
00189     result = &this->subscribed_types_;
00190     ACE_CHECK_RETURN(0);
00191   }
00192   else if (type == "filter_admin")
00193   {
00194     result = & this->filter_admin_;
00195   }
00196   return result;
00197 }

CosNotification::EventTypeSeq * TAO_Notify_Proxy::obtain_types (  CosNotifyChannelAdmin::ObtainInfoMode  mode,
const TAO_Notify_EventTypeSeq &  types
)  throw (CORBA::SystemException) [virtual]


Implement the Obtain Types.

Definition at line 89 of file Proxy.cpp.

References ACE_CHECK_RETURN, ACE_GUARD_THROW_EX, ACE_NEW_THROW_EX, CosNotification::EventTypeSeq, and TAO_SYNCH_MUTEX.

00093 {
00094   CosNotification::EventTypeSeq_var event_type_seq;
00095
00096   ACE_NEW_THROW_EX (event_type_seq,
00097                     CosNotification::EventTypeSeq (),
00098                     CORBA::NO_MEMORY ());
00099
00100   ACE_GUARD_THROW_EX (TAO_SYNCH_MUTEX, ace_mon, this->lock_, CORBA::INTERNAL ());
00101   ACE_CHECK_RETURN (event_type_seq._retn ());
00102
00103   if (mode == CosNotifyChannelAdmin::ALL_NOW_UPDATES_OFF ||
00104       mode == CosNotifyChannelAdmin::ALL_NOW_UPDATES_ON)
00105     {
00106       types.populate (event_type_seq);
00107     }
00108
00109   if (mode == CosNotifyChannelAdmin::NONE_NOW_UPDATES_ON ||
00110       mode == CosNotifyChannelAdmin::ALL_NOW_UPDATES_ON)
00111     {
00112       this->updates_off_ = 0;
00113     }
00114   else
00115     {
00116       this->updates_off_ = 1;
00117     }
00118
00119   return event_type_seq._retn ();
00120 }

virtual TAO_Notify_Peer* TAO_Notify_Proxy::peer (  void   )  [pure virtual]


Access our Peer.

Implemented in TAO_Notify_ProxyConsumer, and TAO_Notify_ProxySupplier.

Referenced by qos_changed(), and save_attrs().

void TAO_Notify_Proxy::qos_changed (  const TAO_Notify_QoSProperties &  qos_properties  )  [virtual]


Override, TAO_Notify_Object::qos_changed.

Reimplemented from TAO_Notify_Object.

Reimplemented in TAO_Notify_ProxySupplier.

Definition at line 123 of file Proxy.cpp.

References peer(), and TAO_Notify_Peer::qos_changed().

Referenced by TAO_Notify_ProxySupplier::qos_changed().

00124 {
00125   //Inform Peers of qos changes.
00126   TAO_Notify_Peer* peer = this->peer ();
00127
00128   if (peer != 0)
00129     peer->qos_changed (qos_properties);
00130 }

void TAO_Notify_Proxy::save_attrs (  TAO_Notify::NVPList &  attrs  )  [virtual]


Called by derived types to save their attributes. Each derived type should call its superclass version before saving its own attrs.

Reimplemented from TAO_Notify_Object.

Definition at line 167 of file Proxy.cpp.

References TAO_Notify_Peer::get_ior(), peer(), TAO_Notify::NVPList::push_back(), and TAO_Notify_Object::save_attrs().

Referenced by save_persistent().

00168 {
00169   TAO_Notify_Object::save_attrs(attrs);
00170   TAO_Notify_Peer * peer = this->peer();
00171   if (peer != 0)
00172   {
00173     attrs.push_back (TAO_Notify::NVP("PeerIOR", peer->get_ior()));
00174   }
00175 }

void TAO_Notify_Proxy::save_persistent (  TAO_Notify::Topology_Saver &  saver  )  [virtual]


Save our state to a Topology_Saver.

Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change ACE_ENV_ARG_PARAMETER); ACE_CHECK; for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver ACE_ENV_ARG_PARAMETER); ACE_CHECK; } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type ACE_ENV_ARG_PARAMETER); )

Implements TAO_Notify::Topology_Savable.

Definition at line 133 of file Proxy.cpp.

References ACE_CHECK, ACE_ENV_ARG_PARAMETER, get_proxy_type_name(), TAO_Notify::Topology_Object::is_changed(), TAO_Notify::Topology_Object::is_persistent(), save_attrs(), TAO_Notify_EventTypeSeq::save_persistent(), and TAO_Notify_FilterAdmin::save_persistent().

00134 {
00135   bool changed = this->children_changed_;
00136   this->children_changed_ = false;
00137   this->self_changed_ = false;
00138
00139   if (is_persistent ())
00140   {
00141     TAO_Notify::NVPList attrs;
00142     this->save_attrs(attrs);
00143
00144     const char * type_name = this->get_proxy_type_name ();
00145     bool want_all_children = saver.begin_object(this->id(), type_name, attrs, changed ACE_ENV_ARG_PARAMETER);
00146     ACE_CHECK;
00147
00148     if (want_all_children || this->filter_admin_.is_changed ())
00149     {
00150       this->filter_admin_.save_persistent(saver ACE_ENV_ARG_PARAMETER);
00151       ACE_CHECK;
00152     }
00153
00154     if (want_all_children || this->subscribed_types_.is_changed ())
00155     {
00156       this->subscribed_types_.save_persistent(saver ACE_ENV_ARG_PARAMETER);
00157       ACE_CHECK;
00158     }
00159
00160     // todo: handle removed children
00161
00162     saver.end_object(this->id(), type_name ACE_ENV_ARG_PARAMETER);
00163   }
00164 }

void TAO_Notify_Proxy::subscribed_types (  TAO_Notify_EventTypeSeq &  subscribed_types  )


Obtain the Proxy's subscribed types.

Definition at line 56 of file Proxy.cpp.

References ACE_CHECK, ACE_GUARD_THROW_EX, and TAO_SYNCH_MUTEX.

Referenced by TAO_Notify_Peer::dispatch_updates().

00057 {
00058   ACE_GUARD_THROW_EX (TAO_SYNCH_MUTEX, ace_mon, this->lock_,
00059                         CORBA::INTERNAL ());
00060   ACE_CHECK;
00061
00062   // copy
00063   subscribed_types = this->subscribed_types_;
00064 }

void TAO_Notify_Proxy::types_changed (  const TAO_Notify_EventTypeSeq &  added,
const TAO_Notify_EventTypeSeq &  removed
)


Inform this proxy that the following types are being advertised.

Definition at line 67 of file Proxy.cpp.

References ACE_CHECK, ACE_ENV_ARG_PARAMETER, ACE_ENV_SINGLE_ARG_PARAMETER, TAO_Notify_Method_Request_Updates_No_Copy::execute(), TAO_Notify_Object::execute_task(), TAO_Singleton< TYPE, ACE_LOCK >::instance(), and updates_off_.

00068 {
00069   // return if the updates for this proxy are turned off or
00070   // if all the updates in the channel are switched off.
00071   if (this->updates_off_ == 1 || TAO_Notify_PROPERTIES::instance()->updates () == 0)
00072     return;
00073
00074   TAO_Notify_Method_Request_Updates_No_Copy request (added, removed, this);
00075
00076   if (TAO_Notify_PROPERTIES::instance()->asynch_updates () == 1) // if we should send the updates synchronously.
00077     {
00078       this->execute_task (request ACE_ENV_ARG_PARAMETER);
00079       ACE_CHECK;
00080     }
00081   else // execute in the current thread context.
00082     {
00083       request.execute (ACE_ENV_SINGLE_ARG_PARAMETER);
00084       ACE_CHECK;
00085     }
00086 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE CORBA::Boolean TAO_Notify_Proxy::updates_off (  void   )


Have updates been turned off.

Definition at line 8 of file Proxy.inl.

References updates_off_.

00009 {
00010   return this->updates_off_;
00011 }

Friends And Related Function Documentation

friend class TAO_Notify_Peer [friend]


Definition at line 41 of file Proxy.h.

Member Data Documentation

TAO_Notify_FilterAdmin TAO_Notify_Proxy::filter_admin_ [protected]


Filter Administration.

Definition at line 122 of file Proxy.h.

TAO_Notify_EventTypeSeq TAO_Notify_Proxy::subscribed_types_ [protected]


The types that we're subscribed with the event manager.

Definition at line 125 of file Proxy.h.

CORBA::Boolean TAO_Notify_Proxy::updates_off_ [protected]


True if updates have been turned off.

Definition at line 128 of file Proxy.h.

Referenced by types_changed(), and updates_off().

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 13:32:37 2006 for TAO_CosNotification by doxygen 1.3.6
