TAO_Notify::Topology_Savable Class Reference

Interface to be implemented by savable topology objects. More...

#include <Topology_Object.h>

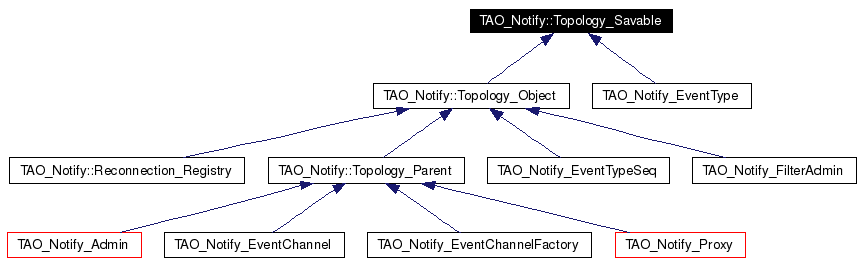

Inheritance diagram for TAO_Notify::Topology_Savable:

[legend]List of all members.

Public Member Functions
virtual	~Topology_Savable (void)
	Destructor.
virtual void	save_persistent (Topology_Saver &saver)=0
virtual void	reconnect ()

---

Detailed Description

Interface to be implemented by savable topology objects.

Definition at line 56 of file Topology_Object.h.

---

Constructor & Destructor Documentation

TAO_Notify::Topology_Savable::~Topology_Savable (  void   )  [virtual]

Destructor. Definition at line 20 of file Topology_Object.cpp. { }

---

Member Function Documentation

void TAO_Notify::Topology_Savable::reconnect (   )  [virtual]

Re-establish connections that we had before a shutdown. After a topology restore, this method is called so we can reconnect to any external objects with whom we were interacting. We should call the reconnect() method on all of our children to give them the chance to do the same. Reimplemented in TAO_Notify_Admin, TAO_Notify_EventChannel, and TAO_Notify_EventChannelFactory. Definition at line 25 of file Topology_Object.cpp. { }

virtual void TAO_Notify::Topology_Savable::save_persistent (  Topology_Saver &  saver  )  [pure virtual]

Save our state to a Topology_Saver. Use the methods of a Topology_Saver to store all information we want persisted. This function is called by our parent, which gives us a saver to use. In turn, we must call this function on all of our children. The implementation should look like: bool change = this->self_changed_; this->self_changed_ = false; this->children_changed_ = false; if (is_persistent ()) { bool want_all_children = saver.begin_object( this->id(), type, attrs, change ACE_ENV_ARG_PARAMETER); ACE_CHECK; for all children { if (want_all_children || child.is_changed()) { child.save_persistent(saver ACE_ENV_ARG_PARAMETER); ACE_CHECK; } } for all deleted children { saver.delete_child(child_type, child_id); } saver.end_object(this->id(), type ACE_ENV_ARG_PARAMETER); ) Implemented in TAO_Notify_Admin, TAO_Notify_EventChannel, TAO_Notify_EventChannelFactory, TAO_Notify_EventType, TAO_Notify_EventTypeSeq, TAO_Notify_FilterAdmin, TAO_Notify_Proxy, and TAO_Notify::Reconnection_Registry.

---

The documentation for this class was generated from the following files:

• Topology_Object.h
• Topology_Object.cpp

---
