TAO_Notify::Bit_Vector Class Reference

Simple bit vector. More...

#include <Bit_Vector.h>

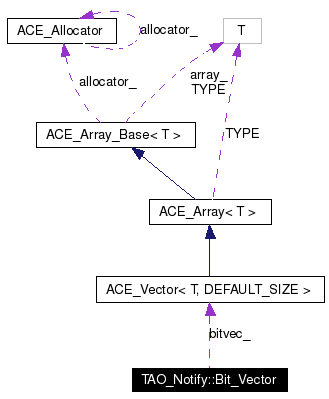

Collaboration diagram for TAO_Notify::Bit_Vector:

[legend]List of all members.

Public Member Functions
	Bit_Vector ()
	The constructor.
	~Bit_Vector ()
	The destructor.
bool	is_set (const size_t location) const
	Determine if a bit at location is set.
void	set_bit (const size_t location, bool set)
	Set or unset a bit at location, growing the vector as needed.
size_t	find_first_bit (bool set) const
	Find the first bit that is either set or unset in an O(1).
Private Types
typedef ACE_UINT32	BASIC_UINT_TYPE
typedef ACE_Vector< BASIC_UINT_TYPE >	VECTOR_TYPE
enum	{ BITS_PER_WORD = 32, BPW_LOG_2 = 5 }
Private Member Functions
void	evaluate_firsts (const size_t location, bool set)
	Update our first set and unset bits.
size_t	find_first_bit_of (const size_t location, bool set)
Private Attributes
VECTOR_TYPE	bitvec_
size_t	size_
size_t	first_set_bit_
size_t	first_cleared_bit_

---

Detailed Description

Simple bit vector.

Written to support block allocation from persistent storage. Should be promoted to the ACE level to make it generally usable.

Definition at line 39 of file Bit_Vector.h.

---

Member Typedef Documentation

typedef ACE_UINT32 TAO_Notify::Bit_Vector::BASIC_UINT_TYPE [private]

Definition at line 41 of file Bit_Vector.h.

typedef ACE_Vector<BASIC_UINT_TYPE> TAO_Notify::Bit_Vector::VECTOR_TYPE [private]

Definition at line 42 of file Bit_Vector.h.

---

Member Enumeration Documentation

anonymous enum [private]

Enumeration values: BITS_PER_WORD  BPW_LOG_2  Definition at line 43 of file Bit_Vector.h. { BITS_PER_WORD = 32, BPW_LOG_2 = 5 };

---

Constructor & Destructor Documentation

TAO_Notify::Bit_Vector::Bit_Vector (   )

The constructor. Definition at line 10 of file Bit_Vector.cpp. : size_(0) , first_set_bit_(0) , first_cleared_bit_(0) { }

TAO_Notify::Bit_Vector::~Bit_Vector (   )

The destructor. Definition at line 17 of file Bit_Vector.cpp. { }

---

Member Function Documentation

void TAO_Notify::Bit_Vector::evaluate_firsts (  const size_t  location, bool  set )  [private]

Update our first set and unset bits. Definition at line 71 of file Bit_Vector.cpp. References find_first_bit_of(), first_cleared_bit_, and first_set_bit_. Referenced by set_bit(). { if (set) { if (this->first_cleared_bit_ == location) { this->first_cleared_bit_ = this->find_first_bit_of(location, false); } if (this->first_set_bit_ > location) { this->first_set_bit_ = location; } } else if (!set) { if (this->first_set_bit_ == location) { this->first_set_bit_ = this->find_first_bit_of(location, true); } if (this->first_cleared_bit_ > location) { this->first_cleared_bit_ = location; } } }

size_t TAO_Notify::Bit_Vector::find_first_bit (  bool  set  )  const

Find the first bit that is either set or unset in an O(1). Definition at line 56 of file Bit_Vector.cpp. References first_cleared_bit_, and first_set_bit_. Referenced by TAO_Notify::Persistent_File_Allocator::allocate_block(). { size_t result = 0; if (set) { result = this->first_set_bit_; } else { result = this->first_cleared_bit_; } return result; }

size_t TAO_Notify::Bit_Vector::find_first_bit_of (  const size_t  location, bool  set )  [private]

Iterate from location to the end, finding the first bit that matches the requested set or unset value. Definition at line 98 of file Bit_Vector.cpp. References is_set(). Referenced by evaluate_firsts(). { size_t newloc = 0; size_t idx = 0; for (idx = location; (newloc == 0) && (idx < this->size_ + 1); idx++) { if (is_set(idx) == set) { newloc = idx; } } return newloc; }

bool TAO_Notify::Bit_Vector::is_set (  const size_t  location  )  const

Determine if a bit at location is set. Definition at line 22 of file Bit_Vector.cpp. References BITS_PER_WORD, bitvec_, and BPW_LOG_2. Referenced by find_first_bit_of(). { bool result = false; if (location < this->size_) { result = (0 != (this->bitvec_[location >> BPW_LOG_2] & (1 << (location % BITS_PER_WORD)))); } return result; }

void TAO_Notify::Bit_Vector::set_bit (  const size_t  location, bool  set )

Set or unset a bit at location, growing the vector as needed. Definition at line 33 of file Bit_Vector.cpp. References BITS_PER_WORD, bitvec_, BPW_LOG_2, evaluate_firsts(), and ACE_Vector< T, DEFAULT_SIZE >::resize(). Referenced by TAO_Notify::Persistent_File_Allocator::free_block(), and TAO_Notify::Persistent_File_Allocator::used(). { if (location >= this->size_) { if ((location >> BPW_LOG_2) >= (this->size_ >> BPW_LOG_2)) { size_t need = (location >> BPW_LOG_2) - (this->size_ >> BPW_LOG_2); this->bitvec_.resize(this->bitvec_.size() + need + 1, 0); } this->size_ = location + 1; } if (set) { this->bitvec_[location >> BPW_LOG_2] |= (1 << (location % BITS_PER_WORD)); } else { this->bitvec_[location >> BPW_LOG_2] &= ~(1 << (location % BITS_PER_WORD)); } this->evaluate_firsts(location, set); }

---

Member Data Documentation

VECTOR_TYPE TAO_Notify::Bit_Vector::bitvec_ [private]

Definition at line 70 of file Bit_Vector.h. Referenced by is_set(), and set_bit().

size_t TAO_Notify::Bit_Vector::first_cleared_bit_ [private]

Definition at line 73 of file Bit_Vector.h. Referenced by evaluate_firsts(), and find_first_bit().

size_t TAO_Notify::Bit_Vector::first_set_bit_ [private]

Definition at line 72 of file Bit_Vector.h. Referenced by evaluate_firsts(), and find_first_bit().

size_t TAO_Notify::Bit_Vector::size_ [private]

Definition at line 71 of file Bit_Vector.h.

---

The documentation for this class was generated from the following files:

• Bit_Vector.h
• Bit_Vector.cpp

---
