TAO_ORB_Core_TSS_Resources Class Reference

The TSS resoures of an ORB core. More...

#include <ORB_Core_TSS_Resources.h>

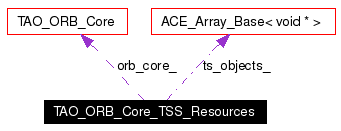

Collaboration diagram for TAO_ORB_Core_TSS_Resources:

[legend]List of all members.

Public Member Functions
	TAO_ORB_Core_TSS_Resources (void)
	Constructor.
	~TAO_ORB_Core_TSS_Resources (void)
	destructor
Public Attributes
int	event_loop_thread_
int	client_leader_thread_
void *	lane_
	Lane for this thread.
ACE_Array_Base< void * >	ts_objects_
	Generic container for thread-specific objects.
bool	upcalls_temporarily_suspended_on_this_thread_
TAO_ORB_Core *	orb_core_
Private Member Functions
	TAO_ORB_Core_TSS_Resources (const TAO_ORB_Core_TSS_Resources &)
	The ORB Core TSS resources should not be copied.
void	operator= (const TAO_ORB_Core_TSS_Resources &)

---

Detailed Description

The TSS resoures of an ORB core.

This class is used by the ORB_Core to store the resources potentially bound to a thread in TSS storage. The members are public because only the ORB Core is expected to access them.

Definition at line 41 of file ORB_Core_TSS_Resources.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_ORB_Core_TSS_Resources::TAO_ORB_Core_TSS_Resources (  void   )

Constructor. Definition at line 7 of file ORB_Core_TSS_Resources.cpp. : event_loop_thread_ (0) , client_leader_thread_ (0) , lane_ (0) , ts_objects_ () , upcalls_temporarily_suspended_on_this_thread_ (false) , orb_core_ (0) { }

TAO_ORB_Core_TSS_Resources::~TAO_ORB_Core_TSS_Resources (  void   )

destructor Definition at line 17 of file ORB_Core_TSS_Resources.cpp. { //@@ This is broken on platforms that use TSS emulation since this // destructor is invoked after the ORB. Since we're under // pressure to release a beta, we'll have to leak the TSS objects // stores in the <ts_objects_> array. However, the only service // known to currently use this array is the SSLIOP pluggable // protocol. Fortunately, it registeres a null cleanup function // so we're not leaking anything yet. We *do* need to fix this // before other services start to use this array. // -Ossama // if (this->orb_core_ != 0) // this->orb_core_->tss_cleanup_funcs ()->cleanup (this->ts_objects_); }

TAO_ORB_Core_TSS_Resources::TAO_ORB_Core_TSS_Resources (  const TAO_ORB_Core_TSS_Resources &   )  [private]

The ORB Core TSS resources should not be copied.

---

Member Function Documentation

void TAO_ORB_Core_TSS_Resources::operator= (  const TAO_ORB_Core_TSS_Resources &   )  [private]

---

Member Data Documentation

int TAO_ORB_Core_TSS_Resources::client_leader_thread_

Counter for how many times this thread has become a client leader. Definition at line 70 of file ORB_Core_TSS_Resources.h. Referenced by TAO_Leader_Follower::is_client_leader_thread(), TAO_Leader_Follower::reset_client_leader_thread(), TAO_Leader_Follower::reset_client_thread(), TAO_Leader_Follower::reset_event_loop_thread_i(), TAO_Leader_Follower::set_client_leader_thread(), TAO_Leader_Follower::set_client_thread(), and TAO_Leader_Follower::set_event_loop_thread().

int TAO_ORB_Core_TSS_Resources::event_loop_thread_

Counter for how (nested) calls this thread has made to run the event loop. Definition at line 66 of file ORB_Core_TSS_Resources.h. Referenced by TAO_Leader_Follower::reset_client_thread(), TAO_Leader_Follower::reset_event_loop_thread(), TAO_Leader_Follower::reset_event_loop_thread_i(), TAO_Leader_Follower::set_client_thread(), TAO_Leader_Follower::set_event_loop_thread(), and TAO_Leader_Follower::set_upcall_thread().

void* TAO_ORB_Core_TSS_Resources::lane_

Lane for this thread. Definition at line 73 of file ORB_Core_TSS_Resources.h.

TAO_ORB_Core* TAO_ORB_Core_TSS_Resources::orb_core_

Pointer to the ORB core. Needed to get access to the TSS cleanup functions for the TSS objects stored in the TSS object array in this class. Definition at line 85 of file ORB_Core_TSS_Resources.h. Referenced by TAO_ORB_Core::set_tss_resource().

ACE_Array_Base<void *> TAO_ORB_Core_TSS_Resources::ts_objects_

Generic container for thread-specific objects. Definition at line 76 of file ORB_Core_TSS_Resources.h. Referenced by TAO_ORB_Core::get_tss_resource(), and TAO_ORB_Core::set_tss_resource().

bool TAO_ORB_Core_TSS_Resources::upcalls_temporarily_suspended_on_this_thread_

Definition at line 80 of file ORB_Core_TSS_Resources.h. Referenced by TAO::Wait_On_LF_No_Upcall::can_process_upcalls(), TAO::Nested_Upcall_Guard::Nested_Upcall_Guard(), and TAO::Nested_Upcall_Guard::~Nested_Upcall_Guard().

---

The documentation for this class was generated from the following files:

• ORB_Core_TSS_Resources.h
• ORB_Core_TSS_Resources.cpp

---
