TAO_Reverse_FlowSpec_Entry Class Reference

#include <FlowSpec_Entry.h>

Inheritance diagram for TAO_Reverse_FlowSpec_Entry:

Inheritance graph
[legend]

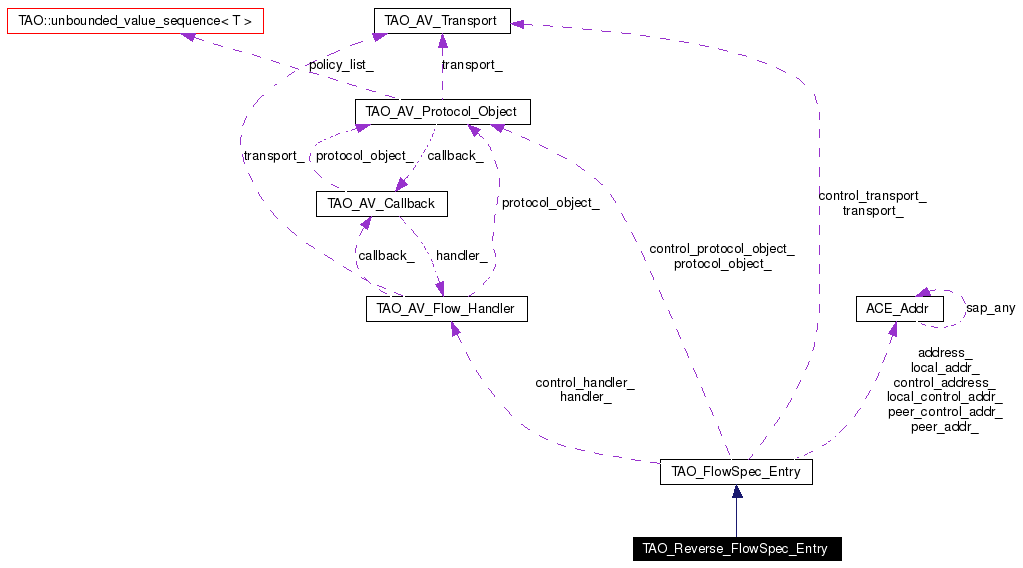

Collaboration diagram for TAO_Reverse_FlowSpec_Entry:

Collaboration graph
[legend]
List of all members.

Public Types

enum  Position {
  TAO_AV_FLOWNAME = 0, TAO_AV_ADDRESS = 1, TAO_AV_FLOW_PROTOCOL = 2, TAO_AV_DIRECTION = 3,
  TAO_AV_FORMAT = 4
}

Public Member Functions

 TAO_Reverse_FlowSpec_Entry (void)
 TAO_Reverse_FlowSpec_Entry (const char *flowname, const char *direction, const char *format_name, const char *flow_protocol, const char *carrier_protocol, ACE_Addr *address, ACE_Addr *control_address=0)
 TAO_Reverse_FlowSpec_Entry (const char *flowname, const char *direction, const char *format_name, const char *flow_protocol, const char *address)
virtual ~TAO_Reverse_FlowSpec_Entry (void)
virtual const char * entry_to_string (void)
 converts the entry to a string.

virtual Role role (void)
virtual int parse (const char *flowSpec_entry)
 construct the entry from a string specified by the flowSpec grammar.

Member Enumeration Documentation

enum TAO_Reverse_FlowSpec_Entry::Position


Enumeration values:
TAO_AV_FLOWNAME
TAO_AV_ADDRESS
TAO_AV_FLOW_PROTOCOL
TAO_AV_DIRECTION
TAO_AV_FORMAT

Definition at line 314 of file FlowSpec_Entry.h.

00314                 {TAO_AV_FLOWNAME = 0,
00315                  TAO_AV_ADDRESS = 1,
00316                  TAO_AV_FLOW_PROTOCOL = 2,
00317                  TAO_AV_DIRECTION = 3,
00318                  TAO_AV_FORMAT = 4};

Constructor & Destructor Documentation

TAO_Reverse_FlowSpec_Entry::TAO_Reverse_FlowSpec_Entry (  void   )


Definition at line 830 of file FlowSpec_Entry.cpp.

00831 {
00832   // no-op
00833 }

TAO_Reverse_FlowSpec_Entry::TAO_Reverse_FlowSpec_Entry (  const char *  flowname,
const char *  direction,
const char *  format_name,
const char *  flow_protocol,
const char *  carrier_protocol,
ACE_Addr *  address,
ACE_Addr *  control_address = 0
)


Definition at line 836 of file FlowSpec_Entry.cpp.

00843   :TAO_FlowSpec_Entry (flowname,
00844                        direction,
00845                        format_name,
00846                        flow_protocol,
00847                        carrier_protocol,
00848                        address,
00849                        control_address)
00850 {
00851   // no-op
00852 }

TAO_Reverse_FlowSpec_Entry::TAO_Reverse_FlowSpec_Entry (  const char *  flowname,
const char *  direction,
const char *  format_name,
const char *  flow_protocol,
const char *  address
)


Definition at line 855 of file FlowSpec_Entry.cpp.

00860   :TAO_FlowSpec_Entry (flowname,
00861                        direction,
00862                        format_name,
00863                        flow_protocol,
00864                        address)
00865 {
00866   // no-op.
00867 }

TAO_Reverse_FlowSpec_Entry::~TAO_Reverse_FlowSpec_Entry (  void   )  [virtual]


Definition at line 869 of file FlowSpec_Entry.cpp.

00870 {
00871   // no-op.
00872 }

Member Function Documentation

const char * TAO_Reverse_FlowSpec_Entry::entry_to_string (  void   )  [virtual]


converts the entry to a string.

Implements TAO_FlowSpec_Entry.

Definition at line 922 of file FlowSpec_Entry.cpp.

References ACE_CString, ACE_DEBUG, LM_DEBUG, and TAO_debug_level.

Referenced by TAO_AV_Core::init_forward_flows().

00923 {
00924   if (this->flowname_.length() == 0)
00925     return "";
00926
00927   char address [BUFSIZ];
00928   ACE_CString address_str;
00929   if (this->address_ != 0)
00930     {
00931       switch (this->protocol_)
00932         {
00933         case TAO_AV_Core::TAO_AV_RTP_UDP:
00934         case TAO_AV_Core::TAO_AV_UDP:
00935         case TAO_AV_Core::TAO_AV_QOS_UDP:
00936         case TAO_AV_Core::TAO_AV_UDP_MCAST:
00937         case TAO_AV_Core::TAO_AV_TCP:
00938         case TAO_AV_Core::TAO_AV_SCTP_SEQ:
00939         case TAO_AV_Core::TAO_AV_SFP_UDP:
00940         case TAO_AV_Core::TAO_AV_USERDEFINED_UDP:
00941           {
00942             ACE_INET_Addr *inet_addr = dynamic_cast<ACE_INET_Addr*> (this->address_);
00943             inet_addr->addr_to_string (address,BUFSIZ);
00944           }
00945           break;
00946         default:
00947           break;
00948         }
00949       ACE_CString cstring (address);
00950
00951       address_str = this->carrier_protocol_;
00952       address_str += "=";
00953       address_str += cstring;
00954
00955       if (this->protocol_ == TAO_AV_Core::TAO_AV_SCTP_SEQ)
00956         {
00957           for (int i = 0; i < this->num_local_sec_addrs_; i++)
00958             {
00959               address_str += ";";
00960               address_str += this->local_sec_addr_ [i];
00961             }
00962         }
00963
00964     }
00965   else
00966     {
00967       address_str = "";
00968     }
00969
00970   if (this->control_address_ != 0)
00971     {
00972       u_short control_port = 0;
00973
00974
00975       switch (this->protocol_)
00976         {
00977         case TAO_AV_Core::TAO_AV_SFP_UDP:
00978         case TAO_AV_Core::TAO_AV_SFP_UDP_MCAST:
00979         case TAO_AV_Core::TAO_AV_USERDEFINED_UDP:
00980         case TAO_AV_Core::TAO_AV_USERDEFINED_UDP_MCAST:
00981         case TAO_AV_Core::TAO_AV_RTP_UDP:
00982         case TAO_AV_Core::TAO_AV_RTP_UDP_MCAST:
00983         case TAO_AV_Core::TAO_AV_UDP:
00984         case TAO_AV_Core::TAO_AV_QOS_UDP:
00985         case TAO_AV_Core::TAO_AV_UDP_MCAST:
00986         case TAO_AV_Core::TAO_AV_TCP:
00987         case TAO_AV_Core::TAO_AV_SCTP_SEQ:
00988           {
00989             ACE_INET_Addr *inet_addr = dynamic_cast<ACE_INET_Addr*> (this->control_address_);
00990             control_port = inet_addr->get_port_number();
00991           }
00992           break;
00993         default:
00994           break;
00995         }
00996
00997       address_str += ";";
00998       char port_str[10];
00999       sprintf(port_str, "%u", control_port);
01000       address_str += port_str;
01001
01002     }
01003
01004   this->entry_ = this->flowname_;
01005   this->entry_ += "\\";
01006   this->entry_ += address_str;
01007   this->entry_ += "\\";
01008   this->entry_ += this->flow_protocol_;
01009 //  this->entry_ += "\\";
01010 //  this->entry_ += this->direction_str_;
01011 //  this->entry_ += "\\";
01012 //  this->entry_ += format_;
01013
01014   if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"Reverse entry_to_string: entry = %s\n",this->entry_.c_str() ));
01015   return this->entry_.c_str();
01016 }

int TAO_Reverse_FlowSpec_Entry::parse (  const char *  flowSpec_entry  )  [virtual]


construct the entry from a string specified by the flowSpec grammar.

Implements TAO_FlowSpec_Entry.

Definition at line 893 of file FlowSpec_Entry.cpp.

References ACE_DEBUG, LM_DEBUG, TAO_FlowSpec_Entry::parse_address(), TAO_FlowSpec_Entry::parse_flow_protocol_string(), and TAO_debug_level.

00894 {
00895   TAO_Tokenizer tokenizer (flowSpec_entry,'\\');
00896   this->flowname_ = tokenizer [TAO_AV_FLOWNAME];
00897
00898   if (TAO_debug_level > 0)
00899     ACE_DEBUG ((LM_DEBUG,
00900                 "TAO_Reverse_FlowSpec_Entry::parse [%s]\n",
00901                 flowSpec_entry));
00902
00903   if (tokenizer [TAO_AV_ADDRESS] != 0)
00904     if (this->parse_address (tokenizer [TAO_AV_ADDRESS], TAO_AV_Core::TAO_AV_BOTH) < 0)
00905       return -1;
00906
00907   if (tokenizer [TAO_AV_FLOW_PROTOCOL] != 0)
00908     if (this->parse_flow_protocol_string (tokenizer [TAO_AV_FLOW_PROTOCOL]) < 0)
00909       return -1;
00910
00911 //  if (tokenizer [TAO_AV_DIRECTION] != 0)
00912 //    this->set_direction (tokenizer [TAO_AV_DIRECTION]);
00913
00914 //  if (tokenizer [TAO_AV_FORMAT] != 0)
00915 //    this->format_ = tokenizer [TAO_AV_FORMAT];
00916
00917   return 0;
00918 }

TAO_FlowSpec_Entry::Role TAO_Reverse_FlowSpec_Entry::role (  void   )  [virtual]


Implements TAO_FlowSpec_Entry.

Definition at line 875 of file FlowSpec_Entry.cpp.

00876 {
00877   if (this->role_ != TAO_AV_INVALID_ROLE)
00878     return this->role_;
00879   switch (this->direction_)
00880     {
00881     case TAO_AV_DIR_IN:
00882       // Forward IN means we're the Source.
00883       return TAO_AV_CONSUMER;
00884     case TAO_AV_DIR_OUT:
00885       // Forward out means we're the sink.
00886       return TAO_AV_PRODUCER;
00887     default:
00888       return TAO_AV_INVALID_ROLE;
00889     }
00890 }

The documentation for this class was generated from the following files:
