TAO_FlowSpec_Entry Class Reference

A helper entry class in the flow spec sequence passed to bind_devs. More...

#include <FlowSpec_Entry.h>

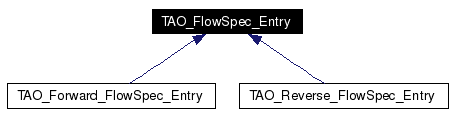

Inheritance diagram for TAO_FlowSpec_Entry:

Inheritance graph
[legend]

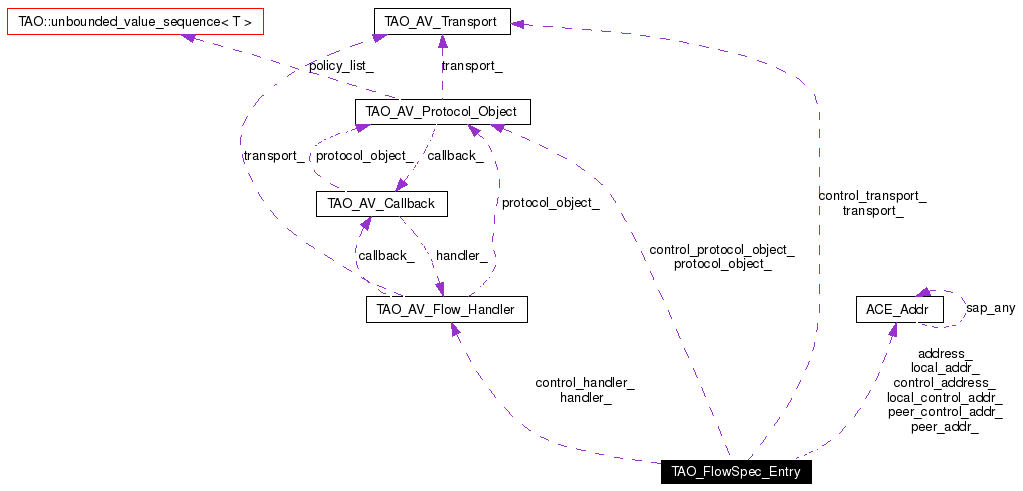

Collaboration diagram for TAO_FlowSpec_Entry:

Collaboration graph
[legend]
List of all members.

Public Types

enum  Direction { TAO_AV_INVALID = -1, TAO_AV_DIR_IN = 0, TAO_AV_DIR_OUT = 1 }
enum  Role { TAO_AV_INVALID_ROLE = -1, TAO_AV_PRODUCER = 0, TAO_AV_CONSUMER = 1 }

Public Member Functions

 TAO_FlowSpec_Entry (void)
 default constructor.

 TAO_FlowSpec_Entry (const char *flowname, const char *direction, const char *format_name, const char *flow_protocol, const char *carrier_protocol, ACE_Addr *fwd_address, ACE_Addr *control_address=0)
 constructor to construct an entry from the arguments.

 TAO_FlowSpec_Entry (const char *flowname, const char *direction, const char *format_name, const char *flow_protocol, const char *fwd_address)
virtual int parse (const char *flowSpec_entry)=0
 construct the entry from a string specified by the flowSpec grammar.

virtual ~TAO_FlowSpec_Entry (void)
 virtual destructor.

int direction (void)
 accessor to the direction.

virtual Role role (void)=0
void role (Role role)
const char * direction_str (void) const
 accessor to string version of direction .

const char * flow_protocol_str (void) const
 accessor to the flow protocol string.

void flow_protocol_str (const char *flow_protocol_str)
 set the flow protocol string.

ACE_Addr * address (void)
 accessor to address of the carrier protocol.

ACE_Addr * control_address (void)
void address (ACE_Addr *address)
void control_address (ACE_Addr *address)
const char * address_str (void) const
 Address in string format i. hostname:port.

TAO_AV_Core::Protocol carrier_protocol (void)
 accessor to carrier protocol i.e TCP,UDP,RTP/UDP.

const char * carrier_protocol_str (void) const
 accessor to string version of carrier protocol.

const char * format (void) const
 accessor to format to be used for this flow.

const char * flowname (void) const
 accessor to name of this flow.

virtual const char * entry_to_string (void)=0
 converts the entry to a string.

int set_peer_addr (ACE_Addr *peer_addr)
ACE_Addr * get_peer_addr (void)
int set_peer_control_addr (ACE_Addr *peer_control_addr)
ACE_Addr * get_peer_control_addr (void)
int set_local_sec_addr (char **local_sec_addr, int size)
char ** get_local_sec_addr (void)
int num_local_sec_addrs (void)
int set_peer_sec_addr (char **peer_sec_addr, int size)
char ** get_peer_sec_addr (void)
int num_peer_sec_addrs (void)
int set_local_addr (ACE_Addr *local_addr)
ACE_Addr * get_local_addr (void)
char * get_local_addr_str (void)
int set_local_control_addr (ACE_Addr *local_control_addr)
ACE_Addr * get_local_control_addr (void)
char * get_local_control_addr_str (void)
TAO_AV_Transport * transport (void)
void transport (TAO_AV_Transport *transport)
TAO_AV_Transport * control_transport (void)
void control_transport (TAO_AV_Transport *control_transport)
TAO_AV_Flow_Handler * handler (void)
void handler (TAO_AV_Flow_Handler *handler)
TAO_AV_Flow_Handler * control_handler (void)
void control_handler (TAO_AV_Flow_Handler *control_handler)
TAO_AV_Protocol_Object * protocol_object (void)
void protocol_object (TAO_AV_Protocol_Object *object)
TAO_AV_Protocol_Object * control_protocol_object (void)
void control_protocol_object (TAO_AV_Protocol_Object *object)
int parse_address (const char *format_string, TAO_AV_Core::Flow_Component flow_component)
 sets the address for this flow.

int is_multicast (void)
 returns true for a multicast address.


Protected Member Functions

int parse_flow_protocol_string (const char *flow_options_string)
 parses the flow protocol string with tokens separated by :

int set_direction (const char *direction_string)
 sets the direction flag.

int set_protocol (void)
 sets the protocol_ enum from the carrier_protocol_ string.


Protected Attributes

ACE_Addr * address_
 Addr information for the carrier protocol.

int clean_up_address_
ACE_Addr * control_address_
int clean_up_control_address_
ACE_CString address_str_
 Fwd Addr in string format i.e hostname:port.

ACE_CString peer_address_str_
 Peer Addr in string format i.e hostname:port.

ACE_CString format_
 format string.

Direction direction_
 Direction of this flow.

ACE_CString direction_str_
 string representation of the direction.

ACE_CString flowname_
 name of this flow.

TAO_AV_Core::Protocol protocol_
 name of the protocol used.

ACE_CString carrier_protocol_
 carrier protocol string.

ACE_CString flow_protocol_
 flow protocol string.

int use_flow_protocol_
ACE_CString entry_
 The flowspec entry;.

int is_multicast_
bool delete_peer_addr_
ACE_Addr * peer_addr_
char ** local_sec_addr_
int num_local_sec_addrs_
char ** peer_sec_addr_
int num_peer_sec_addrs_
ACE_Addr * peer_control_addr_
ACE_Addr * local_addr_
ACE_Addr * local_control_addr_
TAO_AV_Transport * transport_
TAO_AV_Transport * control_transport_
TAO_AV_Flow_Handler * handler_
TAO_AV_Flow_Handler * control_handler_
TAO_AV_Protocol_Object * protocol_object_
TAO_AV_Protocol_Object * control_protocol_object_
Role role_

Detailed Description

A helper entry class in the flow spec sequence passed to bind_devs.

Definition at line 68 of file FlowSpec_Entry.h.

Member Enumeration Documentation

enum TAO_FlowSpec_Entry::Direction


Enumeration values:
TAO_AV_INVALID
TAO_AV_DIR_IN
TAO_AV_DIR_OUT

Definition at line 72 of file FlowSpec_Entry.h.

00073   {
00074     TAO_AV_INVALID   = -1,
00075     TAO_AV_DIR_IN    =  0,
00076     TAO_AV_DIR_OUT   =  1
00077   };

enum TAO_FlowSpec_Entry::Role


Enumeration values:
TAO_AV_INVALID_ROLE
TAO_AV_PRODUCER
TAO_AV_CONSUMER

Definition at line 79 of file FlowSpec_Entry.h.

00080   {
00081     TAO_AV_INVALID_ROLE = -1,
00082     TAO_AV_PRODUCER = 0,
00083     TAO_AV_CONSUMER = 1
00084   };

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_FlowSpec_Entry::TAO_FlowSpec_Entry (  void   )


default constructor.

Definition at line 21 of file FlowSpec_Entry.cpp.

00022   :address_ (0),
00023    clean_up_address_ (0),
00024    control_address_ (0),
00025    clean_up_control_address_ (0),
00026    address_str_ (),
00027    format_ (),
00028    direction_ (TAO_AV_INVALID),
00029    direction_str_ (),
00030    flowname_ (),
00031    protocol_ (TAO_AV_Core::TAO_AV_NOPROTOCOL),
00032    carrier_protocol_ (),
00033    flow_protocol_ (),
00034    use_flow_protocol_ (0),
00035    entry_ (),
00036    is_multicast_ (0),
00037    delete_peer_addr_ (false),
00038    peer_addr_ (0),
00039    local_sec_addr_ (0),
00040    num_local_sec_addrs_ (0),
00041    peer_sec_addr_ (0),
00042    num_peer_sec_addrs_ (0),
00043    peer_control_addr_ (0),
00044    local_addr_ (0),
00045    local_control_addr_ (0),
00046    transport_ (0),
00047    control_transport_ (0),
00048    handler_ (0),
00049    control_handler_ (0),
00050    protocol_object_ (0),
00051    control_protocol_object_ (0),
00052    role_ (TAO_AV_INVALID_ROLE)
00053 {
00054 }

TAO_FlowSpec_Entry::TAO_FlowSpec_Entry (  const char *  flowname,
const char *  direction,
const char *  format_name,
const char *  flow_protocol,
const char *  carrier_protocol,
ACE_Addr *  fwd_address,
ACE_Addr *  control_address = 0
)


constructor to construct an entry from the arguments.

Definition at line 57 of file FlowSpec_Entry.cpp.

References parse_flow_protocol_string(), set_direction(), and set_protocol().

00065   :address_ (fwd_address),
00066    clean_up_address_ (0),
00067    control_address_ (control_address),
00068    clean_up_control_address_ (0),
00069    address_str_ (),
00070    format_ (format_name),
00071    direction_str_ (direction ),
00072    flowname_ ( flowname ),
00073    carrier_protocol_ ( carrier_protocol ),
00074    flow_protocol_ ( flow_protocol ),
00075    use_flow_protocol_ (0),
00076    entry_ (),
00077    is_multicast_ (0),
00078    delete_peer_addr_ (false),
00079    peer_addr_ (0),
00080    local_sec_addr_ (0),
00081    num_local_sec_addrs_ (0),
00082    peer_sec_addr_ (0),
00083    num_peer_sec_addrs_ (0),
00084    peer_control_addr_ (0),
00085    local_addr_ (0),
00086    local_control_addr_ (0),
00087    transport_ (0),
00088    control_transport_ (0),
00089    handler_ (0),
00090    control_handler_ (0),
00091    protocol_object_ (0),
00092    control_protocol_object_ (0),
00093    role_ (TAO_AV_INVALID_ROLE)
00094 {
00095   this->set_protocol ();
00096   this->set_direction (this->direction_str_.c_str());
00097   this->parse_flow_protocol_string (this->flow_protocol_.c_str() );
00098 }

TAO_FlowSpec_Entry::TAO_FlowSpec_Entry (  const char *  flowname,
const char *  direction,
const char *  format_name,
const char *  flow_protocol,
const char *  fwd_address
)


Definition at line 100 of file FlowSpec_Entry.cpp.

References parse_address(), parse_flow_protocol_string(), and set_direction().

00106   :address_ (0),
00107    clean_up_address_ (0),
00108    control_address_ (0),
00109    clean_up_control_address_ (0),
00110    address_str_ ( address ),
00111    format_ ( format_name ),
00112    direction_str_ ( direction ),
00113    flowname_ ( flowname ),
00114    carrier_protocol_ (),
00115    flow_protocol_ ( flow_protocol ),
00116    use_flow_protocol_ (0),
00117    entry_ (),
00118    is_multicast_ (0),
00119    peer_addr_ (0),
00120    local_sec_addr_ (0),
00121    num_local_sec_addrs_ (0),
00122    peer_sec_addr_ (0),
00123    num_peer_sec_addrs_ (0),
00124    peer_control_addr_ (0),
00125    local_addr_ (0),
00126    local_control_addr_ (0),
00127    transport_ (0),
00128    control_transport_ (0),
00129    handler_ (0),
00130    control_handler_ (0),
00131    protocol_object_ (0),
00132    control_protocol_object_ (0),
00133    role_ (TAO_AV_INVALID_ROLE)
00134 {
00135   this->parse_flow_protocol_string (this->flow_protocol_.c_str() );
00136   this->parse_address (this->address_str_.c_str(), TAO_AV_Core::TAO_AV_DATA);
00137   this->set_direction (this->direction_str_.c_str());
00138 }

TAO_FlowSpec_Entry::~TAO_FlowSpec_Entry (  void   )  [virtual]


virtual destructor.

Definition at line 141 of file FlowSpec_Entry.cpp.

References clean_up_address_, clean_up_control_address_, control_address_, delete_peer_addr_, local_control_addr_, and peer_addr_.

00142 {
00143   if (this->delete_peer_addr_)
00144     delete this->peer_addr_;
00145
00146   if (this->clean_up_address_)
00147     delete address_;
00148   if (this->clean_up_control_address_)
00149     delete control_address_;
00150   if (local_control_addr_ != 0)
00151     delete local_control_addr_;
00152 }

Member Function Documentation

ACE_INLINE void TAO_FlowSpec_Entry::address (  ACE_Addr *  address  )


Definition at line 94 of file FlowSpec_Entry.i.

00095 {
00096   this->address_ = addr;
00097 }

ACE_INLINE ACE_Addr * TAO_FlowSpec_Entry::address (  void   )


accessor to address of the carrier protocol.

Definition at line 87 of file FlowSpec_Entry.i.

Referenced by TAO_AV_Core::init_forward_flows(), TAO_AV_Core::init_reverse_flows(), TAO_AV_Acceptor_Registry::open(), TAO_AV_Connector_Registry::open(), and TAO_AV_UDP_Acceptor::open_i().

00088 {
00089   return this->address_;
00090 }

ACE_INLINE const char * TAO_FlowSpec_Entry::address_str (  void   )  const


Address in string format i. hostname:port.

Definition at line 115 of file FlowSpec_Entry.i.

References address_str_.

00116 {
00117   return this->address_str_.c_str();
00118 }

ACE_INLINE TAO_AV_Core::Protocol TAO_FlowSpec_Entry::carrier_protocol (  void   )


accessor to carrier protocol i.e TCP,UDP,RTP/UDP.

Definition at line 73 of file FlowSpec_Entry.i.

00074 {
00075   return this->protocol_;
00076 }

ACE_INLINE const char * TAO_FlowSpec_Entry::carrier_protocol_str (  void   )  const


accessor to string version of carrier protocol.

Definition at line 80 of file FlowSpec_Entry.i.

References carrier_protocol_.

Referenced by TAO_AV_Core::init_forward_flows(), TAO_AV_Acceptor_Registry::open(), TAO_AV_Connector_Registry::open(), TAO_FlowEndPoint::open(), and TAO_AV_Acceptor_Registry::open_default().

00081 {
00082   return this->carrier_protocol_.c_str();
00083 }

ACE_INLINE void TAO_FlowSpec_Entry::control_address (  ACE_Addr *  address  )


Definition at line 108 of file FlowSpec_Entry.i.

References control_address_.

00109 {
00110   this->control_address_ = addr;
00111 }

ACE_INLINE ACE_Addr * TAO_FlowSpec_Entry::control_address (  void   )


Definition at line 101 of file FlowSpec_Entry.i.

References control_address_.

Referenced by TAO_AV_Core::init_forward_flows(), and TAO_AV_UDP_Acceptor::open_i().

00102 {
00103   return this->control_address_;
00104 }

ACE_INLINE void TAO_FlowSpec_Entry::control_handler (  TAO_AV_Flow_Handler *  control_handler  )


Definition at line 300 of file FlowSpec_Entry.i.

References control_handler_.

00301 {
00302   this->control_handler_ = handler;
00303 }

ACE_INLINE TAO_AV_Flow_Handler * TAO_FlowSpec_Entry::control_handler (  void   )


Definition at line 272 of file FlowSpec_Entry.i.

References control_handler_.

Referenced by TAO_AV_UDP_Connector::connect(), TAO_AV_UDP_Acceptor::open_i(), TAO_AV_UDP_Acceptor::~TAO_AV_UDP_Acceptor(), and TAO_AV_UDP_Connector::~TAO_AV_UDP_Connector().

00273 {
00274   return this->control_handler_;
00275 }

ACE_INLINE void TAO_FlowSpec_Entry::control_protocol_object (  TAO_AV_Protocol_Object *  object  )


Definition at line 328 of file FlowSpec_Entry.i.

References control_protocol_object_.

00329 {
00330   this->control_protocol_object_ = object;
00331 }

ACE_INLINE TAO_AV_Protocol_Object * TAO_FlowSpec_Entry::control_protocol_object (  void   )


Definition at line 321 of file FlowSpec_Entry.i.

References control_protocol_object_.

Referenced by TAO_AV_UDP_Connector::connect(), TAO_AV_Acceptor_Registry::open(), TAO_AV_Connector_Registry::open(), TAO_AV_Acceptor_Registry::open_default(), and TAO_AV_UDP_Acceptor::open_i().

00322 {
00323   return this->control_protocol_object_;
00324 }

ACE_INLINE void TAO_FlowSpec_Entry::control_transport (  TAO_AV_Transport *  control_transport  )


Definition at line 258 of file FlowSpec_Entry.i.

References control_transport_.

00259 {
00260   this->control_transport_ = control_transport;
00261 }

ACE_INLINE TAO_AV_Transport * TAO_FlowSpec_Entry::control_transport (  void   )


Definition at line 251 of file FlowSpec_Entry.i.

References control_transport_.

Referenced by TAO_AV_Connector_Registry::open().

00252 {
00253   return this->control_transport_;
00254 }

ACE_INLINE int TAO_FlowSpec_Entry::direction (  void   )


accessor to the direction.

Definition at line 45 of file FlowSpec_Entry.i.

References direction_.

Referenced by TAO_AV_Core::init_forward_flows(), and TAO_AV_Core::init_reverse_flows().

00046 {
00047   return this->direction_;
00048 }

ACE_INLINE const char * TAO_FlowSpec_Entry::direction_str (  void   )  const


accessor to string version of direction .

Definition at line 52 of file FlowSpec_Entry.i.

References direction_str_.

00053 {
00054   return this->direction_str_.c_str();
00055 }

virtual const char* TAO_FlowSpec_Entry::entry_to_string (  void   )  [pure virtual]


converts the entry to a string.

Implemented in TAO_Forward_FlowSpec_Entry, and TAO_Reverse_FlowSpec_Entry.

ACE_INLINE void TAO_FlowSpec_Entry::flow_protocol_str (  const char *  flow_protocol_str  )


set the flow protocol string.

Definition at line 66 of file FlowSpec_Entry.i.

References flow_protocol_, and CORBA::string_dup().

00067 {
00068   this->flow_protocol_ = CORBA::string_dup (str);
00069 }

ACE_INLINE const char * TAO_FlowSpec_Entry::flow_protocol_str (  void   )  const


accessor to the flow protocol string.

Definition at line 59 of file FlowSpec_Entry.i.

References flow_protocol_.

Referenced by TAO_AV_Core::init_forward_flows(), TAO_AV_SFP_Factory::make_protocol_object(), TAO_AV_Acceptor_Registry::open(), TAO_AV_Connector_Registry::open(), and TAO_AV_Acceptor_Registry::open_default().

00060 {
00061   return this->flow_protocol_.c_str();
00062 }

ACE_INLINE const char * TAO_FlowSpec_Entry::flowname (  void   )  const


accessor to name of this flow.

Definition at line 129 of file FlowSpec_Entry.i.

Referenced by TAO_AV_Core::init_forward_flows(), TAO_AV_Core::init_reverse_flows(), TAO_AV_UDP_Flow_Factory::make_protocol_object(), TAO_AV_TCP_Flow_Factory::make_protocol_object(), TAO_AV_SFP_Factory::make_protocol_object(), TAO_AV_RTP_Flow_Factory::make_protocol_object(), TAO_AV_Acceptor_Registry::open(), and TAO_AV_Connector_Registry::open().

00130 {
00131   return this->flowname_.c_str();
00132 }

ACE_INLINE const char * TAO_FlowSpec_Entry::format (  void   )  const


accessor to format to be used for this flow.

Definition at line 122 of file FlowSpec_Entry.i.

Referenced by TAO_AV_Core::init_forward_flows().

00123 {
00124   return this->format_.c_str();
00125 }

ACE_INLINE ACE_Addr * TAO_FlowSpec_Entry::get_local_addr (  void   )


Definition at line 175 of file FlowSpec_Entry.i.

00176 {
00177   return this->local_addr_;
00178 }

char * TAO_FlowSpec_Entry::get_local_addr_str (  void   )


Definition at line 464 of file FlowSpec_Entry.cpp.

References ACE_CString, ACE_ERROR_RETURN, ACE_NEW_RETURN, ACE_Addr::get_type(), and LM_ERROR.

00465 {
00466   if (this->local_addr_ == 0)
00467     return 0;
00468
00469   switch (this->local_addr_->get_type ())
00470     {
00471     case AF_INET:
00472       {
00473         char *buf;
00474         ACE_NEW_RETURN (buf,
00475                         char [BUFSIZ],
00476                         0);
00477
00478         ACE_INET_Addr *inet_addr = dynamic_cast<ACE_INET_Addr *> (this->local_addr_);
00479         inet_addr->addr_to_string (buf,BUFSIZ);
00480         ACE_CString cstring (buf, 0, 0);
00481
00482         return cstring.rep ();
00483       }
00484     default:
00485       ACE_ERROR_RETURN ((LM_ERROR,"Address family not supported"),0);
00486     }
00487 }

ACE_INLINE ACE_Addr * TAO_FlowSpec_Entry::get_local_control_addr (  void   )


Definition at line 182 of file FlowSpec_Entry.i.

References local_control_addr_.

Referenced by TAO_AV_UDP_Connector::connect(), and TAO_AV_UDP_Acceptor::open_i().

00183 {
00184   return this->local_control_addr_;
00185 }

char* TAO_FlowSpec_Entry::get_local_control_addr_str (  void   )


ACE_INLINE char ** TAO_FlowSpec_Entry::get_local_sec_addr (  void   )


Definition at line 199 of file FlowSpec_Entry.i.

References local_sec_addr_.

00200 {
00201   return this->local_sec_addr_;
00202 }

ACE_INLINE ACE_Addr * TAO_FlowSpec_Entry::get_peer_addr (  void   )


Definition at line 152 of file FlowSpec_Entry.i.

References peer_addr_.

Referenced by TAO_AV_Core::init_forward_flows().

00153 {
00154   return this->peer_addr_;
00155 }

ACE_Addr* TAO_FlowSpec_Entry::get_peer_control_addr (  void   )


ACE_INLINE char ** TAO_FlowSpec_Entry::get_peer_sec_addr (  void   )


Definition at line 223 of file FlowSpec_Entry.i.

References peer_sec_addr_.

00224 {
00225   return this->peer_sec_addr_;
00226 }

ACE_INLINE void TAO_FlowSpec_Entry::handler (  TAO_AV_Flow_Handler *  handler  )


Definition at line 279 of file FlowSpec_Entry.i.

00280 {
00281   this->handler_ = handler;
00282
00283 //   // Now remove the handler from the reactor if the handler is for a producer.
00284 //   switch (this->role ())
00285 //     {
00286 //     case TAO_AV_PRODUCER:
00287 //       {
00288 //         ACE_Event_Handler *event_handler = handler->event_handler ();
00289 //         int result  = event_handler->reactor ()->remove_handler (event_handler,
00290 //                                                                  ACE_Event_Handler::READ_MASK);
00291 //         if (result < 0)
00292 //           ACE_ERROR ((LM_ERROR,"TAO_FlowSpec_Entry::handler\n"));
00293 //         break;
00294 //       }
00295 //     }
00296 }

ACE_INLINE TAO_AV_Flow_Handler * TAO_FlowSpec_Entry::handler (  void   )


Definition at line 265 of file FlowSpec_Entry.i.

Referenced by TAO_AV_Core::init_forward_flows(), TAO_AV_TCP_Acceptor::make_svc_handler(), TAO_AV_TCP_Base_Acceptor::make_svc_handler(), TAO_AV_TCP_Connector::make_svc_handler(), and TAO_AV_UDP_Acceptor::open_i().

00266 {
00267   return this->handler_;
00268 }

ACE_INLINE int TAO_FlowSpec_Entry::is_multicast (  void   )


returns true for a multicast address.

Definition at line 335 of file FlowSpec_Entry.i.

References is_multicast_.

00336 {
00337   return this->is_multicast_;
00338 }

ACE_INLINE int TAO_FlowSpec_Entry::num_local_sec_addrs (  void   )


Definition at line 206 of file FlowSpec_Entry.i.

References num_local_sec_addrs_.

00207 {
00208   return this->num_local_sec_addrs_;
00209 }

ACE_INLINE int TAO_FlowSpec_Entry::num_peer_sec_addrs (  void   )


Definition at line 230 of file FlowSpec_Entry.i.

References num_peer_sec_addrs_.

00231 {
00232   return this->num_peer_sec_addrs_;
00233 }

virtual int TAO_FlowSpec_Entry::parse (  const char *  flowSpec_entry  )  [pure virtual]


construct the entry from a string specified by the flowSpec grammar.

Implemented in TAO_Forward_FlowSpec_Entry, and TAO_Reverse_FlowSpec_Entry.

int TAO_FlowSpec_Entry::parse_address (  const char *  format_string,
TAO_AV_Core::Flow_Component  flow_component
)


sets the address for this flow.

Definition at line 239 of file FlowSpec_Entry.cpp.

References ACE_CString, ACE_DEBUG, ACE_NEW_RETURN, address_str_, ACE_OS::atoi(), carrier_protocol_, clean_up_address_, clean_up_control_address_, control_address_, is_multicast_, LM_DEBUG, local_sec_addr_, num_local_sec_addrs_, TAO_Tokenizer::num_tokens(), set_protocol(), ACE_OS::strcasecmp(), ACE_OS::strcmp(), CORBA::string_dup(), and TAO_debug_level.

Referenced by TAO_Reverse_FlowSpec_Entry::parse(), TAO_Forward_FlowSpec_Entry::parse(), and TAO_FlowSpec_Entry().

00241 {
00242   if (TAO_debug_level > 0)
00243     ACE_DEBUG ((LM_DEBUG, "TAO_FlowSpec_Entry::parse_address [%s]\n", address));
00244
00245   if (address == 0)
00246     return 0;
00247   if (ACE_OS::strcmp (address,"") == 0)
00248     return 0;
00249   TAO_Tokenizer protocol_tokenizer (address,'=');
00250
00251   this->carrier_protocol_ = protocol_tokenizer[0];
00252
00253   int result = this->set_protocol ();
00254   if (result < 0)
00255     return result;
00256
00257   if (protocol_tokenizer [1] != 0)
00258     {
00259       ACE_DEBUG ((LM_DEBUG,
00260                   "Protocol tokenixer is not null\n"));
00261       if ((flow_comp == TAO_AV_Core::TAO_AV_DATA) ||
00262           //(flow_comp == TAO_AV_Core::TAO_AV_BOTH) ||
00263           (flow_comp == TAO_AV_Core::TAO_AV_CONTROL) )
00264         {
00265           ACE_CString addr;
00266           if (this->protocol_ == TAO_AV_Core::TAO_AV_SCTP_SEQ)
00267             {
00268               TAO_Tokenizer addr_token (protocol_tokenizer [1], ';');
00269
00270               ACE_DEBUG ((LM_DEBUG,
00271                           "Number of local sec addresses = %d\n",
00272                           addr_token.num_tokens () - 1));
00273
00274               if (addr_token.num_tokens () != 0)
00275                 {
00276                   addr += addr_token [0];
00277                   ACE_NEW_RETURN (local_sec_addr_, char* [addr_token.num_tokens () - 1],-1);
00278                   for (int j = 1; j <= addr_token.num_tokens () - 1; j++)
00279                     {
00280                       ACE_DEBUG ((LM_DEBUG,
00281                                   "adding addresses to sequence %s\n",
00282                                   addr_token [j]));
00283
00284                       local_sec_addr_ [j-1] =  CORBA::string_dup (addr_token [j]);
00285                     }
00286                   num_local_sec_addrs_ = addr_token.num_tokens () - 1;
00287                 }
00288             }
00289           else addr += protocol_tokenizer[1];
00290
00291
00292           switch (this->protocol_)
00293             {
00294             case TAO_AV_Core::TAO_AV_SFP_UDP:
00295             case TAO_AV_Core::TAO_AV_USERDEFINED_UDP:
00296             case TAO_AV_Core::TAO_AV_RTP_UDP:
00297             case TAO_AV_Core::TAO_AV_TCP:
00298             case TAO_AV_Core::TAO_AV_SCTP_SEQ:
00299             case TAO_AV_Core::TAO_AV_UDP:
00300             case TAO_AV_Core::TAO_AV_QOS_UDP:
00301               {
00302                 if (flow_comp == TAO_AV_Core::TAO_AV_DATA)
00303                   this->address_str_ = addr;
00304                 ACE_INET_Addr *inet_addr;
00305                 ACE_NEW_RETURN (inet_addr,
00306                                 ACE_INET_Addr (addr.c_str() ),
00307                                 -1);
00308                 if (flow_comp == TAO_AV_Core::TAO_AV_DATA)
00309                   {
00310                     this->clean_up_address_ = 1;
00311                     this->address_ = inet_addr;
00312                   }
00313                 else
00314                   {
00315                     this->clean_up_control_address_ = 1;
00316                     this->control_address_ = inet_addr;
00317                   }
00318
00319                 if (IN_CLASSD (inet_addr->get_ip_address ()))
00320                   {
00321                     if (TAO_debug_level > 0)
00322                       ACE_DEBUG ((LM_DEBUG, "TAO_FlowSpec_Entry::parse_address is multicast\n"));
00323
00324                     this->is_multicast_ = 1;
00325                     switch (this->protocol_)
00326                       {
00327                       case TAO_AV_Core::TAO_AV_UDP:
00328                         this->protocol_ = TAO_AV_Core::TAO_AV_UDP_MCAST;
00329                         break;
00330                       case TAO_AV_Core::TAO_AV_RTP_UDP:
00331                         this->protocol_ = TAO_AV_Core::TAO_AV_RTP_UDP_MCAST;
00332                         break;
00333                       case TAO_AV_Core::TAO_AV_SFP_UDP:
00334                         this->protocol_ = TAO_AV_Core::TAO_AV_SFP_UDP_MCAST;
00335                         break;
00336                       case TAO_AV_Core::TAO_AV_USERDEFINED_UDP:
00337                         this->protocol_ = TAO_AV_Core::TAO_AV_USERDEFINED_UDP_MCAST;
00338                         break;
00339                       default:
00340                         break;
00341                       }
00342                   }
00343               }
00344               break;
00345             default:
00346               if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"ATM support not added yet\n"));
00347             }
00348         }
00349       else
00350         {
00351           ACE_DEBUG ((LM_DEBUG,
00352                       "AV BOTH %s \n",
00353                       protocol_tokenizer[1]));
00354
00355           TAO_Tokenizer address_tokenizer (protocol_tokenizer[1], ':');
00356           TAO_Tokenizer port_tokenizer (address_tokenizer[1], ';');
00357           ACE_CString addr;
00358           addr += address_tokenizer[0];
00359           addr += ":";
00360           addr += port_tokenizer[0];
00361
00362           if (this->protocol_ == TAO_AV_Core::TAO_AV_SCTP_SEQ)
00363             {
00364
00365               ACE_DEBUG ((LM_DEBUG,
00366                           "Number of local sec addresses = %d\n",
00367                           port_tokenizer.num_tokens () - 1));
00368
00369               if (port_tokenizer.num_tokens () - 1 != 0)
00370                 {
00371                   ACE_NEW_RETURN (local_sec_addr_, char* [port_tokenizer.num_tokens () - 1],-1);
00372                   for (int j = 1; j <= port_tokenizer.num_tokens () - 1; j++)
00373                     {
00374                       ACE_DEBUG ((LM_DEBUG,
00375                                   "adding addresses to sequence %s\n",
00376                                   port_tokenizer [j]));
00377
00378                       local_sec_addr_ [j-1] =  CORBA::string_dup (port_tokenizer [j]);
00379                     }
00380                   num_local_sec_addrs_ = port_tokenizer.num_tokens () - 1;
00381                 }
00382             }
00383
00384           short control_port = static_cast<short> (ACE_OS::atoi(port_tokenizer[0])) + 1;
00385           char control_port_str[6];
00386           sprintf (control_port_str, "%d", control_port);
00387
00388           ACE_CString control_addr = "";
00389           if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"RTP/UDP") == 0)
00390             {
00391               control_addr += address_tokenizer[0];
00392               control_addr += ":";
00393               if (port_tokenizer[1] != 0)
00394                 control_addr += port_tokenizer[1];
00395               else
00396                 control_addr += control_port_str;
00397             }
00398
00399           switch (this->protocol_)
00400             {
00401             case TAO_AV_Core::TAO_AV_SFP_UDP:
00402             case TAO_AV_Core::TAO_AV_USERDEFINED_UDP:
00403             case TAO_AV_Core::TAO_AV_RTP_UDP:
00404             case TAO_AV_Core::TAO_AV_TCP:
00405             case TAO_AV_Core::TAO_AV_SCTP_SEQ:
00406             case TAO_AV_Core::TAO_AV_UDP:
00407             case TAO_AV_Core::TAO_AV_QOS_UDP:
00408               {
00409                 this->address_str_ = addr;
00410                 ACE_INET_Addr *inet_addr;
00411                 ACE_NEW_RETURN (inet_addr,
00412                                 ACE_INET_Addr (addr.c_str() ),
00413                                 -1);
00414                 this->clean_up_address_ = 1;
00415                 this->address_ = inet_addr;
00416
00417                 if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"RTP/UDP") == 0)
00418                   {
00419                     ACE_INET_Addr *control_inet_addr;
00420                     ACE_NEW_RETURN (control_inet_addr,
00421                                     ACE_INET_Addr (control_addr.c_str() ),
00422                                     -1);
00423                     this->clean_up_control_address_ = 1;
00424                     this->control_address_ = control_inet_addr;
00425                   }
00426
00427                 if (IN_CLASSD (inet_addr->get_ip_address ()))
00428                   {
00429                     if (TAO_debug_level > 0)
00430                       ACE_DEBUG ((LM_DEBUG, "TAO_FlowSpec_Entry::parse_address is multicast\n"));
00431
00432                     this->is_multicast_ = 1;
00433                     switch (this->protocol_)
00434                       {
00435                       case TAO_AV_Core::TAO_AV_UDP:
00436                         this->protocol_ = TAO_AV_Core::TAO_AV_UDP_MCAST;
00437                         break;
00438                       case TAO_AV_Core::TAO_AV_RTP_UDP:
00439                         this->protocol_ = TAO_AV_Core::TAO_AV_RTP_UDP_MCAST;
00440                         break;
00441                       case TAO_AV_Core::TAO_AV_SFP_UDP:
00442                         this->protocol_ = TAO_AV_Core::TAO_AV_SFP_UDP_MCAST;
00443                         break;
00444                       case TAO_AV_Core::TAO_AV_USERDEFINED_UDP:
00445                         this->protocol_ = TAO_AV_Core::TAO_AV_USERDEFINED_UDP_MCAST;
00446                         break;
00447                       default:
00448                         break;
00449                       }
00450                   }
00451               }
00452               break;
00453             default:
00454               if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"ATM support not added yet\n"));
00455             }
00456         }
00457     }
00458   ACE_DEBUG ((LM_DEBUG,
00459               "Return from parse address\n"));
00460   return 0;
00461 }

ACE_INLINE int TAO_FlowSpec_Entry::parse_flow_protocol_string (  const char *  flow_options_string  )  [protected]


parses the flow protocol string with tokens separated by :

Definition at line 28 of file FlowSpec_Entry.i.

References flow_protocol_, ACE_OS::strcmp(), and use_flow_protocol_.

Referenced by TAO_Reverse_FlowSpec_Entry::parse(), TAO_Forward_FlowSpec_Entry::parse(), and TAO_FlowSpec_Entry().

00029 {
00030   if (flow_string == 0)
00031     return 0;
00032
00033   if (ACE_OS::strcmp (flow_string,"") == 0)
00034         return 0;
00035
00036   this->use_flow_protocol_ = 1;
00037   // do some flow protocol processing.
00038   this->flow_protocol_ = flow_string;
00039
00040   return 0;
00041 }

ACE_INLINE void TAO_FlowSpec_Entry::protocol_object (  TAO_AV_Protocol_Object *  object  )


Definition at line 314 of file FlowSpec_Entry.i.

References protocol_object_.

00315 {
00316   this->protocol_object_ = object;
00317 }

ACE_INLINE TAO_AV_Protocol_Object * TAO_FlowSpec_Entry::protocol_object (  void   )


Definition at line 307 of file FlowSpec_Entry.i.

References protocol_object_.

Referenced by TAO_AV_UDP_Connector::connect(), TAO_AV_TCP_Acceptor::make_svc_handler(), TAO_AV_TCP_Connector::make_svc_handler(), TAO_AV_Acceptor_Registry::open(), TAO_AV_Connector_Registry::open(), TAO_AV_Acceptor_Registry::open_default(), and TAO_AV_UDP_Acceptor::open_i().

00308 {
00309   return this->protocol_object_;
00310 }

ACE_INLINE void TAO_FlowSpec_Entry::role (  Role  role  )


Definition at line 342 of file FlowSpec_Entry.i.

References role_.

00343 {
00344   this->role_ = role;
00345 }

virtual Role TAO_FlowSpec_Entry::role (  void   )  [pure virtual]


Implemented in TAO_Forward_FlowSpec_Entry, and TAO_Reverse_FlowSpec_Entry.

Referenced by TAO_AV_Core::init_forward_flows(), TAO_AV_Core::init_reverse_flows(), and TAO_AV_SFP_Factory::make_protocol_object().

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int TAO_FlowSpec_Entry::set_direction (  const char *  direction_string  )  [protected]


sets the direction flag.

Definition at line 11 of file FlowSpec_Entry.i.

References direction_, direction_str_, ACE_OS::strcasecmp(), TAO_AV_DIR_IN, TAO_AV_DIR_OUT, and TAO_AV_INVALID.

Referenced by TAO_Forward_FlowSpec_Entry::parse(), and TAO_FlowSpec_Entry().

00012 {
00013   this->direction_str_ = direction;
00014   if (direction == 0)
00015     {
00016       this->direction_ = TAO_AV_INVALID;
00017       return -1;
00018     }
00019   if (ACE_OS::strcasecmp (direction,"in") == 0)
00020     this->direction_ = TAO_AV_DIR_IN;
00021   else if (ACE_OS::strcasecmp (direction,"out") == 0)
00022     this->direction_ = TAO_AV_DIR_OUT;
00023   return 0;
00024 }

ACE_INLINE int TAO_FlowSpec_Entry::set_local_addr (  ACE_Addr *  local_addr  )


Definition at line 159 of file FlowSpec_Entry.i.

Referenced by TAO_AV_UDP_Acceptor::open_i().

00160 {
00161   this->local_addr_ = local_addr;
00162   return 0;
00163 }

ACE_INLINE int TAO_FlowSpec_Entry::set_local_control_addr (  ACE_Addr *  local_control_addr  )


Definition at line 167 of file FlowSpec_Entry.i.

References local_control_addr_.

Referenced by TAO_AV_UDP_Connector::connect(), and TAO_AV_UDP_Acceptor::open_i().

00168 {
00169   this->local_control_addr_ = local_addr;
00170   return 0;
00171 }

ACE_INLINE int TAO_FlowSpec_Entry::set_local_sec_addr (  char **  local_sec_addr,
int  size
)


Definition at line 189 of file FlowSpec_Entry.i.

References local_sec_addr_, and num_local_sec_addrs_.

00191 {
00192   this->local_sec_addr_ = local_sec_addr;
00193   this->num_local_sec_addrs_ = size;
00194   return 0;
00195 }

ACE_INLINE int TAO_FlowSpec_Entry::set_peer_addr (  ACE_Addr *  peer_addr  )


Definition at line 137 of file FlowSpec_Entry.i.

References delete_peer_addr_, peer_addr_, and TAO_AV_Flow_Handler::set_remote_address().

Referenced by TAO_AV_Core::init_reverse_flows().

00138 {
00139   if (this->delete_peer_addr_)
00140     delete this->peer_addr_;
00141
00142   this->delete_peer_addr_ = false;
00143   this->peer_addr_ = peer_addr;
00144
00145   if (this->handler_ != 0)
00146     this->handler_->set_remote_address (peer_addr);
00147   return 0;
00148 }

int TAO_FlowSpec_Entry::set_peer_control_addr (  ACE_Addr *  peer_control_addr  )


ACE_INLINE int TAO_FlowSpec_Entry::set_peer_sec_addr (  char **  peer_sec_addr,
int  size
)


Definition at line 213 of file FlowSpec_Entry.i.

References num_peer_sec_addrs_, and peer_sec_addr_.

00215 {
00216   this->peer_sec_addr_ = peer_sec_addr;
00217   this->num_peer_sec_addrs_ = size;
00218   return 0;
00219 }

int TAO_FlowSpec_Entry::set_protocol (  void   )  [protected]


sets the protocol_ enum from the carrier_protocol_ string.

Definition at line 155 of file FlowSpec_Entry.cpp.

References ACE_DEBUG, flow_protocol_, is_multicast_, LM_DEBUG, ACE_OS::strcasecmp(), ACE_OS::strncasecmp(), TAO_debug_level, and use_flow_protocol_.

Referenced by parse_address(), and TAO_FlowSpec_Entry().

00156 {
00157   if (!this->use_flow_protocol_)
00158     {
00159       if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"TCP") == 0)
00160         this->protocol_ = TAO_AV_Core::TAO_AV_TCP;
00161       else if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"SCTP_SEQ") == 0)
00162           this->protocol_ = TAO_AV_Core::TAO_AV_SCTP_SEQ;
00163       else if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"UDP") == 0)
00164           this->protocol_ = TAO_AV_Core::TAO_AV_UDP;
00165       else if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"QoS_UDP") == 0)
00166         this->protocol_ = TAO_AV_Core::TAO_AV_QOS_UDP;
00167       else if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"AAL5") == 0)
00168         this->protocol_ = TAO_AV_Core::TAO_AV_AAL5;
00169       else if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"AAL3_4") == 0)
00170         this->protocol_ = TAO_AV_Core::TAO_AV_AAL3_4;
00171       else if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"AAL1") == 0)
00172         this->protocol_ = TAO_AV_Core::TAO_AV_AAL1;
00173       else if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"RTP/UDP") == 0){
00174         this->protocol_ = TAO_AV_Core::TAO_AV_UDP;
00175         flow_protocol_ = "RTP";
00176       }
00177       else if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"RTP/AAL5") == 0)
00178         this->protocol_ = TAO_AV_Core::TAO_AV_RTP_AAL5;
00179       else if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"IPX") == 0)
00180         this->protocol_ = TAO_AV_Core::TAO_AV_IPX;
00181       else
00182         {
00183           this->protocol_ = TAO_AV_Core::TAO_AV_NOPROTOCOL;
00184           return -1;
00185         }
00186     }
00187   else
00188     {
00189       if (ACE_OS::strcasecmp (this->carrier_protocol_.c_str(),"UDP") == 0)
00190         {
00191           if (ACE_OS::strncasecmp (this->flow_protocol_.c_str (),"sfp",3) == 0)
00192             {
00193               this->protocol_ = TAO_AV_Core::TAO_AV_SFP_UDP;
00194             }
00195           else this->protocol_ = TAO_AV_Core::TAO_AV_USERDEFINED_UDP;
00196         }
00197       else
00198         {
00199           this->protocol_ = TAO_AV_Core::TAO_AV_NOPROTOCOL;
00200           return -1;
00201         }
00202     }
00203
00204   if (this->address_ != 0)
00205     {
00206       if (TAO_debug_level > 0)
00207         ACE_DEBUG ((LM_DEBUG, "TAO_FlowSpec_Entry::set_protocol address is not 0\n"));
00208       ACE_INET_Addr *inet_addr = dynamic_cast<ACE_INET_Addr*> (this->address_);
00209       char buf[BUFSIZ];
00210       inet_addr->addr_to_string (buf,BUFSIZ);
00211       if (TAO_debug_level > 0)
00212         ACE_DEBUG ((LM_DEBUG,"TAO_FlowSpec_Entry::set_protocol:%s %x\n",buf, inet_addr->get_ip_address ()));
00213       if (IN_CLASSD (inet_addr->get_ip_address ()))
00214         {
00215           this->is_multicast_ = 1;
00216           switch (this->protocol_)
00217             {
00218             case TAO_AV_Core::TAO_AV_UDP:
00219               this->protocol_ = TAO_AV_Core::TAO_AV_UDP_MCAST;
00220               break;
00221             case TAO_AV_Core::TAO_AV_RTP_UDP:
00222               this->protocol_ = TAO_AV_Core::TAO_AV_RTP_UDP_MCAST;
00223               break;
00224             case TAO_AV_Core::TAO_AV_SFP_UDP:
00225               this->protocol_ = TAO_AV_Core::TAO_AV_SFP_UDP_MCAST;
00226               break;
00227             case TAO_AV_Core::TAO_AV_USERDEFINED_UDP:
00228               this->protocol_ = TAO_AV_Core::TAO_AV_USERDEFINED_UDP_MCAST;
00229               break;
00230             default:
00231               break;
00232             }
00233         }
00234     }
00235   return 0;
00236 }

ACE_INLINE void TAO_FlowSpec_Entry::transport (  TAO_AV_Transport *  transport  )


Definition at line 244 of file FlowSpec_Entry.i.

00245 {
00246   this->transport_ = transport;
00247 }

ACE_INLINE TAO_AV_Transport * TAO_FlowSpec_Entry::transport (  void   )


Definition at line 237 of file FlowSpec_Entry.i.

Referenced by TAO_AV_Connector_Registry::open().

00238 {
00239   return this->transport_;
00240 }

Member Data Documentation

ACE_Addr* TAO_FlowSpec_Entry::address_ [protected]


Addr information for the carrier protocol.

Definition at line 206 of file FlowSpec_Entry.h.

ACE_CString TAO_FlowSpec_Entry::address_str_ [protected]


Fwd Addr in string format i.e hostname:port.

Definition at line 212 of file FlowSpec_Entry.h.

Referenced by address_str(), and parse_address().

ACE_CString TAO_FlowSpec_Entry::carrier_protocol_ [protected]


carrier protocol string.

Definition at line 233 of file FlowSpec_Entry.h.

Referenced by carrier_protocol_str(), and parse_address().

int TAO_FlowSpec_Entry::clean_up_address_ [protected]


Definition at line 207 of file FlowSpec_Entry.h.

Referenced by parse_address(), and ~TAO_FlowSpec_Entry().

int TAO_FlowSpec_Entry::clean_up_control_address_ [protected]


Definition at line 209 of file FlowSpec_Entry.h.

Referenced by parse_address(), and ~TAO_FlowSpec_Entry().

ACE_Addr* TAO_FlowSpec_Entry::control_address_ [protected]


Definition at line 208 of file FlowSpec_Entry.h.

Referenced by control_address(), parse_address(), and ~TAO_FlowSpec_Entry().

TAO_AV_Flow_Handler* TAO_FlowSpec_Entry::control_handler_ [protected]


Definition at line 256 of file FlowSpec_Entry.h.

Referenced by control_handler().

TAO_AV_Protocol_Object* TAO_FlowSpec_Entry::control_protocol_object_ [protected]


Definition at line 258 of file FlowSpec_Entry.h.

Referenced by control_protocol_object().

TAO_AV_Transport* TAO_FlowSpec_Entry::control_transport_ [protected]


Definition at line 254 of file FlowSpec_Entry.h.

Referenced by control_transport().

bool TAO_FlowSpec_Entry::delete_peer_addr_ [protected]


Definition at line 244 of file FlowSpec_Entry.h.

Referenced by set_peer_addr(), and ~TAO_FlowSpec_Entry().

Direction TAO_FlowSpec_Entry::direction_ [protected]


Direction of this flow.

Definition at line 221 of file FlowSpec_Entry.h.

Referenced by direction(), and set_direction().

ACE_CString TAO_FlowSpec_Entry::direction_str_ [protected]


string representation of the direction.

Definition at line 224 of file FlowSpec_Entry.h.

Referenced by direction_str(), and set_direction().

ACE_CString TAO_FlowSpec_Entry::entry_ [protected]


The flowspec entry;.

Definition at line 241 of file FlowSpec_Entry.h.

ACE_CString TAO_FlowSpec_Entry::flow_protocol_ [protected]


flow protocol string.

Definition at line 236 of file FlowSpec_Entry.h.

Referenced by flow_protocol_str(), parse_flow_protocol_string(), and set_protocol().

ACE_CString TAO_FlowSpec_Entry::flowname_ [protected]


name of this flow.

Definition at line 227 of file FlowSpec_Entry.h.

ACE_CString TAO_FlowSpec_Entry::format_ [protected]


format string.

Definition at line 218 of file FlowSpec_Entry.h.

TAO_AV_Flow_Handler* TAO_FlowSpec_Entry::handler_ [protected]


Definition at line 255 of file FlowSpec_Entry.h.

int TAO_FlowSpec_Entry::is_multicast_ [protected]


Definition at line 243 of file FlowSpec_Entry.h.

Referenced by is_multicast(), parse_address(), and set_protocol().

ACE_Addr* TAO_FlowSpec_Entry::local_addr_ [protected]


Definition at line 251 of file FlowSpec_Entry.h.

ACE_Addr* TAO_FlowSpec_Entry::local_control_addr_ [protected]


Definition at line 252 of file FlowSpec_Entry.h.

Referenced by get_local_control_addr(), set_local_control_addr(), and ~TAO_FlowSpec_Entry().

char** TAO_FlowSpec_Entry::local_sec_addr_ [protected]


Definition at line 246 of file FlowSpec_Entry.h.

Referenced by get_local_sec_addr(), parse_address(), and set_local_sec_addr().

int TAO_FlowSpec_Entry::num_local_sec_addrs_ [protected]


Definition at line 247 of file FlowSpec_Entry.h.

Referenced by num_local_sec_addrs(), parse_address(), and set_local_sec_addr().

int TAO_FlowSpec_Entry::num_peer_sec_addrs_ [protected]


Definition at line 249 of file FlowSpec_Entry.h.

Referenced by num_peer_sec_addrs(), and set_peer_sec_addr().

ACE_Addr* TAO_FlowSpec_Entry::peer_addr_ [protected]


Definition at line 245 of file FlowSpec_Entry.h.

Referenced by get_peer_addr(), set_peer_addr(), and ~TAO_FlowSpec_Entry().

ACE_CString TAO_FlowSpec_Entry::peer_address_str_ [protected]


Peer Addr in string format i.e hostname:port.

Definition at line 215 of file FlowSpec_Entry.h.

ACE_Addr* TAO_FlowSpec_Entry::peer_control_addr_ [protected]


Definition at line 250 of file FlowSpec_Entry.h.

char** TAO_FlowSpec_Entry::peer_sec_addr_ [protected]


Definition at line 248 of file FlowSpec_Entry.h.

Referenced by get_peer_sec_addr(), and set_peer_sec_addr().

TAO_AV_Core::Protocol TAO_FlowSpec_Entry::protocol_ [protected]


name of the protocol used.

Definition at line 230 of file FlowSpec_Entry.h.

TAO_AV_Protocol_Object* TAO_FlowSpec_Entry::protocol_object_ [protected]


Definition at line 257 of file FlowSpec_Entry.h.

Referenced by protocol_object().

Role TAO_FlowSpec_Entry::role_ [protected]


Definition at line 259 of file FlowSpec_Entry.h.

Referenced by role().

TAO_AV_Transport* TAO_FlowSpec_Entry::transport_ [protected]


Definition at line 253 of file FlowSpec_Entry.h.

int TAO_FlowSpec_Entry::use_flow_protocol_ [protected]


Definition at line 238 of file FlowSpec_Entry.h.

Referenced by parse_flow_protocol_string(), and set_protocol().

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 13:48:36 2006 for TAO_AV by doxygen 1.3.6
